ENHWI-N3

802.11n Wireless Router

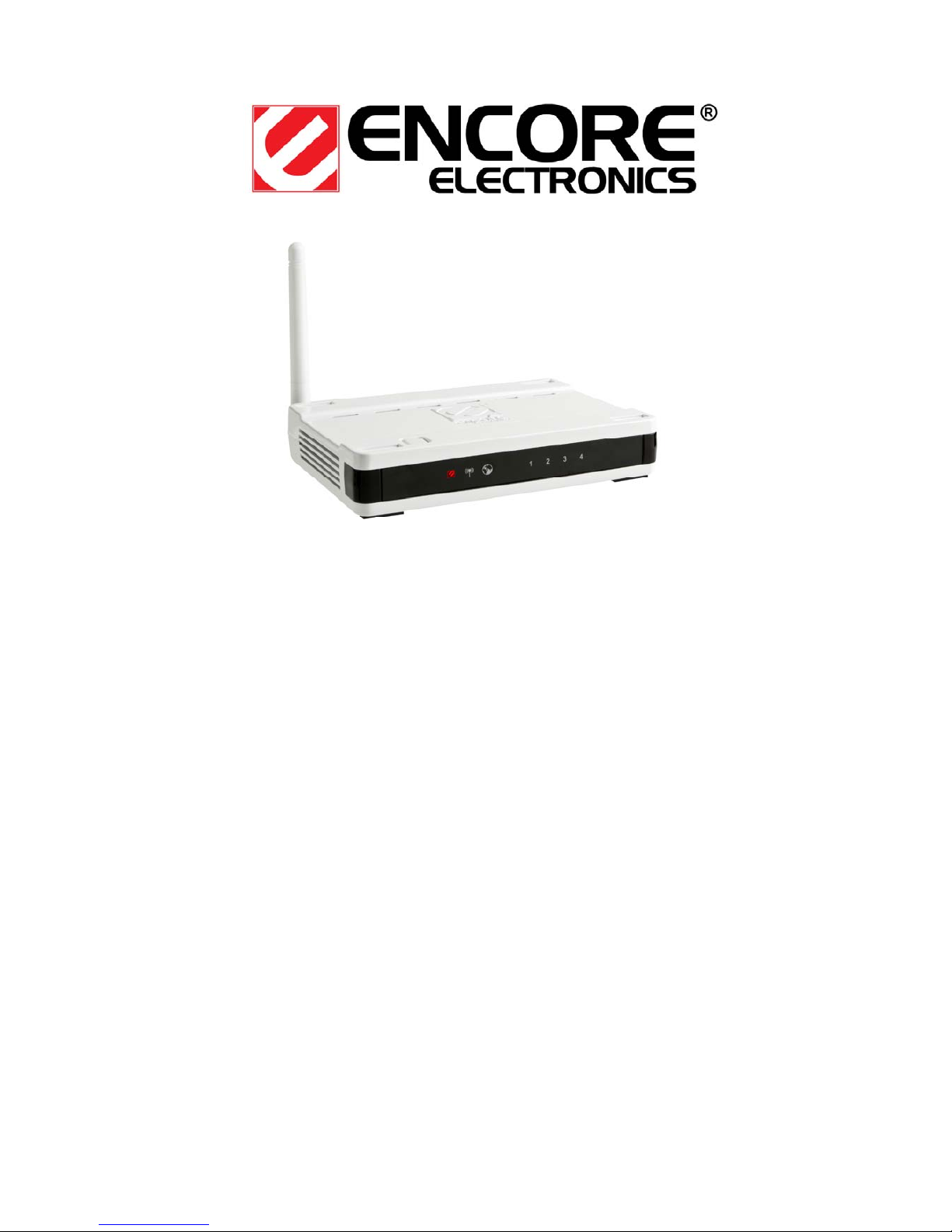

Product Description

Encore’s ENHWI-N3 802.11n Wireless Router’s 1T1R Wireless single chip can deliver up to 3x faster

speed than of 802.11g devices. ENHWI-N3 supports home or small office network with superior

throughput and performance and unparalleled wireless range. With easy to use WPS™ function, it helps

users securely connect to a wireless device with just one push of a button.

ENHWI-N3 is also equipped with a built-in 4-port full-duplex 10/100 Fast Ethernet Switch to connect to

your wired-Ethernet computers and devices together to make a LAN. The Router function ties it all

together and lets your whole network computers and laptops able to browse the internet and share the

high-speed cable or DSL Internet connection using just one public IP address.

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

Key Features

•Compatible with IEEE 802.11n Draft 2.0 Specifications, provides wireless speed up

to 150 Mbps physical data rate

•Backward compatible with IEEE 802.11g high rate standard to provide wireless

Ethernet speeds of 54 Mbps data rate

•4 x 10/100 Mbps Fast Ethernet port for wired LAN with Auto MDI-X function

•1 x 10/100Mbps WAN port for DSL or Cable Modem with Auto MDI-X function

•IEEE 802.11 b/g/n Infrastructure operating modes

•Allows auto fallback data rate for optimized reliability, throughput and transmission

range

•Supports wireless data encryption with 64/128-bit WEP standard for security

•Supports enhance security for WPA-PSK, WPA2-PSK, WPA and WPA2

•Web-based configuration tools and management via WEB Browser

•Supports WPS™ (Wi-Fi Protected Setup Specification Windows)

•Supports PPPoE / PPTP / L2TP protocol for xDSL ISP connection

•Supports NAT feature to share one public IP address to all LAN user

•Supports DHCP Server / Client

•Supports Firewall protection, Virtual server mapping, Special application setting

•Supports UPnP

•Supports statistics information

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

HARDWARE SPECIFICATION

MCU (Chipset) Ralink RT3050, 320MHz embedded RF/MAC/BBP

Memory 16MB SDRAM

Flash 4MB

WAN:

One 10/100 Fast Ethernet RJ-45

LAN:

Four 10/100 Fast Ethernet RJ-45

Reset Button

Power Input Port Jack

Interface Ports

WPS™ (WiFi Protected Setup) Button

Power Status

WAN (Internet connection)

10/100Mbps LAN1 to LAN4

LED Status

WLAN (Wireless Connection)

Power Requirements Power Supply: (Full Range)

200 to 240 VAC ± 10% (ETSI) Europe

100 to 120 VAC ± 10% (FCC) US

Device Input Power: 12 VDC / 1A

RF SPECIFICATION

Frequency Band 2.400～2.484 GHz

Modulation

Technology

•OFDM: BPSK, QPSK, 16-QAM, 64-QAM

•DBPSK, DQPSK, CCK

Operating Channels 11 for North America, 13 for Europe

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

Wireless Settings zWireless Mode – 802.11b / 802.11g /802.11n Draft 2.0

zChannel Selection (Varies by Country or Region)

zChannel Bandwidth (Auto 20/40 MHz, 20MHz, 40MHz)

zTransmission Rate

- 11g: Best=54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps

Guard Interval 800 ns Guard Interval 400 ns

MCS

Index 20MHz

(Mbps) 40MHz

(Mbps) 20MHz

(Mbps) 40MHz

(Mbps)

0 6.5 13.5 7.2 15

1 13 27 14.4 30

2 19.5 40.5 21.7 45

3 26 54 28.9 60

4 39 81 43.3 90

5 52 108 57.8 120

6 58.5 121.5 65 135

7 65 135 72.2 157.5

Receive Sensitivity

(Typical)

•IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm

•IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm

•IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm

Available Transmit

Power

•IEEE802.11n - MCS7@ 15dBm

•IEEE802.11g - 6~54 Mbps@ 15dBm

•IEEE802.11b - 1, 11Mbps@ 16dBm

Antenna X1 Peak Gain = 2 dBi with SMA connector

Environmental and Physical

Temperature Range 0 to 45° C - Operating, -10 to 70 ° C - Storage

Humidity (non-condensing) 15%～95% typical

Dimensions 138mm (L) x 97mm (W) x 25mm (H)

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

SOFTWARE FEATURES

Router and Gateway

Topology Infrastructure

Operation Modes AP / Router

LAN •DHCP Server

•Static Routing Table

•UPnP

WAN •PPTP

•PPPoE

•L2TP

•Static IP

•DHCP Client

•Clone MAC

Router •NAT/ NAPT

•Static Routing

•Dynamic Route

•Virtual Server Mapping

•IP Address Mapping

•Port Forwarding

•Port Triggering

•Special Application

•ALG (Application Layer Gateway), supports (RTP/RTSP,

AOL, FTP, CMP, WMP/MMS, NetMeeting, SIP)

•DNS Relay

•DDNS

Time Zone (NTP client)

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

Firewall •Ping blocking

•DoS (Blocking Ping, Port scan, Sync Flood)

•MAC / IP Filtering

•ICMP Blocking

•SPI (Stateful Packet Inspection)

•DMZ (Demilitarized Zone) Host

•Policy Based Parental Controls

•Port Range / Service Filtering

•Internet Domain Restriction

•Dynamic URL Filtering / Keyword Filtering

VPN VPN pass-through (PPTP, L2TP, IPSEC)

Wireless •Power Saving (Green Technology)

•64/128 bit WEP Encryption

•WPA Personal (WPA-PSK using TKIP or AES)

•WPA Enterprise (WPA-EAP using TKIP)

•802.1x Authenticator

•Hide SSID in beacons

•Wi-Fi Protected Setup™ (WPS™)

•WDS

•ACL control

•Best channel selection

•Speed / Bandwidth monitor

QoS •WMM (Wi-Fi Multimedia)

•Application base

oPriority Queue

oBandwidth Allocation

ENHWI-N3 Specification Sheet

16483 Old Valley Blvd. La Puente, CA 91744

Tel - (626) 336-4567 / Fax – (626) 336-2345

www.encore-usa.com

ENHWI-N3 Management

Configuration Web-based configuration (HTTP) using popular web browsers

Firmware Upgrade •Via webpage upgrade

•Auto recovery once firmware upgrade fail

Administrator Setting •Administrator password change

•Idle time out

Reset Setting •Reboot

•Reset to Factory Default

System monitoring •Speed and Bandwidth monitoring

Scheduling •Enable Firewall

•Enable power saving

Easy access •User can type model name and access the main page.

Install smart wizard •Guide the users for a user friendly initial router setup
