ABOUT THIS MANUAL
This manual is designed for use with the ENUET-3USB USB 3-Port Hub with Ethernet
Adapter. Information in this document has been carefully checked for accuracy; however, no
guarantee is given to the correctness of the contents. The information in this document is subject
to change without notice. Encore Electronics Inc. does not make any representations or
warranties (implied or otherwise) regarding the accuracy and completeness of this document
and shall in no event be liable for any loss of profit or any commercial damage, including but not
limited to special, incidental, consequential, or other damage.
SAFETY INSTRUCTIONS
Read the following safety instructions carefully:
Keep this User’s Manual in a safe but easily accessible place for future reference
Keep this equipment away from high humidity
If any of the following situation arises, get the equipment checked by a service technician:
•The equipment has been exposed to moisture or soaked.
•The equipment has been dropped and damaged.
•The equipment has obvious sign of breakage.
•The equipment has not been working well or you cannot get it to work according to the
User’s Manual.
COPYRIGHT
This document contains proprietary information protected by copyright.All right are reserved. No
part of this manual may be reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer.
TRADEMARKS
All trademarks and registered trademarks are the property of their respective owners or
companies.
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
Table of Contents
1. Introduction............................................................................................................1
Features.............................................................................................................................1
Package Contents..............................................................................................................2
System Requirements........................................................................................................2
2. Installation..............................................................................................................3
Hardware Connection .......................................................................................................3
Software Driver Installation..............................................................................................4
On Windows® 2000/2003/XP/Windows Vista®/Windows® 7 .......................................4
On Mac OS X 10.3 and 10.4.............................................................................................8
On Mac OS X 10.5 and 10.6...........................................................................................11
Verifying the Driver Installation................................................................................... 12
On Windows® 2000/2003/XP/Windows Vista®/Windows® 7 .....................................13
On Mac OS X 10.3/10.4/10.5/10.6 ...............................................................................155
3. Specifications.......................................................................................................16
4. Regulatory Compliance.......................................................................................17
FCC Conditions ..............................................................................................................17
CE ...................................................................................................................................17
WEEE Information .........................................................................................................17
1. Introduction
The Encore’s ENUET-3USB is a two-in-one product. It is a combination of a 3-port USB
Hub and an Ethernet Adapter. As a fully integrated USB solution, the ENUET-USB
allows users to connect to the Ethernet network while adding 3 more extra USB ports.
Each USB port can be rotated up to 180º giving more space to larger USB devices. It
comes with a flexible thus sturdy built-in cable allowing you to adjust to the larger
devices around your laptop, and to give space to the moving USB devices such as
mouse. ENUET-3USB is very convenient device to accessorize your computing power, a
perfect accessory device for all active and busy mobile power users.
Features
Ethernet LAN
Ethernet 10/100M LAN port RJ-45 Connector
Compliant with USB 2.0 and USB 1.1 specifications
Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX)
standards
Supports both full-duplex and half-duplex operations
Powered by USB port. No external power adapter required
Auto MDI / MDI-X Auto Cross Over detection
Driver supports Windows®XP, Windows Vista®, Windows®7 and Mac OSX
V10.3 and 10.4. The Mac OS X 10.5 and 10.6 comes with a built-in driver,
no need to load from the installation CD.
USB Hub
1 upstream and 3 downstream USB ports
Compliant with USB 2.0 (Data Rate 1.5/12/480 Mbps)
Connects up to 127 USB Devices
Bus-power and self-power mode used (Power adaptor not included)
Over electric current detection and protection
Plug-n-Play. Works on almost all operating systems
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
1
Package Contents
ENUET-3USB USB 3-port Hub with Ethernet
Adapter 1 pc
Setup Disc CD (Manual & Driver) 1 pc
Quick Installation Guide 1 pc
System Requirements
Computer, Netbook or Laptop running Windows®2000/XP/2003/ Windows
Vista®Windows®7, Mac OSX V10.3 10.4 10.5 and 10.6
One available USB port
CDROM Drive
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
2
2. Installation
Hardware Connection
General instructions for installing the ENUET-3USB USB 3-port Hub with Ethernet
Adapter is provided below.
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
3
Software Driver Installation
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
For MS Windows Users
NOTE:
DO NOT connect the ENUET-3USB to your computer at this time. You will be
instructed to do so later.
1. Insert the provided setup CD into your disc drive. An Encore Welcome
screen will pop up briefly followed by the Main Menu as seen in the images
below: The USB Hub is a Plug-N-Play, no driver needed. The ”Windows
Driver” icon in the main menu is for the 10/100 Ethernet Adapter only. Click
on the “Windows Driver” icon to start the driver installation.
If for some reason the Welcome and the Main Menu screens did not
automatically pop up, you can load the driver manually by locating the
setup.exe file under the Windows folder in the CDROM, double-click the
setup.exe file and proceed to Step 2.
Welcome Screen
4

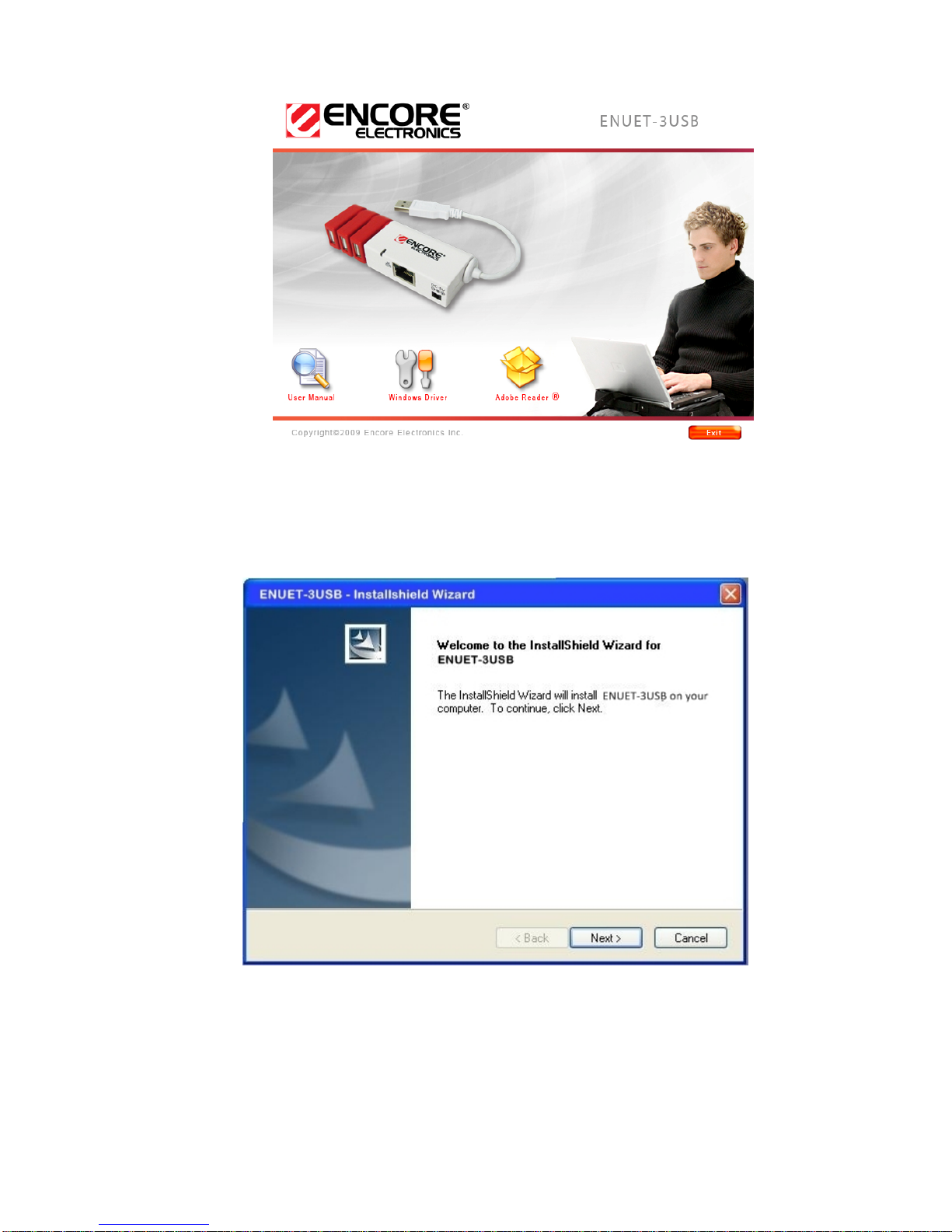

Main Menu Screen
2. The ENUET-3USB InstallShield Wizard will guide you thru the rest of the
hardware installation. Click Next to proceed.
3. Click Install to begin. The installation process may take a few minutes.
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
5
4. Click Finish to finish the driver installation. You will be prompted to re-start
your computer after. If you prefer not to re-start your computer the Ethernet
LAN port will not work until the PC is restarted. It is highly recommended you
restart your computer at this stage.
ENUET-3USB User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
6
