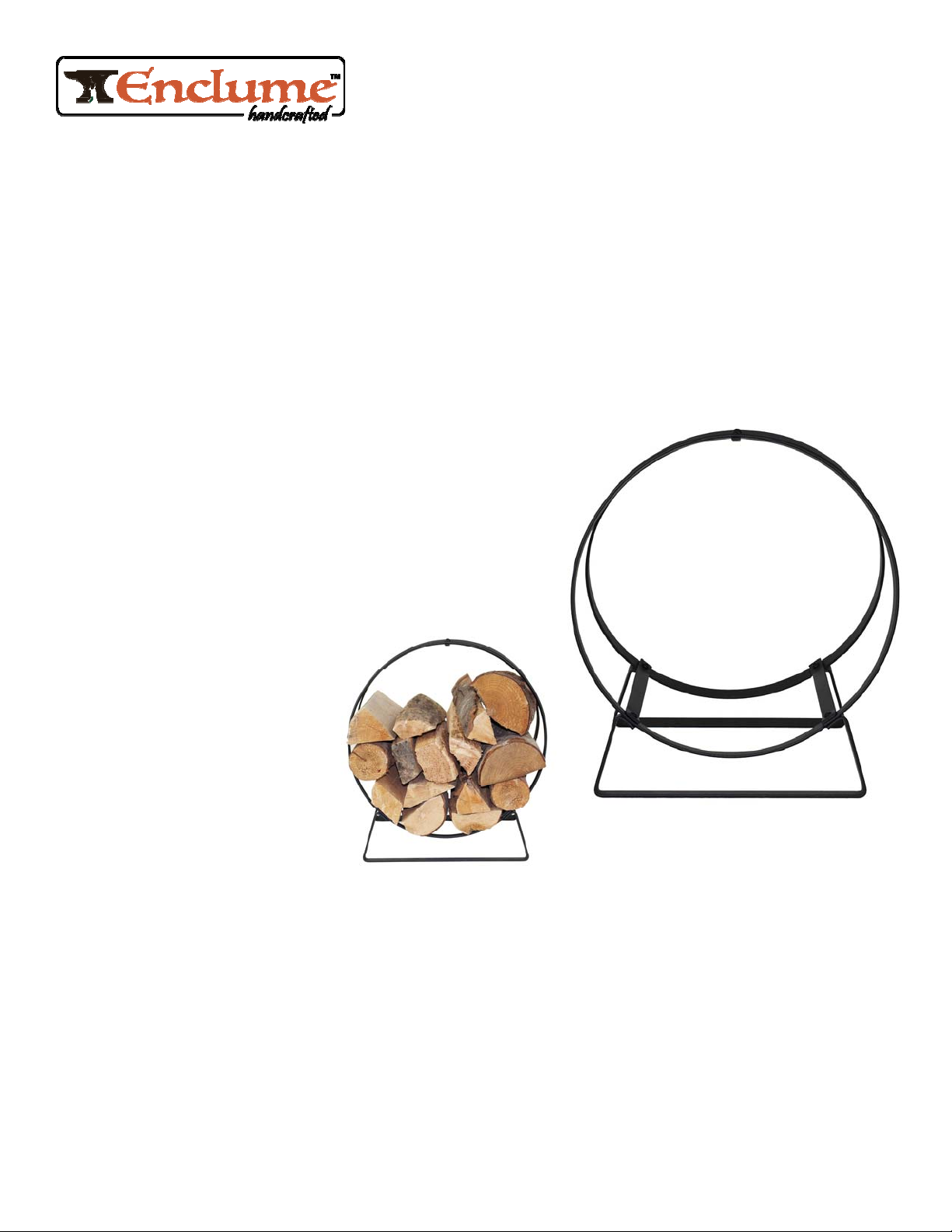

JOINED HOOP LOG RACK

Model LR35

Quality, design, strength and function –

Features we build in you can count on.

Congratulations for acquiring one of the finest

Hearthside log racks made.

WARNING:

READ ALL OF THE INSTRUCTIONS BEFORE ASSEMBLING AND USING YOUR RACK.

ASSEMBLY INSTRUCTIONS for LR35

Hardware included:

4 – 5/16"x 5/8"Button head screws

2 – 5/16"x 1/2"Button head screws

1 – 3/16"Allen wrench

Components included:

2 – Hoop body pieces

2 – Legs

2 – Crossbars

1 – Upper Support Bar

ASSEMBLY STEPS

1) Place a hoop body piece on top of and parallel to one of the legs. Place the crossbars perpendicular to

the hoop body piece aligning the holes and insert one of the four 5/16"x 5/8"button head screws

through all 3 holes on both sides (see figure 2). Repeat this step on the other side of the hoop in the

same leg. The screws should be inserted from the top down toward the floor. Tighten the screws only

finger tight while assembling. Repeat for the other hoop and leg.

2) Using the 5/16"x 1/2"button head screws, attach the Upper Support Bar under the top of the hoops

aligning the holes and inserting the screw from the top down.

3) Square up your rack and tighten all the screws firmly.

See reverse side for exploded drawing and warranty information.

Enclosed you will find everything needed for the

assembly and use of your storage rack. Two

people make assembly and installation easier.

The parts and hardware included are:

It is important that your rack is assembled correctly. If the unit is assembled or

used incorrectly, it could become unstable possibly causing injury.

Enclume Design Products

24 Colwell Street, Port Hadlock, WA 98339

Phone 360-385-6100 Fax 360-385-6156

www.enclume.com

Limited Warranty: This product is warranted to be free of material defects for a period of five years from the date of purchase. Your exclusive

remedy is the repair or replacement of the defective product and shall be subject to the following conditions: (1) receipt of your notice of any

defect by Enclume within the warranty period and (2) your return of the defective product to Enclume Design Products, 24 Colwell St. , Port

Hadlock, WA 98339, postage prepaid ,within 20 days following the issue of a return authorization number (“RA”) to you by Enclume (which

RA may be obtained by telephoning the number at the bottom of this instruction. There are no other warranties, expressed or implied. THERE

ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTIC ULAR PURPOSE. ENCLUME SPECIFICALLY

DIS-CLAIMS ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE OR USE OF

THIS PRODUCT.

WARNING

ure 1

Figure 2
