Emtek EMpowered Smart Lock Manuel utilisateur
EMPowered™
Motorized Smart Lock Upgrade
- Connected by August
www.emtek.com
2
EMPowered™ Motorized Smart Lock Upgrade
- Connected by August
Deadbolt
Sideplate
Tubular Sectional Entry Set
Tubular Monolithic/Full Length Entry Set
Hardware Troubleshooting
Denitions
Programming Troubleshooting
Resetting Lock to Factory Default
Factory Settings
Compliance
3
16
29
42
55
55
56
57
57
58
3
DEADBOLT
EMPowered™ Motorized Smart Lock Upgrade
- Connected by August
Deadbolt
4
DEADBOLT
What’s in the box
ITEM NO. DESCRIPTION QTY.
1EMPower Unit 1
1a August Module 1
1b Battery Cover 1
1c AA Batteries 4
1d M4-0.7 x 8mm Machine Screws 3
1e Interior Escutcheon 1
1f #10-32 x 2-1/8” Machine Screws 2
1g Mounting Plate 1
2Deadbolt Latch 2-3/4” Backset 1
2Deadbolt Latch 2-3/8” Backset 1
ITEM NO. DESCRIPTION QTY.
3Deadbolt Screw Guide 1
4Deadbolt Trim 1
5Deadbolt Extension Collar 1
6Deadbolt Cylinder 1
7#8 x 3/4”Wood Screws 4
8Deadbolt Strike Plate 1
9Deadbolt Security Plate 1
10 #10 x 3”Wood Screws 2
11 August Connect 1
12 August DoorSenseTM 1
1b
78
10 9
1d 1e
1a
1f
1g
1c
1
2
3
56
4
711 12
5
DEADBOLT
Door Prep
Door Jamb Prep
21
4"
2-3/8"
or
2-3/4"
.
1" Dia
Edge
Bore
1"
2-1/8" Dia.
Bore
1/8” Deep
23
4"
1-1/8"
6
DEADBOLT

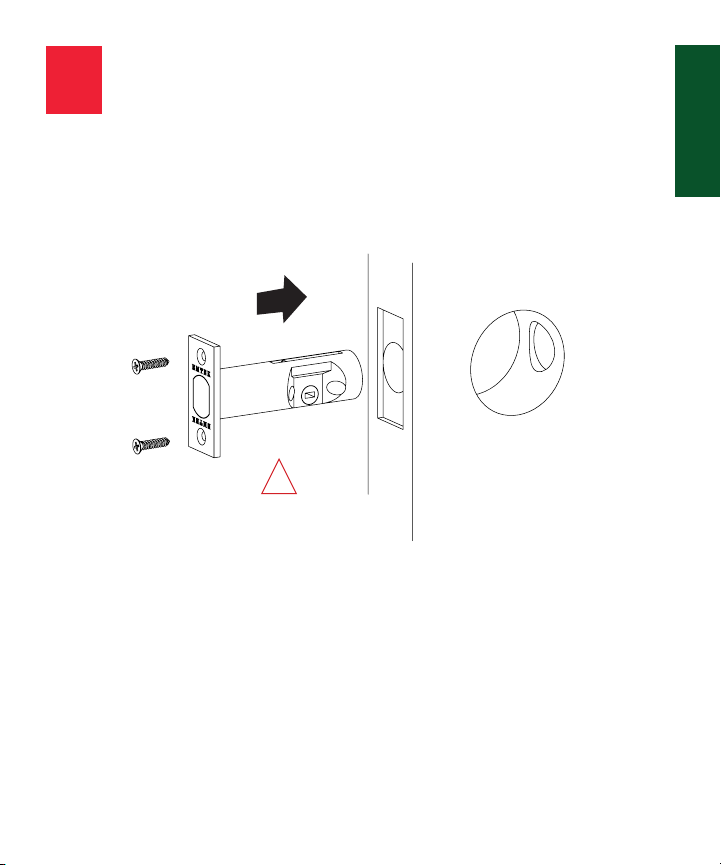

Install Latch
1
Note: Use only the
supplied latch for proper
functionality.
!
7
DEADBOLT
Install Lock Cylinder
Extension Collar
required for thin doors
2
Must use
screw guide
!
8
DEADBOLT

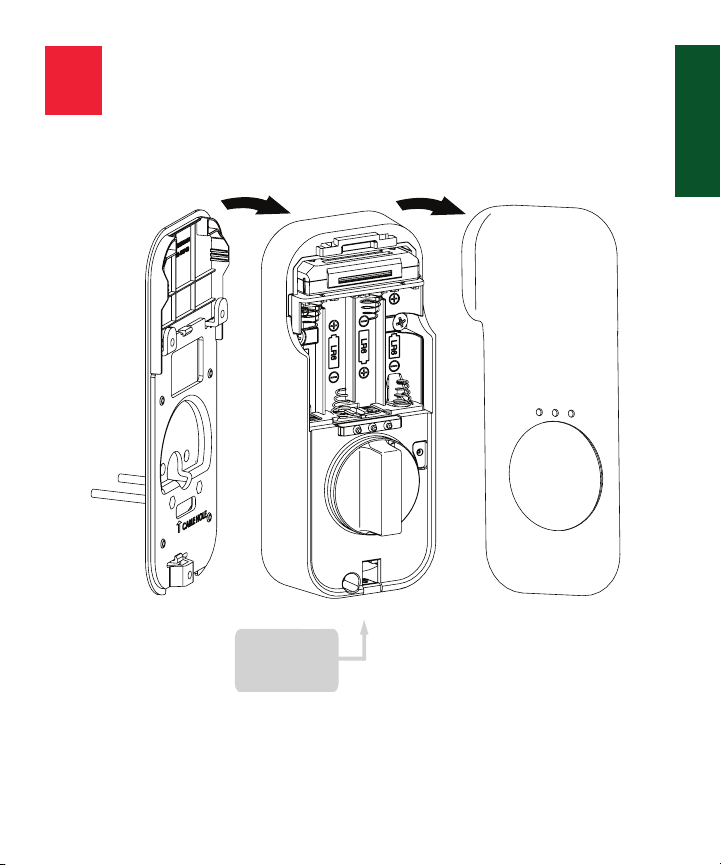

Remove Battery Cover
3
Loosen screw
on bottom to
remove cover.
9
DEADBOLT
Install Interior Mounting Plate
4
10
DEADBOLT
Check Interior Mounting Plate Alignment
5
Center tail piece in
mounting plate hole
before tightening.
!
