EMxpert ERX+ | EHX+

User Manual

v5.0.8.10-1.8.0.9

Notices

No part of this user manual may be reproduced in any form or by any means (including but not limited to

electronic storage and retrieval or translation into a foreign language) without prior consent from EMSCAN

Corporation as governed by Canada and international copyright laws.

Trademark Acknowledgements

Adobe Acrobat ® and Reader ® are U.S. registered trademarks of Adobe Systems Incorporated.

Windows ® is U.S. registered trademarks of Microsoft Corporation.

Warranty

The material contained in this user manual is provided “as is” and is subject to being changed, without

notice, in future editions. Further to the maximum extent permitted by applicable law, EMSCAN disclaims

all warranties, either expressed or implied, with regard to this user manual and any information contained

herein, including but not limited to the implied warranties of merchantability and fitness for a particular

purpose. EMSCAN shall not be liable for errors or for incidental or consequential damages in connection

with the furnishing, use, or performance of this document or any information contained herein. Should

EMSCAN and the user have a separate written agreement with warranty terms covering the material in

this document that conflict with these terms, the warranty terms in the separate agreement shall control.

Safety Notices

Caution

A CAUTION notice denotes a hazard. It calls attention to operating procedure, practice, or the like that,

if not correctly performed or adhered to, could result in damage to the product or loss of important data.

Do not proceed beyond a CAUTION notice until the indicated conditions are fully understood and met.

Warning

A WARNING notice denotes a hazard. It calls attention to an operating procedure, practice, or the like

that, if not correctly performed or adhered to, could result in personal injury or death. Do not proceed

beyond a WARNING notice until the indicated conditions are fully understood and met.

Notices

Safety Notices

Warranty

EMSCAN warrants to its customers that any EMxpert from the date of delivery will perform substantially in

accordance with the specifications provided, when properly installed, operated, maintained and repaired

for the duration of warranty purchased by the customer.

During the warranty period, EMSCAN will at its option either repair or replace, at no charge, EMxpert

products or parts thereof which do not perform in accordance with the specifications.

For warranty service or repair, EMxpert must be returned to EMSCAN. EMSCAN will pay shipping charges

to and from EMSCAN if Buyer is under warranty, original or extended. You can extend your original

warranty by purchasing option 3000-1810 or 3000-1811 (Additional One Year Customer Care Package).

Is your document and EMxpert software up-to-date?

Periodically, we update the documents and EMxpert software. You may access to the latest versions from

below links:

User manual: http://www.emscan.com/emxpert/EMx_userManuals.cfm

Training manual: http://www.emscan.com/emxpert/EMx_trainingManual.cfm

Software release notes: http://www.emscan.com/emxpert/EMx_softwrRelease.cfm

Technical bulletins: http://www.emscan.com/emxpert/EMx_TechnicalBulletins.cfm

FAQ: http://www.emscan.com/emxpert/EMx_FAQ.cfm

To receive email notifications for the updates, please contact us at [email protected]

Warranty

Software Updates

Table of Contents

Contact Information

............................................................................

About the EMxpert Products

...................................................................

Minimum System Requirements

...............................................................

EHX+ Cables and Component Checklist

......................................................

EHX+ Connection Overview

...................................................................

ERX+ Cables and Component Checklist

.....................................................

ERX+ Connection Overview

..................................................................

Option and Accessories

.......................................................................

Quick Installation and Checklist

..............................................................

EMxpert ERX+ Limitations

....................................................................

EMxpert EHX+ Limitations

....................................................................

Hardware Setup

................................................................................

Software Installation

..........................................................................

Setup and Modes of Operation

...............................................................

Menu Bar

.......................................................................................

Quick Facts about Menu Bar

 .....................................................................

Viewing Scan Results

.........................................................................

Spectral View

 ....................................................................................

Spaal View

 .....................................................................................

Nodes

...........................................................................................

How to Add a Node?

 .............................................................................

How to Name a Node?

 ...........................................................................

How to View a Node?

 ...........................................................................

How to Delete a Node?

 ..........................................................................

How to Export Data?

 .............................................................................

Preferences: Display Opons

 .....................................................................

Project Node Sengs

 ...........................................................................

Overlay Editor (How to Superimpose Graphical Image of a DUT)

 ..................................

How to Import Overlay Aer a Scan (Spaal or Spectral/Spaal or Handheld Probe Scan)

 .........

Report Generator

..............................................................................

Scan Types

.....................................................................................

Table of Contents

Spectral Scan

..................................................................................

Spatial Scan

....................................................................................

Spectral/Spatial Scan

..........................................................................

Handheld Probe Scan

........................................................................

Spectral Overlay

...............................................................................

Spectral Comparison

..........................................................................

Interleaved Scan

...............................................................................

Spatial Comparison

...........................................................................

Measurement Tips

.............................................................................

Scanning a PCB

 ..................................................................................

Scanning a System Level Device

 ..................................................................

Appendix - Frequently Asked Questions (FAQ)

.............................................

Appendix - Fuse Replacement

................................................................

Appendix - How to Update Firmware

.........................................................

Appendix - Error Messages

...................................................................

Appendix -Regulatory Compliance

...........................................................

Safety and Regulatory Informaon

 ...............................................................

FCC Class B Noce

 ...............................................................................

CSA Cercaon

 .................................................................................

CE mark

 .........................................................................................

Notes

...........................................................................................

Table of Contents

Contact Information

Contact EMSCAN Technical Support for your questions. Have your unit’s serial number, software and

rmware versions available as well as your PC Windows OS version when you contact EMSCAN

Technical Support.

Phone:

Toll Free (North America Only): +1-877-367-2261

International: +1-403-291-0313 ext 2

Fax:

+1-403-250-8786

E-mail:

[email protected]

Website:

www.emscan.com

Address:

EMSCAN Corporation

#1, 1715 27th Avenue N.E.

Calgary, Alberta, Canada T2E 7E1

The serial number is located at the bottom of the scanner.

Start EMxpert software and click to access to software and rmware versions:

Contact Information

Serial Number and Software Version

About the EMxpert Products

EMxpert product family provides board-level design teams with world-leading fast very-near-eld magnetic

data to help diagnose EMC design issues. EMxpert product line consists of EHX (high-frequency scanner)

and ERX (high-resolution scanner). These instruments capture and display visual images of spectral and

spatial scan results in seconds. This allows the design team to immediately analyze and compare design

iterations. PCB designers can scan any board to identify both constant and time-based emission sources

in the range of 150 kHz to 8 GHz.

EHX consists of a patented scanner and compact adaptor, and a customer-supplied spectrum analyzer

and PC running EMxpert software. Free Keysight IO software application must also be installed on the

customer-supplied PC. The patented scanner consists of 1,218 H-eld (magnetic) probes spaced every

7.5 mm into an electronically switched array, which provides an effective 3.75 mm resolution. The system

operates from 150 kHz to 4 GHz or 150 kHz to 8 GHz; the upgrade from 4 GHz to 8 GHz is enabled with

an optional software license key.

EHX+ is a self-contained very-near-eld scanning device which uses the EHX scanner along with a

built-in spectrum analyzer. Simply connect the EHX+ into the PC with an Ethernet connection, install the

EMxpert software on the customer-supplied PC and begin measurements. The system operates from

150 kHz to 8 GHz.

ERX+ is a self-contained high-resolution very-near-eld scanning device which uses the EHX scanner

mounted on X and Y stepper motors with 0.12 mm incremental measurement steps. It also has a

built-in spectrum analyzer. Simply connect the ERX+ into the PC with an Ethernet connection, install the

EMxpert software on the customer-supplied PC and begin measurements. The system operates from

150 kHz to 8 GHz.

Minimum System Requirements

• CPU 333 MHz or faster

• 256 MB recommended for EHX+ and 8 GB recommended for ERX+

• 8 MB Video or more

• Windows 7/8/8.1 OS

• 10/100 Network Card

About EMxpert

EHX | EHX+ | ERX+

EHX+ Cables and Component Checklist

Components Supplied with the EHX+ System

1. EHX+ (integrated scanner with embedded spectrum analyzer, processing

electronics and cables)

2. Universal Power Supply:

3. Surface wave absorber: (part numbers: 3000-1806 and 3000-1808)

4. Ethernet cable: It connects the PC (laptop or desktop) to the EHX+ built-in spectrum

analyzer and controller boards.

5. EMxpert USB Drive includes the EMxpert software installation program and User Manual.

Customer Provided Components

1. PC (Laptop / Desktop): must support a LAN 10/100 connection. It runs the EMxpert software and

receives data, which it can display and manipulate immediately or store for future data presentation.

About EMxpert

EHX+ Cables and Component Checklist

EHX+ Connection Overview

Item Number Description

1Scanner LED light shows three stages:

Red: Boot mode

Orange: Initiation mode (checking adaptor’s rmware)

Green: User mode (adaptor is connected and ready). The LED will be

blinking during the measurements.

2ON / OFF switch. When ON the switch is lit

3RF In port (input from external). You can connect external devices such as

a handheld probe or automated probe, and amplier, attenuator, passband

lter etc. as long as the power into the RF In port does not exceed -10 dBm

4RF Out port (output directly from scanner). You can connect external

devices such as amplier, attenuator, passband lter etc. to condition the

signal directly from the scanner before its input into the built-in spectrum

analyzer

5Ethernet cable port

6Universal power supply port

7Fuse to provide protection against excess current

Specs: 3A / 250V, size: 0.177” Dia x 0.570” L (4.50 mm x 14.48 mm)

Recommended fuse: 0229003.HXP by Littelfuse Inc.

(Please refer to Appendix: Fuse Replacement)

8Pinhole for the factory settings reset

About EMxpert

EHX+ Connection Overview

Caution:

The surface of the scanner is made of Gorilla®glass. It may shatter if a sharp object is

dropped from a distance.

7 86

12345

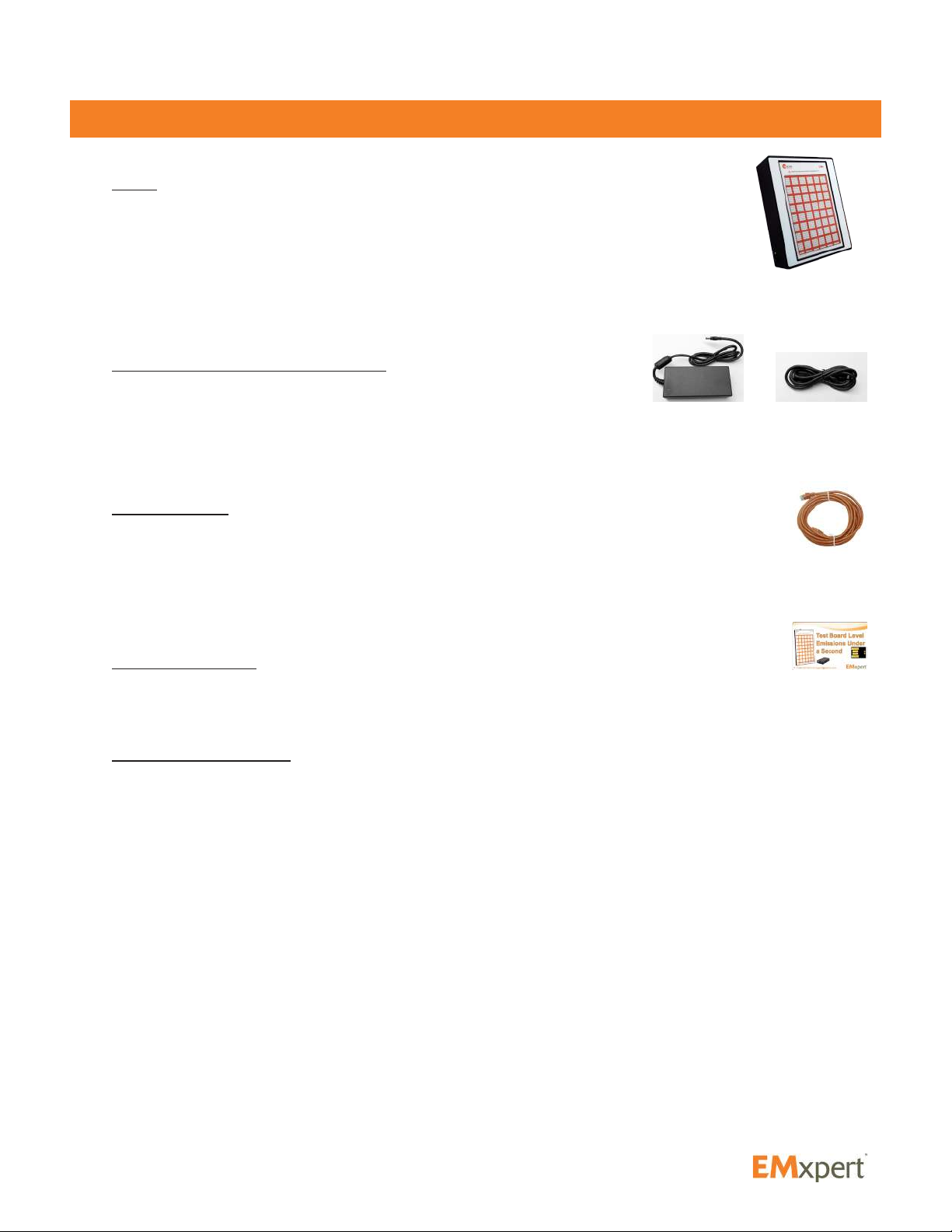

ERX+ Cables and Component Checklist

Components Supplied with the ERX+ System

1. ERX+ (integrated high resolution scanner with embedded spectrum analyzer,

processing electronics and cables)

2. 1 Universal power supply and cable:

3. Ethernet cable: It connects the PC (laptop or desktop) to the ERX+ built-in spectrum

analyzer and controller boards.

4. EMxpert USB Drive includes the EMxpert software installation program and User Manual.

Customer Provided Components

1. PC (Laptop / Desktop): must support a LAN 10/100 connection. It runs the EMxpert software and

receives data, which it can display and manipulate immediately or store for future data presentation.

About EMxpert

ERX+ Cables and Component Checklist
