Power consumption metre
GB
Device description
The power consumption metre P5801 (hereinafter referred to as metre) is an
electronic device which measures power consumption and can also calculate and
display operating costs of the measured appliance on agraph. The graph can be set
up to display the last 7 days/weeks/months. This function allows the user to reduce
power costs and decrease CO2emissions.
Specications:
Nominal voltage: 230–240 V~/50 Hz
Nominal current: max. 16 A
Max. load: 3 680 W
Operating voltage: 175–276 V~/50 Hz
Period recorded: 0 sto 9 999 days
Operating temperature: 0–50 °C
Measuring range: 2 to 3 680 W
Power consumption range: 0 kWh to 9 999 kWh
Battery: 2× 1.5 V (LR44/AG13)
Use in normal dry conditions with relative humidity ranging from 20 to 90 %
Connection:
First, remove the plastic ring from the battery space at the rear of the metre, as
shown in the picture. The installed batteries 2× 1.5V (LR44/AG13) are used to power
the metre memory.
Then, connect the metre to a230 V~ power network. Do
not connect any appliance to the metre yet. If the display
of the metre does not show any data or the data is dicult
to read, press the „RESET“ button using a sharp pointy
object such as a pen or a pencil. Then, the screen will
display all characters as shown on the gure below. This
display will remain for ca 3 seconds.
2
3
P5801
Display settings:
1. current time setup
1.1 Press and hold the „SET/OK“ button for 3 seconds. You will enter the settings
mode and the clock icon will start blinking.You can change the time values using
the buttons„ENERGY/+“ (increasing values) or„COST/-“ (decreasing values). Pressing
the„HISTORY“ button will switch between hours and minutes. Once current time is
set, press„SET/OK“.
Switching to 12/24 hour mode
After setting the current time, the metre will work on a 24 hour time cycle. If
you want to switch to 12 hour mode, simultaneously hold the „HISTORY“ and
„ENERGY/+“ buttons for 3 seconds. The display will show the AM or PM symbol. AM
indicates morning hours, PM afternoon hours. Set the desired time mode (12/24).
1.2 Total operating time of the connected appliance (TOTAL TIME):
Once the load (input power of the connected appliance) exceeds 2 W, total time will
start recording automatically. You can display the total operating time by pressing
the„COST/-“ button.
4
5

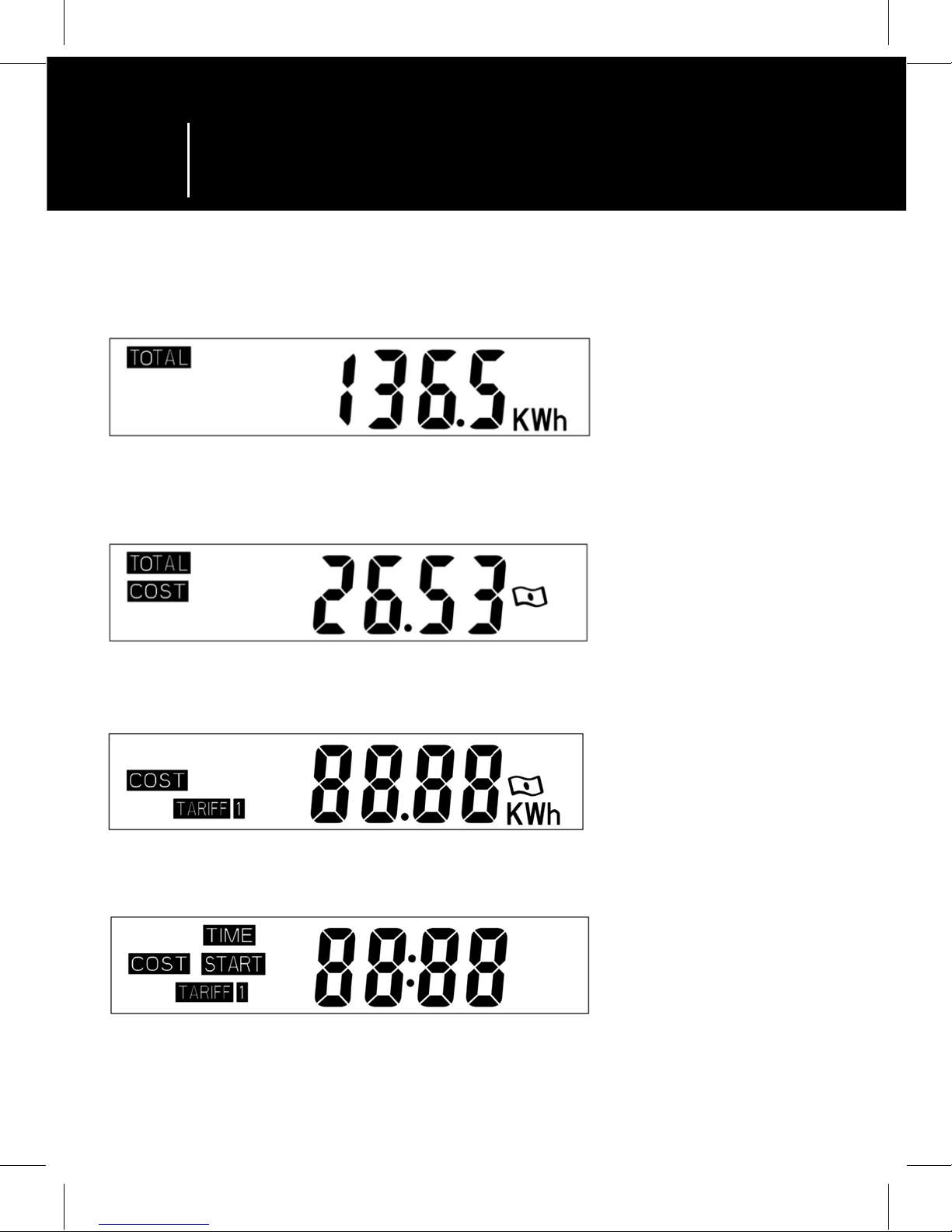

1.3 using the„COST/-“ button, the display will show the following, in order:
• Total operating time
• Total power consumption 0.00–9 999 kWh
• Total power costs 0.00–9 999 EUR
• Power costs in tari 1 (0.00 EUR/kWh – 9 999 EUR/kWh)
• Tari 1 start time
Power consumption metre
GB
4
5

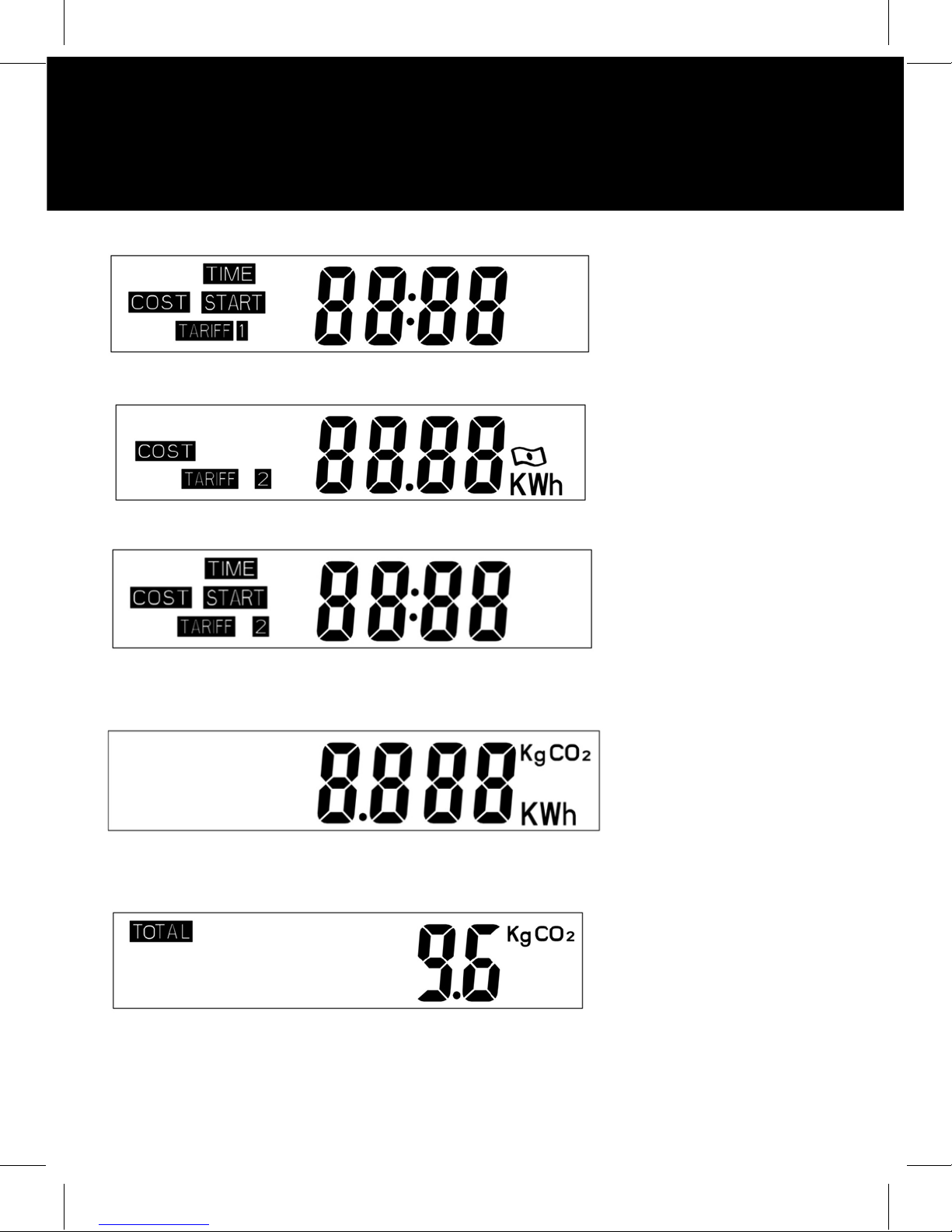

• Power costs in tari 2 (0.00 EUR/kWh – 9 999 EUR/kWh)
• Tari 2 start time
• CO2volume in kg: 0.00 – 9 999 kg CO2 /kWh
• Total CO2consumption in kg 0.00 – 9 999 kg
2. Setting power current tari
Keep pressing the„COST/-“ button until you reach the power current tari settings.
P5801
6
7
Power consumption metre
GB
Hold the „SET/OK“ button for 3 seconds. „DUAL TARIFF“ will start blinking. Again
press „SET/OK“ – use the „HISTORY“ button to change the number, then press
„ENERGY/+“ or„COST/-“ to set arange between 0.00 EUR/kWh and 9 999 EUR/kWh;
you can move between numbers using the„HISTORY“ button. Finally, press„SET/OK“
to conrm the set values.
1.3 using the„COST/-“ button, the display will show the following, in order:
• Total operating time
• Total power consumption 0.00–9 999 kWh
• Total power costs 0.00–9 999 EUR
• Power costs in tari 1 (0.00 EUR/kWh – 9 999 EUR/kWh)
• Tari 1 start time
6
7
P5801
• Power costs in tari 2 (0.00 EUR/kWh – 9 999 EUR/kWh)
• Tari 2 start time
• CO2volume in kg: 0.00 – 9 999 kg CO2 /kWh
• Total CO2consumption in kg 0.00 – 9 999 kg
2. Setting power current tari
Keep pressing the„COST/-“ button until you reach the power current tari settings.
8
9
Hold the „SET/OK“ button for 3 seconds. „DUAL TARIFF“ will start blinking. Again
press „SET/OK“ – use the „HISTORY“ button to change the number, then press
„ENERGY/+“ or„COST/-“ to set arange between 0.00 EUR/kWh and 9 999 EUR/kWh;
you can move between numbers using the„HISTORY“ button. Finally, press„SET/OK“
to conrm the set values.
2.1 Setting power current tari 1 time
After setting the tari values, the screen will show„TIME START“
Press the„HISTORY“ button and select which value you want to change. By pressing
„ENERGY/+“ or „COST/-“, you can increase or decrease the values. When you are
done, press„SET/OK“.
2.2 Setting power current tari 2
To set up power current tari 2, proceed as described in points 2 and 2.1
Power consumption metre
GB
8
9
Note:
Ifdualtariisset,tari1willstartfromthesettimeandturnowhenthesettimefortari
2 comes. Current tari 2 will end the moment tari 1 begins.
3. Overload settings
Hold the „ENERGY/+“ button for 3 seconds; the top left corner of the screen will
now display„OVERLOAD“. Then, using the„HISTORY“ button, move between values
and set the maximum load. The default setting is 3 680 W. You can save the settings
by pressing„SET/OK“. After exceeding the set value, the „OVERLOAD“ sign will start
blinking.
4. Setting CO2:
Keep pressing„COST/-“ until you reach the following screen.
Then hold the „SET/OK“ button for 3 seconds. Using the „HISTORY“ button, move
between values. „ENERGY/+“ and „COST/-“ increase/decrease the values. You can
save the settings by pressing„SET/OK“.
5. Consumption graph for the last 7 days/weeks/months
Using the „HISTORY“ button, you can change display settings to the last 7 days,
7 weeks or7months.
P5801
10
11
7 days
the top right corner of the graph shows the conversion ratio, indicating the power
consumed. In this case, each bar corresponds to 1 kWh, i.e. yesterday, power
consumption was 2 kWh (1 kWh × 2 bars)
7 weeks
the top right corner of the graph shows the conversion ratio, indicating the power
consumed. In this case, each bar corresponds to 20 kWh (2 kWh × 10), i.e. last week,
power consumption was 60 kWh (20 kWh × 3 bars)
7 months
the top right corner of the graph shows the conversion ratio, indicating the power
consumed. In this case, each bar corresponds to 50 kWh (5 kWh × 10), i.e. last month,
power consumption was 100 kWh (50 kWh × 2 bars)
Power consumption metre
GB
