Emglo E810-4V Manuel utilisateur
E810-4V
Heavy-Duty 4 Gal Stacked Tank Contractor Air Compressor
Réservoir robuste empilé de 15.1 L (4 gal) Compresseur d'air pour entrepreneur
Tanque incorporado de 4 galones de alta resistencia Compresor de aire para la construcción
EM810-4M
Heavy Duty 4 Gallon Electric Dolly-Style Stacked Tank Compressor
Compresseur électrique de 15,1 L (4 gals) de série lourde à réservoirs
superposés de type traineau.
Compresor eléctrico de tanques superpuestos con plataforma rodante
para trabajos pesados (4 gal)
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES
DE USAR EL PRODUCTO.
REV: 1
2
English

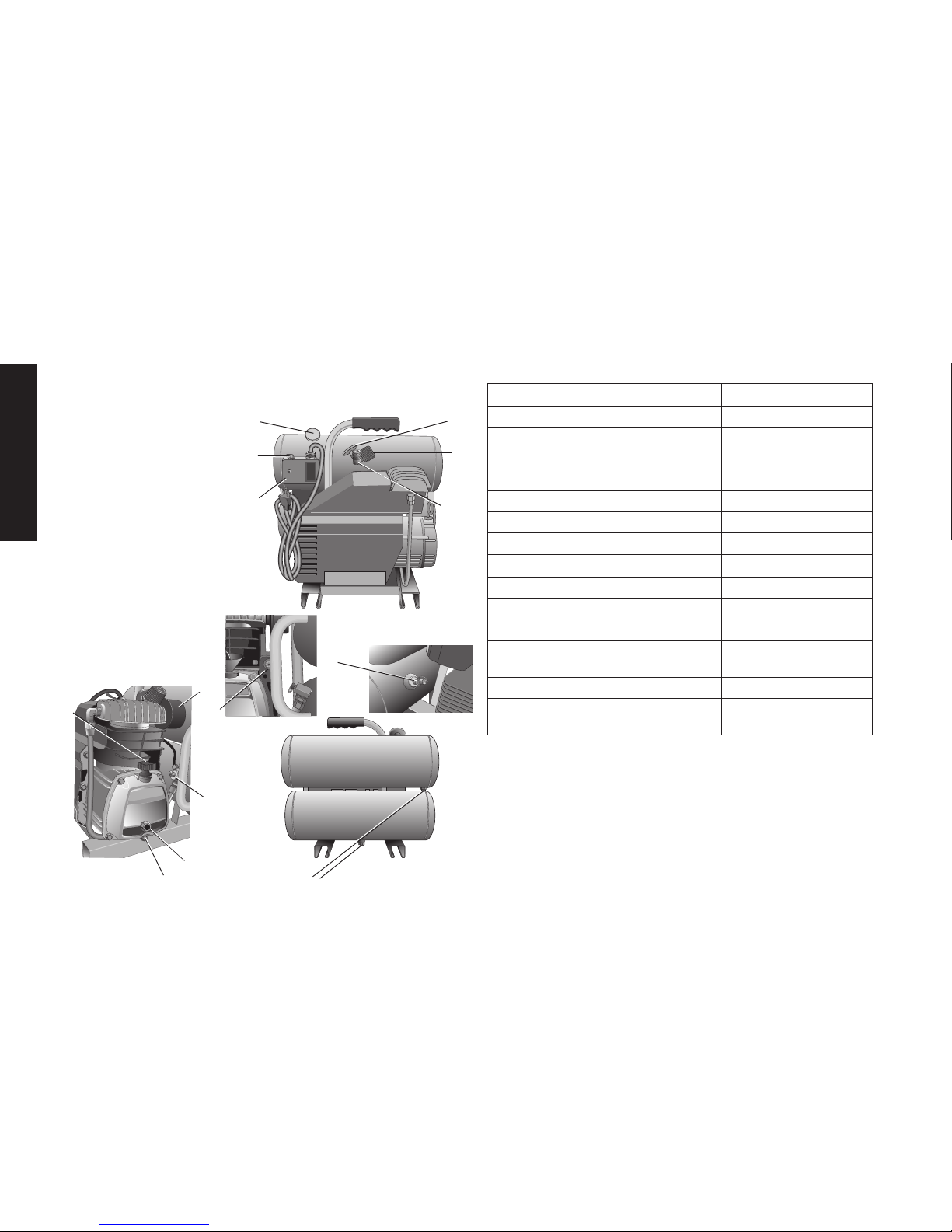

E810-4V
Air Compressor
A. On/Off Switch
B. Air Tank Pressure
Gauge
C. Regulated Pressure
Gauge
D. Pressure Regulator
E. Motor Reset
F. Check Valve
G. Safety Valve
H. Air Tank Drain Valve
I. Air Outlet with Quick
Coupler
J. Pressure Switch
K. Pump Oil Dipstick
L. Site Glass
M. Pump Oil Drain Plug
N. Air Intake Filter
J
D
BC
A
Specifications
MODEL E810-4V
WEIGHT 56.5 lbs. (25.6 kg)
HEIGHT 16.75" (501.7 mm)
WIDTH 18.5" (469.9 mm)
LENGTH 18.0" (457.2 mm)
AIR TANK CAPACITY (GALLONS) 4.0 (15.1 liters)
APPROX CUT-IN PRESSURE
95 PSI (655 kPa)
APPROX. CUT-OUT PRESSURE
125 PSI (861.8 kPa)
SCFM @ 100 PSI (689.5 kPa) 3.8
MOTOR 1.1 HP (continuous)
Volts/Amps/Hertz 120V/14 A/60 Hz.
RPM 3400
Minumum Branch Circuit
Requirement 15 Amp
PUMP OIL CAPACITY 12 oz. (354.9 ml)
DUTY CYCLE 5 minutes ON,
5 minutes OFF
E
K
M
F
N
G
FIG. 1
H
I
L
3
English

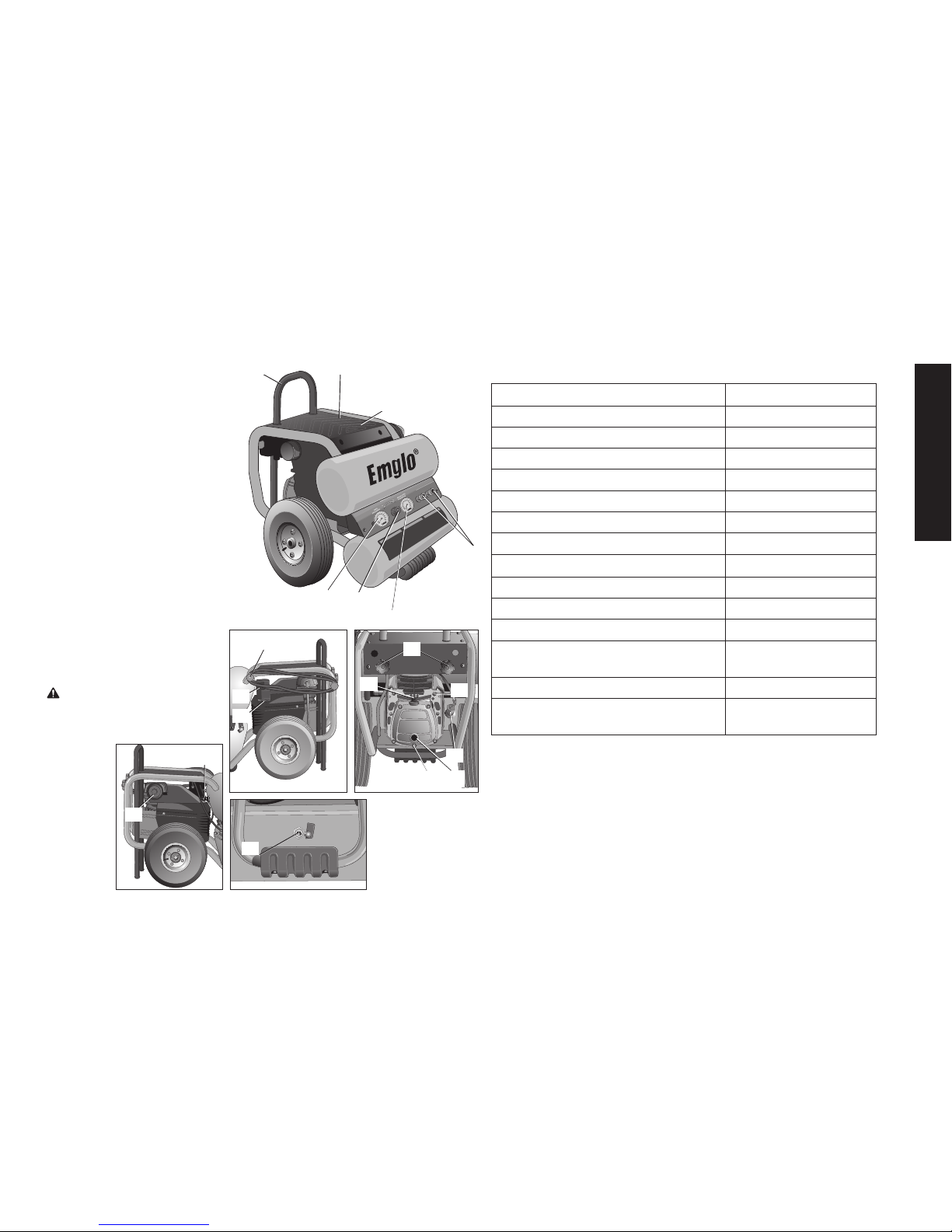

EM810-4M
Air Compressor
A. On/Off Switch
B. Air Tank Pressure Gauge
C. Regulated Pressure Gauge
D. Pressure Regulator
E. Quick Connects
F. Check Valve
G. Safety Valve
H. Air Tank Drain Valve
I. Power Cord Wrap
J. Pressure Switch
K. Pump Oil Dipstick
L. Pump Oil Drain Plug
M. Motor Reset
N. Air Intake Filter
O. Handle
P. Handle Locking Knobs
Q. Top Panel for Cargo
R. Site Glass
CAUTION: Always pull
handle up and lock in place
before using as a dolly.
Specifications
MODEL EM810-4M
WEIGHT 80 lbs. (36.3 kg)
HEIGHT 20.0" (508.0 mm)
WIDTH 18.5" (469.9 mm)
LENGTH 23 .0" (584.2 mm)
AIR TANK CAPACITY (GALLONS) 4.0 (15.1 liters)
APPROX CUT-IN PRESSURE
95 PSI (655 kPa)
APPROX. CUT-OUT PRESSURE
125 PSI (861.8 kPa)
SCFM @ 100 PSI (689.5 kPa) 3.8
MOTOR 1.1 HP (continuous)
Volts/Amps/Hertz 120V/14 A/60 Hz.
RPM 3400
Minumum Branch Circuit
Requirement 15 Amp
PUMP OIL CAPACITY 12 oz. (354.9 ml)
DUTY CYCLE 5 minutes ON,
5 minutes OFF
H
K
P
M
F
L
I
J
A
BD
C
E
Q
ONOT A
STEP
G
N
R
4
English

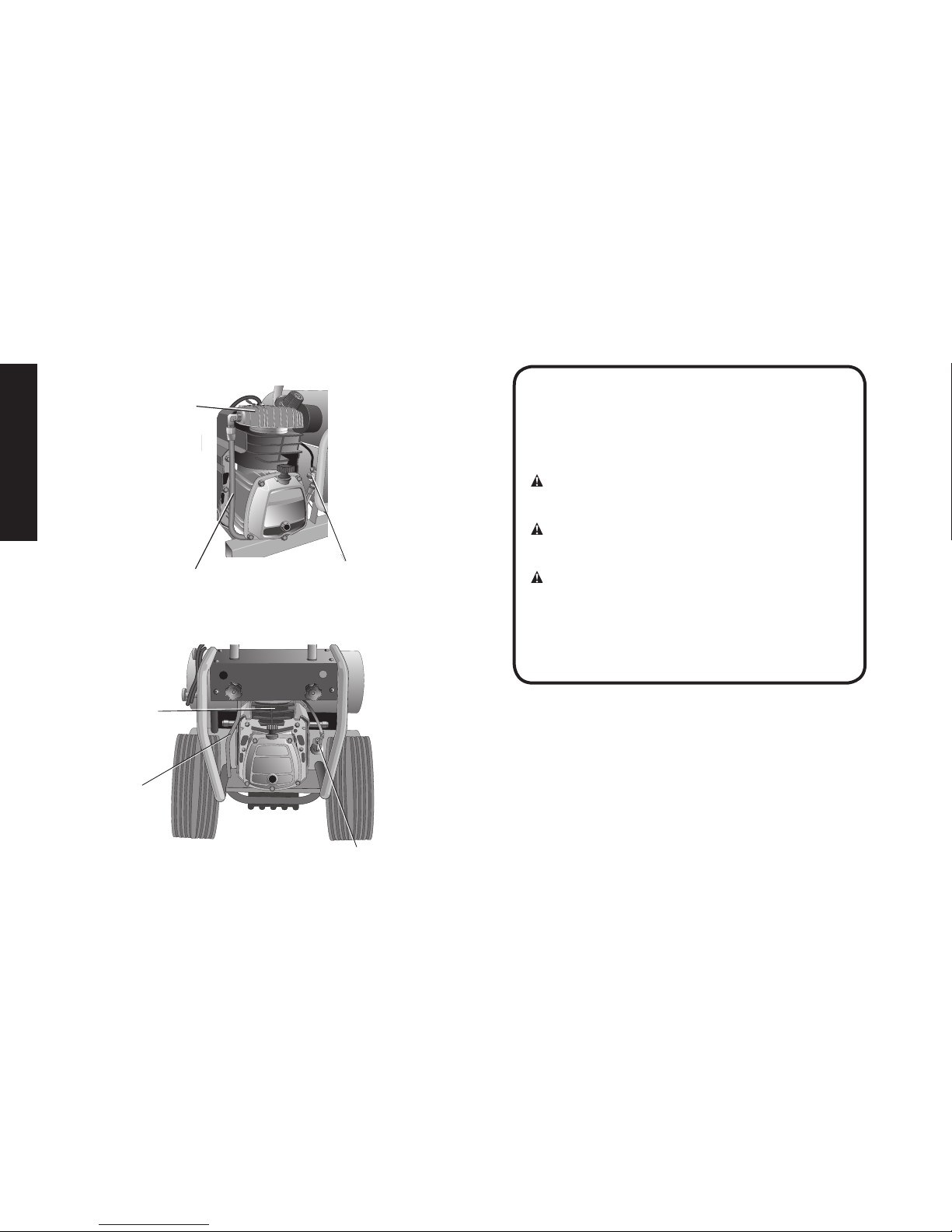

PUMP
CYLNDER
AND HEAD
PUMP
CYLNDER
AND HEAD
Hot Surfaces
FIG. 2
CHECK VALVE
CHECK VALVE
OUTLET TUBE
OUTLET TUBE
Definitions: Safety Guidelines
Definitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous situ-
ation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situ-
ation which, if not avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not related to personal
injury which, if not avoided, may result in property
damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT
THIS OR ANY E
M
GLO TOOL, CALL US TOLL FREE AT:
1-888-88EMGLO (1-888-883-6456).
5
English
Important Safety Instructions
This product contains chemicals known to the State
of California to cause cancer, and birth defects or other reproduc-
tive harm. Wash hands after handling.
Some dust contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm
such as asbestos and lead in lead based paint.
To reduce the risk of injury, read the
instruction manual.
SAVE THESE INSTRUCTIONS
DANGER: RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Itisnormalforelectrical
contacts within the motor
and pressure switch to
spark.
• Alwaysoperatethecom-
pressor in a well ventilated
area free of combustible
materials, gasoline or sol-
vent vapors.
• Ifelectricalsparksfrom
compressor come into
contact with flammable
vapors, they may ignite,
causing fire or explosion.
• Ifsprayingflammablemate-
rials, locate compressor
at least 20' (6.1 m) away
from spray area. An addi-
tional length of hose may be
required.
• Storeflammablematerialsin
a secure location away from
compressor.
• Restrictinganyofthe
compressor ventilation
openings will cause seri-
ous overheating and could
cause fire.
• Neverplaceobjectsagainst
or on top of compressor.
• Operatecompressorin
an open area at least 12"
(30.5 cm) away from any
wall or obstruction that
would restrict the flow of
fresh air to the ventilation
openings.
• Operatecompressorina
clean, dry well ventilated
area. Do not operate unit
indoors or in any confined
area. Store indoors.
• Unattendedoperationof
this product could result in
personalinjuryorproperty
damage. To reduce the
risk of fire, do not allow
the compressor to operate
unattended.
• Always remain in atten-
dance with the product
when it is operating.
• Always turn off and unplug
unit when not in use.
6
English
DANGER: RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairdirectly
from your compressor is not
safe for breathing. The air
stream may contain carbon
monoxide, toxic vapors,
or solid particles from the
air tank. Breathing these
contaminant's can cause
seriousinjuryordeath.
• Neveruseairobtained
directly from the compressor
to supply air for human
consumption. The
compressor is not equipped
with suitable filters and in-line
safety equipment for human
consumption.
•Exposuretochemicals
in dust created by
power sanding, sawing,
grinding, drilling, and other
construction activities may
be harmful.
• Sprayedmaterialssuchas
paint, paint solvents, paint
remover, insecticides, weed
killers, may contain harmful
vapors and poisons.
• Workinanareawithgood
cross ventilation. Read and
follow the safety instructions
provided on the label or
safety data sheets for the
materials you are spraying.
Always use certified safety
equipment: OSHA/MSHA/
NIOSH respiratory protection
designed for use with your
specific application.
WARNING: RISK OF BURSTING
On February 26, 2002, the U.S. Consumer Product Safety
Commission published Release # 02-108 concerning air com-
pressor tank safety:
Air compressor receiver tanks do not have an infinite life. Tank
life is dependent upon several factors, some of which include
operating conditions, ambient conditions, proper installations,
field modifications, and the level of maintenance. The exact
effect of these factors on air receiver life is difficult to predict.
If proper maintenance procedures are not followed, internal
corrosion to the inner wall of the air receiver tank can cause
the air tank to unexpectedly rupture allowing pressurized air
to suddenly and forcefully escape, posing risk of injury to
consumers.
Your compressor air tank must be removed from service by the
end of the year shown on your tank warning label.
The following conditions could lead to a weakening of the air
tank, and result in a violent air tank explosion:
WHAT CAN HAPPEN HOW TO PREVENT IT
• Failuretoproperlydrain
condensed water from
air tank, causing rust and
thinning of the steel air tank.
• Drainairtankdailyorafter
each use. If air tank develops
a leak, replace it immediately
with a new air tank or replace
the entire compressor.
7
English
• Modificationsorattempted
repairs to the air tank. • Neverdrillinto,weld,ormake
any modifications to the
air tank or its attachments.
Never attempt to repair a
damaged or leaking air tank.
Replace with a new air tank.
• Unauthorizedmodifications
to the safety valve or any
other components which
control air tank pressure.
• Theairtankisdesigned
to withstand specific
operating pressures. Never
makeadjustmentsor
parts substitutions to alter
the factory set operating
pressures.
Attachments & accessories:
• Exceedingthepressure
rating of air tools, spray
guns, air operated
accessories, tires and other
inflatables can cause them
to explode or fly apart, and
couldresultinseriousinjury.
• Followtheequipment
manufacturers
recommendation and never
exceed the maximum
allowable pressure rating
of attachments. Never use
compressor to inflate small
lowpressureobjectssuch
as children’s toys, footballs,
basketballs, etc.
Tires:
• Overinflationoftirescould
result in serious injury and
property damage.
• Use a tire pressure gauge
to check the tires pressure
before each use and while
inflating tires; see the tire
sidewall for the correct tire
pressure.
NOTE: Air tanks, compressors
and similar equipment used to
inflate tires can fill small tires
very rapidly. Adjust pressure
regulator on air supply to no
more than the rating of the
tire pressure. Add air in small
increments and frequently
use the tire gauge to prevent
over inflation.
WARNING: RISK OF ELECTRICAL SHOCK
ELECTRICAL
Refer to all safety instructions before using unit. Observe
extension cord safety instructions if necessary. Always move
the On/Off switch (A) to the OFF position before removing the
plug from the outlet.
8
English
WHAT CAN HAPPEN HOW TO PREVENT IT
• Your air compressor is
powered by electricity.
Like any other electrically
powered device, If it is not
used properly it may cause
electric shock.
• Never operate the
compressor outdoors
when it is raining or in wet
conditions.
• Never operate compressor
with protective covers
removed or damaged.
• Repairs attempted by
unqualified personnel can
resultinseriousinjuryor
death by electrocution.
• Any electrical wiring
or repairs required on
this product should
be performed by an
authorized service center
in accordance with national
and local electrical codes.
• Electrical Grounding:
Failure to provide
adequate grounding to
this product could result
inseriousinjuryordeath
from electrocution. See
Grounding Instructions
under Installation.
• Make certain that the
electrical circuit to which the
compressor is connected
provides proper electrical
grounding, correct voltage
and adequate fuse
protection.
WARNING: RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Thecompressedairstream
can cause soft tissue
damage to exposed skin
and can propel dirt, chips,
loose particles and small
objectsathighspeed,
resulting in property
damageorpersonalinjury.
• Always wear certified safety
equipment: ANSI Z87.1 eye
protection (CAN/CSA Z94.3)
with side shields when using
the compressor.
• Neverpointanynozzleor
sprayer toward any part of
the body or at other people
or animals.
• Alwaysturnthecompressor
off and bleed pressure
from the air hose and air
tank before attempting
maintenance, attaching tools
or accessories.
9
English
WARNING: RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Touchingexposedmetal
such as the compressor
head, engine head, engine
exhaust or outlet tubes, can
result in serious burns.
• Nevertouchanyexposed
metal parts on compressor
during or immediately after
operation. Compressor
will remain hot for several
minutes after operation.
• Donotreacharound
protective shrouds or
attempt maintenance until
unit has been allowed to
cool.
WARNING: RISK FROM MOVING PARTS
WHAT CAN HAPPEN HOW TO PREVENT IT
• Movingpartssuchasthe
pulley, flywheel and belt can
causeseriousinjuryifthey
come into contact with you
or your clothing.
• Neveroperatethe
compressor with guards or
covers which are damaged or
removed.
• Keepyourhair,clothingand
gloves away from moving
parts.Looseclothes,jewelry,
or long hair can be caught in
moving parts.
• Airventsmaycovermoving
parts and should be avoided
as well.
• Attemptingtooperate
compressor with damaged
or missing parts or
attempting to repair
compressor with protective
shrouds removed can
expose you to moving parts
and can result in serious
injury.
• Anyrepairsrequiredonthis
product should be performed
by an authorized service
center.
WARNING: RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafeoperationofyour
air compressor could lead
toseriousinjuryordeathto
you or others.
• Reviewandunderstandall
instructions and warnings in
this manual.
• Becomefamiliarwiththe
operation and controls of the
air compressor.
• Keepoperatingareaclear
of all persons, pets, and
obstacles.
• Keepchildrenawayfromthe
air compressor at all times.
• Donotoperatetheproduct
when fatigued or under the
influence of alcohol or drugs.
Stay alert at all times.
• Neverdefeatthesafetyfea
tures of this product.
10
English
• Equipareaofoperationwith
a fire extinguisher.
• Donotoperatemachinewith
missing, broken, or unautho-
rized parts.
•Neverstandonthe
compressor.
WARNING: RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Aportablecompressor
can fall from a table,
workbench or roof
causing damage to the
compressor and could
resultinseriousinjuryor
death to the operator.
• Alwaysoperatecompressor
in a stable secure position
to prevent accidental
movement of the unit.
Never operate compressor
on a roof or other elevated
position. Use additional
air hose to reach high
locations.
WARNING: RISK FROM NOISE
NOISE CONSIDERATIONS
Consult local officials for information regarding acceptable
noise levels in your area. To reduce excessive noise, use
vibration mounts or silencers, relocate the unit or construct total
enclosures or baffle walls. Contact an authorized service center
or call 1-888-88EMGLO (1-888-883-6456) for assistance.
WHAT CAN HAPPEN HOW TO PREVENT IT
• Undersomeconditions
and duration of use, noise
from this product may
contribute to hearing loss.
• Always wear proper hearing
protection during use.
DANGER: RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
Oil can leak or spill and could
result in fire or breathing hazard,
resulting in serious injury or
death. Oil leaks can damage
carpet, paint or other surfaces in
vehicles or trailers.
Place compressor on protective
mat when transporting to
protect against damage from
leaks. Remove compressor
from vehicle upon arrival at
destination. Always keep
compressor level and never lie
on its side.
The compressor (wheeled dolly
style unit). is too heavy to be
lifted by one person.
Use two people to lift the
compressor. Lift only from
recommended lift points.
Unsecured compressor can
move when being transported
in a vehicle or trailer, causing
personal injury or property
damage.
Place compressor on
flat horizontal surface
when transporting and
secure compressor using
recommended tie-down points
so that it cannot move while
being transported.
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Emglo Compresseur d'air
Manuels Compresseur d'air populaires d'autres marques
Campbell Hausfeld
Campbell Hausfeld RP3300 Guide de démarrage rapide
Ingersoll-Rand
Ingersoll-Rand UP6 20 HP Manuel utilisateur
Hitachi
Hitachi EC99S Manuel de l'opérateur
Parkside
Parkside PKO 270 A1 Manuel utilisateur
Sullair
Sullair 185 Manuel utilisateur
Clas Ohlson
Clas Ohlson QIE-ZTH-15 Manuel utilisateur
