Quick Start Guide

00825-0100-4100, Rev CD

June 2017

Rosemount™3051 Pressure Transmitter

and Rosemount 3051CF DP Flowmeters

with WirelessHART®Protocol

00825-0100-4100_RevCD.fm Page 1 Monday, June 26, 2017 9:53 AM

June 2017

Quick Start Guide

NOTICE

This guide provides basic guidelines for Rosemount 3051 Wireless Transmitters. It does not provide

instructions for configuration, diagnostics, maintenance, service, troubleshooting or Intrinsically Safe (I.S.)

installations. Refer to the Rosemount 3051 Wireless Reference Manual for more instruction. This manual is also

available electronically on EmersonProcess.com/Rosemount.

Shipping considerations for wireless products:

The unit was shipped to you without the power module installed. Remove the power module prior to shipping

the unit.

Each power module contains one “D” size primary lithium-thionyl chloride battery. Primary lithium batteries

are regulated in transportation by the U.S. Department of Transportation, and are also covered by IATA

(International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD (European

Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure compliance with

these or any other local requirements. Consult current regulations and requirements before shipping.

Explosions could result in death or serious injury.

Installation of this transmitter in an explosive environment must be in accordance with the appropriate local,

national, and international standards, codes, and practices. Review the approvals section of the Rosemount

3051 Wireless Reference Manual for any restrictions associated with a safe installation.

Before connecting a HART®-based communicator in an explosive atmosphere, make sure the instruments

in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

Process leaks may cause harm or result in death.

To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.

Electrical shock can result in death or serious injury.

Avoid contact with the leads and the terminals. High voltage that may be present on leads can cause

electrical shock.

Contents

Wireless considerations . . . . . . . . . . . . . . . . . . . 3

Transmitter installation . . . . . . . . . . . . . . . . . . . 4

Mount the transmitter . . . . . . . . . . . . . . . . . . . . 4

Consider housing rotation . . . . . . . . . . . . . . . . . 8

Connect the power module . . . . . . . . . . . . . . . . 8

Trim the transmitter . . . . . . . . . . . . . . . . . . . . . . 9

Verify transmitter configuration . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 13

Product Certifications . . . . . . . . . . . . . . . . . . . . 14

00825-0100-4100_RevCD.fm Page 2 Monday, June 26, 2017 9:53 AM

Quick Start Guide

June 2017

1.0 Wireless considerations

1.1 Power up sequence

The power module should not be installed on any wireless device until the

Emerson™Smart Wireless Gateway (Gateway) is installed and functioning

properly. This transmitter uses the green power module (order model number

701PGNKF). Wireless devices should also be powered up in order of proximity

from the Gateway, beginning with the closest. This will result in a simpler and

faster network installation. Enable Active Advertising on the Gateway to ensure

that new devices join the network faster. For more information, see the

Emerson Smart Wireless Gateway Reference Manual.

1.2 Connecting the transmitter with a Field Communicator

In order for the Field Communicator to interface with the Rosemount 3051

Wireless transmitter, the power module must be connected. This transmitter

uses the green power module (order model number 701PGNKF). Figure 1 shows

how to connect the Field Communicator to the transmitter. Open the power

module compartment to hook up the leads.

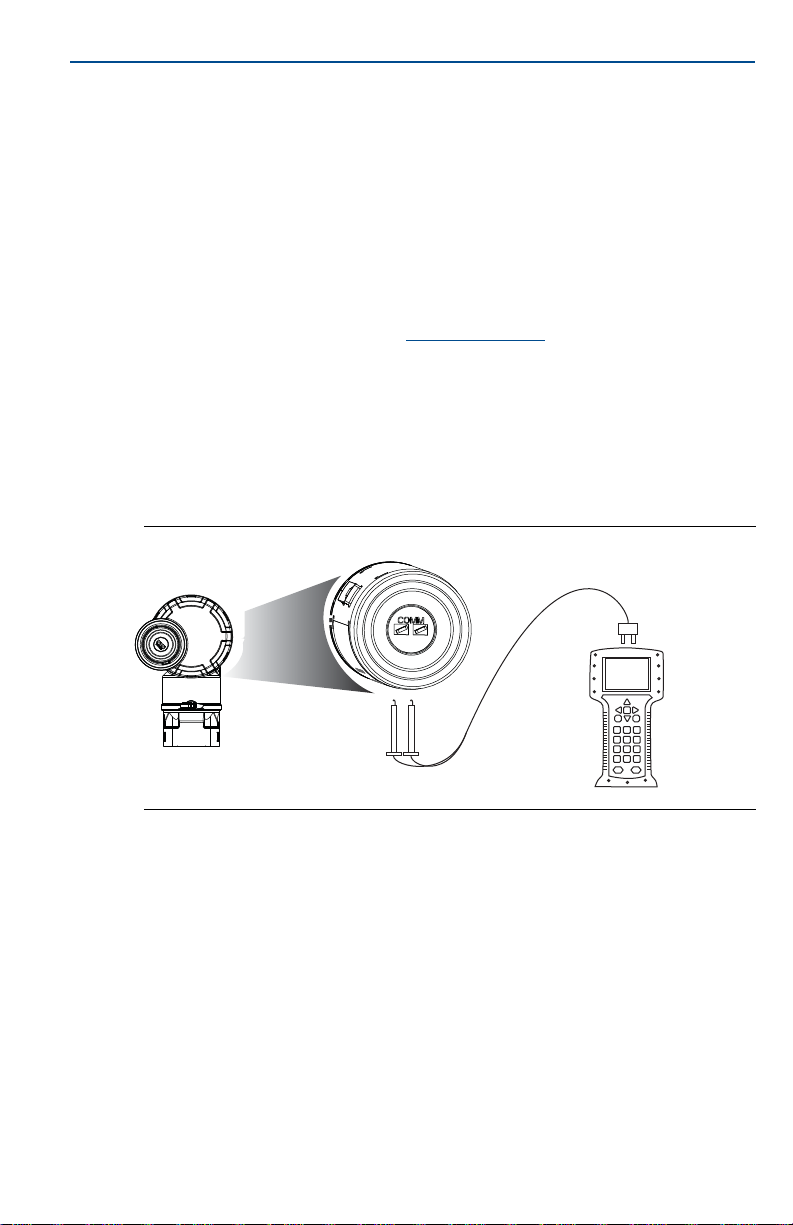

Figure 1. Field Communicator Connections

00825-0100-4100_RevCD.fm Page 3 Monday, June 26, 2017 9:53 AM

June 2017

Quick Start Guide

2.0 Transmitter installation

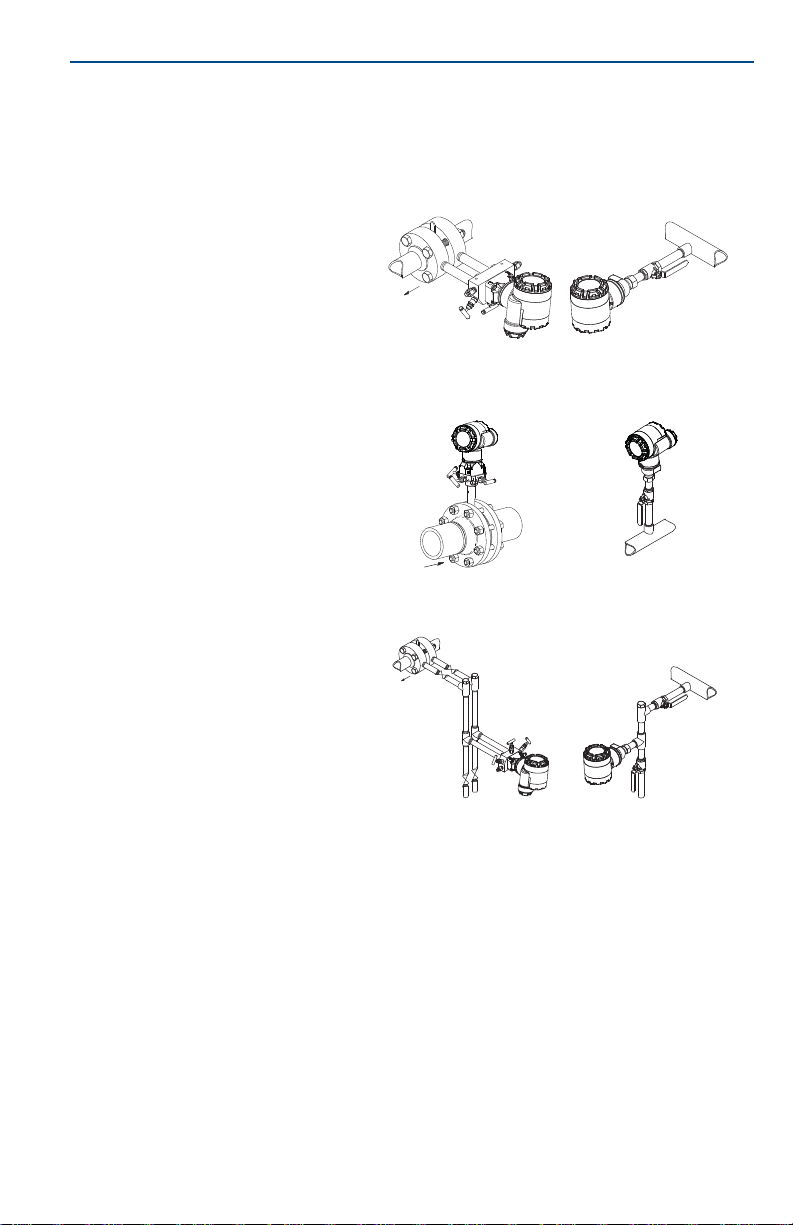

2.1 Mount the transmitter

Liquid applications Coplanar In-line

1. Place taps to the side of the

line.

2. Mount beside or below the

taps.

3. Mount the transmitter so

that the drain/vent valves

are oriented upward.

Gas applications

1. Place taps in the top or side

of the line.

2. Mount beside or above the

taps.

Steam applications

1. Place taps to the side of the

line.

2. Mount beside or below the

taps.

3. Fill impulse lines with

water.

Flow

00825-0100-4100_RevCD.fm Page 4 Monday, June 26, 2017 9:53 AM

Quick Start Guide

June 2017

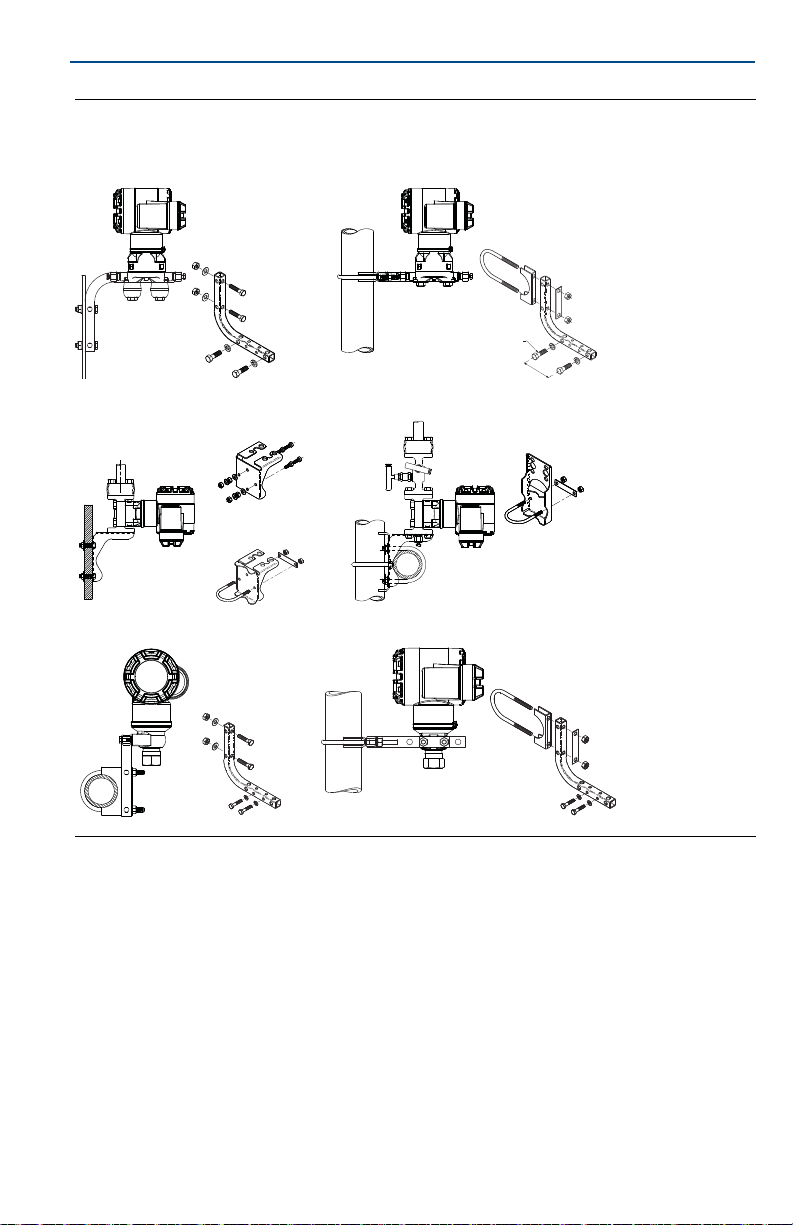

Figure 2. Panel and Pipe Mounting

Panel mount Pipe mount

Coplanar flange

Traditional flange

In-line

00825-0100-4100_RevCD.fm Page 5 Monday, June 26, 2017 9:53 AM

June 2017

Quick Start Guide

Bolting considerations

If the transmitter installation requires assembly of the process flanges,

manifolds, or flange adapters, follow these assembly guidelines to ensure a tight

seal for optimal performance characteristics of the transmitters. Use only bolts

supplied with the transmitter or sold by Emerson™as spare parts. Figure 3

illustrates common transmitter assemblies with the bolt length required for

proper transmitter assembly.

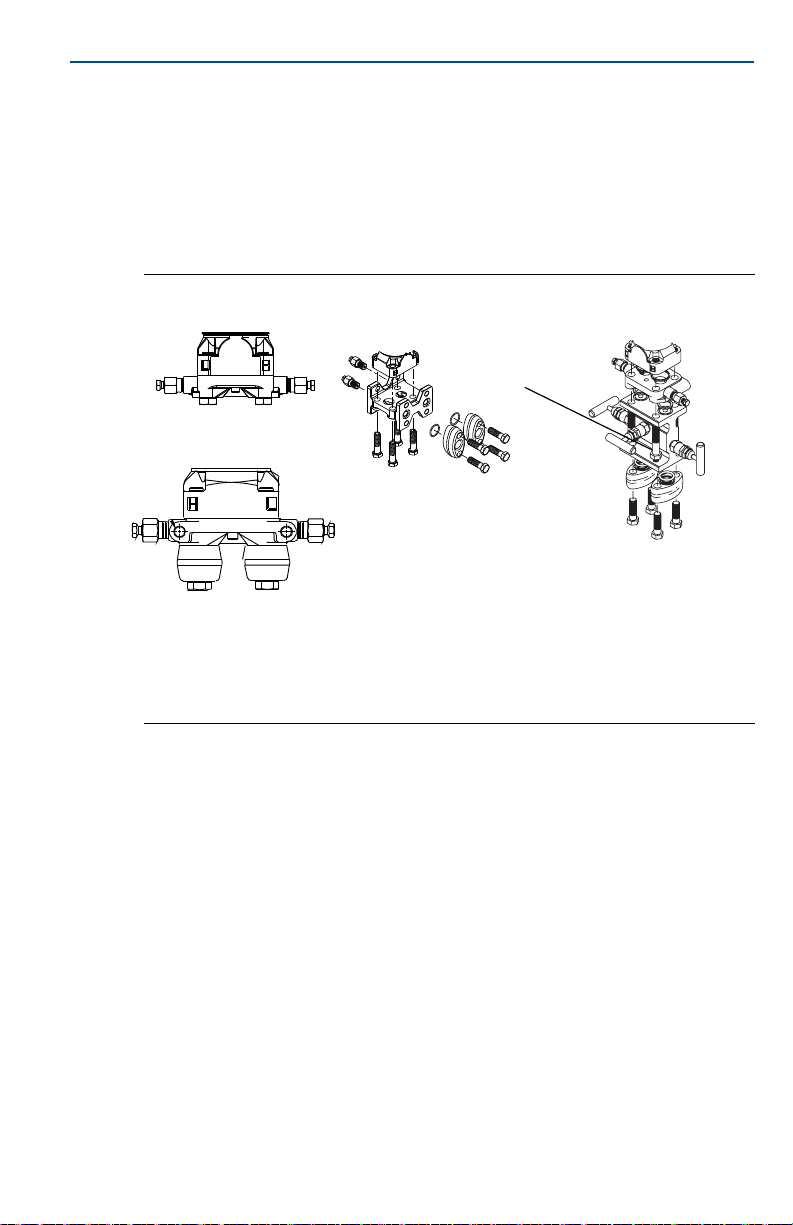

Figure 3. Common Transmitter Assemblies

A. Transmitter with coplanar flange

B. Transmitter with coplanar flange and optional flange adapters

C. Transmitter with traditional flange and optional flange adapters

D. Transmitter with coplanar flange and optional manifold and flange adapters

Bolts are typically carbon steel or stainless steel. Confirm the material by

viewing the markings on the head of the bolt and referencing Table 1 on page 7.

If bolt material is not shown in Table 1, contact a local Emerson Process

Management representative for more information.

1. Carbon steel bolts do not require lubrication and the stainless steel bolts are

coated with a lubricant to ease installation. However, no additional lubricant

should be applied when installing either type of bolt.

2. Finger-tighten the bolts.

3. Torque the bolts to the initial torque value using a crossing pattern.

See Table 1 for initial torque value.

4. Torque the bolts to the final torque value using the same crossing pattern.

See Table 1 for final torque value.

5. Verify the flange bolts are protruding through the isolator plate before

applying pressure.

4 × 2.88-in. (73 mm)

4 × 1.75-in. (44 mm)

4 ×1.75-in.

(44 mm) 4 ×1.75-in.

(44 mm)

4 × 1.75-in. (44 mm)

4 × 2.25-in. (57 mm)

00825-0100-4100_RevCD.fm Page 6 Monday, June 26, 2017 9:53 AM

Quick Start Guide

June 2017

In-line gage transmitter orientation

The low side pressure port (atmospheric reference) on the in-line gage

transmitter is located in the neck of the transmitter, behind the housing. The

vent path is between the housing and sensor of the transmitter (see Figure 4).

Keep the vent path free of any obstruction, including but not limited to paint,

dust, and lubrication by mounting the transmitter so that the process can drain

away.

Figure 4. In-line Gage Low Side Pressure Port

A. Low side pressure port (atmospheric reference)

Installing high pressure coned and threaded connection

The transmitter comes with an autoclave connection designed for high pressure

applications. Follow the steps below to properly connect the transmitter to your

process:

1. Apply a process-compatible lubricant to the gland nut threads.

2. Slip the gland nut onto the tube, then thread the collar onto the tube end

(the collar is reverse threaded).

3. Apply a small amount of process-compatible lubricant applied to the tube

cone to help prevent galling and facilitate sealing. Insert the tubing into the

connection and tighten finger tight.

4. Tighten the gland nut to a torque of 25 ft-lb.

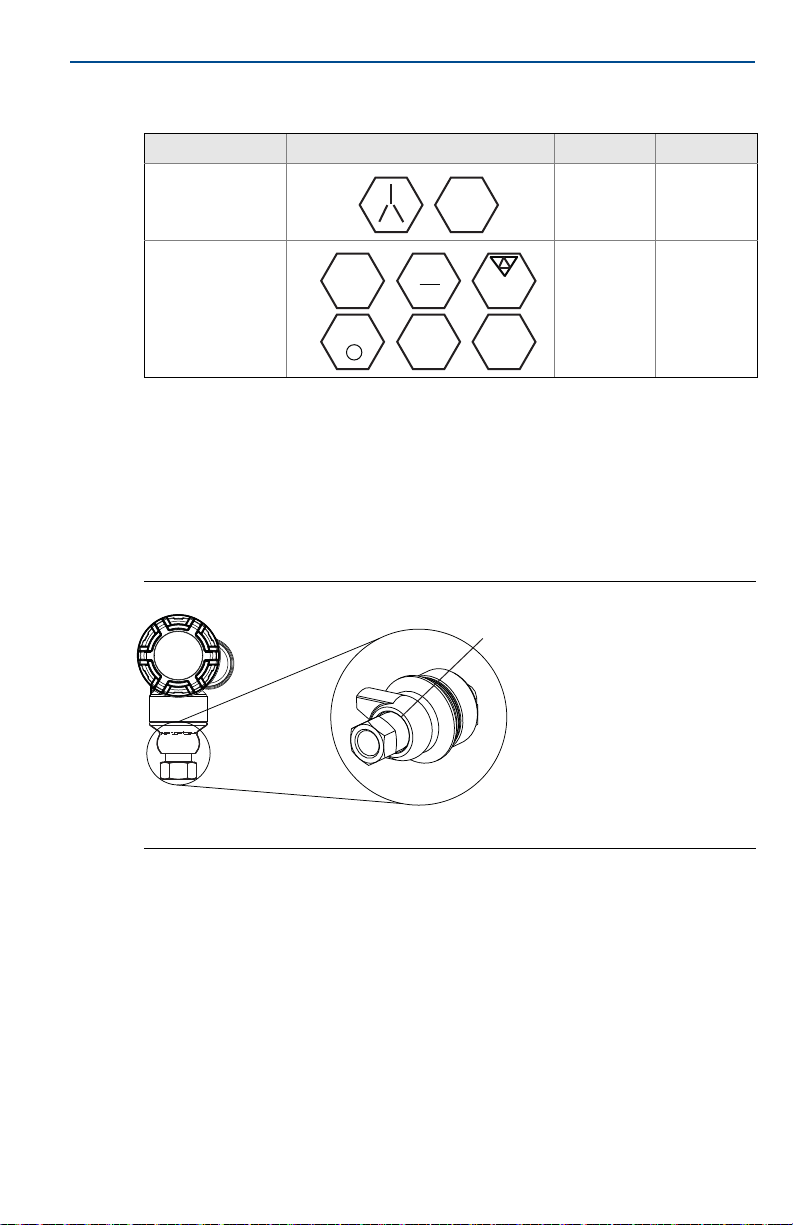

Table 1. Torque Values for the Coplanar Flange and Flange Adapter Bolts

Bolt material Head markings Initial torque Final torque

Carbon Steel (CS) 300 in-lb. 650 in-lb.

Stainless Steel (SST) 150 in-lb. 300 in-lb.

B7M

316

STM

316

B8M

00825-0100-4100_RevCD.fm Page 7 Monday, June 26, 2017 9:53 AM

June 2017

Quick Start Guide

Note

A weep hole has been designed into the transmitter for safety and leak detection. If fluid

begins to leak from the weep hole, isolate the process pressure, disconnect the

transmitter, and reseal until the leak is resolved.

2.2 Consider housing rotation

To improve visibility of optional LCD display:

1. Loosen the housing rotation screw.

2. First rotate the housing clockwise to the desired location. If the desired

location cannot be achieved due to thread limit, rotate the housing counter

clockwise to the desired location (up to 360° from thread limit).

3. Re-tighten the housing rotation screw (see Figure 5).

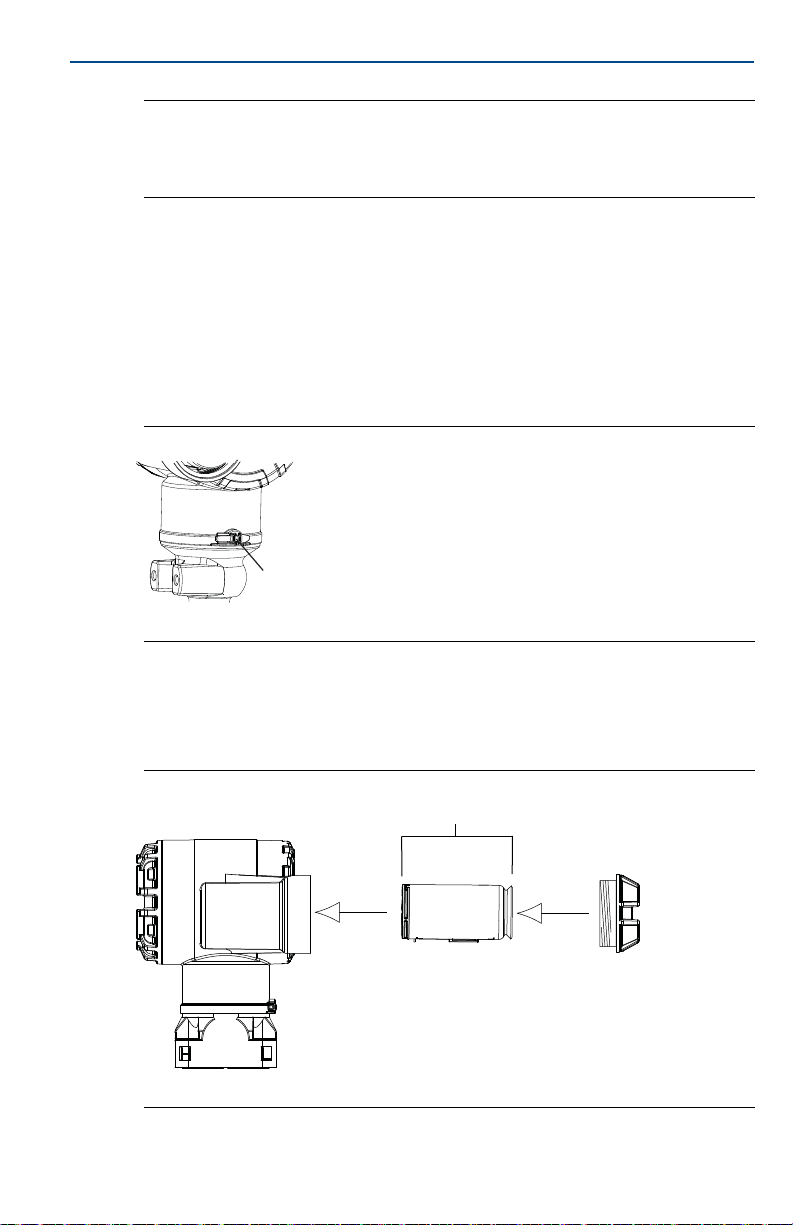

Figure 5. Housing Rotation

A. Housing rotation screw (5/64-in. hex wrench required)

2.3 Connect the power module

1. Remove the power module cover.

2. Connect the green power module (see Figure 6).

Figure 6. Power Module

A. Power module

00825-0100-4100_RevCD.fm Page 8 Monday, June 26, 2017 9:53 AM

Quick Start Guide

June 2017

2.4 Trim the transmitter

Devices are calibrated by the factory. Once installed, it is recommended to

perform a zero trim on gage and differential pressure transmitters to eliminate

error due to mounting position or static pressure effects. A zero trim can be

performed using either a Field Communicator or configuration buttons.

For instructions using AMS Wireless Configurator, see the Rosemount 3051

Wireless Reference Manual.

Note

When performing a zero trim, ensure the equalization valve is open and all wet legs are

filled to the correct level.

Trimming with a Field Communicator

1. Equalize or vent the transmitter and connect Field Communicator.

2. At the menu, input the HART Fast Key sequence.

3. Follow the commands to perform a zero trim.

4. From the Home screen, enter the Fast Key sequence:

For connecting with a Field Communicator, refer to Figure 1 on page 3.

Trimming with digital zero trim button

1. Set the transmitter pressure.

2. Remove the electronics housing cover.

3. Press and hold the Zero button for two seconds to perform a digital zero

trim.

4. Reinstall transmitter housing cover. Ensure a proper seal by installing the

electronics housing cover so that polymer contacts polymer (i.e. no O-ring

visible).

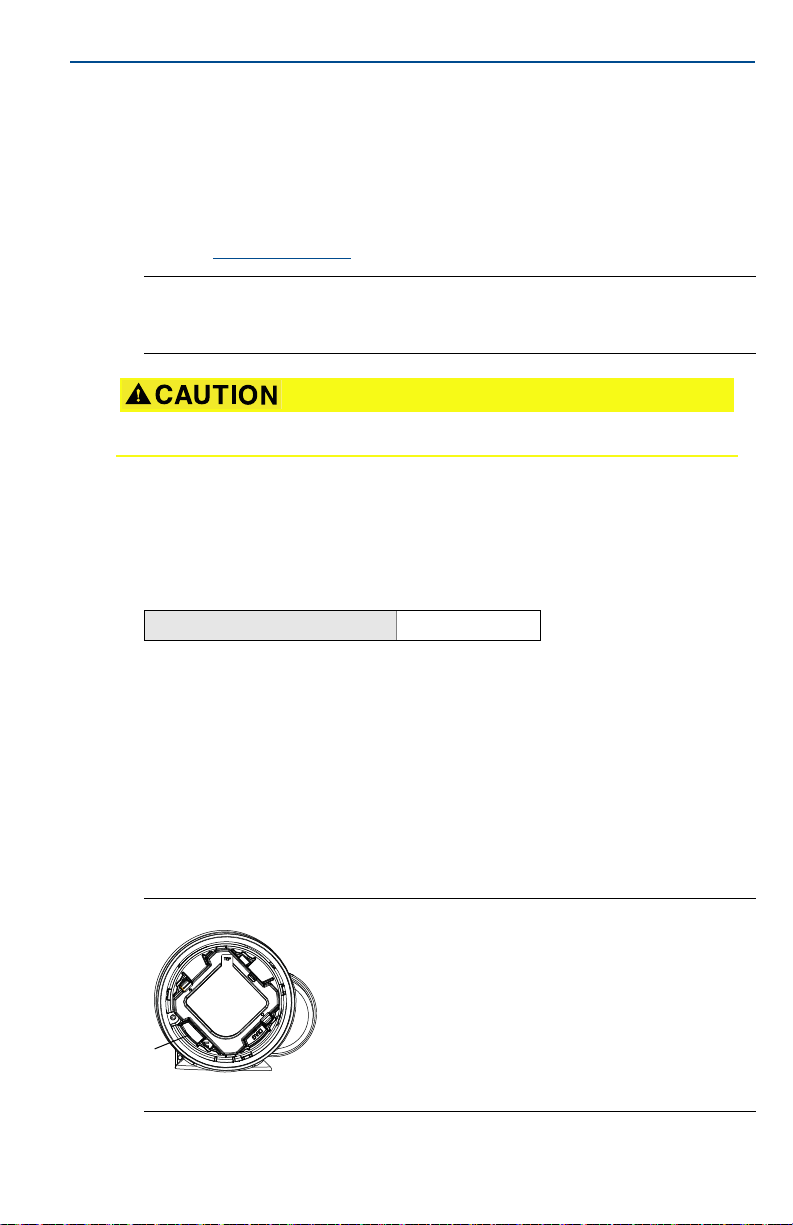

Figure 7. Digital Zero Button

A. Digital zero button

It is not recommended to zero an absolute transmitter, Rosemount 3051CA or Rosemount 3051TA

models.

Device dashboard Fast Keys 2, 1, 2

Digital Zero

Trim

00825-0100-4100_RevCD.fm Page 9 Monday, June 26, 2017 9:53 AM

June 2017

Quick Start Guide

Note

A zero trim can also be completed using AMS Wireless Configurator once the device has

joined the network.

2.5 Verify transmitter configuration

Operation can be verified in four locations:

At the device via the Local Display (LCD display).

By using the Field Communicator.

Via the Smart Wireless Gateway’s integrated web interface.

Via AMS Wireless Configurator.

Verify transmitter configuration using LCD display

The LCD display will show the output values at the same rate as the wireless

update rate. Refer to the Rosemount 3051 Wireless Reference Manual for error

codes and other LCD display messages. Press and hold the Diagnostic button

for at least five seconds to display the TAG, Device ID, Network ID, Network Join

Status, and Device Status screens.

Verify transmitter configuration using Field Communicator

For HART Wireless transmitter communication, a Rosemount 3051 Wireless

device descriptor is required. For connecting with a Field Communicator, refer

to Figure 1 on page 3.

From the Home screen, enter the Fast Key sequence:

Searching for

network Joining network Connected with

limited bandwidth Connected

Device dashboard Fast Keys 3, 5

N E T w K

S R C H N G

n e t w k

N E G O T

n e t w k

L I M -O P

n e t w k

O K

00825-0100-4100_RevCD.fm Page 10 Monday, June 26, 2017 9:53 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Emerson Instrument de mesure

Emerson

Emerson Rosemount MCL-220 Manuel utilisateur

Emerson

Emerson Rosemount CT5100 Ex Manuel utilisateur

Emerson

Emerson Rosemount 3812 Manuel de programmation

Emerson

Emerson Rosemount 5900 Guide rapide

Emerson

Emerson Rosemount 8600D Series Manuel utilisateur

Emerson

Emerson Rosemount 8600 Series Manuel utilisateur

Emerson

Emerson Rosemount 751 Manuel utilisateur

Emerson

Emerson Rosemount 3812 Manuel utilisateur

Emerson

Emerson 6888i Manuel utilisateur

Emerson

Emerson Rosemount FCL Manuel utilisateur

Emerson

Emerson Wireless Field Link Manuel utilisateur

Emerson

Emerson RLDS Mode d'emploi

Emerson

Emerson Daniel 3812 Manuel utilisateur

Emerson

Emerson Micro Motion TA Series Manuel utilisateur

Emerson

Emerson NGA 2000 TO2 Manuel utilisateur

Emerson

Emerson Rosemount 6888C Manuel utilisateur

Emerson

Emerson ControlWave XFC Manuel utilisateur

Emerson

Emerson Rosemount 9175 Manuel utilisateur

Emerson

Emerson Rosemount OPM3000 Manuel utilisateur

Emerson

Emerson Rosemount 585 Annubar Manuel utilisateur

Emerson

Emerson Fisher 4320 Manuel utilisateur

Emerson

Emerson RXi HMI Manuel utilisateur

Emerson

Emerson FB1200 Manuel utilisateur

Emerson

Emerson Rosemount Xi Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
