Emerson AMS Manuel utilisateur

User Guide

MHM-97927-PBF, Rev DRAFT

July 2020

AMS Wireless Vibration Monitor

User Guide

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form by any means without the written permission of Emerson.

Disclaimer

This manual is provided for informational purposes. EMERSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS

MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Emerson shall not be liable for errors, omissions, or inconsistencies that may be contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is

subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is

not all-inclusive and cannot cover all unique situations.

Patents

The product(s) described in this manual are covered under existing and pending patents.

Where to get help

Software Registration

Phone: Toll free 888.367.3774, option 2 (U.S. and Canada)

+63.2.702.1111 (Rest of world)

Email: [email protected]

Web: http://www.emerson.com/machineryhealthreg

Product Support

Emerson provides a variety of ways to reach your Product Support team to get the answers you need when you need them:

Phone Toll free 800.833.8314 (U.S. and Canada)

+1.512.832.3774 (Latin America)

+63.2 702.1111 (Asia Pacific, Europe, and Middle East)

Email [email protected]

Web http://www.emerson.com/en-us/contact-us

To search for documentation, visit http://www.emerson.com.

To view toll free numbers for specific countries, visit http://www.emerson.com/technicalsupport.

Contents

Chapter 1 Introduction.................................................................................................................. 5

Chapter 2 Configuration...............................................................................................................13

Chapter 3 Installation...................................................................................................................39

Chapter 4 Operation.................................................................................................................... 45

Chapter 5 Overall Velocity, PeakVue, and temperature................................................................ 53

Appendix A Specifications and reference data.................................................................................63

Appendix B Product certifications...................................................................................................67

Index .................................................................................................................................... 75

User Guide Contents

MHM-97927-PBF July 2020

MHM-97927-PBF, DRAFT iii

Contents User Guide

July 2020 MHM-97927-PBF

iv MHM-97927-PBF, DRAFT

1 Introduction

1.1 Safety messages

Instructions in this manual may require special precautions to ensure the safety of the

personnel performing the operations.

This AMS Wireless Vibration Monitor device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions: This device may not cause harmful

interference, this device must accept any interference received, including interference

that may cause undesired operation.

This device must be installed to ensure a minimum antenna separation of 20 cm from all

persons.

Refer to the following safety messages before performing an operation preceded by the

warning symbol:

WARNING

Failure to follow these installation guidelines can result in death or serious injury. Only

qualified personnel should install the AMS Wireless Vibration Monitor.

Explosions could result in death or serious injury:

•Before connecting a Field Communicator in an explosive environment, make sure the

instruments are installed in accordance with applicable field wiring practices.

•Verify that the operating environment of the AMS Wireless Vibration Monitor is

consistent with the appropriate hazardous locations certifications.

User Guide Introduction

MHM-97927-PBF July 2020

MHM-97927-PBF, DRAFT 5

1.2 Overview

The manual

This User Guide applies to the AMS Wireless Vibration Monitor, a triaxial vibration

measurement device designed for use on a WirelessHART network.

Use this manual to install, operate, and maintain the device.

The monitor

The AMS Wireless Vibration Monitor is an installation-ready solution that monitors

vibration and temperature in rotating equipment in hard-to-reach locations.

The AMS Wireless Vibration Monitor also provides a variety of monitor and sensor

configurations. It has built-in radio and four integral sensors:

•X and Y MEMS

•Z MEMS High Sensitivity, High Bandwidth (Vibration & PeakVue)

•Temperature sensor

The Z accelerometer has the highest bandwidth and is considered the primary sensor. The

temperature sensor is designed to measure the temperature near the mounting point

(i.e., the machine’s skin temperature).

Other features include:

•Support for up to 13 device variables with up to three user-configurable alerts for each

process variable. Any device variable can be configured as any process variable (PV, SV,

TV, QV).

•Support for storage of Waveform/Spectrum directly in AMS Machine Works

•Wireless output with >99% data reliability, delivering rich HART data, protected by

industry leading security (when operated as part of a well-formed network)

The device uses an off-the-shelf battery contained in the device which is easily removable

for device installation and replacement.

Introduction User Guide

July 2020 MHM-97927-PBF

6 MHM-97927-PBF, DRAFT

Parts of the monitor

A. Chassis

B. HART Terminals

C. Tool hole

D. Mounting screw

User Guide Introduction

MHM-97927-PBF July 2020

MHM-97927-PBF, DRAFT 7

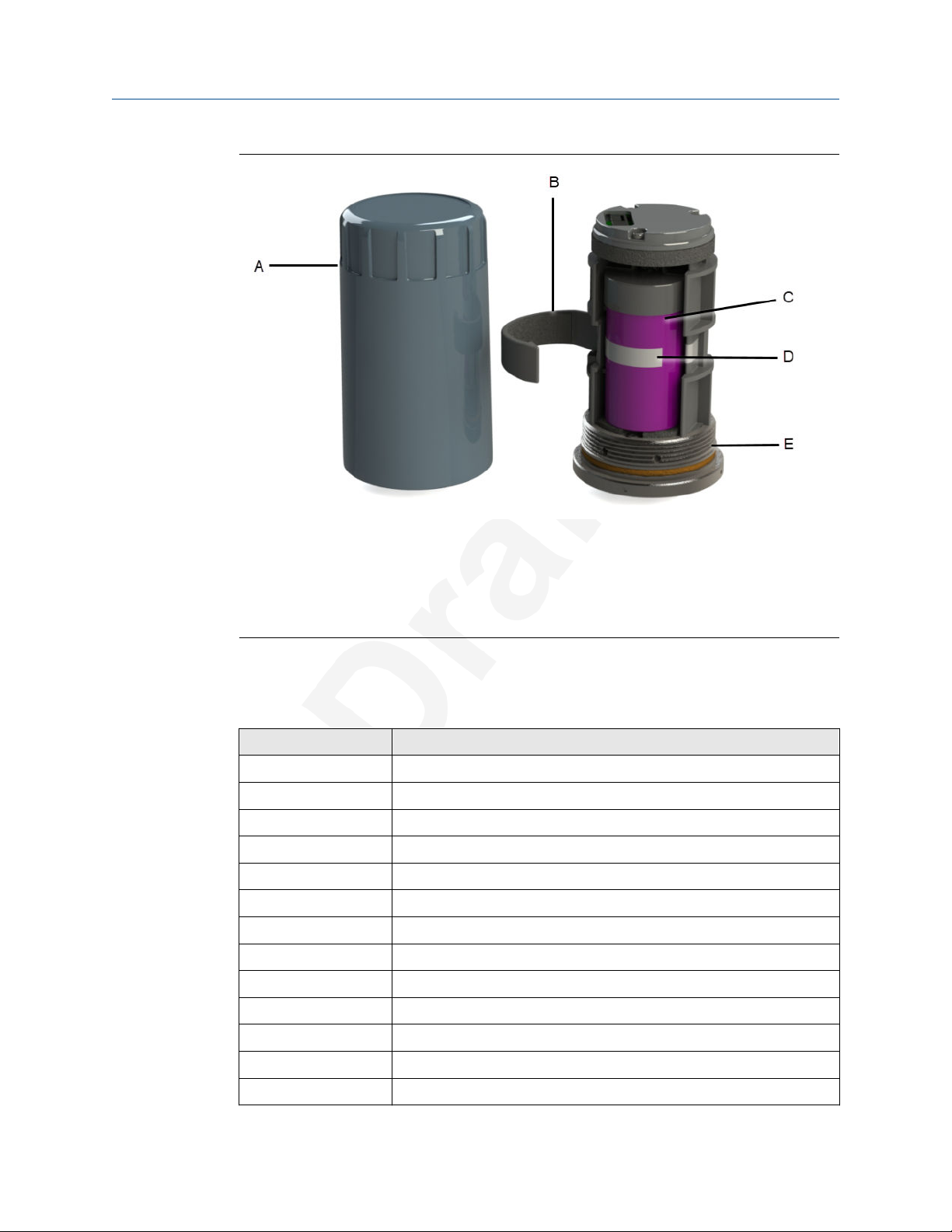

A. Cover

B. Battery clamp

C. Battery

D. Battery pull tab

E. Base O-ring

Measurements

The device supports the following measurements. Any of these can be configured as a

process variable.

Device variable index Device variables

1 Z-Velocity

2 Z-Peakvue

3 Machine Temperature

4 Supply Voltage

5 X-Velocity

6 Y-Velocity

7 AP1 (Velocity)

8 AP2 (Velocity)

9 AP3 (Acceleration)

10 AP4 (Accleration)

11 Speed Estimate

12 Mechanical Condition

13 Lubrication Condition

Introduction User Guide

July 2020 MHM-97927-PBF

8 MHM-97927-PBF, DRAFT

Device revision information

Revision Current level Description

Universal 7 This is the HART version the monitor supports.

Field device11 This is the major revision of the monitor and corresponds with a

major interface release.

When using AMS Device Manager, this revision can be found on

the screen title.

Software 43 This is the current software version.

The software may be occasionally modified to refine

functionality. When major functionality is added, the device

revision increases.

Hardware 1 This is the hardware revision.

DD 1 This is the Device Descriptor (DD) revision.

The device descriptor is primarily used for configuring devices in

the field.

1If you have an older device revision, a factory upgrade may be possible in some cases. Contact

Product Support for more information.

You can also view the revision information in AMS Device Manager and Trex

Communicator.

Figure 1-1: Revision numbers in AMS Device Manager

User Guide Introduction

MHM-97927-PBF July 2020

MHM-97927-PBF, DRAFT 9

1.3 Considerations

General

Electrical vibration sensors, such as accelerometers, produce low-level signals proportional

to their sensed vibration. With simple HART configuration, the monitor converts the low-

level sensor signal to a wireless-enabled signal.

Commissioning

The monitor can be commissioned before or after installation. You can commission it on

the bench before installation to ensure proper operation and to be familiar with its

functions.

Make sure the instruments are installed in accordance with applicable field wiring

practices.

The AMS Wireless Vibration Monitor is powered whenever the battery is installed.

Installation

When choosing an installation location and position, provide ample access to the monitor.

The device should be mounted vertically, perpendicular to the shaft and on the bearing

case. Horizontal mounting is also an option. For more information, see Install the AMS

Wireless Vibration Monitor.

Battery

The AMS Wireless Vibration Monitor uses an off-the-shelf Tadiran TL-4920/VE battery.

The battery comes with the device but it is not connected when the device is shipped. You

need to connect the battery before configuring and installing the device.

Environmental

The monitor operates within specifications for ambient temperatures between –40°F and

185°F (–40°C and 85°C).

Verify that the operating environment of the monitor is consistent with the appropriate

hazardous location certifications.

1.4 Return of materials

You may need to ship the device to an Emerson Product Service Center for return or

replacement in case of warranty issues. Before shipping, contact Emerson Product Support

to obtain a Return Materials Authorization (RMA) number and receive additional

instructions.

Emerson Product Support contact information:

Phone Toll free 800.833.8314 (U.S. and Canada)

+1.512.832.3774 (Latin America)

+63.2 702.1111 (Asia Pacific, Europe, and Middle East)

Email [email protected]

Web http://www.emerson.com/en-us/contact-us

Introduction User Guide

July 2020 MHM-97927-PBF

10 MHM-97927-PBF, DRAFT
