Fisher™easy-Drive™200L Quick Start Guide
Mounting and travel configuration for your Fisher easy-Drive 200L actuator.
Before You Begin
Do not install, operate, or maintain a 200L actuator without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property
damage, it is important to carefully read, understand, and follow all the contents of this quick start
guide, including all safety cautions and warnings. Refer to the Fisher easy-Drive 200L Instruction Manual
(D104331X012) for product specifications, custom setup information, maintenance procedures, and
installation in hazardous locations. If you have any questions about these instructions, contact your
Emerson sales office before proceeding.
WARNING
To avoid personal injury or property damage, keep hands and tools out of the actuator stem travel path. The actuator stem
will move during calibration and positioning steps.
Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal
injury.
Note
Refer to easy-Drive 200L Instruction Manual (D104331X012) for wiring, Modbus setup and connecting the Configurator to an
easy-Drive actuator as this will be needed to configure and calibrate the 200L.
Quick Start Guide
D104725X012
easy-Drive 200L
March 2022
Quick Start Guide
D104725X012
easy-Drive 200L
March 2022
2
Ensure Actuator Stem is in the Proper Position Prior
to Mounting and Coupling
Your 200L actuator has internal hard stops to limit maximum travel within the actuator. A new actuator will be shipped
from the factory at 6% off the lower internal hard stop, which is the recommended mounting position.
Note
If you are mounting a new actuator that has never been positioned and is still in its recommended mounting position of 6% of
maximum travel, you can begin at step 5.
To set the stand-alone 200L actuator to the recommended mounting position of 6% of maximum travel, follow steps
1-4:
Step 1. Ensure use of a stand-alone 200L
(must be actuator only, no valve body).

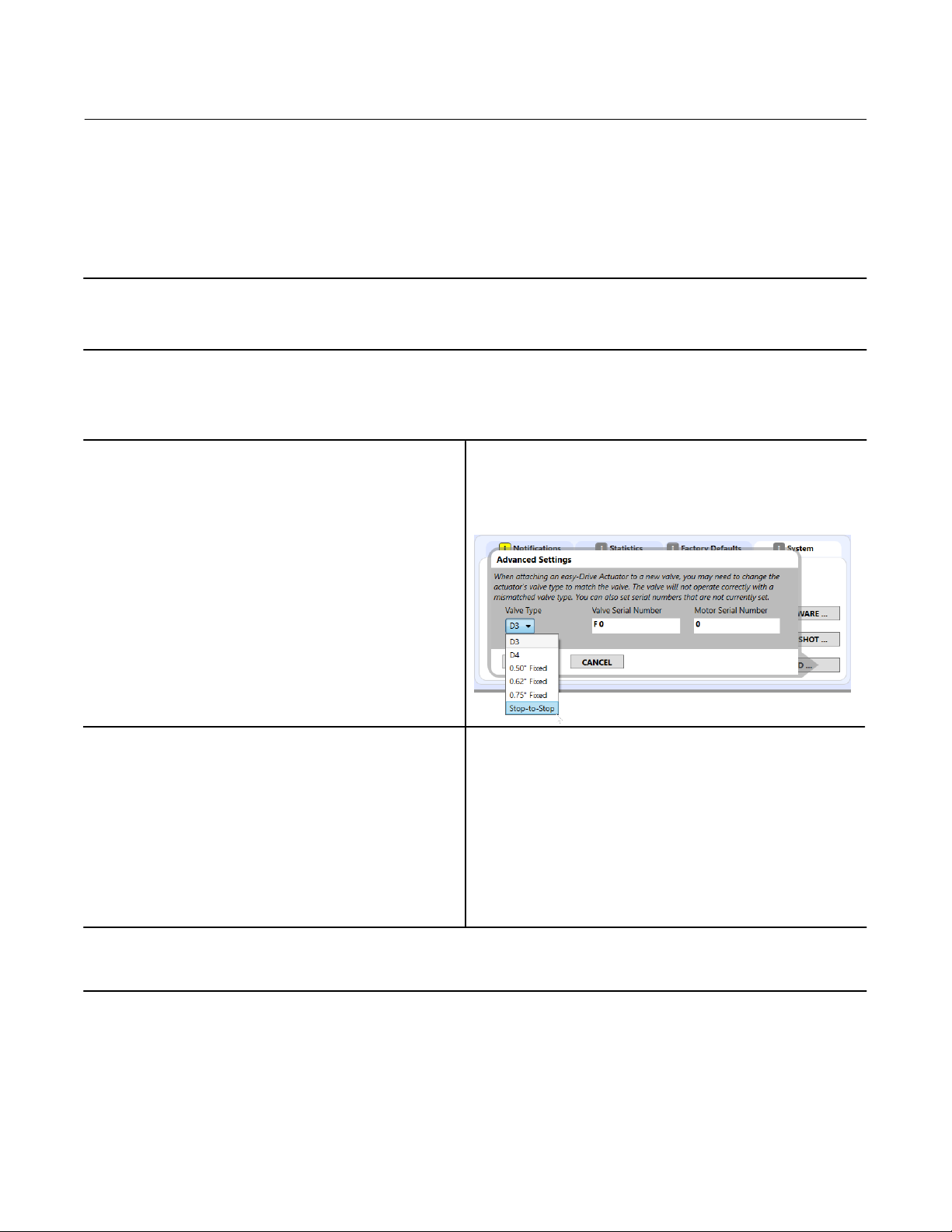

Step 2. Using the Fisher easy-Drive Configurator,
select the “System” tab and then
“Advanced Settings.” Select the valve
type “Stop-to-Stop” from the drop-down
options and click “Apply.”
Step 3. Perform Span Calibration from
Calibration tab. Step 4. Position actuator to 6% travel.
X1520-1
Note
Stop-to-Stop is used for positioning the actuator to 6% off the lower travel stop.
Select proper valve type and travel after mounting the 200L to the valve body.
Quick Start Guide
D104725X012
easy-Drive 200L
March 2022
3
Mount the Actuator to the Valve Body and Couple the Stems
Note
User supplied mounting bracket and stem coupler will be needed to complete this procedure.

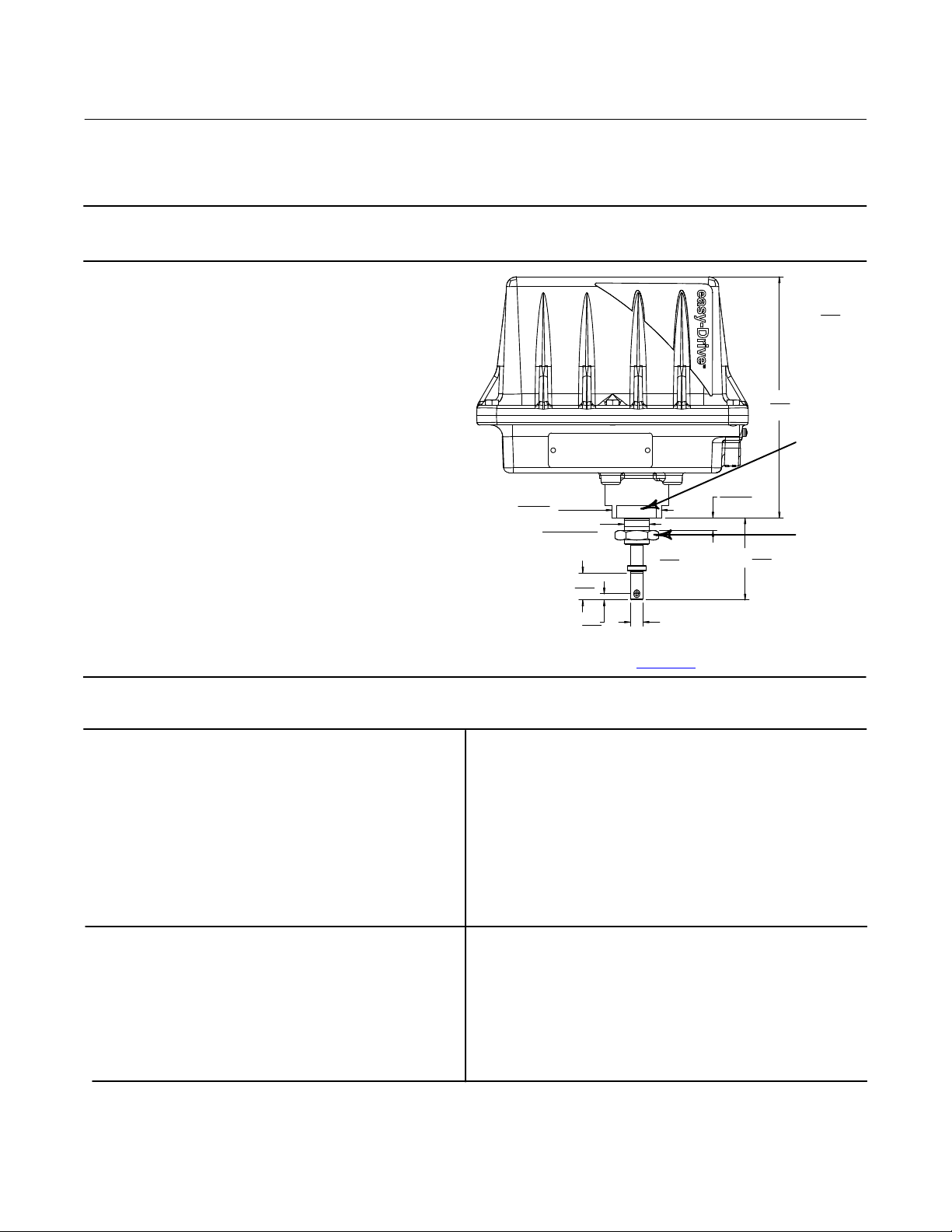

25.75 MAX
mm
Inch
10-15
0.39-0.59
1.013 MAX
63
2.48
9.61
244
Step 5. Supply a method of supporting the
weight of the valve and actuator during
assembly.
Step 6. Push the valve stem down away from the
actuator to the valves closed position for
push down to close valves.
Step 7. Mount the to the mounting bracket
supplied by the user. Tighten the actuator
locknut to 205 N•m (151lb•ft).
Step 8. Lift or hoist the actuator and mounting
bracket onto the valve and mate the
mounting bracket securely to the valve
following the valve manufacturer's
instructions.
Step 9. Make the stem connection between the
actuator and valve stems. When installing
the user-supplied stem connector, be sure
the actuator stem threads engage the
threads of the stem connector by a
distance equal to or greater than the
diameter of the actuator stem.
GE94736
WRENCH
FLATS
LOCKNUT
83
3.27EXTENDED
RETRACTED
1/2-20UNF-2A
6.3
0.25
27.3
1.07
50
1.969
Refer to the easy-Drive 200L bulletin (D104361X012) for complete mounting specifications.
Select Proper Valve Type
Step 10.Refer to valve manufacturer
documentation to determine maximum
valve travel. (Manufacturer specifications
may vary.)
Step 11.In the Configurator, navigate to the
Calibration tab.
Step 12.Click on the “Valve Type” and select the
appropriate value that matches desired travel
of the valve body for your application and is
within manufacturer valve travel limits. Then
click “Apply” to save the selection.
Note
Stop-to-Stop valve type selection should be avoided unless
the valve is specifically designed with its own internal up and
down hard stops within the valve body. Fixed travel settings
are recommended and will set the travel from the valve seat
(push down to close) up to a pre-defined amount of travel,
e.g. '0.75” Fixed' setting, will set the full range of travel at 19
mm (0.75 inches) from the seat.
Quick Start Guide
D104725X012
easy-Drive 200L
March 2022
4
Calibrate Travel of the Actuator to the Valve Assembly
Step 13.Ensure the process and valve are in a safe
state – the valve will move during the
calibration steps.
Step 14.Navigate to the Calibration tab of the
Configurator
Step 15.Press the “Calibrate Span” button to
initiate the span calibration. The software
will show a progress bar during the
calibration and display “Valve Span
Calibrated” when complete.
Note
If actuator cannot achieve desired travel, review steps 5-12 to ensure all steps were followed, validate proper Configurator
selections were made, and confirm the stems were properly coupled.
Step 16.Verify valve is closed when commanded
to 0%.
Step 17.Verify full desired travel is achieved when
commanded to 100% by confirming
“Actual Position” in the Configurator is
100%.
The valve/actuator assembly is now ready to be put into operation. If the 200L is not operating properly contact your
Emerson sales office.
Emerson Automation Solutions
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Cernay, 68700 France
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E2022 Fisher Controls International LLC. All rights reserved.
Fisher and easy-Drive are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson
Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their
respective owners.
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
