Emerson EIM HQ Series Manuel utilisateur

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

May 2020

EIM HQ Series Quarter-Turn Electric Actuator

Models HQ-006 / Manual HQ-402-0606

Notes

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

This page intentionally left blank

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

Table of Contents

Section 1: General

Generalities............................................................................................................. 1

Section 2: Actuator Mounting

Actuator Mounting ................................................................................................. 2

Section 3: External Construction

External Construction ............................................................................................. 3

Section 4: Standard Wiring Diagram

Standard Wiring Diagram........................................................................................ 4

Section 5: Manual Override

Manual Override ..................................................................................................... 5

Section 6: Electrical Connection

Electrical Connection.............................................................................................. 6

Section 7: Limit Switch Setting Instructions

Limit Switch Setting Instructions............................................................................. 7

Section 8: Lubrication

Lubrication.............................................................................................................. 8

Section 9: MDPI Settings

MDPI Settings ......................................................................................................... 9

Section 10: Maintenance and Storage

Maintenance and Storage ..................................................................................... 10

Section 11: Troubleshooting

Troubleshooting ................................................................................................... 11

Section 12: Product Features and Specications

Product Features and Specications...................................................................... 12

Table of Contents

May 2020

Table of Contents

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

Section 1: General

HQ series electric actuators are design to provide reliable and efcient operation of 90°

quarter-turn valves, dampers, etc.

! WARNING

Use caution when working in, with, or around valves and actuators. High pressures, forces,

voltages and ammable media can be present. Failure to follow instructions for proper

electrical wiring, storage, set-up and maintenance may cause serious injury, damage

equipment, or void warranty.

Section 1: General

General

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

May 2020

Section 2: Actuator Mounting

The actuator may be mounted in any position. The HQ-006 actuator is supplied with a

female output drive and adaptor bushings. ISO5211 FO3/FO5 and FO7 Bolt patterns are

provided for actuator mounting.

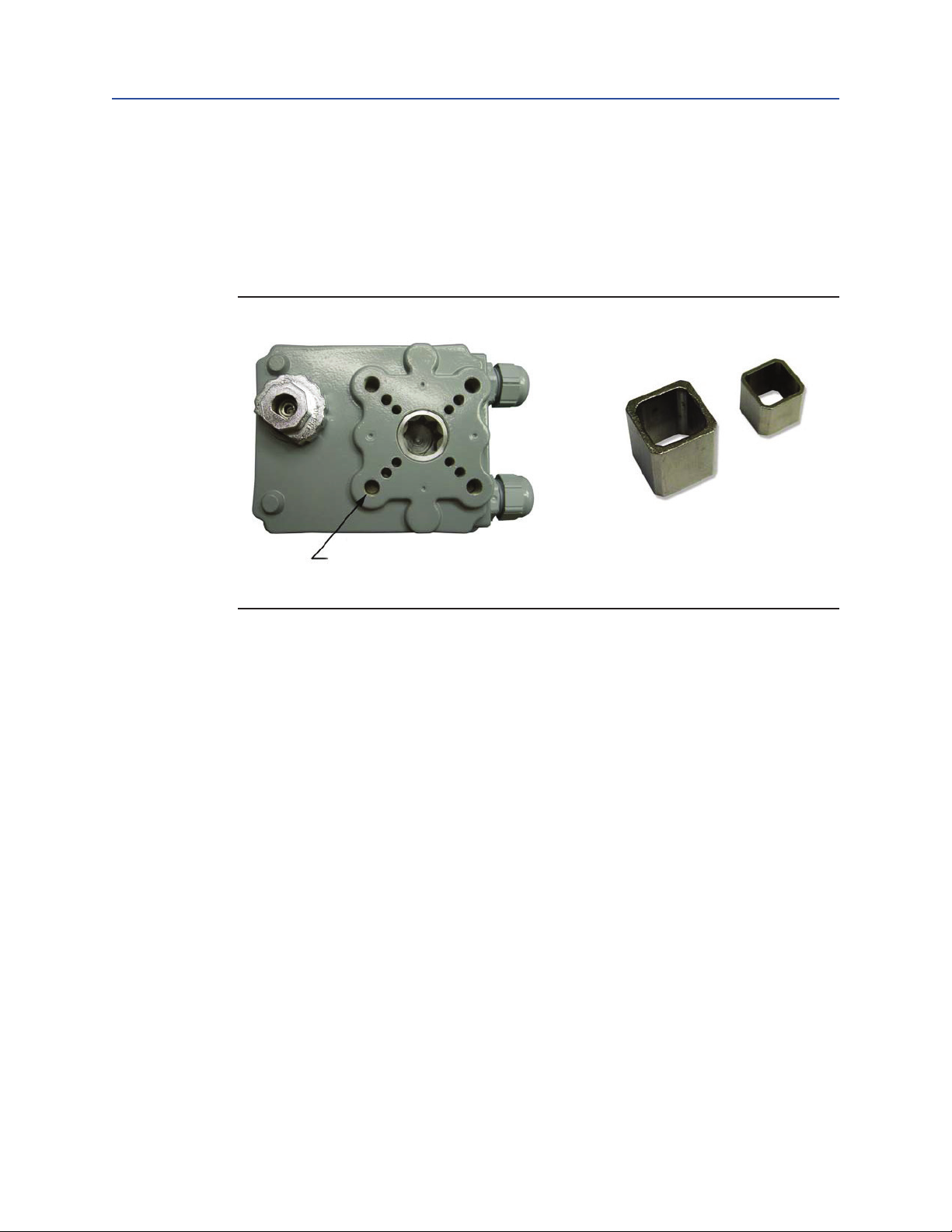

Figure 1 Actuator Mounting Flange and Adapter Bushings

F03, F05 and F07 Bolt Circles

11 mm ID

9 mm ID

Section 2: Actuator Mounting

Actuator Mounting

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

Section 3: External Construction

Figure 2

CABLE ENTRY

2 Plcs PG 0.531" (13.5)

(1/4" - 1/2" Wire Cable)

Section 3: External Construction

External Construction

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

May 2020

Section 4: Standard Wiring Diagram

Figure 3

INCOMING POWER

1 PH (110 OR 220 V A C)

LIVE

NEUTRAL

BASE

EARTH

HEATER

OPENSTOPCLOSE

OPEN

LAMP

AUX. CONTACT

2 EXTRA SWITCHES

MAX. 250 V AC 3 A

Section 4: Standard Wiring Diagram

Standard Wiring Diagram

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

Section 5: Manual Override

The HQ-006 actuator comes standard with a manual override nut. This is located on the

bottom of the unit, and can be easily operated with a 5M wrench.

Figure 4

Section 5: Manual Override

Manual Override

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

May 2020

Section 6: Electrical Connection

• Move valve to mid-position by override nut. This will allow sufcient time to stop

actuator in case of improper hook-up.

• Identify means of removing power during hook-up.

• Be sure no erroneous remote control signals can be received causing actuator

to energize.

• Electrically operate the valve in the open direction. If the valve closes, actuator

must be stopped and checked for improper eld wiring.

• Set all eld conduit entries in accordance with National Electric Code Requirements.

Section 6: Electrica l Connection

Electrica l Connection

May 2020

Installation, Operation and Maintenance Manual

VCIOM-15257-EN Rev. 1

Section 7: Limit Switch Setting Instructions

• Operate the actuator manually to closed position

• Using a hex wrench, loosen the cam adjustment screw in the CLS limit switch cam

• Rotate the CLS cam towards limit switch lever until the switch ‘clicks’

• Tighten set screw with hex wrench

• Operated the actuator manually to open position

• Using a hex wrench, loosen the cam adjustment screw in the OLS limit switch cam

• Rotate the OLS can towards limit switch lever until the switch ‘clicks’

• Tighten set screw with hex wrench

• Repeat for AOLS and ACLS

Figure 5

Limit

Switch

Cam

adjustment

screw

Section 7: Limit Switch Setting Instructions

Limit Switch Setting Instructions
