Emerson Copeland Site Supervisor Controller Manuel utilisateur

Site Supervisor Controller

(Contrôleur superviseur de site)

Quick Setup Guide

(Guide d’installation rapide)

iii

Contents

Table des matières

Technical Speciﬁcations.........................................................................................5

Ethernet Connection................................................................................................6

Direct Connect Instructions - Connect your Laptop to Site Supervisor’s

Ethernet Port ETH1: ..................................................................................................7

Logging Into the Site Supervisor.........................................................................8

How to Change the IP Address ............................................................................9

Setup Wizard ...........................................................................................................10

Basic Navigation .....................................................................................................12

UL Ratings .................................................................................................................12

Housing Dimensions and Mounting...............................................................13

Wiring Diagram .......................................................................................................13

Site Supervisor RS485 Wiring Guide Examples..........................................14

English

Spéciﬁcations techniques................................................................................... 16

Connexion Ethernet...............................................................................................17

Instructions de connexion directe - Connectez votre ordinateur portable

au port Ethernet ETH1 du superviseur de site :...........................................18

Connexion au superviseur de site.................................................................... 19

Comment changer l’adresse IP......................................................................... 20

Assistant de conﬁguration .................................................................................21

Navigation de base................................................................................................23

Classements UL....................................................................................................... 23

Dimensions du boîtier et ﬁxation......................................................................24

Diagramme de câblage........................................................................................ 24

Exemples de guide de câblage RS485 du superviseur de site............. 25

Français

The Site Supervisor is a system that combines

energy management with the ability to monitor

various facility systems and provide alerts when

there are issues that need attention. This system

provides HVAC control, Refrigeration System

Monitoring and Control, as well as Lighting

Control.

In addition, the Site Supervisor can monitor and

report energy consumption and take action to

reduce the energy demand during peak periods.

This can have a direct impact on utility bills by

reducing total energy costs. The Site Supervisor

ensures that the HVAC and lighting systems are

on and off at the appropriate times. This ability

to monitor store conditions can potentially

minimize energy consumption.

Site Supervisor Controller

Quick Setup Guide

For a copy of the latest Supervisory Control user manual (P/N 026-1803), visit the Site Supervisor

page on the Copeland website: https://www.copeland.com/en-us/training-support/hvacr-

training/lumity-supervisory-control-ss to download or contact Copeland Electronics and

Solutions Technical Support at 833-409-7505.

Technical Speciﬁcations

Operating Temperature -40°F to 149°F (-40°C to 65°C)

Relative Humidity 20-85% RH non-condensing

Enclosure Rating UL 94 V-0

Dimensions L 7 3/16 x W 2 3/8” x H 4 5/16” (183 mm x 60 mm x 100mm)

24 VAC 20VA required ; 24VAC/20VA

1 Can Bus Expansion Module Connections

4 RS485 ports MODBUS Com Ports 1, 2, 3, and 4

3 Ethernet ports Ports 1, 1, 0

2 USB ports 1, 2

MicroSD 1

Analog Inputs 8

Digital Inputs 4

Relay Outputs 4

Ethernet Connection

1. ETH1 is designed to be used for directly connecting to laptop, PC, or optional touchscreen with a CAT5

network cable.

2. The default IP for ETH1 is 192.168.1.250.

3. The optional Site Supervisor Display touchscreen default IP is 192.168.1.200 and will connect

automatically to the Site Supervisor when plugged into ETH1.

It is recommended that you do not change these defaults.

4. ETH0 should be reserved for the secure network connections: store or corporate networks. Ask your

network administrator for the correct network IP address for ETH0.

5. ETH0 and ETH1 are physically separated for added security. Directly connecting to ETH1 will not

access the secure network connection on ETH0.

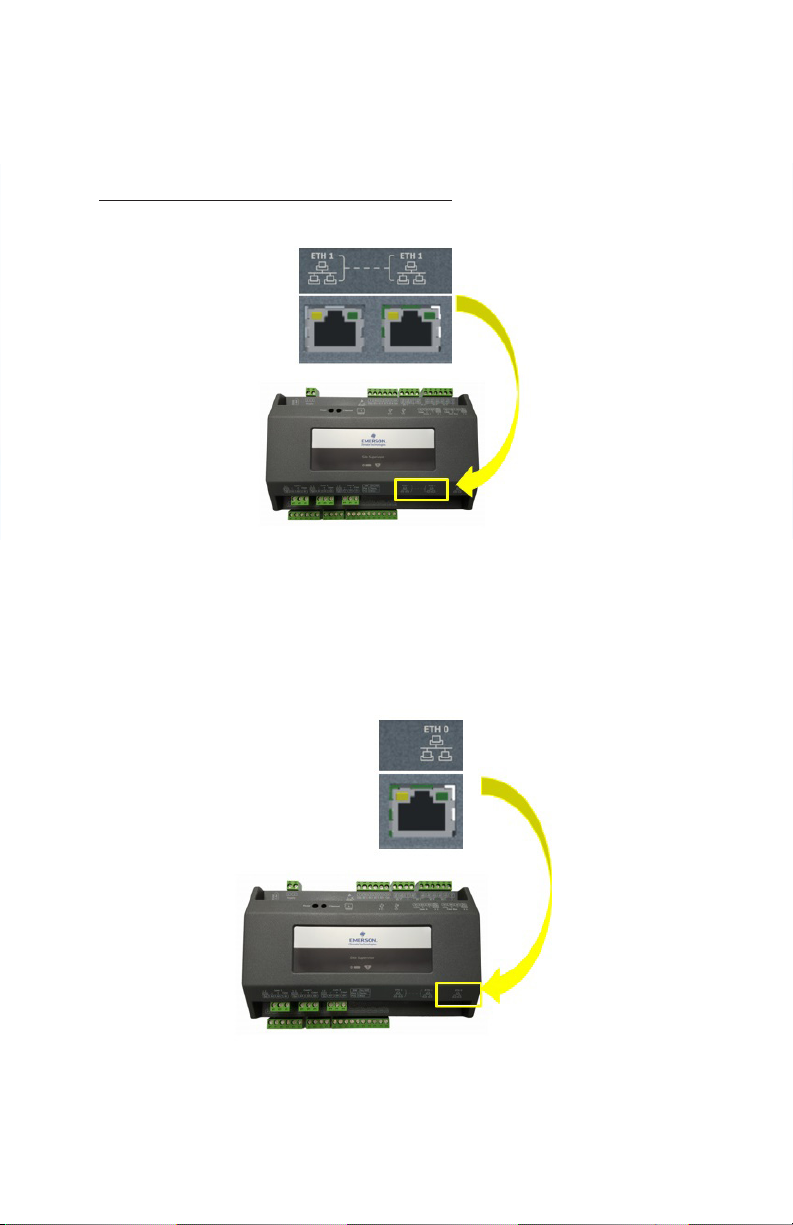

Site Supervisor ETH 1 Ports

Site Supervisor ETH 0 Ports

Direct Connect Instructions - Connect your Laptop to Site Supervisor’s

Ethernet Port ETH1:

1. Under the Control Panel - Network and Sharing Center, select Change adapter settings.

2. Select the Local Area Connection port being used.

3. Select Properties.

1. Highlight the section Internet Protocol

Version 4 (TCP/IPv4) and click Properties:

2. Click Use the following IP address: and

enter the IP address 192.168.1.251 and

the Subnet mask 255.255.255.0 of the PC

being used on the Local Area Network or

direct connection and click OK.

Change Adapter Settings

Highlight Internet Protocol Version 4 (TCP/IPv4)

IP Address and Subnet Mask

Logging Into the Site Supervisor

1. Launch a preferred Web browser: Google Chrome 105.0.5195 and later, Firefox 105.0 and later, MAC

Safari 14.1.2 and later, iOS Safari 14.7 and later, Microsoft Edge 84.0.522 and later, and Chrome/

WebView 105.0.5195 and later are the supported browsers.

2. Enter the IP Address of the device.

3. Enter your Username/Password (default user/pass) and click Login. Then update your password to

the minimum complexity requirements and click Save.

Update Password

Note that when directly connecting your laptop or PC to ETH1, enter the default IP into the

browser address bar: ETH1 Default IP Address is 192.168.1.250.

How to Change the IP Address

Method 1: Direct Connect

1. Select the Main Menu icon > Conﬁgure System > General System Properties > Network

Settings:

2. On the INTERNET (TCP/IP) section on the screen, enter the IP Address in the ETH 0 IP Address ﬁeld.

Method 2: USB Port

1. Create a “network.txt” with your desired settings (Enter IP Address in the ETH 0 IP Address Field):

2. Save to the root folder of a thumb drive. Insert the thumb drive into the USB port of E3.

3. Power cycle the E3. The new IP Address will be saved.

Network.txt Notepad

Enter IP Address in the ETH 0 IP Address Field

Note that you can set up the Peer Group, Unit Number, Network Mask, and Default Gateway on

this screen.

Setup Wizard

Set the E3’s localization data such as language, date and time formats, and engineering units from the

Localization screen.

Language : The default for the language selection is American English (United States). The system stores

a setting for the preferred system language (internal language code). The default language is used when

no user is currently logged into the E3 or when the currently active preferred language does not have a

translation for a given label, prompt, or display text.

Date : The Date format can be set to either Day, Month, and full Year (D-M-YR) or Month-Day and full Year

(M-D-YR) format. The day, month, and year values are separated by either a forward slash or a dash line

depending on user selection.

The Date Format can be changed based on user preference and saved to user proﬁles. On initial E3 startup,

the Date format defaults to the format of the language selected. For example, en-US will default to D-M-YR and

all others will default to M-D-YR.

Time : The Time format can be set to either a 12-hour (12-hr) format or 24-hour (24-hr) format. The hour,

minute, and second values are separated by either a colon or a period depending on user selection.

The Time format can be changed based on user preference and saved to user proﬁles. On initial E3 startup,

the Time format defaults to the format of the language selected.

Date and Time delimiters default to forward slashes and colons.

Engineering Units :The default engineering units are based on the assigned units for the chosen preferred

language. Users can choose or change their preferred set of engineering units and save them to their user

proﬁles.The default engineering units are based on the International System of Units (SI System) format.

Set the system language type in the Language drop-down menu. Click the right arrow >to save and proceed

to the System Values screen.

Localization Screen

Note that if setpoints have been pre-loaded in the unit, the Setup Wizard will not auto-start after

logging in.

If your unit has been received directly from the Copeland factory, the Setup Wizard will open and take you

through the following setup screens:

Localization Screen
