LIEBERT OPENCOMMS™EM

Quick-Start Guide

WHAT’SINCLUDED

Check to make sure you have all the items that should be included with your model.

STANDARD COMPONENTS

(Shipped With Kits)

Kit Part Number

TMNET THCMNET TMPDUNET THCMPDUNET vEM-14

• EM Controller - 2 sensor ports ✔✔ ———

• EM PDU Controller - 2 sensor ports,

2 serial ports —— ✔✔—

• vEM-14 Controller - 4 sensor ports,

2 serial ports, built-in temperature and

humidity sensor

—— — — ✔

• CD with software and user manual ✔✔ ✔ ✔ ✔

• Power supply ✔✔ ✔ ✔ ✔

• Quick-start guide ✔✔ ✔ ✔ ✔

• Temperature sensor, 1 ft. (0.3m) ✔—✔——

• Temperature & humidity combination

sensor, 1 ft. (0.3m) —✔—✔—

• Serial cable for MP Advanced Power

Strips, 5 ft. (1.5m) —— ✔✔—

If any damage from shipping or mishandling is observed, file a damage claim immediately—see the user manual for details.

MAKE CONNECTIONS

The OpenComms EM must be installed indoors where electrical service is available. The unit should be

placed where it can be easily accessed for making connections. It may be placed on a flat surface or

mounted on a wall (see the user manual for mounting instructions). Consider the length of the sensor and

other cables and the distance to the monitored area when deciding where to place the unit.

Refer to Figure 1 when making the connections in Steps 1 - 5below to the ports on the back of the

OpenComms EM. The port placement and port labels differ for each model.

Figure 1 Rear view - OpenComms EM ports

MAKE THESE CONNECTIONS:

After connecting,

check indicators

on front of unit:

1. POWER: Connect the DC power adapter to the DCN/Power port on the back of the

OpenComms EM.

Power

ON (red)

2. ETHERNET: Connect a straight-through CAT5 Ethernet cable from your 10 Mbit

network to the Ethernet/ETH port on the back of the OpenComms EM.

Link/Cx

ON (green)

3. MODEM: If using a modem, connect an RJ45 cable from a modem to the Modem

port on the back of the unit (see the user manual for modem

setup and pinout).

Activity/Modem/

Mdm

ON (green)

4. SENSOR: Use a sensor—temperature, humidity, combination temperature &

humidity or water detection—or a contact closure cable.*

Connect a sensor or contact closure cable to any sensor port (e.g., Sensor 1,

Sensor 2). These connections may be made in any order; the ports are identical

and are configured to accept and recognize all types of sensors.

Sensor 1-2

(EM/EM PDU)

Sensor 1-4

(vEM-14)

ON (green)

5. SERIAL (EM PDU Controller only): Use the serial cable provided with EM PDU

controllers (available separately for vEM-14 controllers).*

Connect the six-wire end of the serial cable into the RS232 port of an MP

Advanced power strip.

Connect the other end (eight-wire) of the serial cable to either serial port (Serial 1

or Serial 2) of the OpenComms EM.

Serial 1

Serial 2

ON (green)

* See the user manual for instructions on making your own cable. (For a contact closure cable, the orange/white and white/orange wires must

be tied together to form the common. The blue/white wire is the contact that may be defined as either Normally Open or Normally Closed.)

CONTROLLER

Rear of unit

Sensor

1 Modem DCNEthernet

Power

Sensors Modem

Sensor

Serial

ModemDCN Ethernet

Power

Serial

devices Ethernet

Sensors Modem Serial

devices Ethernet

EM PDU

CONTROLLER

Rear of unit

vEM-14

CONTROLLER

Rear of unit

Power

Dry

contact

inputs

Built-in

temperature

& humidity

sensor

ASSIGN AN IP ADDRESS

After connecting the OpenComms EM device to your network, the next step is to identify the device to the

network by assigning an IP address.

Consult your network administrator to obtain an IP address that is appropriate for your network, as well

as a subnet mask and default gateway address.

There are three methods of assigning the IP address—see the user manual for other options.

If your network uses static IP addresses and your computer has a Windows operating system, you may

use the IPSET.exe program included on the CD that came with your unit.

To do this:

1. Insert the OpenComms EM CD in the CD drive.

2. Click on the Start button, then on Run.

3. In the Run window, click on Browse to locate

the file IPSET.exe on the CD, highlight the file

name and click Open.

4. In the Run window, click OK. The IPSet window

opens, as shown at right.

5. In the IP address box in the Target area, enter

the IP address for your unit.

Note: The IP address must be unique on the net-

work—not assigned to any other device.

6. Enter the Subnet Mask of your network in the

Subnet box. (Depending on your IP address,

some or all of the Subnet Mask might be entered

automatically after you enter the IP address.)

7. Enter the default gateway address in the

Default box.

8. In the MAC address box, enter the MAC address of your device.

Note: The MAC address is found on a sticker on the bottom of the device.

9. Click on the Apply button. If the device identification is successful, the message “Successfully set IP

address” appears in the Status box. (If not, the message “No response from target” appears in the

Status box.)

10. Click on the Close button.

NOTE

These steps must be done on the same network segment where the OpenComms EM is connected.

Enter a

unique

IP address

Enter the unit’s

MAC address

(look on

bottom of unit) Apply button

Subnet

mask

Default

gateway

address

to change without notice.

® Liebert and the Liebert logo are registered trademarks of

Liebert Corporation. All names referred to are trademarks or

registered trademarks of their respective owners.

SL-28205_REV02_01-07

Liebert Corporation

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Telephone: 1-800-877-9222

Facsimile: 1-614-841-6022

www.liebert.com

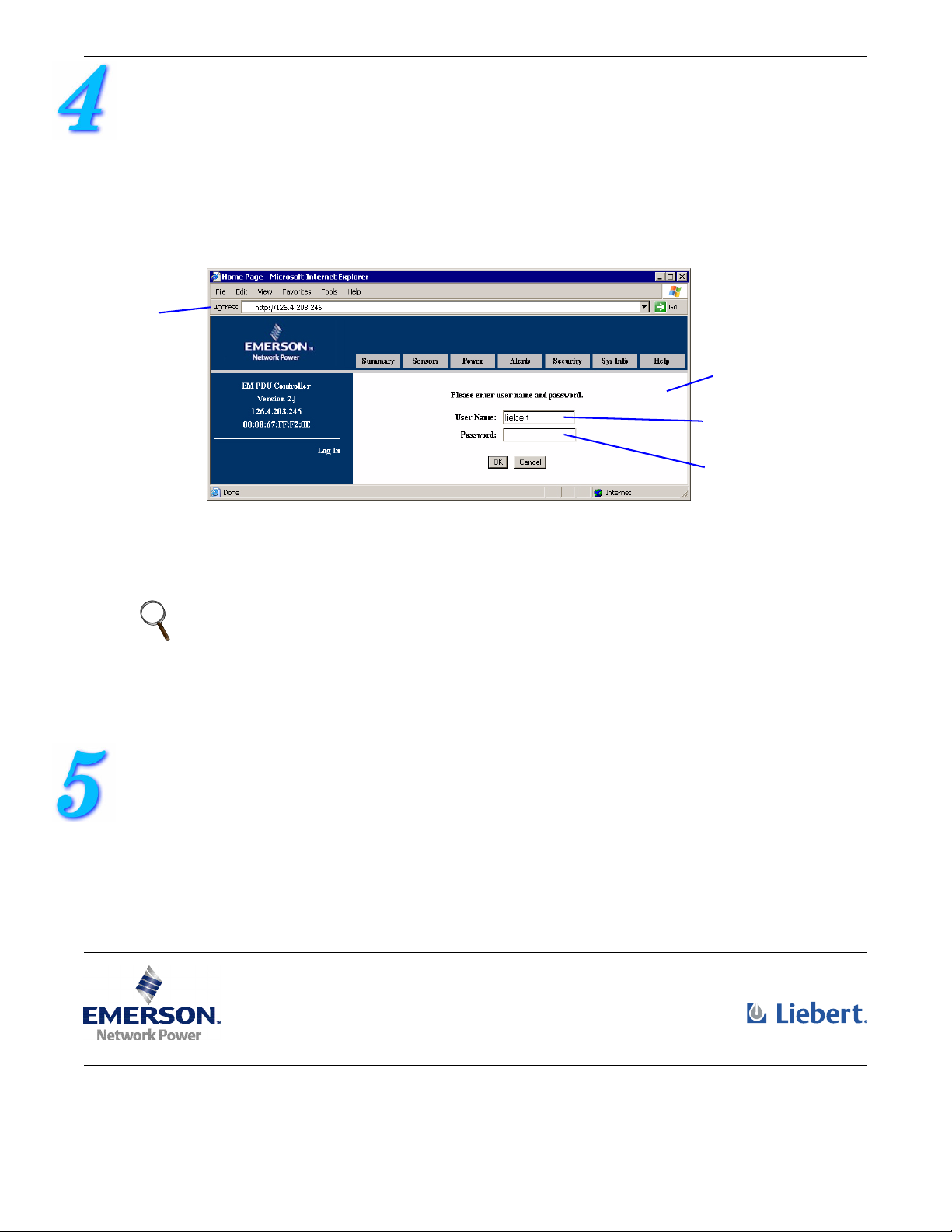

OPEN THE WEB INTERFACE AND LOG IN

You must log in each time you open the Web interface. To allow you to log in the first time, the unit is set

up with a default User Name, liebert, with no password.

To open the Web interface and log in:

• Open an Internet browser, such as Microsoft Internet Explorer. (One way to do this in Windows is to

click on the Start button, then on Programs and finally on the browser program, for example,

Internet Explorer.)

• Enter the unit’s IP address or hostname into the browser’s address bar—for example, 126.4.203.246—

and press the Enter key. The Login window appears on the right side of the window, as shown below.

• Enter the appropriate user account name in the User Name box; user names are case-sensitive. The

default user name is liebert (all lowercase). For instructions on creating user accounts, see the user

manual.

• Leave the Password box blank (the default liebert user account has no password).

•ClickOK. If an error message appears, try entering the user name again. Remember that is case-

sensitive.

• If the login is successful, a message appears. Click OK.

EXIT THE WEB INTERFACE

• Click on the Summary tab at the top of the Web interface.

• To exit the Web interface, click on the Log Out button in the left side of the window. The opening

program.

NOTE

Liebert recommends creating a password for the default liebert user account to prevent

unauthorized users from changing configuration settings. For details, see the user manual.

window

Address

bar

User Name

default = “liebert”

Password

default = no password
