Emerson BETTIS TEC2 CCM Manuel d'installation

Programming Instructions

TEC2-RS485-1001 Rev. 1

September 2015

TEC2 CCM Programming Instructions

Using RS-485 UART Probe and STC Pins 36 and 38

I

Table of Contents

September 2015

Programming Instructions

TEC2-RS485-1001 Rev. 1

Table of Contents

Table of Contents

Section 1: TEC2 CCM Programming Instructions

1.1 Using RS-485 UART Probe and STC Pins 36 and 38......................................... 1

Programming Instructions

TEC2-RS485-1001 Rev. 1

September 2015

1

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Section 1: TEC2 CCM Programming

Instructions

1.1 Using RS-485 UART Probe and STC Pins 36 and 38

Figure 1 RS485 Setup

1. Connect USB cable to the RS485 Adapter and plug the other end of the cable into

the USB port on the computer. See Figure 1.

2. Connect a two lead cable to the Phoenix connector. See Figure 2.

September 2015

Programming Instructions

TEC2-RS485-1001 Rev. 1

2

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Figure 2 RS485 Adapter Box Connection

3. Connect RS485 cable to STC pins 36 and 38. See Figure 3.

Figure 3 STC Pins 36 and 38

4. Set all switches on the RS485 Adapter box to ON. See Figure 4.

Programming Instructions

TEC2-RS485-1001 Rev. 1

September 2015

3

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Figure 4 Adapter Switch Settings

5. Go to Windows Control Panel and open device manager. See Figure 5.

September 2015

Programming Instructions

TEC2-RS485-1001 Rev. 1

4

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

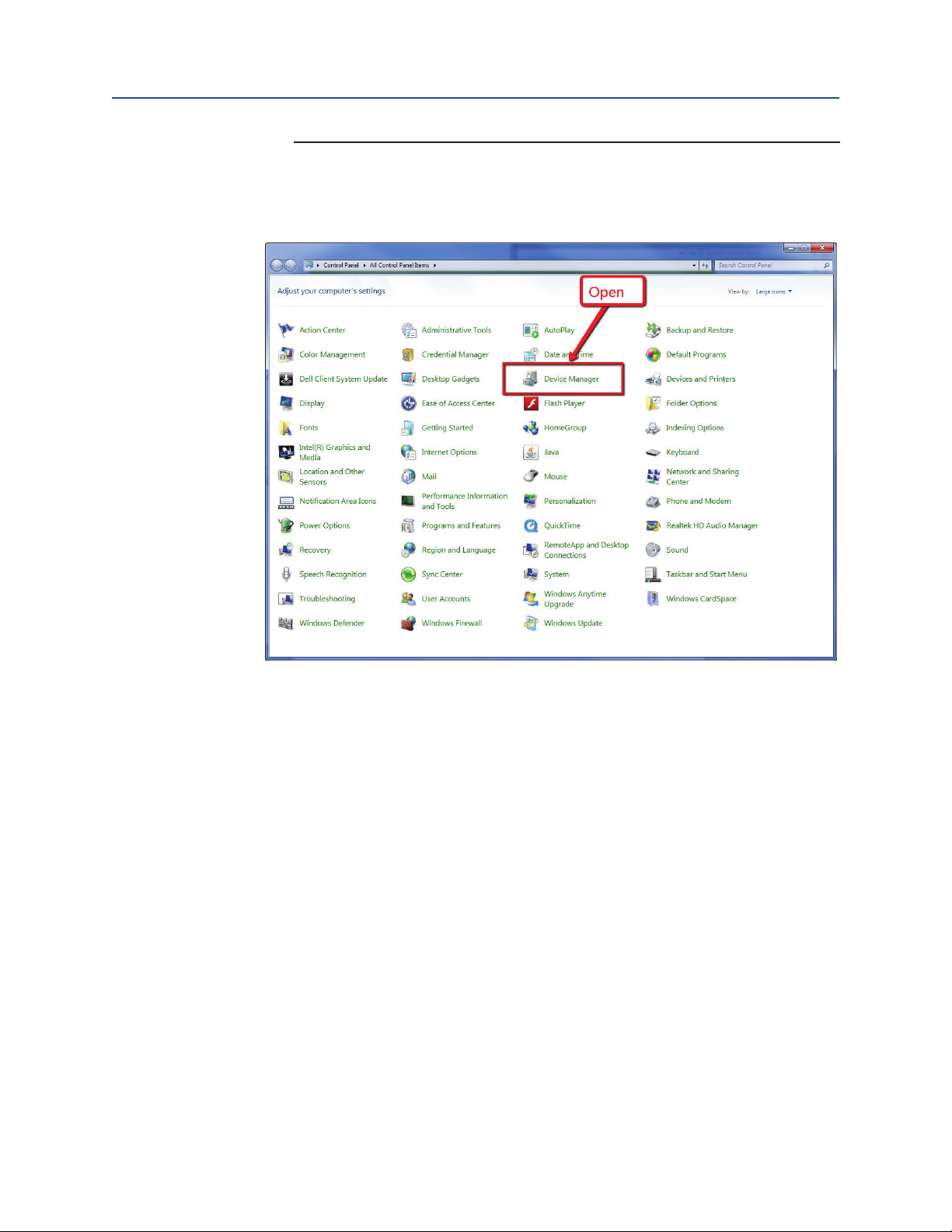

Figure 5 Windows Control Panel

6. Determine the RS485 Adapter box Com Port Number. See Figure 6.

Figure 6 Com Port Number

7. Open the TEC-Flash.exe program. See Figure 7.

Programming Instructions

TEC2-RS485-1001 Rev. 1

September 2015

5

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Figure 7 TEC-Flash.exe Icon

8. Select the correct Comm port and then select Open. See Figure 8.

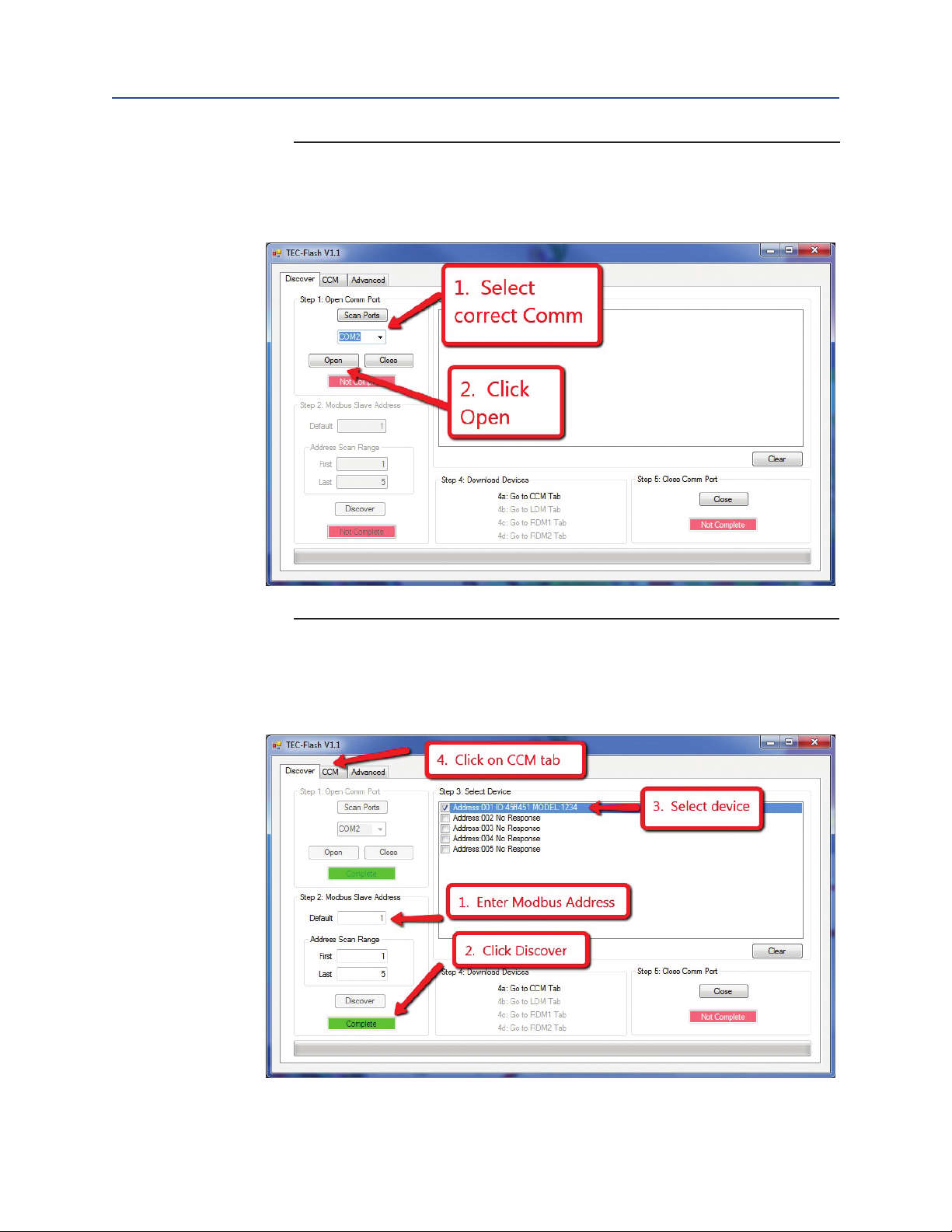

Figure 8 Open Comm Port

9. Enter the Modbus Address. Click on Discover. Select Check box for the Actuator,

then click on the CCM Tab. See Figure 9.

September 2015

Programming Instructions

TEC2-RS485-1001 Rev. 1

6

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Figure 9 TEC-Flash Program Discover Tab

10. On the CCM tab, click Read Version button on Step 1. Then Click Read CRC on Step

2. Then click Open File on Step 3. See Figure 10.

Figure 10 Perform Steps 1 and 2 then click Open File

11. Navigate to the directory that holds the BIN file you want to download. Select that

file and click open. See Figure 11.

Programming Instructions

TEC2-RS485-1001 Rev. 1

September 2015

7

Section 1: TEC2 CCM Programming Instructions

TEC2 CCM Programming Instructions

Figure 11 Open BIN File

12. Figure 12 below shows that in Step 2 box, the CRC values of the code in the

existing board “Stored” is the CRC in the code. Calc is the CRC that TEC-Flash

calculated for the code on the board. In the Step 3 box, the Stored is the CRC for

the new file that is stored in the new BIN file itself. Calc is the value of the CRC that

the TEC-Flash.exe program calculated for the BIN file you selected to download.

The Btldr = Bootloader and App = the Target executable file. See Figure 12.

Figure 12 Screen Showing that Target executable and New File to

Download are different.
