Emerson CKD2328 Manuel utilisateur

OWNER’SMANUAL

CKD2328 (WithoutRemoteControl)

CKD2330 (WithRemoteControl)

Visitourweb siteatwww.emersonradio.com

AM/FMSTEREOCLOCK RADIO

withCOMPACTDISCPLAYER

POWERPANELLOADINGSYSTEM

and REMOTECONTROL

(ModelCKD2330 only)

CKD2328_2330_B0901103.p65 11/9/2003, 14:1736

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES

CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE

ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.

IMPORTANTSAFETYINSTRUCTIONS

1.) Read these instructions.

2.) Keep these instructions.

3.) Heed all warnings.

4.) Follow all instructions.

5.) Do not use this apparatus near water.

6.) Clean only with dry cloth.

7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

groundingprong.Thewidebladeorthethirdprongareprovidedforyoursafety. If the provided

plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11.) Only use attachments / accessories specified by the manufacturer.

12.) Unplug this apparatus during lightning storms or when unused for long periods of time.

13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

14.) This appliance shall not be exposed to dripping or splashing water and no object filled with

liquids such as vases shall be placed on the apparatus.

15.) Do not overload wall outlet. Use only power source as indicated.

16.) Use replacement parts as specified by the manufacturer.

17.) The product may be mounted to a wall only if recommended by the manufacturer.

18.) Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks.

CAUTION

RISK OFELECTRICSHOCK

DONOTOPEN

The lightning flashwitharrow-

head symbol,withinan equi-

lateraltriangleisintented to

alertthe usertothe presence

ofuninsulated‘dangerousvoltage’

withinthe product’s enclosure

thatmaybe ofsufficient

magnitude toconstitutearisk

ofelectricshock topersons.

The exclamation pointwithin

an equilateraltriangleisin-

tended toalertthe userto

the presenceofimportant

operating and maintenance

(servicing)instructionsin

the literatureaccompany-

ing the appliance.

WARNING:TOREDUCETHE

RISK OFELECTRICSHOCK

DONOTREMOVE COVER

(ORBACK),NOUSER

SERVICEABLEPARTSINSIDE

REFERSERVICINGTO

QUALIFIEDSERVICE

PERSONNEL.

CAUTION

CKD2328_2330_B091103.p65 11/9/2003, 14:511

Thankyou… … … … … …

forpurchasing thisEmerson stereo clock radiowithCD playerand PowerPanel

CDloading system.The motorized frontpanelrotates90 degreesatthe touchofa

button tomakeloading and unloading yourCDssimpleand easy.The PowerPanel

loading systemalsomeansthatthisradiotakesup less spaceon the bedside table

than otherradioswithdrawertype CD loading systems.

Inaddition tothe excellentsound fromboththe radioand the CD playerthisunit

alsofeaturesadigitalradiofrequencydisplaytomaketuning yourfavoritestations

easier.There’s an automaticdisplaydimmerthatadjuststhe brightness ofthe

clock and radiodisplaytomatchthe roomlighting conditions.And there’s atwo-

waysnoozecontroltomakeiteasiertograb thosefewextraminutesofsleep.You

can press the snoozebutton asusualor,ifthat’s too muchofatask whileyou’re

half-asleep,you can justwaveyourhand infrontofthe radiotoactivatethe snooze

function.

Ofcoursethere’sabatterybackupsystemtomaintainyourclockandalarmsettings

inthe eventofapowerinterruption.And on modelCKD2330 we’veeven included

acreditcardsize,10-button remotecontrolsoyou can switchthe unitOnand Off,

operatethe CD functions,and adjustthe volumefromacross the room.

Thissystemwasdesigned togiveyou manyyearsofenjoymentwithan absolute

minimumofcareand maintenance.Pleaseread thisOwnersManualcarefullyand

completelytoensurethatyou getthe maximumbenefitfromall the outstanding

featureswehaveincluded inthisproduct. If you encounteranyproblemwiththe

setup oroperation ofthismodelpleasedo notreturnittothe retail store.Please

call the Emerson CustomerServiceHotline toll free at1-800-898-9020.One of

ourservicetechnicianswill trytodiagnosethe problemforyou.

Onceagainthanks forchoosing thisEmerson audioproduct.

For future reference, record the serial number in the space provided.

Model No: CKD2328/CKD2330

Serial No:

CKD2328_2330_B091103.p65 11/9/2003, 14:512

IMPORTANTNOTES

•Operatecontrolsand switchesas

described inthe manual.

•Beforeturning ‘On’the power,make

certainthatpowercordisproperly

installed.

•StoreyourCDsinacoolarea toavoid

damage fromheat.

•When moving the set, be suretofirst

disconnectthe powercord.

•Avoidinstalling thisunitinplaces

exposed todirectsunlightorcloseto

heatradiating appliancessuchas

electricheaters,on top ofotherstereo

equipmentthatradiatestoo muchheat,

placeslackingventilationordustyareas,

placessubjecttoconstantvibrationand/

orhumidormoistareas.

•Donotattempttoclean thisunitwith

chemicalsolventsasthismightdamage

the finish.Useaclean drycloth.

CLASS 1LASERPRODUCT

APPAREILÁLASERDECLASSE 1

PRODUCTOLASERDECLASE 1

CAUTION

INVISIBLELASERRADIATION

WHENOPENAND INTERLOCKS

DEFEATED.

AVOIDEXPOSURETOBEAM

ThisproductcontainsalowpowerLaserDevice.

FCC INFORMATION

Thisequipmenthasbeen tested and found tocomplywiththe limitsforaClass Bdigital

device,pursuanttoPart15 ofthe FCC Rules.Theselimitsaredesigned toprovide

reasonableprotection againstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,uses,and can radiateradiofrequency energyand,ifnotinstalled

and used inaccordancewiththe instructions,maycauseharmfulinterferencetoradio

communications.However,thereisno guarantee thatinterferencewill notoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcan be determined byturning the equipmentoff and on,the useris

encouraged totrytocorrectthe interferencebyone ormoreofthe following measures:

•Reorientorrelocatethe receiving antenna.

•Increasethe separation between the equipmentand receiver.

•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe receiver

isconnected.

•Consultthe dealeroran experienced radio/TVtechnician forhelp.

ThisdevicecomplieswithPart15 ofthe FCC Rules.Operation issubjecttothe following

twoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,including interferencethat

maycauseundesired operation.

CKD2328_2330_B091103.p65 11/9/2003, 14:513

PREPARATION FOR USE

UNPACKING AND SETUP

• Carefully remove the main unit and the accessories from the display

carton. Remove all the packing material from the unit and verify that

you have the following items: Main unit, external AM antenna, and

remote control (for model CKD2330 only).

• Carefully remove any small strips of tape that may have been used to

prevent the Power Panel from moving in transit.

• Unwind the AC power cord and extend it to its full length.

• Unwind the lead wire FM antenna and extend it to its full length.

• This unit was shipped with a dummy CD transit card in the CD player.

This dummy CD prevents the laser pick up from moving during

shipment. This card must be removed before you can insert your own

CDs. However in order to remove the card the unit must be connected

to the AC outlet and the Power Panel must be opened electronically.

Please refer to the instructions on page 18 of this manual.

TO AVOID DAMAGING YOUR UNIT DO NOT ATTEMPT TO

MANUALLY OPEN THE POWER PANEL.

• Place the unit on a flat, level surface such as a table, desk, counter,

shelf, etc, convenient to a 120V 60 HzAC outlet, out of direct sunlight,

andawayfromsourcesofexcessheat,dust,moisture,orstrongmagnetic

fields.

CKD2328_2330_B091103.p65 11/9/2003, 14:514

External AM Antenna

This unit utilizes an external AM loop antenna instead of a built in ferrite bar antenna.

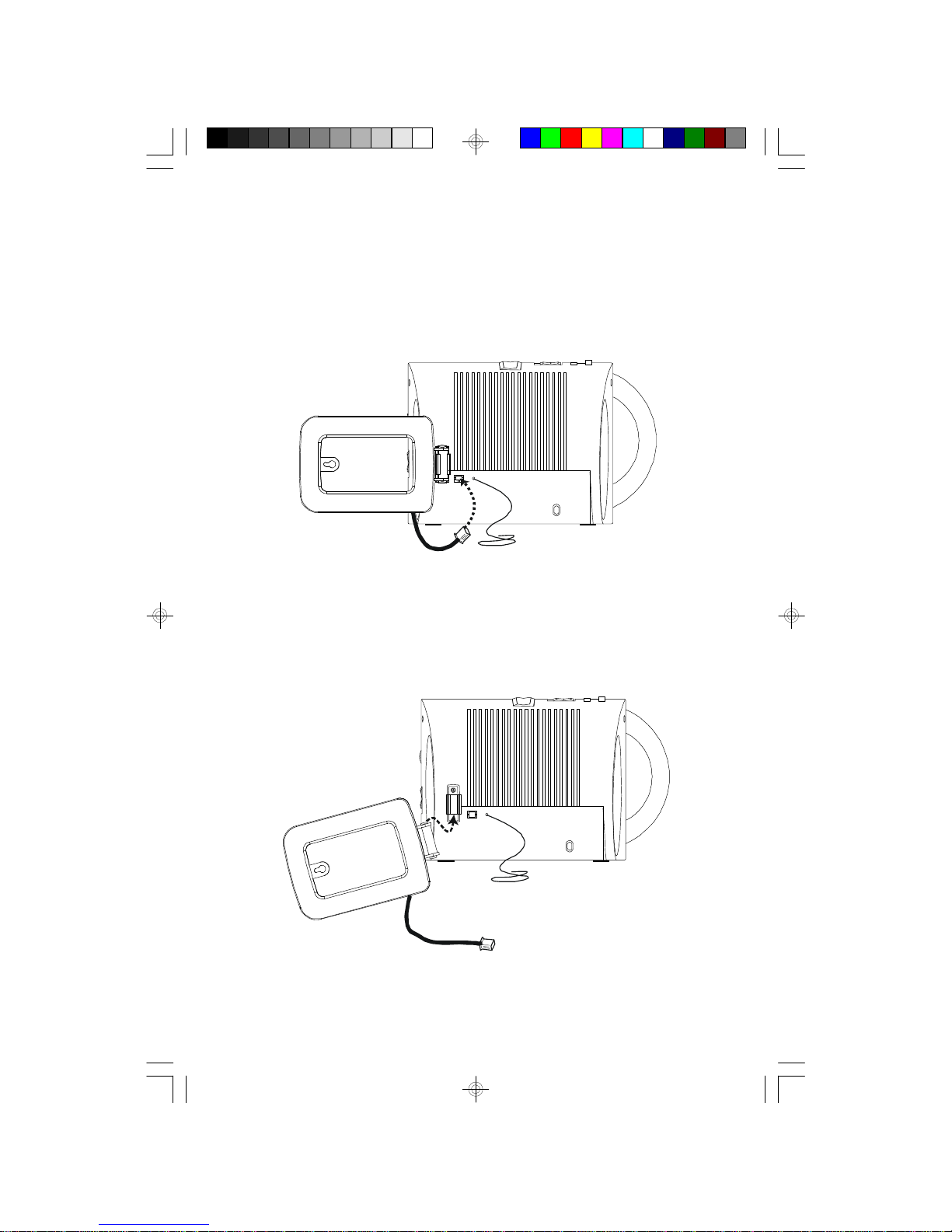

1.) Insert the small white plug from theAM loop antenna into theAM antenna jack

on the back of the radio. The plug can only be inserted one way.

2.) Attach theAM loop antenna to the antenna bracket on the back of the radio as

shown.

CKD2328_2330_B091103.p65 11/9/2003, 14:515

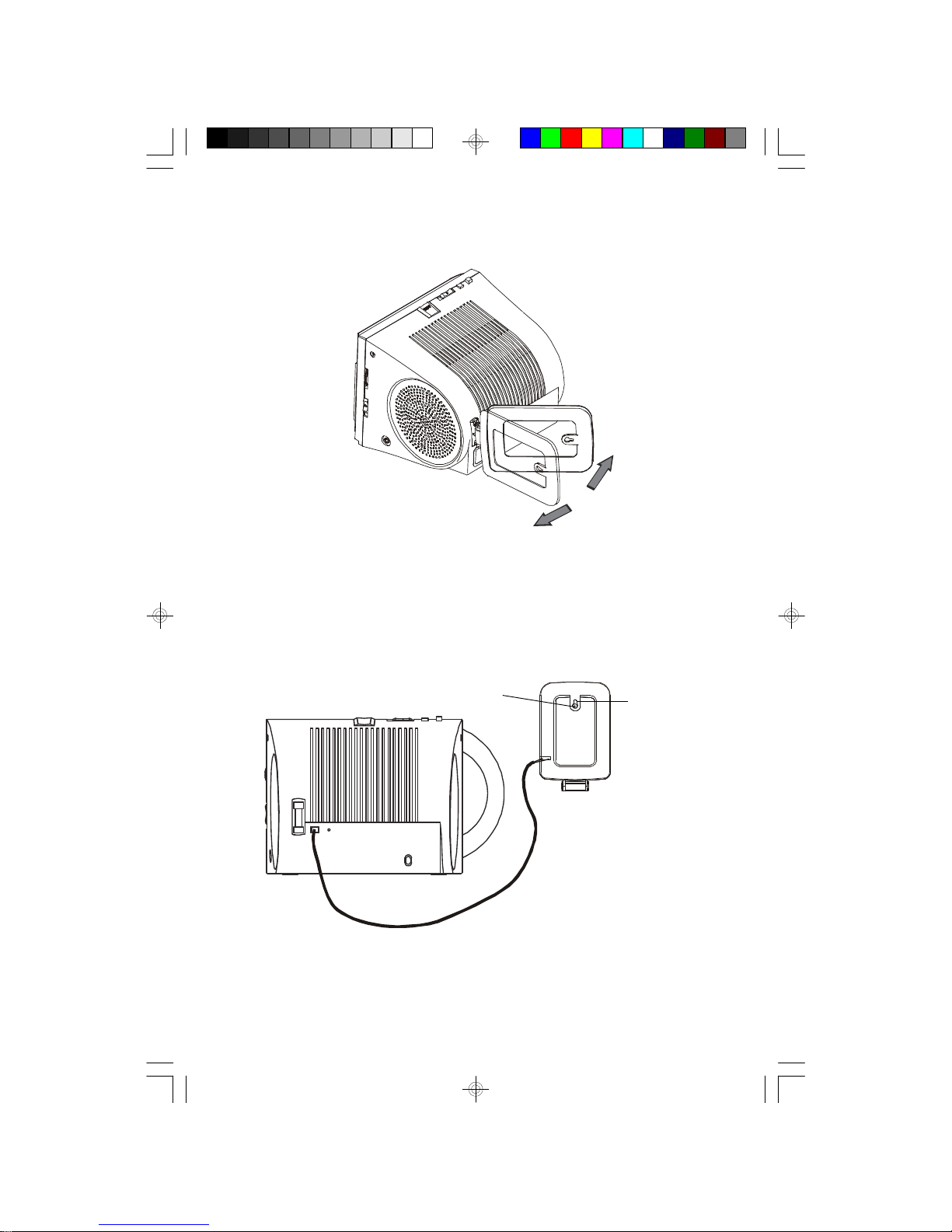

3.) Adjust the angle of the loop antenna until you find the position that provides the

bestAM reception.

Note: If you find that AM reception is still unsatisfactory you can remove

the loop antenna from the antenna mounting bracket and attach it to the

wall with a thumbtack or small nail through the “keyhole” opening on the

antenna frame.

KeyHole

Hanging Screw

CKD2328_2330_B091103.p65 11/9/2003, 14:516

Battery Back Up System

This model includes a battery back up circuit that will maintain the clock and alarm

settings in the event of a temporary power interruption. The battery back up system

requires two “AA” batteries, not included. The battery compartment is located on

the bottom of the cabinet.

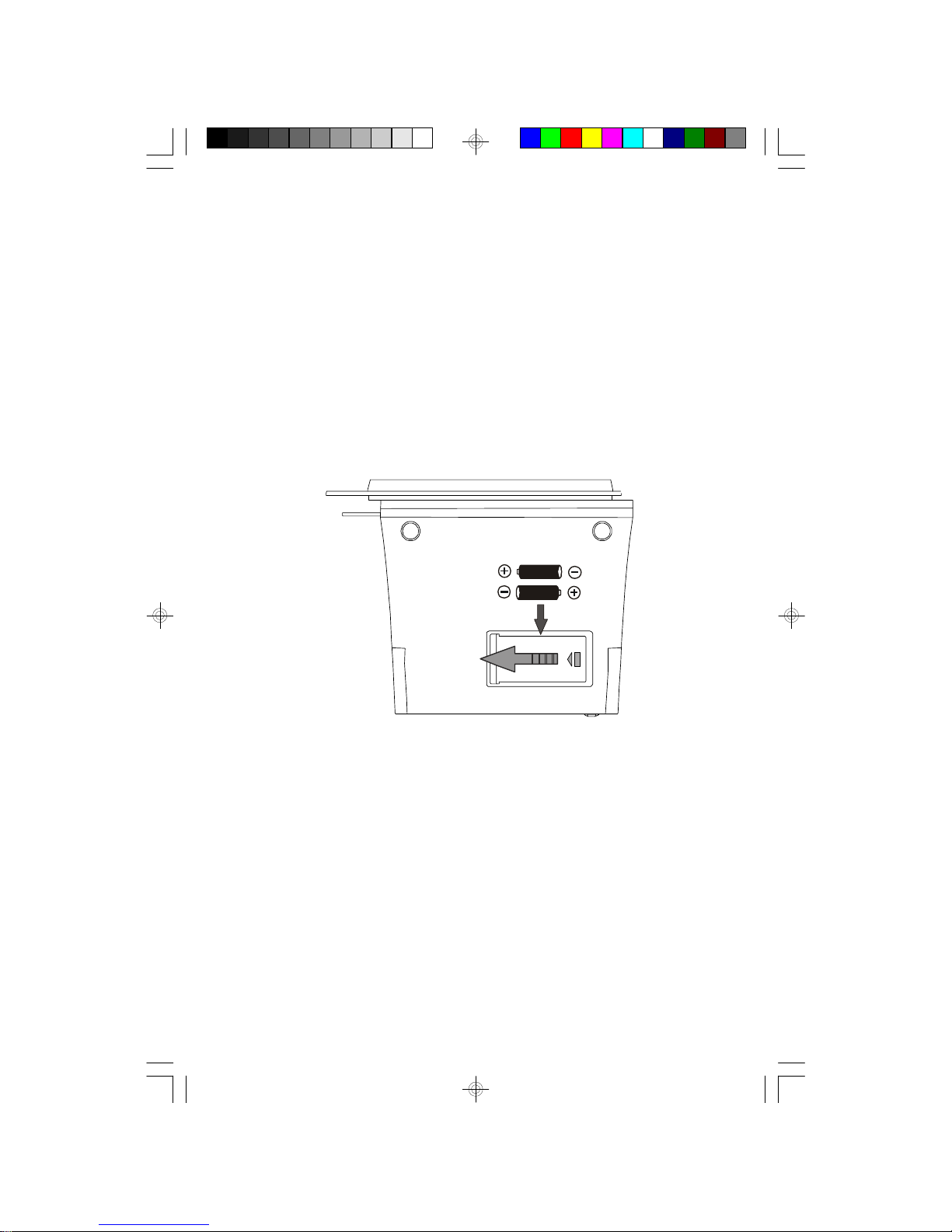

1.) Turn the radio upside down. Slide the battery door in the direction of the arrow

and remove the door.

2.) Insert two fresh “AA” alkaline batteries in the compartment. Be sure to observe

the polarity markings engraved in the compartment. If the batteries are inserted

incorrectly the back up system will not work.

3.) Replace the battery door and turn the radio right side up.

If the power is interrupted the display will go off and the radio will not work. However

the batteries will maintain the clock and alarm settings in memory. When the power

is restored the display will come on again and the clock and alarm settings will be

correct.

The life of the batteries will depend on the frequency and length of the power

interruptions that you experience. For best results we suggest you install fresh

batteries every 9 to 12 months. Always change both batteries together with a well-

known brand of alkaline batteries. Do not mix old and new batteries, or different

types of batteries such as alkaline and carbon-zinc batteries together.

CKD2328_2330_B091103.p65 11/9/2003, 14:517

Remote Control (Model CKD2330 Only)

Model CKD2330 includes a credit card size 10-button remote control that allows

you to operate the CD player, control the volume, and switch the system ‘On’ and

‘Off’ from across the room. The remote control operates on one, button-style lithium

battery (Type CR2032 or equivalent), included. We have placed a clear plastic

spacer between the battery and the battery contact plate so that the battery will

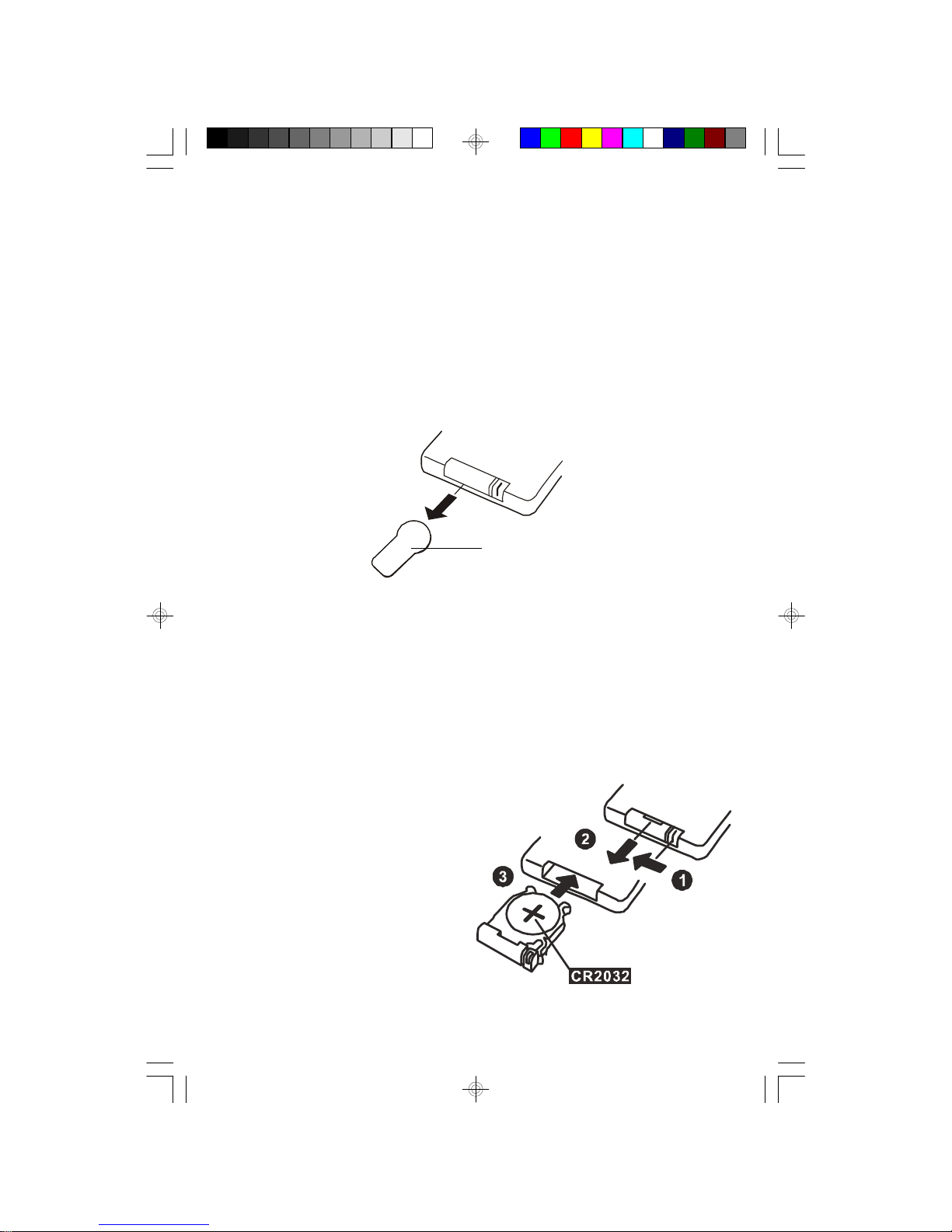

remain fresh until you are ready to use the remote. Pull on the end of the spacer

tab to remove the spacer from the remote and activate the battery.

To use the remote control point the remote at the remote sensor on the front panel

oftheradio andpressthe appropriatebuttonson theremote. The effectiveoperating

range of the remote is approximately 15 feet at an angle of no more than 15

degrees to the left or right of ‘dead center’.

When the remote control no longer works or the operation becomes intermittent it

is time to change the battery. Press downward on the locking tab and slide the

battery holder out of the remote as shown.

Remove the exhausted CR2032

battery from the holder, insert a fresh

battery into the holder with the “+” side

facing up, and slide the holder back

into the remote.

Spacer

CKD2328_2330_B091103.p65 11/9/2003, 14:518

IMPORTANT BATTERY PRECAUTIONS:

• Do not leave the exhausted battery lying around where a child or pet might

play with or swallow it.

• If the battery is swallowed contact a physician immediately.

• Do not attempt to open the battery and do not dispose of the battery in a

fire.

PROTECTYOUR FURNITURE!!

Thismodelisequipped withnon-skidrubber'feet'topreventthe productfrom

moving when you operatethe controls.These'feet'aremade fromnon-migrating

rubbermaterialspeciallyformulated toavoidleaving anymarks orstainson your

furniture.Howevercertaintypesofoil based furniturepolishes,wood preservatives,

orcleaning sprays maycausethe rubber'feet'tosoften,and leavemarks ora

rubberresidue on the furniture.Topreventanydamage toyourfurniturewestrongly

recommend thatyou purchasesmall self-adhesivefeltpads,availableathardware

storesand homeimprovementcenterseverywhere,and applythesepadstothe

bottomofthe rubber'feet'beforeyou placethe producton fine wooden furniture.

CKD2328_2330_B091103.p65 11/9/2003, 14:519

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Emerson Radio-réveil

Emerson

Emerson RET23 Manuel utilisateur

Emerson

Emerson CKS1800 Manuel utilisateur

Emerson

Emerson CKD3630 Manuel utilisateur

Emerson

Emerson CKS9031 Manuel utilisateur

Emerson

Emerson GirlPower GP816 Manuel utilisateur

Emerson

Emerson Barbie Story Teller BAR805 Manuel utilisateur

Emerson

Emerson SmartSet CKSW0555 Manuel utilisateur

Emerson

Emerson SpongeBob Squarepants SB816 Manuel utilisateur

Emerson

Emerson girlpower GP890 Manuel utilisateur

Emerson

Emerson CK5859 Manuel utilisateur

Emerson

Emerson SMARTSET CKS1708 Manuel utilisateur

Emerson

Emerson CK5051 Manuel utilisateur

Emerson

Emerson CK5250 Manuel utilisateur

Emerson

Emerson CK5888 Manuel utilisateur

Emerson

Emerson CK5030 Manuel utilisateur

Emerson

Emerson SmartSet CKS1500 Manuel utilisateur

Emerson

Emerson SmartSet ER100113 Manuel utilisateur

Emerson

Emerson RET66TQ Manuel utilisateur

Emerson

Emerson SmartSet ER100103 Manuel utilisateur

Emerson

Emerson girlpower GP808 Manuel utilisateur

Emerson

Emerson SMARTSET CKS1708 Manuel utilisateur

Emerson

Emerson SmartSet CKS1900 Manuel utilisateur

Emerson

Emerson SmartSet CKD9917BK Manuel utilisateur

Emerson

Emerson SmartSet ER100104 Manuel utilisateur

Manuels Radio-réveil populaires d'autres marques

Denver

Denver CRQ-105 Manuel utilisateur

Audiovox

Audiovox CE90 Manuel utilisateur

Sony

Sony Dream Machine ICF-C763L Manuel utilisateur

Sanyo

Sanyo DMP-P6 Manuel utilisateur

RCA

RCA RPC100 Manuel utilisateur

Yamaha

Yamaha ISX-80 Manuel utilisateur

Pyle

Pyle PLMR20W Manuel utilisateur

Blaupunkt

Blaupunkt CR7BK Manuel utilisateur

Philips

Philips AJ3180 Manuel utilisateur

HoMedics

HoMedics SS-5500-2EU Manuel utilisateur

RCA

RCA RC66i Manuel utilisateur

Versaudio

Versaudio Vers Manuel utilisateur

SOUNDMASTER

SOUNDMASTER UR8100 Manuel utilisateur

Audiovox

Audiovox CE90 Manuel utilisateur

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Manuel utilisateur

Roberts

Roberts ChronoDAB Manuel utilisateur

AEG

AEG MRC 4132 BT Manuel utilisateur

Tokai

Tokai TC-155 Manuel utilisateur
