Quick Installation Guide

00825-0100-4842, Rev. BA

November 2010 Level

Rosemount 3100 Series Ultrasonic Level

Transmitter External Temperature Sensor

Part No : 03100-0001-0001

For use with ultrasonic transmitters 3102 and 3105

Introduction

For transmitter installations where

the integral temperature sensor is

not representative of the air / medium

temperature in the process, the use

of the external temperature sensor

improves accuracy.

Sensor Speciﬁcation

316 Stainless steel body with two

locknuts, M8 thread, 6 mm maximum

panel thickness. Sensor working

temperature -40 to 85 °C, cable

working temperature -20 to 80 °C.

Cable 5 m long, single twisted pair.

Note :

When connected to a 3105

intrinsically safe transmitter, this

sensor is classiﬁed as ‘simple

apparatus’ according to EN 50020

paragraph 5.4.

Temperature class T6,

-20 °C < Ta < 80 °C

www.rosemount.com

Installation

1. Connect the two sensor wires to

terminals 7 and 8 of the transmitter;

polarity is not important. See diagram

below; also refer to Transmitter

Installation Manual.

Ensure use of a suitably IP rated

cable gland to maintain the IP rating

of the transmitter.

2. Mount the sensor between the

transmitter and the liquid level,

to measure the air / medium

temperature at a representative point.

3. Avoid allowing the sensor to

become submerged.

4. Do not mount the sensor near a

heat source or in direct sunlight.

5. For the optimum response to

temperature change, do not mount

directly onto a large thermal mass.

Quick Installation Guide

00825-0100-4842, Rev. BA

November 2010

Level

6. To avoid false echoes, do not

mount the sensor directly in the path

of the transmitter beam.

7. The transmitter will automatically

detect and enable the sensor. Fine

adjustments to the temperature

calibration may be made; refer to the

Installation Manual supplied with the

transmitter.

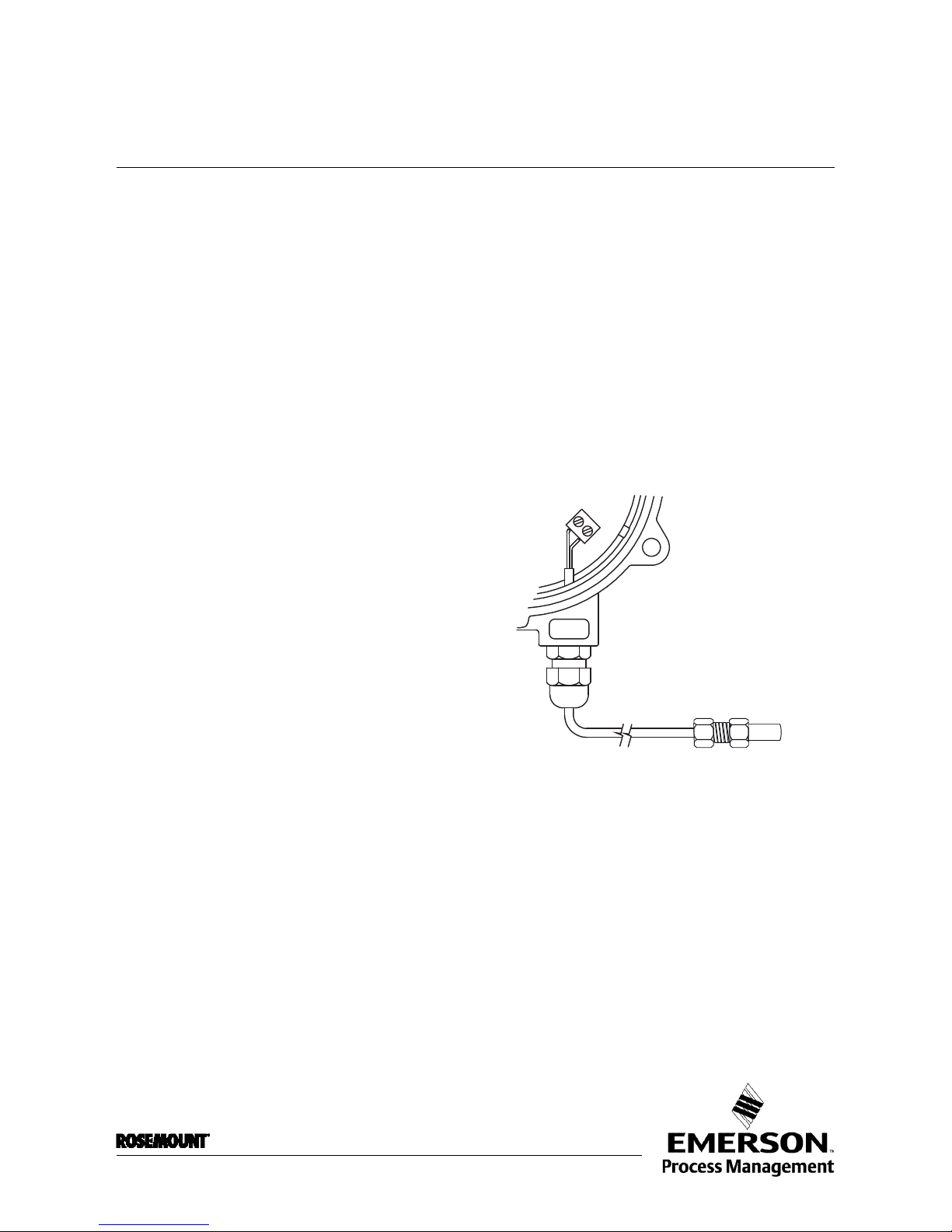

Wiring Diagram

External temperature sensor

Emerson Process Management

Rosemount Division

8200 Market Boulevard

Chanhassen, MN USA 55317

T (U.S.) 1-800-999-9307

T (Intnl) (952) 906-8888

F (952) 949-7001

www.rosemount.com

Emerson Process Management

Bleigistrasse 23

P.O. Box 1046

CH 6341 Baar

Switzerland

T +41 (0) 41 768 6111

F +41 (0) 41 768 630

Emerson Process Management

Asia Paciﬁc Private Limited

1 Pandan Crescent

Singapore 128461

T (65) 6777 8211

F (65) 6777 0947 / (65) 6777 0743

Enquiries@AP.EmersonProcess.com

www.rosemount.com

3100 Series Transmitter

Temp
