Embedos EDGE Manuel utilisateur
Manual – J1939 Datalogger & Modbus TCP Gateway
1
Embedos Engineering LLP
User Manual and Installation

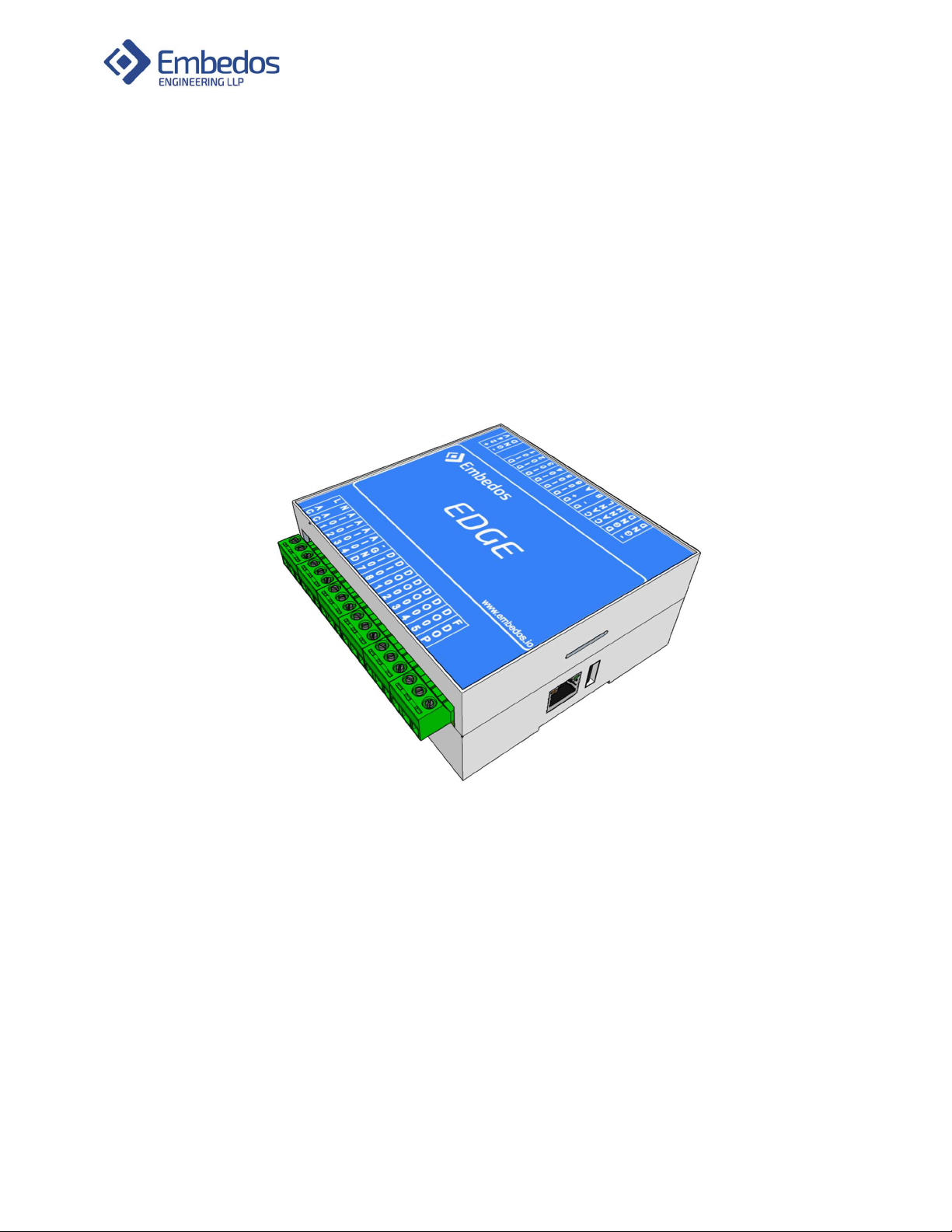

EDGE
CAN-J1939 Data Logger & Modbus - TCP Gateway
January 2022
Version 1.0.0
Manual – J1939 Datalogger & Modbus TCP Gateway
2
Embedos Engineering LLP
DISCLAIMER
Copyright © 2022 by Embedos Engineering LLP
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or other electronic or mechanical methods, without the
prior written permission of the publisher. For permission requests, write to the publisher, addressed
“Attention: Permissions Coordinator,” at the address below.
Embedos Engineering LLP
Mumbai
info@embedos.io
www.embedos.io
Manual – J1939 Datalogger & Modbus TCP Gateway
3
Embedos Engineering LLP
Document Revisions
Date
Version Number
Document Changes
24-01-2022 1.0.0 Initial draft
Manual – J1939 Datalogger & Modbus TCP Gateway
4
Embedos Engineering LLP
Table of Contents
1. PREFACE ....................................................................................................................................... 5
1.1 Purpose of Document.................................................................................................................. 5
2. Connection Diagram ..................................................................................................................... 6
3. Instructions ................................................................................................................................... 6
3.1. Powering up EDGE device ..................................................................................................... 6
3.2. Initial connections over Ethernet Port................................................................................... 6
3.3. J1939 Data-Logger application setup................................................................................... 9
3.4. J1939 to Modbus-TCP Gateway Setup ............................................................................... 14
4. Debugging CANBus .................................................................................................................... 21
Manual – J1939 Datalogger & Modbus TCP Gateway
5
Embedos Engineering LLP
1. PREFACE
1.1 Purpose of Document
The document covers Installation and usage of Embedos EDGE J1939 Datalogger device and
J1939 to Modbus-TCP Gateway device.
Manual – J1939 Datalogger & Modbus TCP Gateway
6
Embedos Engineering LLP

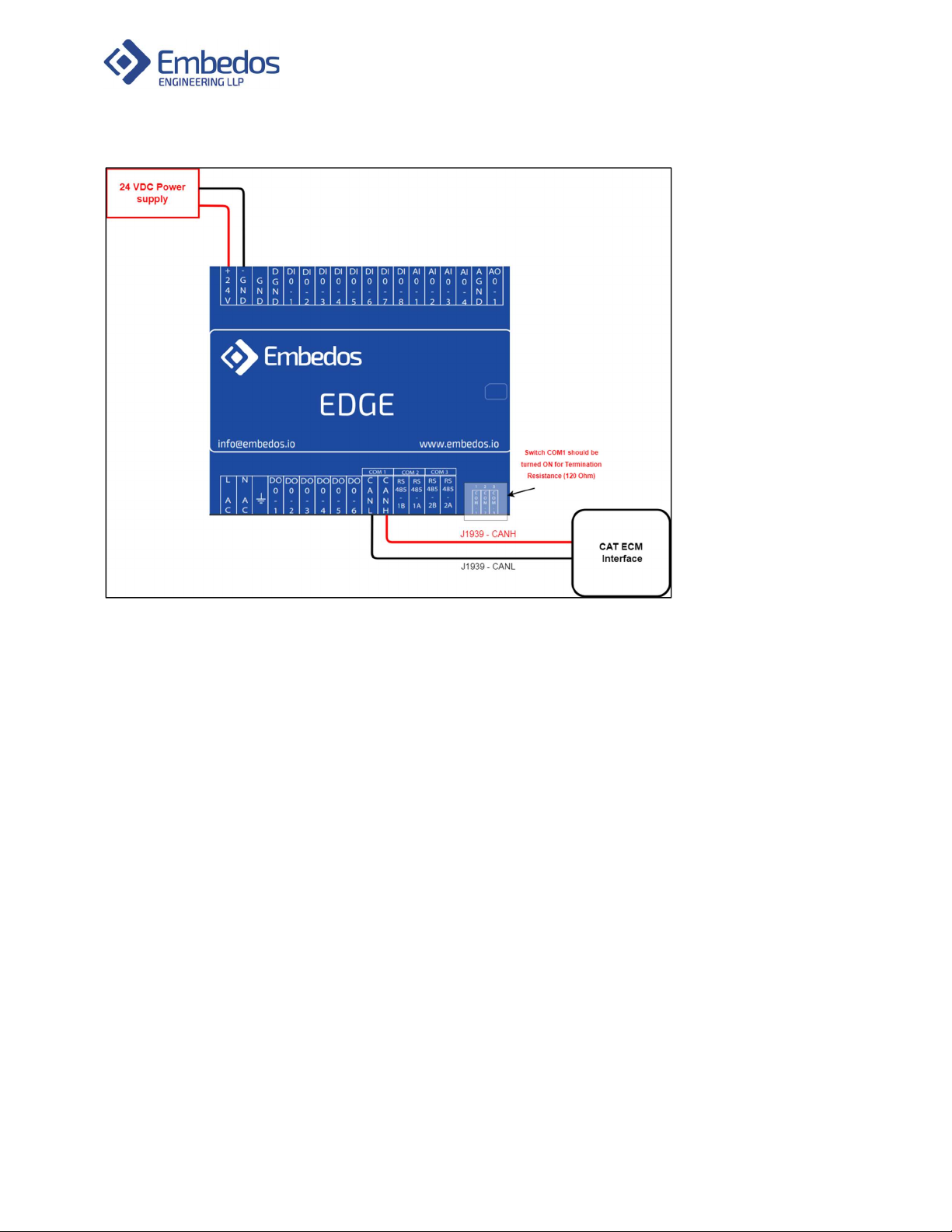

2. Connection Diagram
3. Instructions
3.1. Power up the EDGE device
a. Connect CAN-H and CAN-L lines from CAT Engine ECM to CANH and CANL ports of EDGE
device. (No GND connection required).
b. Switch ON COM-1 switch that corresponds to CAN Termination resistance of 120 Ohms.
c. Connect 24VDC power supply to EDGE device (Keep it powered OFF).
3.2. Initial connection over the Ethernet port
a. EDGE devices come set with a fixed IP 192.168.20.1. This IP domain can be used to
connect to the EDGE device.
b. Connect an Ethernet patch cord, one end of the cord to the Ethernet port of the EDGE and
the other to the port on your computer.
c. Power ON the EDGE using the correct source for the model of the device.

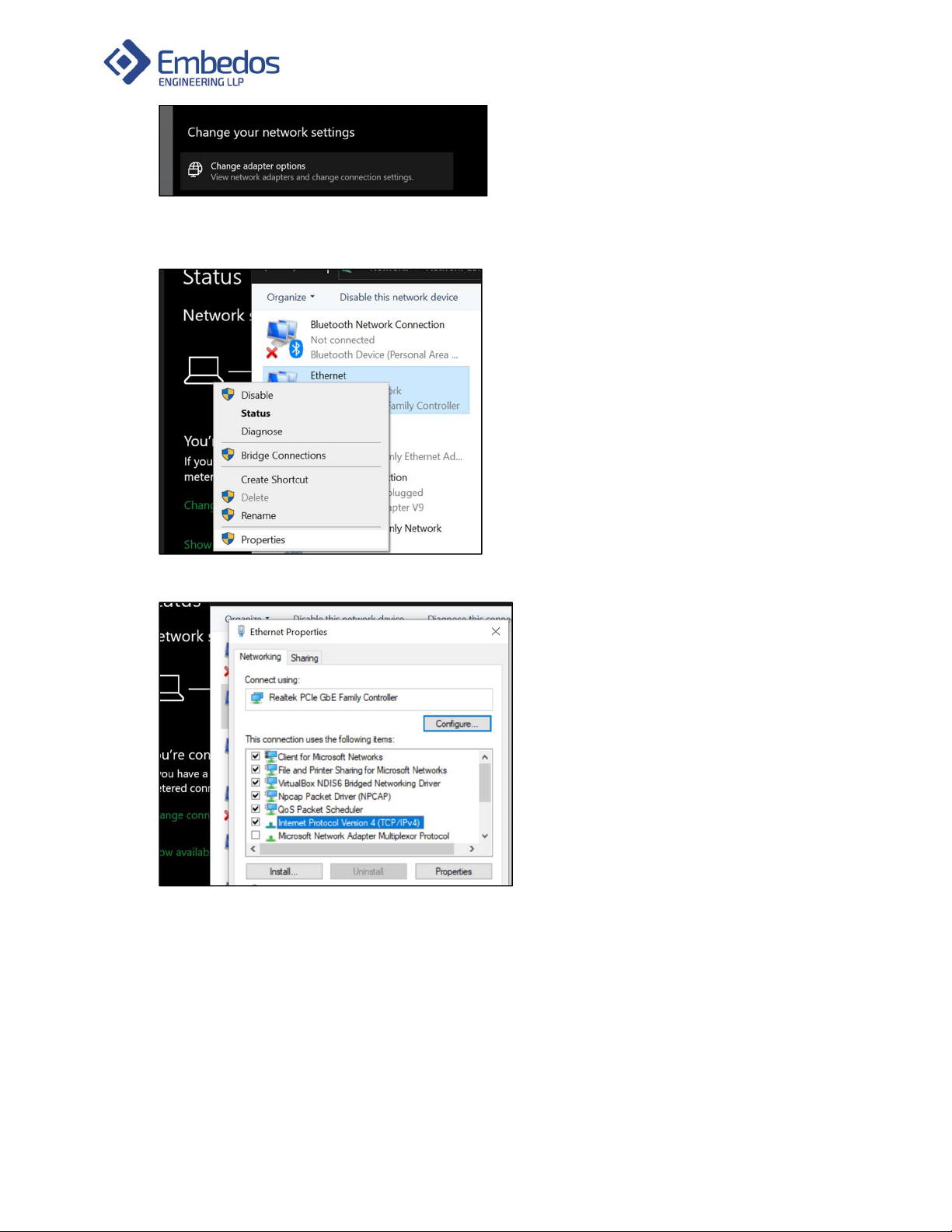

d. On a Windows computer, Open 'Network & Internet Settings'. Then select 'Change adapter
options'
Manual – J1939 Datalogger & Modbus TCP Gateway
7
Embedos Engineering LLP
On the next Window that opens up, search for your PC's Ethernet port, right click on its icon
and select properties
On the next window that opens up, double click on 'Internet Protocol Version 4 (TCP/IPv4)'

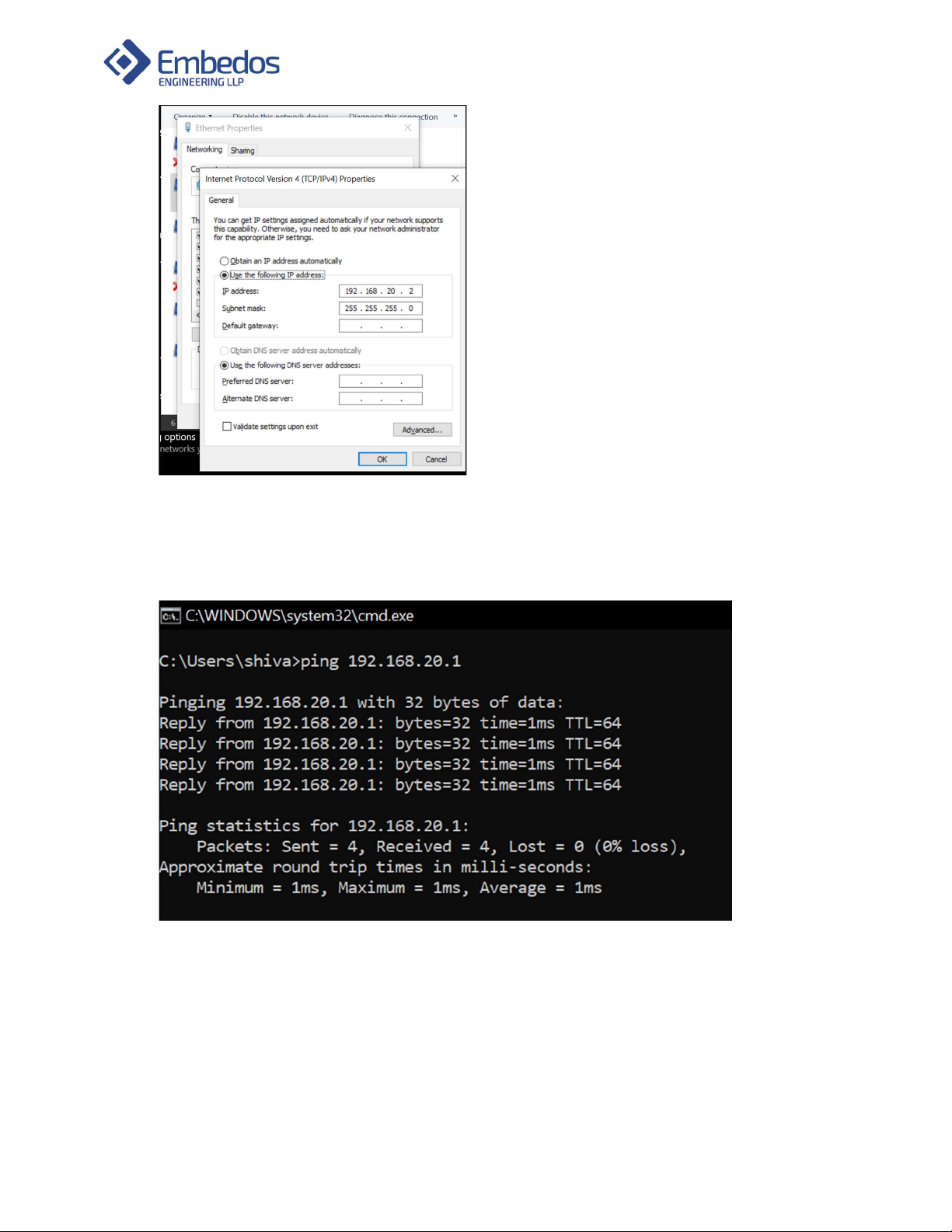

On the next window that opens up, check the 'Use the following IP address' radio button.
Enter the IP address as 192.168.20.2 and Subnet mask as 255.255.255.0
Manual – J1939 Datalogger & Modbus TCP Gateway
8
Embedos Engineering LLP
Click 'OK' to save settings.
e. Open windows command prompt 'cmd' and type "ping 192.168.20.1"
A reply will confirm that the PC and EDGE are now on the same local network.
Manual – J1939 Datalogger & Modbus TCP Gateway
9
Embedos Engineering LLP
3.3. J1939 Data Logger application setup
1) In the browser of the PC connected to the EDGE (ex: Google Chrome ), type address
192.168.20.1:1880/ui
Note: Here 192.168.20.1 is the Static IP address of the EDGE Datalogger and 1880 is the port
number on which the application is running.

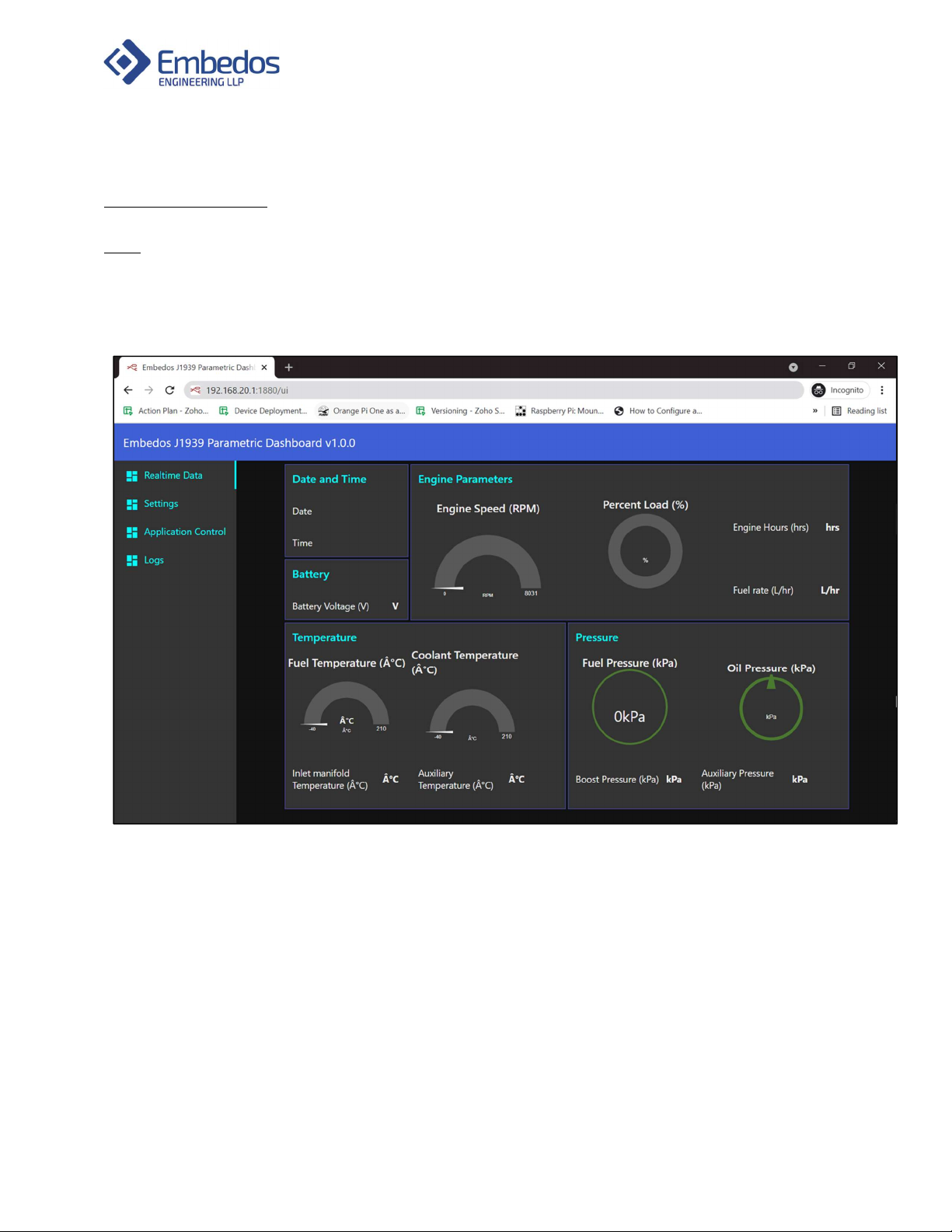

This will load the Dashboard page as shown below:
Manual – J1939 Datalogger & Modbus TCP Gateway
10
Embedos Engineering LLP

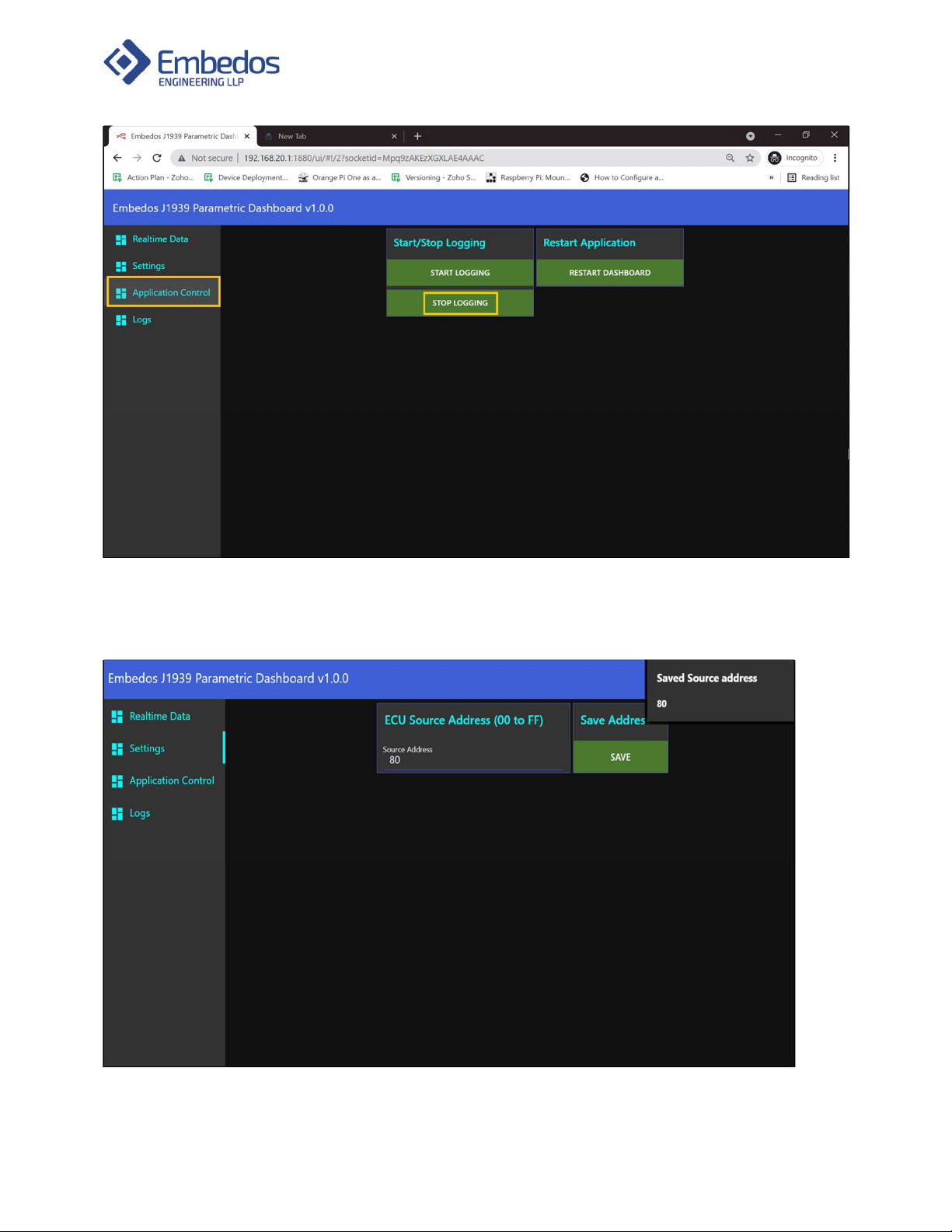

2) Go to Application Control and Select -> Stop Logging
3) Go to Settings -> Type in the Source Address of the ECU/ECM whose parameters need to be
monitored. (See end of this document to know -> How to find RAW CAN dump traces and view
Source address)
As visible in the image above, the Source Address of the ECU is entered as "80" in HEX and can be
saved by clicking on Save Button.
