ELT Sensor MB-350U Manuel utilisateur
User’s Guide for MBUser’s Guide for MB--350U(350U(--485M)485M)
Ver. 1.2
ELT SENSOR
ØINDEX
I. Hardware
1 Packing List
II. ELT_WSD emulation Program
2 Installation
3 Front Panel Display
4 Warning Level (CO₂)
1 Connection with PC
2 Monitoring
3 CO2 Level Setting Change
4 Warning Level (CO₂)
5Specifications
6 Calibration
7Cautions
III. RS-485 Protocol (Sending only)-Option
1 H/W Interface
2 Data Packet
1
Hardware
I.

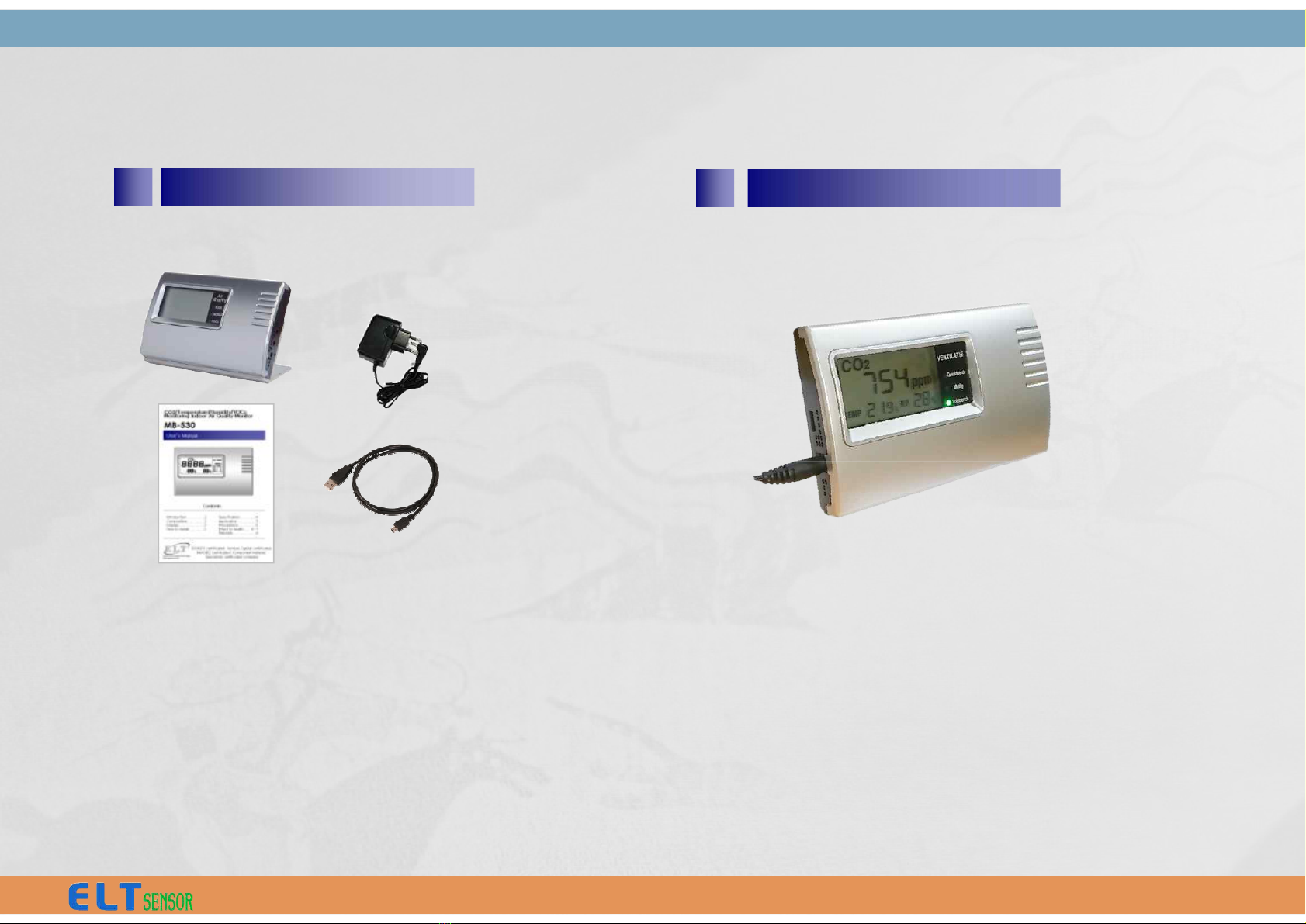

1 Packing List 2 Installation
1. Main Body/Holder
2. 2. AC/DC 12V Adaptor
3. Manual
4. USB Cable
•Connect power jack to main body.
(Requiring 2 minutes stabilizing time)
•USB cable is available for connection to Computer
and ELT_WSD program enables alarm range setting
and measured data save on Computer.
2
Description
Product Air Quality Monitor (CO2,Temp,Humidity)
CO2 range
/ Resolution / Accuracy
NDIR sensor 0 ~ 9,999 ppm /
/ 1ppm / 30ppm ±3%
Warming up 6 Sec.(for output), 5 Min.(for accuracy)
Temperature
/ Accuracy ±0.3 ℃typical (-40℃~ 80℃)
Humidity
/ Accuracy
§MB-350U(-485M) Model
CO2 (ppm)
Mini USB port
TEMP. (
℃
)
R.H. (%)
CO2 Level LED Display
Alarm On/Off
Switch
5Specifications
3 Front Panel Display
Humidity
/ Accuracy ±2% RH typical (0~ 99% RH)
Power Supply DC 12V/1A AC/DC Adaptor
Current Consumption Normal : 90mA, Peak : 416mA
Alarm CO2 Level LED display / Melody
Operating Condition 0 ~ 50℃/ 0 ~ 95%
Storage Temp. -30℃~ 70℃
Dimension
(main body) 135.0 x 90.0 x 28.0 mm (W*H*D)
Certificate CE, ROHS
CO2
LED
Very
High ≥ 1,400 ppm
High 1,000 ~ 1,400 ppm
Normal < 1,000 ppm
4Warning Level (CO₂)
3
4
7 Cautions
Please keep followings to prevent damage
and malfunction of product.
1) Use provided adaptor. When using other
adaptors, make sure to use proper rating
and standard product. It may causes
damage and measurement error.
6 Calibration
‘M’ : Manual re-calibration during 10 minutes
in fresh air (or 400ppm CO2gas) - MCDL
‘A’ : Automatic calibration mode – ACDL
(Monthly auto calibration , For HVAC, ventilation usage)
2) Do not disassemble, modify or repair the
products.
3) Avoid shock, vibration, direct sun light.
None: Factory calibration operation mode
(for Green house and other Agricultural
usage)
‘A’ : Automatic calibration mode – ACDL
(Monthly auto calibration , For HVAC, ventilation usage)
‘Co’ : Not available (don’t care)
5
ELT-WSD program is developed for customer to change the CO2
Alarm range of MB-350 with
USB 2.0 interface of PC.
Execute "ELT_WSD_MB-350.exe" with mini-USB cable connected
between PC and MB-350, of which 12V Power (12V AC/DC Adapter)
should be provided.
ELT_WSD emulation Program
II.
1 Connection with PC
①Select model “B-530H/MB-350”
②Press "RESCAN" button and
(auto) select USB Serial Port (COM xx)
③Select 19,200 bps
12 3
19200bps
6
2 Monitoring
4
④ Press “Monitoring”
⑤ Check “ v“ LogFile(CSV) for save (the monitor data
file saved to sub directory of ELTWSD_EK100 program)
⑥ View and analysis the Monitoring data
5v
c0502t+252h53e000057 ⇒c 0502 t+252 h53 e000057
®CO2 , 502ppm , temp +25.2°C , humidity 53% , e: option (not available)
6
7
As the ‘Monitoring’ Button is pressed.
①Select "MB350_BATCH" of ‘Send Command’ menu
②Type in ‘ppm’ value for CO2 Level , the default values are L0 : 1000 ppm, L1 : 1400ppm, L2 : 2500ppm
(Low ) : (High ): (Very High )
[GREEN] < L0 < [ORANGE]< L1 < [RED]
③Click Box "Send Command“ so that changed Alarm Level L0 & L1 & L2 to be fixed.
CF) L2 (Sound Alarm range) is deactivated.
3 CO2 Level Display Settings lMelody Warning
- MUTE : Press the switch for 0.5 sec.
- Off/On : Press the switch for 3 sec.
12
3
8

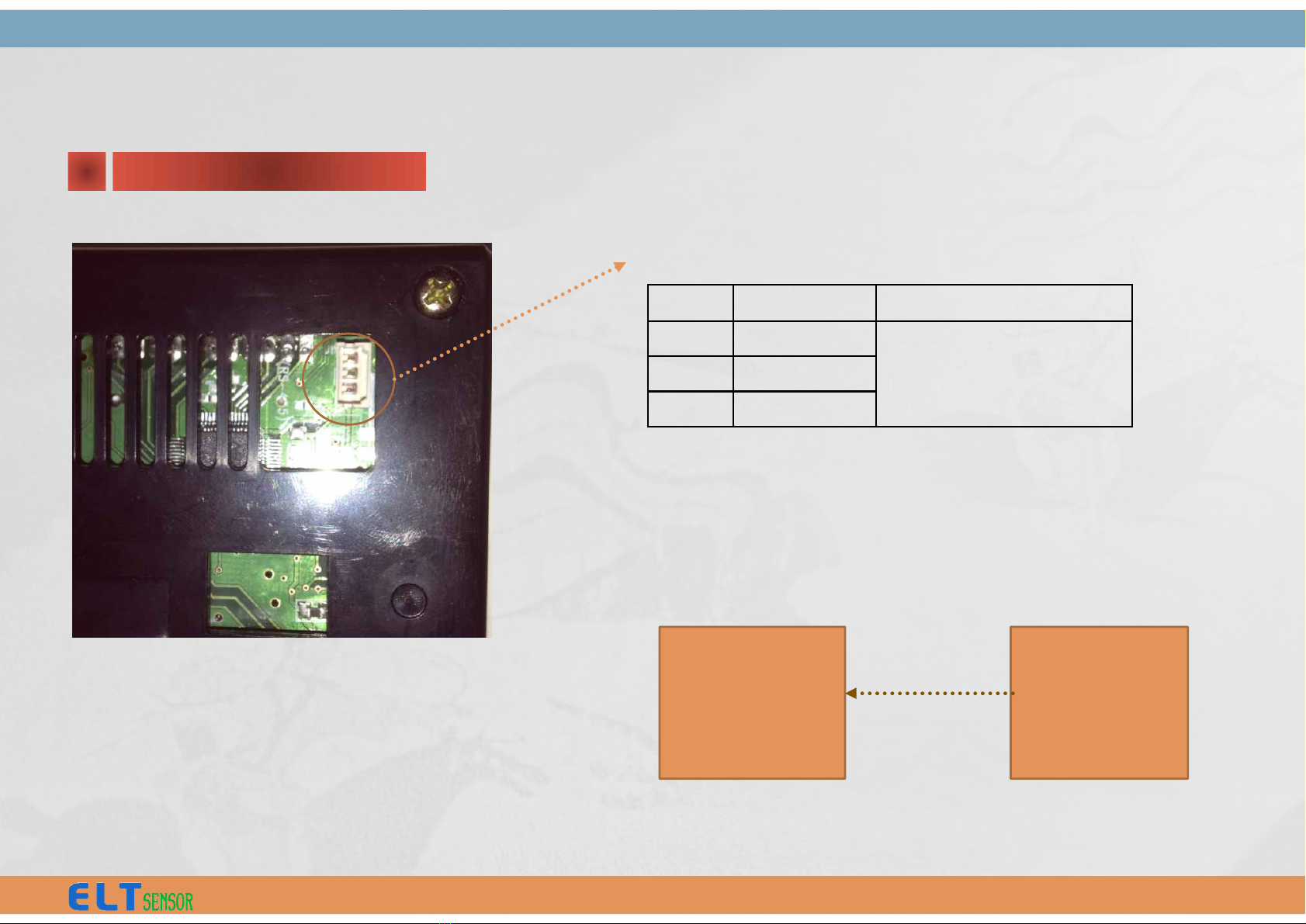

1 H/W Interface
Pin No
Pin Name
Note
1
485A
3 Wire / Master mode only.
2
485B
3
GND
A. Pin Connection: 3 pin Connector (CN1)
RS-485 Protocol (Sending only with Fixed ID)
II.
Slave
MB-350-485
:
:
MB-350-U-485
Master
* Reply delay : 10mS
B. Data Handshaking Sequence
Slave sends data to host upon request via RS485 line.
9
