Elo TouchSystems AMM17TK Manuel utilisateur

AMM17TK/AMM18TK/AMM19TK 1

back of the monitor

ADAVN INTL CORP.2002

ELO is a Registered trademark of Elo TouchSystems, Inc.,

All other trademarks are the property of their reference owners.

This document is subject to change without notice.

Advan provides this information as reference only. Reference to other vendors products

does not imply any recommendation or endorsement.

Revision Control

WARNING

The title "WARNING" is used to inform the users of

possible causes that could inflict the injury, death, or

property damage to the patients.

CAUTION

The title "CAUTION" is used to inform the users of

possible causes that could inflict the patients although

it might not severe enough to cause deaths.

NOTE

The title "NOTE" is used to inform the users of items

that are of importance in terms of installation,

operation, or maintenance ofthe Equipment although

the failure does not inflict the bodily harm to the

patients.

Date Description

Document number

FCC Notice

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, user and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment dose cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The user manual or instruction manual for an intentional or unintentional

radiator shall caution the user that changes or modifications not expressly

approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

2Users Guide

TABLE OF CONTENTS

Quick Setup................................................................................... 3~5

Product Features... 6

Unpacking .... 7

Symbol Explanations. 8

Regulatory Compliance. 8

EU Declaration of Conformity for Medical Applications......... 9

Screen Position Adjustment... 10

Cleaning lnstructions.. 11

Supported Modes..... 12

Power Management Function 13

Power Management System.. 13

Connecting the Power Cord.. 14

DDC. 14~15

Installation. 14~15

Installation for Video Play Back.......................................................16

User Controls... 17

Basic OSD Operation (VGA)... 18~20

Basic OSD Screen Section (C-Video or S-Video).... 21~23

OSD Function Description (VGA) 24

OSD Function Description (C-Video or S-Video)........... 25

Troubleshooting 26

Specification of AMM17TK......................................................... 27

Specification of AMM18TK......................................................... 28

Specification of AMM19TK......................................................... 29

Connectors... 30

Description of Warranty 31~32

Tounchscreen Users Manual ... 33~34

AMM17TK/AMM18TK/AMM19TK 3

Quick Setup (IBM/IBM Compatible under Windows 95/98/ME/2000)

Please Read Carefully When Setting Up Your New Monitor

AGM17TK/AGM18TK/AGM19TK Monitor Screen Adjustment and Resolution Setting

Procedure for IBM/IBM Compatible Computers with Windows based OS system.

Before adjusting the monitor, all the necessary drivers should be installed to your System

and resolution has to be set to manufacturers recommended preset of 1280 x 1024 @ 60Hz,

70Hz, 72Hz or 75 Hz.

To check the resolution, press the SELECT UP button on the monitor and the Information

will display under the OSD. Information will have Resolution, Horizontal and Vertical (Refresh

rate) frequency information.

To change the resolution to its factory recommended preset.

1. On a Windows 95, 98, ME or 2000, press right button on a Mouse to execute the Pop-up

menu.

2. Press Properties to execute the Display Properties

3. Press Setting and change the resolution to 1280 x 1024.

4. Press Apply or OK to select and press OK to keep the selected resolution.

5. Go back to Display Properties - Setting - Advanced properties - Adapter

6. On Adapter property, change the refresh rate to 60Hz, 70Hz, 72Hz or 75Hz. If you dont

have these options, choose Adapter Default. (60Hz recommended)

Screen Adjustment Procedure

1. Press the AUTO button.

2. If you still dont have a clear display monitor, please refer to step 3.

3. Start Shut Down in Windows 95/98/ME/2000 - It will display moire on screen

4. Press Up or Down button then the OSD menu will pop-up.

5. Adjust the Frequency under the OSD to reduce or get rid of the vertical display noise

(Jail bars). (Page 16)

6. Once the vertical display noise disappears, press adjust the Phase to reduce or get rid of

the horizontal display noise (Snowy effect). (Page 16)

4Users Guide

Quick Setup (IBM/IBM Compatible under Windows NT 4.0)

Please Read Carefully When Setting Up Your New Monitor

AGM17TK/AGM18TK/AGM19TK Monitor Screen Adjustment and Resolution Setting

Procedure for IBM/IBM Compatible Computers with Windows based OS system.

Before adjusting the monitor, all the necessary drivers should be installed to your System

and resolution has to be set to manufactures recommended preset of 1280 x 1024 @ 60Hz,

70Hz, 72Hz or 75Hz.

To check the resolution, press the SELECT UP button on the monitor and the Information

will display under the OSD. Information will have Resolution, Horizontal and Vertical (Refresh

rate) frequency information.

To change the resolution to its factory recommended preset.

1. On a Windows NT 4.0, press right button on a Mouse to execute the Pop-up menu.

2. Press Properties to execute the Display Properties

3. Press Setting and change the resolution to 1280 x 1024.

4. Change Refresh Frequency to 60Hz, 70Hz, 72Hz or 75Hz. (60Hz recommended)

Screen Adjustment Procedure

1. Press the AUTO button.

2. If you still dont have a clear display monitor, please refer to step 3.

3. Start Shut Down in Windows 95/98/ME/2000 - It will display moire on screen

4. Press Up or Down button then the OSD menu will pop-up.

5. Adjust the Frequency under the OSD to reduce or get rid of the vertical display noise

(Jail bars). (Page 16)

6. Once the vertical display noise disappears, press adjust the Phase to reduce or get rid of

the horizontal display noise (Snowy effect). (Page 16)

AMM17TK/AMM18TK/AMM19TK 5

Quick Setup (Macintosh)

Please Read Carefully When Setting Up Your New Monitor

1. Set your Macintosh Adapter on pages 23 and 24.

2. Push the APPLE icon on the upper left corn and execute Control Panel->

Monitors&Sound. Select Thousands for the Color Depth, Select 1280X1024, 60Hz,

70Hz, 72Hz or 75Hz for the Resolution. (60Hz recommended)

* On some Apple G3 or newer systems, you may not need to use the Macintosh Adapter.

Screen Adjustment Procedure

1. Press the AUTO button on the monitor.

6Users Guide

INTRODUCTION

Congratulations on your purchasing of the AMM17TK/AMM18TK/AMM19TK high

performance TFT LCD monitor.

FEATURES

TheAGM17TK/AGM18TK/AGM19TK is a TFT-LCD monitor that is intelligent, microprocessor-

based and ergonomically designed display, compatible with most analog RGB (Red, Green,

Blue) display standards, including PS/V, PS/2, Apple Macintosh Centris, Quadra, and Macintosh

II family signals. The LCD monitor is capable of displaying crisp and vibrant color graphics with

VGA, SVGA, XGA, SXGA (non-interlaced), and most Macintosh compatible color video cards.

•Advanced Viewing Solution (AVS): Our sophisticated filter extends the viewing angle of

the screen image, without sacrificing contrast ratio and brightness.

•Advanced Timing Setup (ATS): Aunique technology from the One TouchAutoAdjustment.

Pressing the Auto Adjust button on the front panel, automatically optimizes position,

phase, clock, contrast and color balance. This allows the user to maximize the perfect

screen setting in the shortest amount of time.

•Advanced Mounting Solution (AMS): Improve flat panel environment, utilizing numerous

ergonomic mounting solutions to allow creative use in conjunction to product application.

•The monitor is able to properly function even in case of upgrade video cards or software

because of the wide auto-scanning compatibility range without requiring to buy a new

monitor.

•The internal microprocessor digitally controls auto-scanning. For horizontal scan

frequencies between 24.8 KHz and 60.2 KHz, and vertical scan frequencies between

56.3 Hz and 85.1 Hz. In each frequency mode, the microprocessor-based circuitry allows

the monitor to function at the precision-of a fixed frequency.

•The resident memory allows for storing factory default settings and also additional user

adjustment parameters.

•The maximum resolution achievable is SXGA (1280 x 1024), best suited for Windows

applications

•The compact and sleek cabinet design saves lot of your desk space and makes your desk

look neat and tidy.

•The monitor is compliant with VESA-DPMS power management standard. In order to

save energy, the monitor must be connected to a system compliant with the standard.

•The monitor is also compliant with the most stringent environmental scheme of TCO

95. In this scheme, no environmental harmful substances are used during the entire

manufacturing process.

The monitor is certified by UL International to medical standard UL2601-1. It is also CE

marked for sale into the European Community for integration or use with medical products. It

is certified by NEMKO according to EN60601-1 & EN60601-1-2 for sale to the medical market.

AMM17TK/AMM18TK/AMM19TK 7

UNPACKING

Please check the following items are present when you unpack the box, and save the packing

materials in case you will need to ship or transport the monitor in future.

•AMM17TK/AMM18TK/AMM19TK LCD Monitor and two video cable (1) VGA

HDDB15 cable (1) DVI-D cable

•AC Power cord

•AC-Adapter

•Floppy Disk (for test pattern and set up)

•User Manual, Registration Card, and Warranty Card

•C-video(Composite Video) Cable, S-Video Cable, Audio Cable and USB Cable

5(*,675$7,21

:$55$17<

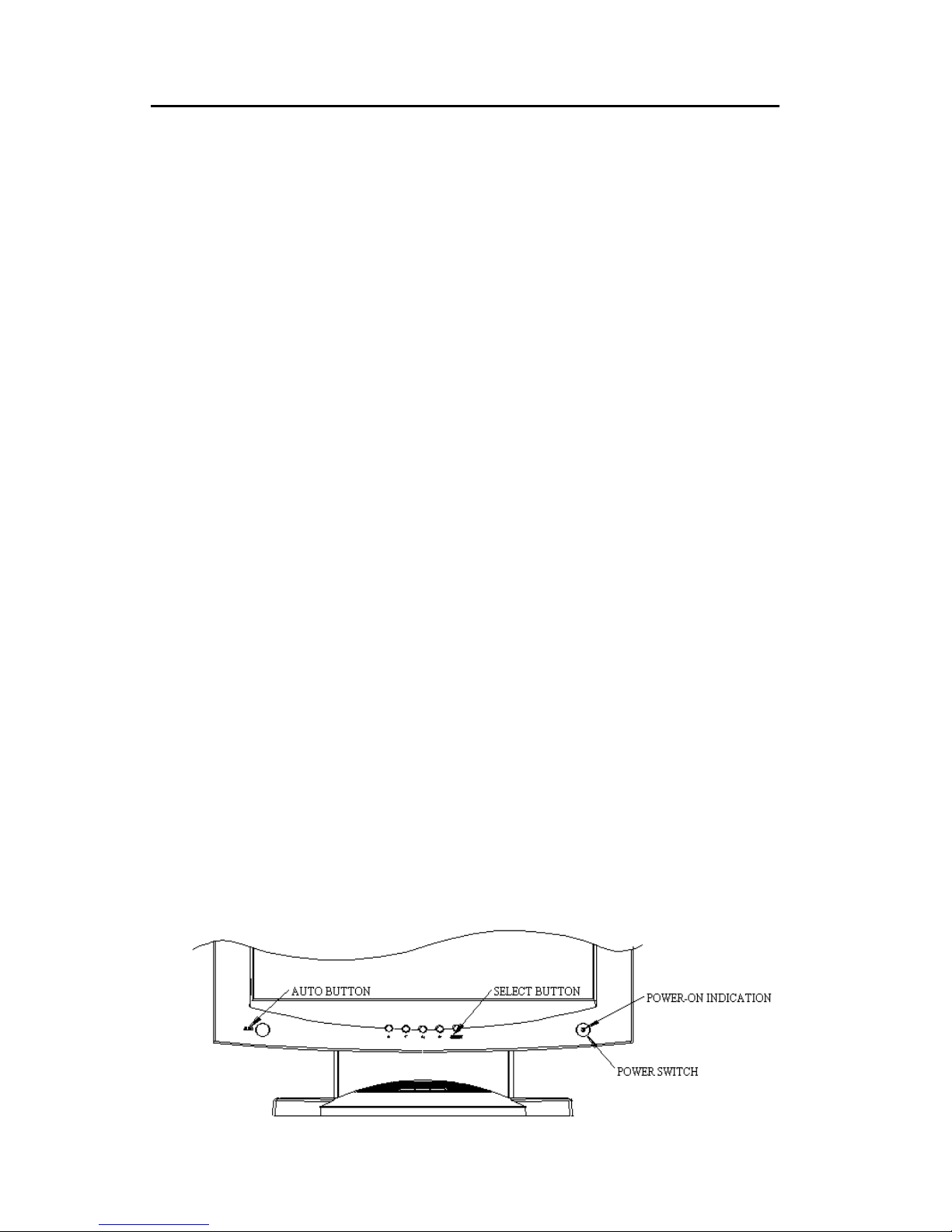

AUTO

SELECT

CAUTION

Manufacturer : Ault Korea

Model No : MW160 or MW116

8User TMs Guide

Symbol Explanations

Indicates proof of conformity to applicable European Economic

Community Council directives and to harmonized standards

published in the official journal of the European Communities

Tested and certified by UL to UL2601. If this mark appears with the

indicators "C" and "US" the product is certified for both the U.S and

Canadian markets, to the applicable U.S and Canadian standards.

Tested to comply with FCC Class B standards.

Dangerous high voltage.

Consult accompanying documents.

Tested and certified by NEMKO in accordance with EN60601-1.

Indicates protective earth ground.

For indoor use only.

DC power control switch

Regulatory Compliance

This monitor has been tested to comply with IEC/EN 60601-1 and IEC/EN60601-1-2.

Only model AGM19TK is classified according to UL2601-1 and CAN/CSA C22.2 No.601-1.

Because many medical offices are located in residential areas,this monitor,in addition to the

medical requirements,has also been tested and found to comply with the limits for FCC Class B

computing devices in a typically configured system. It is the system integrator or configurer's

responsibility to test and ensure that the entire system complies with applicable EMC laws.

8.1 User TMs Guide

Equipment is not suitable for use in the presence of flammable anesthetic mixture with air or with

oxygen or nitrous oxide.

No user serviceable parts inside, ask qualified personnel when accessing inside.

For disposal of waste product, you must follow the requirement of local code.

Electrical input rating : 12V d.c 4.5A

Classification

-Type of protection against electric shock : Class I Equipment.

-Degree of protection against the ingress of water : Ordinary

-Mode of operation : Continuous

Environmental conditions for transport and storage

-Temperature range within 20℃to 60℃

-Relative humidity range 10% to 90%

-Atmospheric pressure range within 500 to 1060hPa.

Manufacture information :

CARDIANAL INC.

205 Ace Techno Tower, 197-17

Kuro-Dong, Kuro-Gu, Seoul 152-050

Korea

Additional explanation of symbol

: Direct Current

This monitor is intended for use on Health Care Facilities.

Only the model AMM17TK, AGM19TK, AMM19TK and 240-030-900

Cleaning : Do not try to clean the LCD Monitor with a liquid or chemicals.

This device is complies with Part 15 of

the FCC Rules. Operation is subject to

the following two conditions: (1) this

device may not cause harmful

interference, and (2) this device must

accept any interference received,

including interference that may caus

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Elo TouchSystems Moniteur

Elo TouchSystems

Elo TouchSystems Entuitive 1725L Series Guide de l'utilisateur

Elo TouchSystems

Elo TouchSystems Tyco Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET1502L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems Entuitive ET1529L Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems D-Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1939L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET2203LM Manuel utilisateur

Elo TouchSystems

Elo TouchSystems Entuitive 1229L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1528L Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems 15A2 for wireless card Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET1915L Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1529L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems Entuitive 1847L Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems IDS 6553L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems Entuitive 1247L Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems Entuitive 1525L Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ADVAN AMM15TK2 Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET1502LM Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET 1525C Series Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1525C Series Guide de l'utilisateur

Elo TouchSystems

Elo TouchSystems AccuTouch 821615-000 Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1715L Guide de l'utilisateur

Elo TouchSystems

Elo TouchSystems Elo Entuitive 3000 Series 1729L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 1220L Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
