Ella's Bubbles Standard Manuel utilisateur

Standard

ACRYLIC WALK IN

BATHTUB

OWNERS MANUAL

&XVWRPHU6XSSRUW800.480.6850

(PDLO[email protected]

ellasbubbles.com

Table of Contents

ellasbubbles.com 3/22/23

Warranty Activation Form MUST be completed for both the Owner and Installer to validate the warranty.

Failure to complete both pages (26 and 27) will void the warranty on this bathtub.

Completed Ella Warranty Activation Forms can be emailed to [email protected],

faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608

IMPORTANT

Unpacking and Inspecting.............................................................................................................................................................1

Moving your Ella Walk In Bath..................................................................................................................................................... 2

Warnings and Lables................................................................................................................................................................. 3 - 4

Important Safety Instructions............................................................................................................................................... 5 - 6

Required Steps Prior to Installation........................................................................................................................................... 7

Door and Frame Adjustments............................................................................................................................................. 11-13

Service Access and Door Seal.................................................................................................................................................... 14

Reversible Extension Kit............................................................................................................................................................... 15

Side Panel Cutting Adjustments............................................................................................................................................... 16

Finishing installation.................................................................................................................................................................... 17

Operations Instructions...................................................................................................................................................... 18 - 20

Cleaning and Maintenance........................................................................................................................................................ 21

Warranty................................................................................................................................................................................... 22 - 24

Ella 2" T-Type Single Port Floor Drain........................................................................................................................................ 8

Drain Installation....................................................................................................................................................................... 9 -10

After inspecting the crate and accepting

the product please unpack the crate as

shown in images. When the product is

unpacked please remove front apron

with access panels and end panel before

carrying into the house. By removing the

apron and access panels you will be able

to grab on to the frame to carry tub

inside. Do not lift the bathtub by the

plumbing or other parts. Avoid hitting the

sides or the bottom not to break off the

air jets or other parts of the bathtub.

Inspect the plumbing or other parts that

may have loosened in transit or by

carrying the tub inside your home.

Upon receiving your walk-in bathtub

please inspect the crate and carton for

any damages. If damages found please

take few pictures of damages with your

phone and record the details on the

shippers delivery document and ask the

driver ti sign it. If you think product

maybe damaged note that on the

delivery document and call 800-

Damages must be recorded on shippers

delivery documents for proper claim

processing.

Unpacking and Inspecting

Details on Page 5

WARNING

REMOVE END PANELS BEFORE ATTEMPTING

TO MOVE OR CARRY. FAILURE TO DO SO CAN

LEAD TO DAMAGING AIR JETS AND OTHER

COMPONETS OF THE BATHTUB.

ellasbubbles.com 3/22/23

Page 1 of 24

WARNING: Lift and carry the tub only by the frame. Protect the bottom of the tub to

avoid breaking the air jets positioned on the bottom of the tub.

WARNING: Do not carry the walk in tub by the panels. Be careful when carrying the

tub, avoid front panel contact with the floor or stairs to prevent damages. Make sure

loose parts are hanging down. Remove all four (4) access panels before carrying the

tub to prevent them from falling out and breaking.

•Remove all four (4) access panels

before moving the tub

•Take off the screw caps

•Unscrew the screws with a

Philips head screwdriver

•Remove the end access panel

Large Access Panel (1)

Small Access Panel (2)

Toe Kick Access (3)

- Access to parts

- Option to lower the Threshold

White Screw Caps

End Access Panel (4)

Side Panel

Panel

Moving your Ella Walk in Bath

Frame

Deck

Water Supply Lines

End Access

ellasbubbles.com 3/22/23

Page 2 of 24

Warnings and Labels

You must follow all the instructions in this manual.

FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT DAMAGE OR

INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN ASSUMPTION OF ALL

LIABILITY BY SAID INSTALLER

NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as not to

damage cardboard crate or its wooden pallet. Do not dispose of shipping material until installation is

complete. Please visit our website, www.ellasbubbles.com for complete details of return/exchange

policy.

Backnut MUST be securely tightened.

Failure to do so will cause loosening

over time resulting in it coming apart

and falling down the drain.

Drain must open completely to drain

properly and close completely to avoid

unnecessary drainage.

Ella Economy comes equipped with one (1) 2" gravity driven

drain with (1) overflow and opener, one (1) emergency pull-up

up chain.

Drain open

all the way

Drain closed

completely

WARNING

MAKE SURE AIR PIPE CONNECTION TO PUSH

CONTROLS ARE PROPERLY TIGHTENED AND

THATPUSH CONTROLS ARE FUNCTING PROPERLEY

BEFORE FINALIZING INSTALLATION OF THE TUB.

ellasbubbles.com 3/22/23

Page 3 of 24

Push Control

Acrylic Shell

Back nut

Air hose

ellasbubbles.com 3/22/23

Page 4 of 24

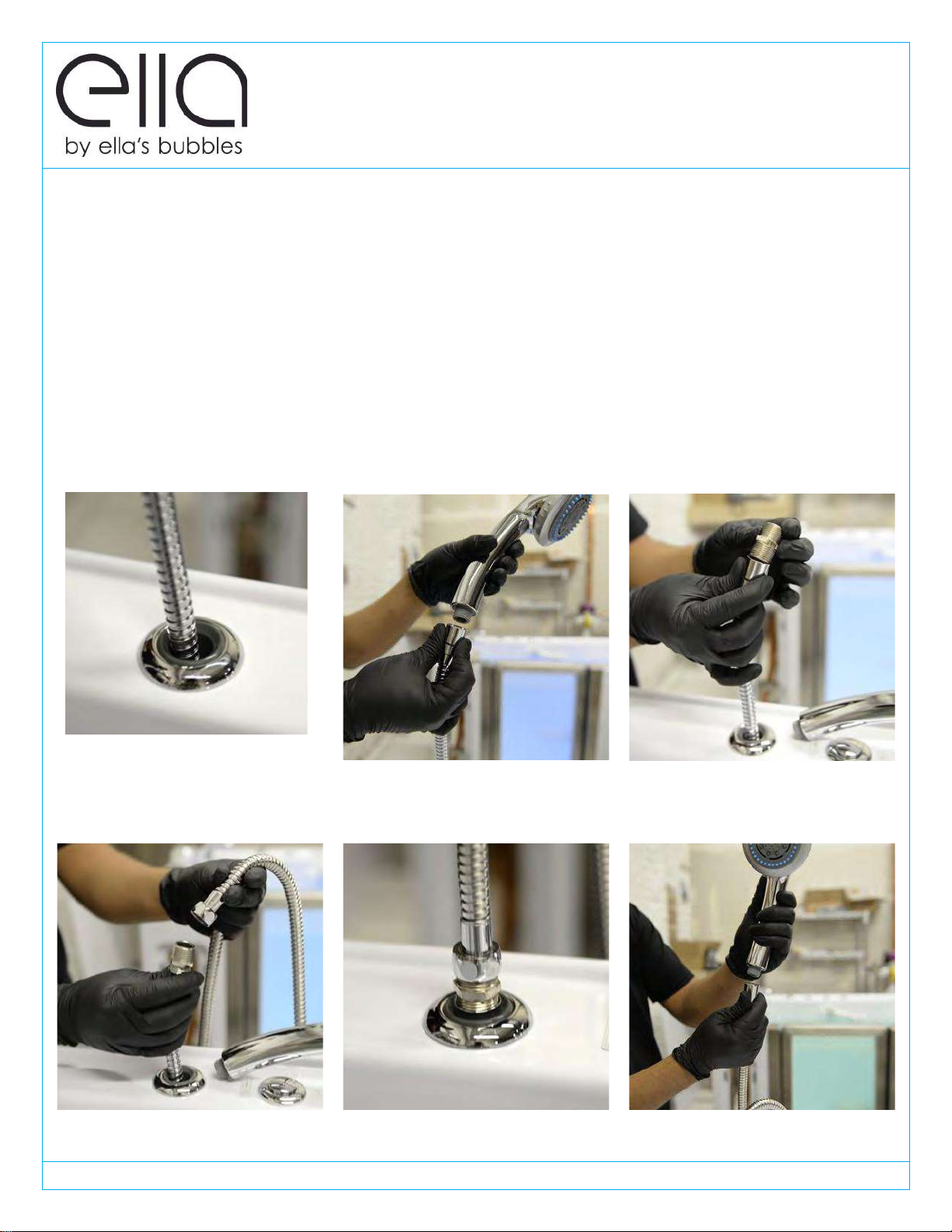

Water from the hose can drip down

into the hand shower base and get

behind your tub without the barrel

protection.

3) Take your extension hose and screw the

end to the opposite side of the barrel.

4) Place the barrel in the shower base to plug

the hole.

1) Start by unscrewing your shower head mixer

from the hose.

2) Next take your stainless steel barrel and

screw it on the end of the hose.

5) Finally, screw on the shower head mixer to the

other end of the extension hose.

PLEASE READ BEFORE BEGINNING INSTALLATION

WARNING: Do not attach the hand held shower to the wall unless you have an extension hose

with a barrel protection. This may cause water to leak behind your walk in tub.

TO INSTALL BARREL EXTENSION HOSE:

WARNING!

Exercise caution while entering and exiting your Ella Walk in Bath.

WARNING: Read through the entire manual completely before beginning installation.

Contract a licensed plumber and electrician for installation. Be sure you and your contractor are

aware and follow all local plumbing and electrical codes. Your Ella Walk in Bath is not intended for

outdoor use. Install the tub in accordance with the instructions in the manual. Use ONLY the parts

and accessories provided or as recommended by the manufacturer.

CAUTION:

When using this product, basic precautions should always be followed. Read and follow all

instructions pertaining to risk of fire, electric shock and injury. Make sure and have your licensed

electrician test all connections to the dedicated line, including the GFCI. Risk of electric shock; Do not

permit electric appliances within 3 feet (1.5m) of the tub. i.e.: hair dryers, lamps, phones, radios,

televisions, etc. To reduce the risk of injury, do not permit children or persons with disabilities to use

this product unless they are supervised by an able-bodied adult at all times. Never drop or insert any

objects into any openings. Do not turn on the Hydro jets without water reaching the waterline. The

waterline is the point where all jets are covered with water.

DANGER:

Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check and

adjust the temperature before use. Consult your physician before using your Ella Walk in Bath if you

have a heart condition or other health issues. People using medications, herbal remedies, sleep aids,

and/or having adverse medical history should consult a physician before using this product. Pregnant

women should NOT use this product before consulting their physician. Avoid the use of alcohol,

drugs or other medications while using your walk in bath. Be aware, hyperthermia is a risk when

raising body temperature. Do no keep body submerged in heated bath for extended periods of time.

The symptoms of hyperthermia include an increase in body temperature which can cause dizziness,

lethargy, drowsiness and fainting. Avoid using the heated bath after strenuous activity.

Important Safety Instructions

ellasbubbles.com 3/22/23

Page 5 of 24

Important Safety Instructions

WARNING: USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO

INJURY OR DEATH

ellasbubbles.com 3/22/23

Page 6 of 24

BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO

THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE

BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE

DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT

TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!

In the case of bathers who do not have all

functioning limbs or are paralyzed, bather must

be attended by caregiver at all times and use an

installed safety belt at all times.

CORRECT

WRONG POSITIONING

WARNING

Protecting the Bath

Cover and protect the bath shell and fixtures from scratches or other damages during the installation

and tests. Remove the access panels when moving the Walk in Bath and always lift the bathtub from

the frame.

Electrical

The unit MUST be connected to a circuit protected by a ground fault circuit interrupter (GFCI)

provided and installed by a licensed electrician and tested periodically (refer to instructions provided

by GFCI manufacturer). Operating the pumps without first filling the bath to above the jets can cause

permanent damage to your equipment. Push the GFCI “test” button into “reset” mode. If the GFCI fails

to operate in this manner, there is a ground current flow or a device malfunction, indicating the

possibility of electrical shock. If this occurs, turn OFF the power and do not use the bathtub until the

source of the problem has been identified and corrected.

Water Test

It is important to test that the Hydro and Air Pumps are functioning properly before final in-wall

installation to avoid unnecessary repairs or removal.

A. Place the tub on a completely flat surface in an area where it may be drained after testing.

B. Using a clean rag and warm water wipe down seal to insure it is free of debris.

C. Seal the drains (this can be done with tape) and fill the tub to at least three inches above the

highest jet, or to the bottom of the grab bar if no jets are present.

D. Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.

E. Using appropriately rated three-prong extension cords, all plugged in to separate outlets, operate

all electrical components (air blower, water pump, and heater if applicable) for another 30 minutes

and inspect for leaks again. Inspect the unions around the pump and heater.

F. If a leak persists at a union after tightening, it may have been over-tightened or might have a

displaced O-ring. Disassemble it and make sure the O-ring was seated properly. Do the same if a leak

persists at the heater. Verify that the heater threads match the pipe threads.

Required Steps Prior to Installation

ellasbubbles.com 3/22/23

Page 7 of 24

(One Drain Included)

Ella 2" T-Type Single Port Floor Drain

ellasbubbles.com 3/22/23

Page 8 of 24

Table des matières

Autres manuels Ella's Bubbles Baignoire

Ella's Bubbles

Ella's Bubbles TUB4TWO Manuel utilisateur

Ella's Bubbles

Ella's Bubbles OA3252 L Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Ella Monaco OA3252D5PL Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Monaco Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Deluxe M3057 L Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Mobile Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ELLA Companion Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Ella TransferXXXL OLA3655 L Series Manuel utilisateur

Ella's Bubbles

Ella's Bubbles BIG4TWO Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Deluxe H3057 L Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Ella Capri OA3052D5PL Manuel utilisateur

Ella's Bubbles

Ella's Bubbles WALK IN BATHTUB S Series Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Front Entry OAF3240 L Single Drain Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Deluxe AM3057 L Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Oasis OW5126S Mode d'emploi

Ella's Bubbles

Ella's Bubbles Ultimate 93217 L Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Solo30 Manuel utilisateur

Ella's Bubbles

Ella's Bubbles Deluxe Manuel utilisateur

Ella's Bubbles

Ella's Bubbles ella Capri Manuel utilisateur

Manuels Baignoire populaires d'autres marques

Agua

Agua BARTOLI-66 Manuel utilisateur

PAA

PAA PRELUDE Manuel utilisateur

BETTE

BETTE SILHOUETTE Manuel utilisateur

Kohler

Kohler K-820-GC Guide de démarrage rapide

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manuel utilisateur

Oliveri

Oliveri Naples Manuel utilisateur

Lyons

Lyons Elite ETLxx663219 Series Manuel utilisateur

Woodbridge

Woodbridge BJ500 Instructions de montage

Whirlpool

Whirlpool Ariel ARL-702 Manuel utilisateur

TEIKO

TEIKO EXCELLENT DUO Manuel utilisateur

American Standard

American Standard Colony 5-1/2' x 32" Manuel utilisateur

American Standard

American Standard 3052OD.X0X Guide de démarrage rapide

Kohler

Kohler K-1111-H2 Guide de démarrage rapide

agape

agape MARSIGLIA AVAS1075 Manuel utilisateur

Kohler

Kohler K-1151 Instructions de montage

Kohler

Kohler K-1158 Guide de démarrage rapide

Kohler

Kohler K-1244 Instructions de montage

Kallista

Kallista P50045-G5 Instructions de montage
