VMAX Tab-Tension 3 Series

Electric Wall/Ceiling Tab-Tensioned Projection Screen

User’s Guide - E/H type (RC1)

V1.0

Visit www.elitescreens.com for the latest updated version

Thank you for your purchase of an Elite Screens VMAX 3 Series Electric Projection Screen.

IMPORTANT SAFEGUARDS

Read these instructions carefully and retain them for future use. If this product is passed to a third party,

then these instructions must be included.

Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There

is NO extra Black Top Dropin the roller. Please be aware of this as it will void your warranty

with Elite Screens®. Unapproved changes or modifications (except for cutting the power

cord for hardwire installations) to this unit are prohibited and will void your warranty.

•To avoid damaging the unit, do not use with any unauthorized accessories not recommended by the

manufacturer.

•Handle the unit carefully during transportation to avoid any damages.

•To ensure safe and reliable operation, direct connection to a properly grounded power source is advised.

•The power outlet supplying power to the unit should be close to the unit and easily accessible.

•Do not install the unit on uneven or inclined surfaces.

•Do not put heavy objects on the power cord and position it properly to avoid creating a trip obstacle.

•Never overload the power cord to prevent an electric shock or fire due to a loose contact or a short circuit.

•There are not user serviceable parts in this unit. Do not attempt to disassemble this unit by yourself. No one

except authorized technicians can open and make repairs to this unit.

•Make sure the power source this unit is connected to has a continuous power flow.

•If there is need to use an extension cord, make sure the cord has an equal rating as the appliance to avoid

overheat.

•Do not handle the power plug when your hands are wet or your feet are in contact with water.

Do not use this unit under the following circumstances.

•Disconnect the power cord under the conditions of heavy rain, wind, thunder or lightning.

•Avoid direct Sunshine, rain shower and moisture.

•Keep away from fire sources and high temperature to prevent this device from overheating.

•Cut off the power supply first before transportation or maintenance.

•Fully disconnect from the power supply when the unit is not in use for a long period of time, as

should be done with any other electric household appliance.

•To avoid possible injury and/or an electric shock, do not attempt to use the screen if there is

obvious damage or if there are any evident broken parts.

Rev. V04152023DT (DS0238) 2 www.elitescreens.com

WARNING

Individual modifications to this product are prohibited and will void the manufacturer’s warranty. Please contact the

Elite Screens Customer Service Team with any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules.

The product settings are designed to provide reasonable protection against any radio interference within a residential

installation. If properly installed, the Evanesce Tab-Tension screen may suffer from RF interference from other home

electronics.

Although radio interference affecting other household electronics is unlikely, the following steps can be taken should

RF interference occur.

✓Reorient or relocate the receiving antenna on the device that may be casing the interference.

✓Increase the distance between the screen and the interfering device’s receiver.

✓Connect the projection screen to another power source apart from the interfering device.

Pre-Installation

1. Carefully unpack the screen.

2. Always handle the screen upright on a level, clean surface.

3. Keep the screen out of contact with foreign particles such as dust, sawdust, and/or liquids.

NOTE

Wall screws included with this product are complementary and may not be adequate for all mounting surfaces.

Consult with a professional installer or hardware store for proper mounting screws and anchors.

Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on the

viewing surface will not cause the casing to become loose or fall. Included mounting screws are complimentary and

may not be appropriate for all mounting surfaces. Use appropriate anchors to safely secure the screen to the mounting

surface or consult with a professional installer.

Hardware and Parts List

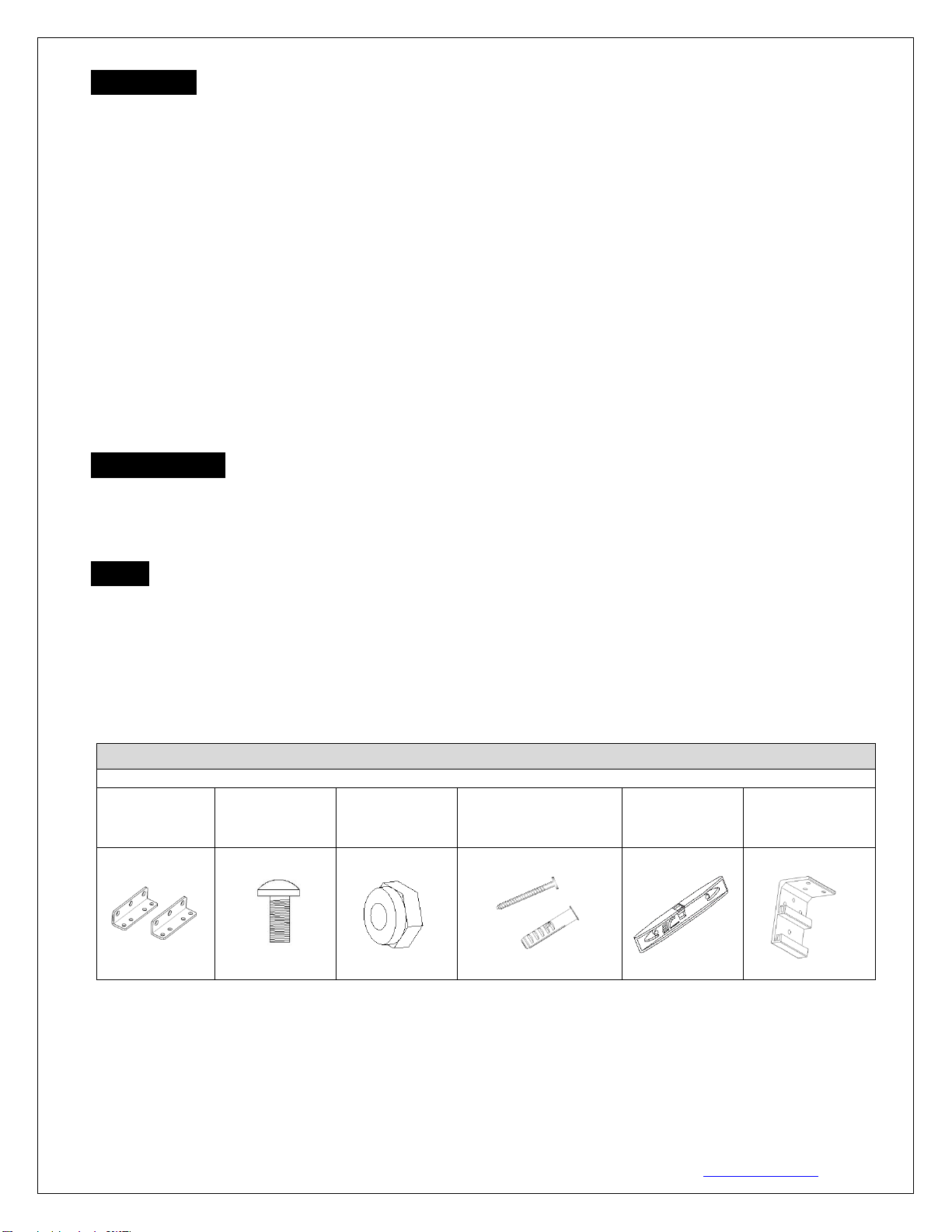

Please make sure all parts listed below are included before proceeding with the installation.

A. Bracket x 2

B. M5x11mm

screw x 4

C. M5 Nut x 4

D. M5x50 screw &

Dry-wall anchor x 6

E. Bubble

Level

F. Wall/Ceiling

mount bracket

Rev. V04152023DT (DS0238) 3 www.elitescreens.com

Installation Instructions

For installation assistance, please consult a professional Installer. Elite Screens is not liable for faulty installations.

A. Wall Mount

1. Measure the distance (A) between the screw holes at the end of brackets.

2. Drill two holes on the wall according to the distance (A) and insert the dry-wall anchor and M5x50 screw,

leaving 4mm of the screw protruding from the wall.

Two or more people are required while one holds the screen in place.

3. Mount the product onto the screw.

4. Make sure the screen is properly leveled.

B. Ceiling Mount

I. Ceiling Mount

1. Attach the Bracket (A) to each side end cap using the M5x11 Bolt Screw and M5 Nut.

2. Measure the distance (B) between the screw holes on the brackets. Drill 3 holes each side on the ceiling

according to the distance B. Wood stud installation recommended but if not available, use dry-wall anchors.

3. Insert the dry-wall anchor and secure using a hammer.

Two or more people are required while one holds the screen in place.

4. Align the hole position of the bracket with the drilled holes on the ceiling, and secure with M5x50 screw.

5. Make sure the screen is properly leveled.

Wall

Side View

Ceiling

Rev. V04152023DT (DS0238) 4 www.elitescreens.com

C. Wall Mount

This mount method allows the screen to slide horizontally.

1. Determine where the screen will be installed. Then, measure and mark the distance between the top and

bottom screw holes from each Wall/Ceiling mount bracket (F).

2. Drill a hole on all marked points and install the brackets with the dry-wall anchor (C), M5x60 screw (B),

Make sure both brackets are properly leveled.

3. Hang the screen by placing the lower “catch” located on the back over the brackets upper “catch”.

4. After making sure the screen is secured, you can slide it to left / right around 80mm to properly center it in

bracket’s position.

※Sliding bracket at the back of the screen support customer to adjust position a little bit while screen has

position issue, it can slide around 80mm from the center of sliding bracket at the back of the screen. (Fig.

※Two or more people are required while one holds the screen in place.

※Noticed of sliding bracket application:

Please make sure the adjustment of sliding bracket is within 80mm range from the center of bracket, it

allows customer to slide the casing a little bit to adjust the position to the correct one while the bracket

got tolerance of installation. (A = 80mm)

Wall

Front view of bracket (F)

Rev. V04152023DT (DS0238) 5 www.elitescreens.com

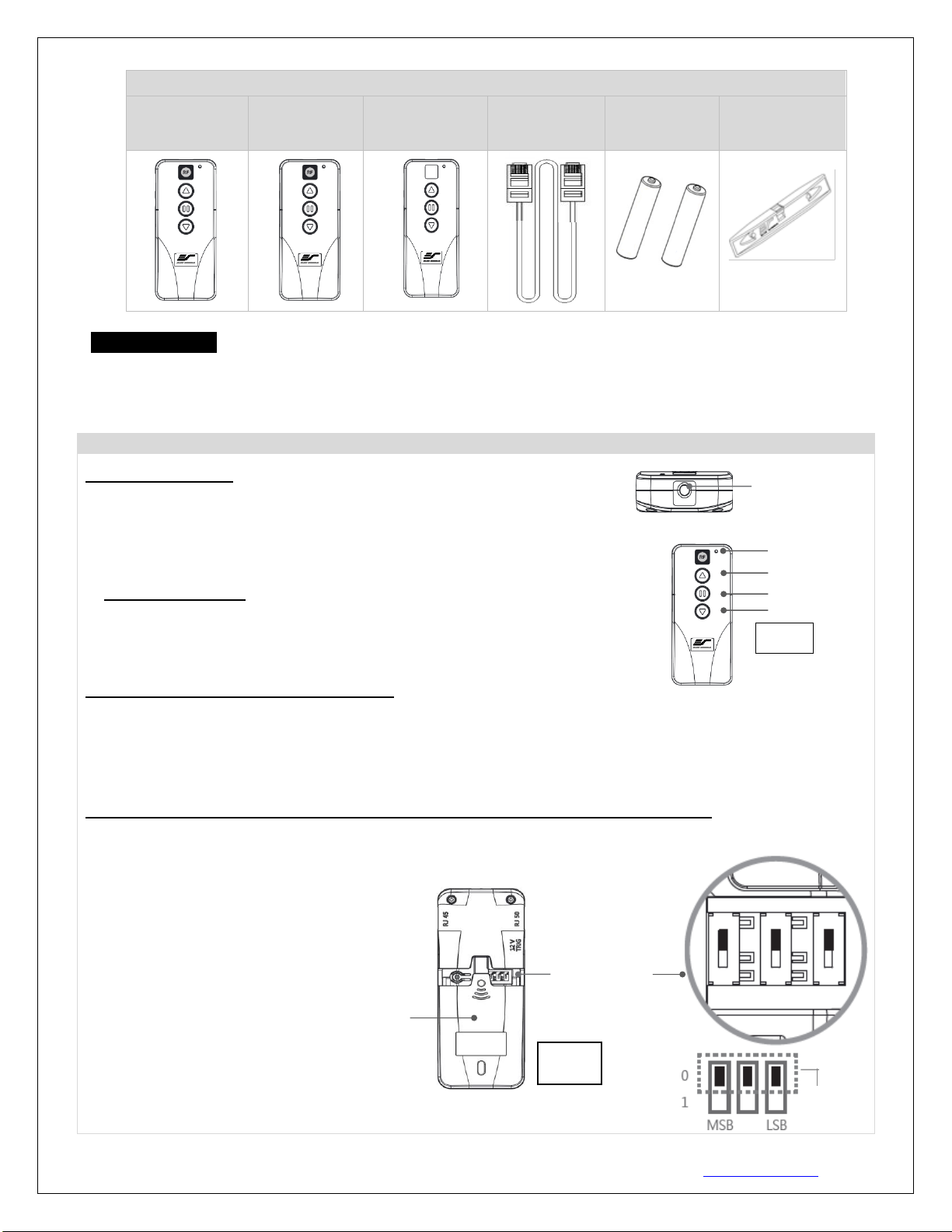

VMAXT3 Series | Controls and Accessories

A. IR Remote

ZRC1-IR

B. RF Remote

ZRC1-RF

C. Wall box

controller

ZRC1-WB

D. RJ50 cable

ZRC1-RJ50

G. AAA

batteries

H. Bubble

leveler

Screen operation

Electric voltage: 100 ~ 110v.

1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power outlet.

2. Once the screen has power, you’ll be able to control it using any of the 5 methods described below.

5 Ways to control the screen

1. IR Remote control (Item A, Fig 1): The Infrared functions by direct line of

sight contact using an effective beam range of 25 feet within a 30-degree angle.

Aim the IR remote directly at either the IR receiver on the Wall Box Controller

or on the screen to operate the screen.

Note: Assure there is no obstruction between the IR remote and IR receiver.

2. RF Remote Control (Item B): The radio waves eliminate the need for a

direct line of sight and has a longer distance control range.

The RF remote is already pre-synced/paired and ready to use. If synchronization/

pairing is needed, please follow the steps below.

How to synchronize/pair a new RF remote:

•Press & hold the “Programming Key”, then press the “Up Key” on the Wall box controller (wall-box

LED flashes). Reference the wall box controller section for programming key location.

•Then press the “Up Key” on the RF remote.

•The Wall box LED will flash 5 times, to indicate the RF remote has been properly synchronized/paired.

How to change the RF code (For use when multiple screens/RF remotes are owned, Fig.2)

Changing the RF code avoids controlling multiple screens at the same time and prevents electrical interference

leading to accidental control of the screen.

1. Remove the batteries

2. Change the RF code switch

3. Insert the batteries

4. Synchronize it with the wall box controller

LED light

STOP

DOWN

Fig.1

IR/RF remote

IR Lens

(IR remote only)

Battery compartment

Default

“000”

RF Remote

BACK VIEW

Slide Switches

for RF Code

change

Fig. 2

Rev. V04152023DT (DS0238) 6 www.elitescreens.com

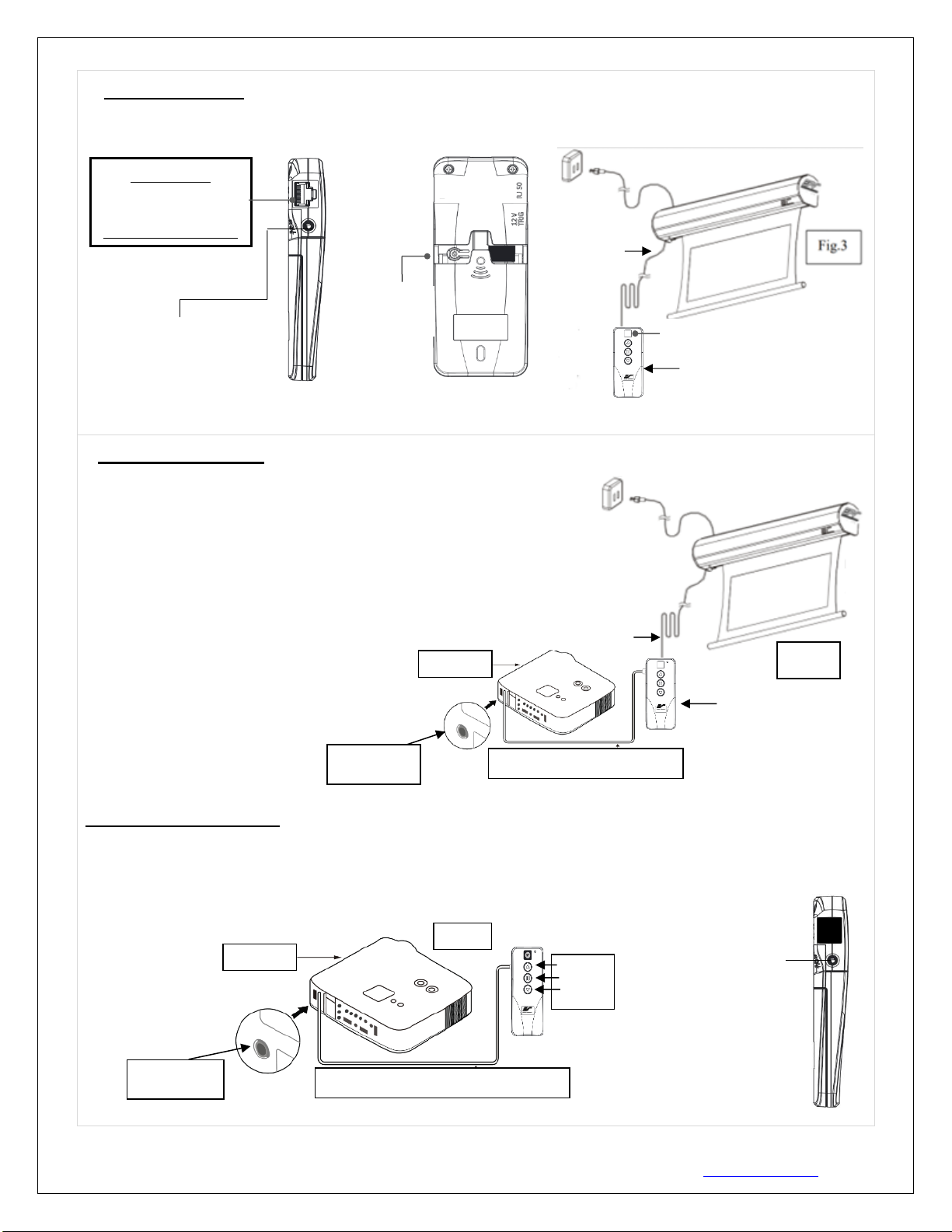

3. Wall box controller (Item C, Fig 3): The wall box controller switch is a wall mounted control box with an

up/stop/down button. It plugs directly into the screen’s RJ50 port.

4.Wired 5-12 volt trigger: Requires a 3.5mm to 3.5mm mono cable (Not included)

Step 1: Connect one end the RJ50 cable to the screen and the other end

to the Wall box controller.

Step 2: Then connect one end the 3.5mm mono cable to the wall box

controller and the other to the projector.

Once the two cables have been connected, the wired trigger feature is

ready to synchronize the screen’s up/down operation with the

projector’s power cycle.

•Projector on, screen drops

•Projector off, screen raises

5. Wireless 5-12 volt trigger (Fig 5): Requires a 3.5mm to 3.5mm mono cable (Not included).

The Radio Frequency (RF) remote control serves as a dual purpose, independently as a handheld remote control,

or as a Wireless 5-12 volt trigger. The radio frequency technology sends a wireless signal that synchronizes the

screen’s drop & rise with the projector’s power cycle.

Wall box controller

IR Receiver

RJ50 cable

Wall box controller

SIDE VIEW

RJ50 PORT:

Connects to the

Screen RJ50 PORT

(RJ50 CABLE ONLY)

3.5mm mono Projector

Trigger Port (if Projector

equipped)

3.5 mm port

DC 5-12V out

3.5mm to 3.5mm mono cable

Wall box controller

Fig. 4

RJ50 cable

Projector

Wall box controller

BACK VIEW

Programming

Key

Fig 5

3.5 mm port

DC 5-12V out

3.5mm to 3.5mm mono cable

STOP

DOWN

Projector

Mono 3.5mm

Projector

Trigger Port

RF remote control

SIDE VIEW

Rev. V04152023DT (DS0238) 7 www.elitescreens.com

Here’s how to set up your Wireless 5-12 volt trigger

The 5-12V wireless trigger should already be synced and ready to work.

Step1: Connect one end of the 3.5 mm mono trigger cable to the RF remote.

Step 2: Connect the other 3.5 mm mono end of the cable to your projector

Step 3: Turn on the projector and the screen should automatically deploy.

Step 4: Turn off your projector and the screen should automatically retract.

(Please be aware, the projector on/off cycle may take longer to fully activate. It usually takes around 20-

30seconds for full off and on cycle each time)

Note: If the wireless trigger feature does not work, please resync the RF remote to the Wall box controller per the

instructions in the Radio Frequency remote section.

ADVANCED Programming Key Instructions: (FOR ADVANCED USERS ONLY)

Wall box controller must be connected to the screen.

1. Preset the Screen’s Drop Position:

Use the RF/IR remote or Wall Box Controller to Drop the screen to the desired position you want to set it at.

Press & hold the “Programming Key”, then press the “Down key”on the Wall Box Controller. The LED will flash 5

times to confirm new programmed drop position.

2. Clear/Reset the Screen’s Drop Position to factory default:

Press & hold the “Programming Key + “Stop key” on the wall box controller.

For more information, support or your local Elite Screens contact,

please visit www.elitescreens.com

PROGAMMING NOTE:

The programmed vertical position relies on a time-count which adjusts itself according to the

programmed timed difference. Multiple up/down programming will result in the vertical position being

off a few inches. It is recommended that programming is done the first-time the desired vertical

position is determined or RESET it to factory default and programming the desired vertical position

afterwards.

ATTENTION: Reducing the factory’s full screen drop may produce waves/wrinkles on the projection

surface on tab-tension screens. The full drop is recommended to allow the screen to rely on the tab-

tension system to maintain the projection surface flat and taut on all sides.

The same applies on non-tensioned screens, although some level of waves may be present due to the

nature of the screen not being tensioned. If wrinkles/waves develop after making the adjustment to

the desired drop position, reset it to the factory’s default position per the instructions below.

FLATNESS AFFECTED BY NEW PROGRAMMED VERTICAL POSITION IS NOT COVERED UNDER A

REPLACEMENT WARRANTY.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Elite Screens Écran de projection

Elite Screens

Elite Screens Manual Series Manuel utilisateur

Elite Screens

Elite Screens Evanesce Tension Series Manuel utilisateur

Elite Screens

Elite Screens M100S Manuel utilisateur

Elite Screens

Elite Screens Manual SRM Pro Series Manuel utilisateur

Elite Screens

Elite Screens Manual Tab-Tension 2 Series Manuel utilisateur

Elite Screens

Elite Screens Tab-Tension Series Manuel utilisateur

Elite Screens

Elite Screens ezCinema Series Manuel utilisateur

Elite Screens

Elite Screens AR2 Series Manuel utilisateur

Elite Screens

Elite Screens Saker Series Mode d’emploi

Elite Screens

Elite Screens Insta-DE Series Manuel utilisateur

Elite Screens

Elite Screens Edge Frame Manuel utilisateur

Elite Screens

Elite Screens Evanesce Plus Series Manuel utilisateur

Elite Screens

Elite Screens StarFrame Series Manuel utilisateur

Elite Screens

Elite Screens Evanesce Tension Series Manuel utilisateur

Elite Screens

Elite Screens Elite Vmax Series Manuel utilisateur

Elite Screens

Elite Screens M92UWH Manuel utilisateur

Elite Screens

Elite Screens TE100HC2 Manuel utilisateur

Elite Screens

Elite Screens Starling Tension Series Manuel utilisateur

Elite Screens

Elite Screens M100VSR-PRO Manuel utilisateur

Elite Screens

Elite Screens CineTension 3 Series Manuel utilisateur

Elite Screens

Elite Screens Yard Master 2 Series Manuel utilisateur

Elite Screens

Elite Screens Starling Tab-Tension 2 Series Mode d’emploi

Elite Screens

Elite Screens M85XWS1-SRM Manuel utilisateur

Elite Screens

Elite Screens TE100HC2 Manuel du propriétaire

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Da-Lite

Da-Lite ExecutiveElectrol Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel

SI Dynamic 2 XL Manuel utilisateur

Draper

Draper Nocturne+ E Instructions d'installation
