Elite Screens M85XWS1-SRM Manuel utilisateur
www.elitescreens.com
Note: Regardless of the mounting method, the screen should be securely supported so that
when retracted, deployed, or even abusive pulling on the screen, the case will not become loose
or fall. The installer must insure that the fasteners used are of adequate strength and suitable for
the installation location.
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
Manual SRM Series
Manual Pull-down screen with built-in slow retract mechanism
User Guide
v.12
Pre-Installation
Back of end cap
Front view
Installation
1. Mark the location of where the screen is to be installed for the pre-drilled hole.
2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave
about 1/8" of an inch from the wall to mount the screen.
3. Mount your screen from the keyhole located on back of screen’s left and right end cap.

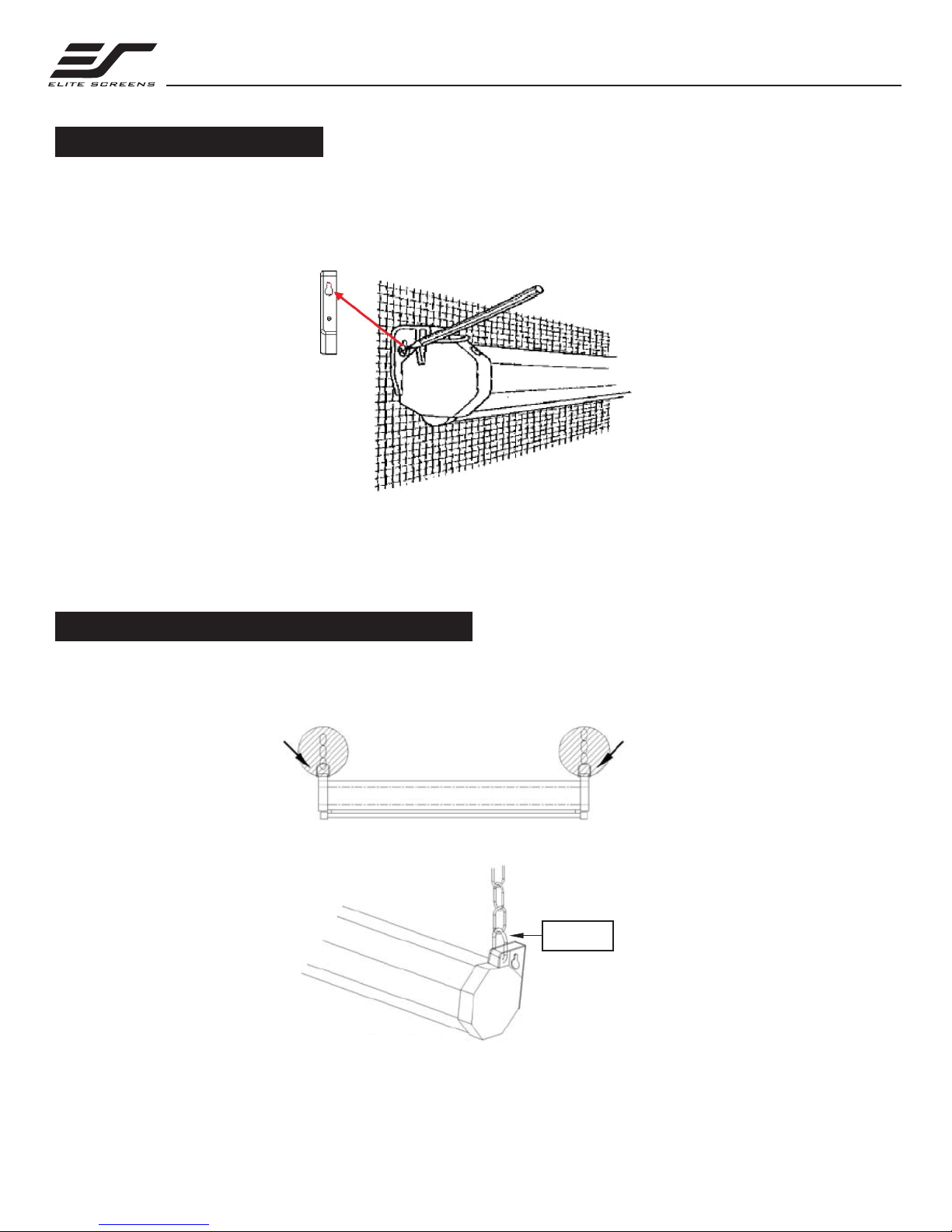

Flush Mount to the Wall
1. You can also hang the screen on a ceiling by using a chain (not included) and hang it by the two loops
located on each end of the case.
Ceiling Mounting (additional hardware required)
Loops
1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to
pull the screen down by the surface or touch the screen, as it will damage the screen and void the
warranty.
2. If you want to the screen to retract back, simply pull the screen down more than 2 inches and retract
the screen back by quickly and smoothly releasing it up gently. The screen is equipped with a SLOW
RETRACT MECHANISM (SRM) which allows the screen to slowly retract without the need to hold on
to the handle or lanyard. Simply release the handle and the screen will retract by itself.
Screen Operation & Maintenance
Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen
to touch the screen case when the screen goes up or comes down to avoid damaging the screen mate-
rial.
Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position
at intervals.
Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the
case If ever the screen feels stuck, keep in mind that the screen’s mechanism is new and needs to be
run up/down a few times to loosen up. If this happens, carefully with a little force yank the screen
straight down to unlock the screen.
Clean matte white screen material with a soft cloth and mild soap with water.
When not in use, retract screen in its housing to keep the screen material surface clean.
Maintenance
Note: Improperly bringing the screen up/down will damage the screen material or rolling system.
Dimension Table
Nominal Case Screen View Weight Bottom Screen Material View Overall End Cap End Cap Distance from
Model Diagonal & Length Width Width Bar Edge to Weight Bar Height Height Height Width Screen material
Aspect Ratio (A) (A1) (A2) Length (A3) Distance (B4) Height (B3) (B1) (B) (B5) (C) to wall (C1)
M85XWS1-SRM 85" (1:1) 1677 1603 1527 1673 62 1703 1527 1795 92 79.5 20
M99NWS1-SRM 99" (1:1) 1938 1854 1778 1934 62 1954 1778 2046 92 79.5 20
M113NWS1-SRM 113" (1:1) 2192 2106 2030 2188 62 2206 2030 2298 92 79.5 20
M84NWV-SRM 84" (4:3) 1867 1783 1707 1863 62 1456 1280 1548 92 79.5 20
M100NWV1-SRM 100" (4:3) 2192 2108 2032 2188 62 1700 1524 1792 92 79.5 20
M120XWV2-SRM 120" (4:3) 2598 2514 2438 2594 62 2005 1829 2097 92 79.5 20
Unit: mm Can't find size and ratio you’re looking for? Visit elitescreens.com/csr to create your own
Nominal Case Screen View Weight Bottom Screen Material View Overall End Cap End Cap Distance from
Model Diagonal & Length Width Width Bar Edge to Weight Bar Height Height Height Width Screen material
Aspect Ratio (A) (A1) (A2) Length (A3) Distance (B4) Height (B3) (B1) (B) (B5) (C) to wall (C1)
M85XWS1-SRM 85" (1:1) 66.0 63.1 60.1 65.9 2.4 67.0 60.1 70.7 3.6 3.1 0.8
M99NWS1-SRM 99" (1:1) 76.3 73.0 70.0 76.1 2.4 76.9 70.0 80.6 3.6 3.1 0.8
M113NWS1-SRM 113" (1:1) 86.3 82.9 79.9 86.1 2.4 86.9 79.9 90.5 3.6 3.1 0.8
M84NWV-SRM 84" (4:3) 73.5 70.2 67.2 73.3 2.4 57.3 50.4 60.9 3.6 3.1 0.8
M100NWV1-SRM 100" (4:3) 86.3 83.0 80.0 86.1 2.4 66.9 60.0 70.6 3.6 3.1 0.8
M120XWV2-SRM 120" (4:3) 102.3 99.0 96.0 102.1 2.4 78.9 72.0 82.6 3.6 3.1 0.8
Unit: inch Can't find size and ratio you’re looking for? Visit elitescreens.com/csr to create your own
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.
Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
A
A1
A2
B1
B3
B
B4
A3
B5
C
C1
92
79.5 20.5
Ø10.5
Ø5
10
15
11
Unit:mm
Warranty Policy
• Two (2) Year parts and labor warranty from defects in workmanship from purchase date as follows
(except for refurbished units as specified below).
• Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,
Educational, Military, & Religious) purchases of new product only.
• Refurbished Units carry a 90‐DAY parts and labor warranty.
• Each party will be responsible for one way shipping during the warranty period.
• A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement
or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the
defective unit with a replacement *(see exceptions below) after the defective unit or parts have been
received. Once the product is received, Elite Screens will send out a replacement *unit to the customer
by ground service (subject to inventory availability).
• Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned at your
expense. The RMA Number must be included on the outside label of your shipping box. Our warehouse
is not authorized to accept returns without an RMA number on the shipping label.
• RMA Numbers are valid for 45 days from the date issued.
• Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer will be
responsible for shipping and handling fees. If reported after 30 days of receipt, the customer will be
responsible for cost of parts and shipping & handling fees.
* A New or refurbished replacement will be send out to the customer depending on the type of purchase
(new or refurbished) and based on stock availability.
North America only U.S. and Canada
For Warranty and Service requests, please submit an RMA/Service Form at:
www.elitescreens.com/warrantysupportform
Please visit this link for full Warranty information:
www.elitescreens.com/warranty
For Customer Service and Technical questions, please contact Elite Screens at:
Register your product at:
www.elitescreens.com
Contact Information
US & Canada Tech Support & Warranty Claim
Europe Tech Support & Warranty Claim
Asia Tech Support & Warranty Claim
Taiwan Tech Support & Warranty Claim
Elite Screens America
16410 Manning Way |Cerritos |California 90703
Tel: 877.511.1211 | Fax: 1.562.926.8433
Elite Screens China Corp.
Longxi Duimianling Industry Zone
Longcheng Longgang District,
ShenZhen GuangDong, China
www.elitescreens.com.cn
Tel: +86 (0) 755.8461.7989
Fax: +86 (0) 755.8461.7669
Elite Screens Taiwan Ltd.
1F. No. 38 Alley 22 Lane 66 Sec. 5
Nanjing E. Rd. Songshan District
Taipei City 105, Taiwan (R.O.C.)
www.elitescreens.com.tw
Tel: 886 (0) 2.2747.8979
Elite Screens Japan Corp.
467-2-606 Tsuruma, Machida-shi,
Tokyo, 194-0004 Japan
www.elitescreens.jp
Tel: 0120-07-0008
Fax: +81 (0) 42.706.9130
Elite Screens Europe GmbH
Lübecker Straße 1
22087 Hamburg, Germany
www.elitescreens.eu
Tel: +49.40.30392494
Fax: +49.40.49219200
Elite Screens France S.A.S
11, Allée William Penn
92150 Suresnes, France
www.elitescreens.com/fr
Tel: +33.1.45064735
Fax: +33.1.45064735
ASIA:
EUROPE:
Elite Screens
www.elitescreens.com/sp
LATIN AMERICA:
Notes
www.elitescreens.com [email protected]
