DD52R-E-RF Electronic position indicators
Up to 36
indicators
DD52R-E-R
Current position
Target position
UC-RF
PLC
FEATURES AND APPLICATIONS
DD52R-E-RF position indicators, with battery power supply, can be
used on passing through shafts in any position to provide the reading
of the absolute or incremental positioning of a machine component.
- The 6-digit display of 12,0 mm height ensures excellent readability
even from a distance and from different viewing angles.
The window in transparent technopolymer protects the LCD display
against accidental shocks.
- The high protection degree, IP 65 or IP67, makes the indicator suitable
for applications that require frequent washing, even with intense
water jets.
- In the operating mode, by using the 4 function keys, it is possible
to select the incremental or the absolute mode, the unit of measure
(mm, inches or degrees), reset the absolute counter or load a preset
source value and the preset offset value.
- In the programming mode, through the 4 function keys, it is possible
to program the reading after one revolution of the shaft, the direction
of rotation, the display orientation, the resolution (number of decimal
digits displayed), the source value and the offset value, the max.
speed of rotation and set the functions of the keys for the different
options available.
- The internal battery ensures long battery life (over 3 years). A special
symbol appears on the display when it is necessary to replace the
battery. The replacement can be performed easily by removing the
front cover (Fig.1), without disassembly of the indicator from the
control shaft and without the loss of configuration parameters.
QUICK POSITIONING SYSTEM
DD52R-E-RF indicators (Elesa Patent) are networked to the control unit
UC-RF via radio frequency (RF), constituting a wireless system for rapid
positioning of the machine parts (fig.2).
This system is particularly suitable for applications that require frequent
format changes, facilitating the correct adjustment of the target/current
position of the machine parts, also representing a safety system. In
fact, even if a single DD52R-E-RF indicator is not placed in the target
position, PLC doen't allow the beginning of the machine production
cycle, thus avoiding production issues.
The installation of the system is quick and easy as it does not require
the use of connecting cables between the control unit and the indicators.
Further technical information available in "Operating instructions".

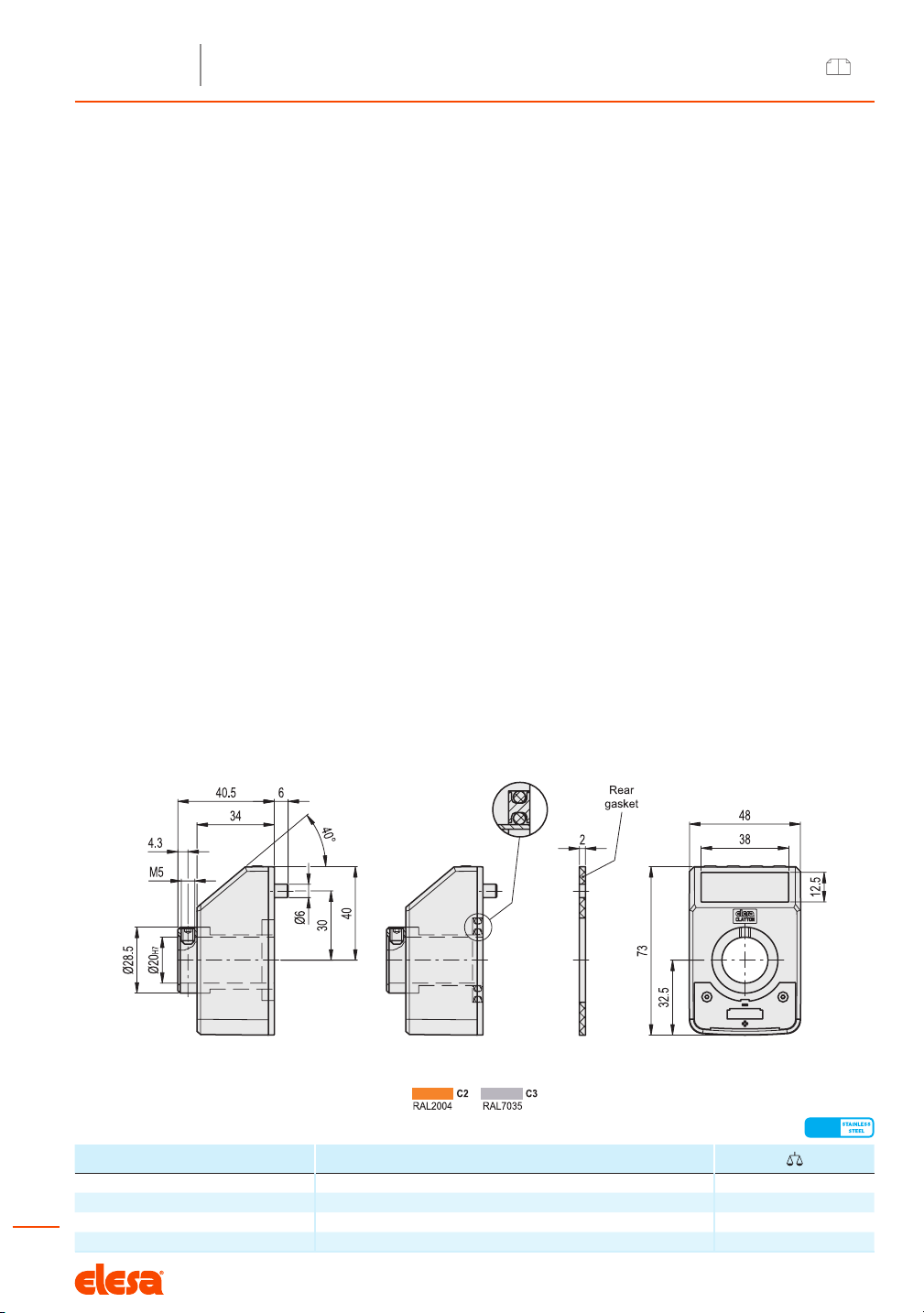

Mechanical and electrical characteristics
Tension feed Lithium battery CR2477 3.0 V
Battery life 3 years
Display 6-digit LCD of 12 mm height and
special characters
Reading scale -199999; 999999
Number of decimal digits programmable
(1)
Unit of measure
mm. inches, degrees
programmable
programmable
(1)
Rotation max. speed 300/600/1000 r.p.m
(2)
programmable
(1)
Precision 10.000 impulses / revolution
Protection class IP65 or IP67
Working temperature 0 to 50 °C
Storing temperature -20 to +60 °C
Relative humidity Max. 95% at 25°C without
condensation
Interference protection IEC 61326-1
(1) See the operating instructions.
(2) Default: 600 r.p.m.
Higher rotation speed to 600 r.p.m. can be maintained for short
periods of time.
The value of the max. speed affects the battery life.
