Element CO8 Manuel utilisateur

Important: Read all instructions carefully before using this product. Retain this owner’s manual for future reference.

ASSEMBLY INSTRUCTIONS

SAFETY INFORMATION

PRECAUTIONS

The machine has been designed and constructed to provide maximum safety. Nevertheless,

certain precautions should be taken when using exercise equipment. Read the whole manual

before assembling and using the machine. Please observe the following safety precautions:

1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the

room where the the machine is kept.

2. If you experience dizziness, nausea, chest pains or any other symptom while using this machine STOP

the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!

3. Use the machine on a level and solid surface. Adjust the feet for stability.

4. Keep your hands away from any of the joints and moving parts.

5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the

machine. Always wear athletic shoes when using the machine and tie the laces securely.

6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that

are not recommended by BH Fitness.

7. Do not place sharp objects near the machine.

8. Any person with physical or coordination limitations should not use the machine without the assistance

9. Do warm-up stretching exercises before using the equipment.

10. Do not use the machine if it is not working correctly.

11. Before using the machine, thoroughly inspect the equipment for proper assembly.

12. Maintain a minimum safety clearance of 12” in the front, 24” on the sides and 79” to the rear of the

treadmill.

13. Use only authorized and trained technicians if a repair is needed.

14. Please follow the advice for correct training, as detailed in the Training Guidelines.

15. Use only the tools provided to assemble this machine.

16. This machine was designed for a maximum user weight of 450 Lbs

17. The machine can only be used by one person at a time.

CAUTION: Consult your doctor before beginning to use the machine or any exercise program.

Read all of the instructions before using any exercise equipment.

KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

ASSEMBLY INSTRUCTIONS

STEP 1

Pull the main wire out of the Left Upright

both uprights (C, D) into the frame (B),

and tighten with the Socket Screws (a, b).

Tighten the screws, cover the screws with

Bolt Covers (c).

Note: Two people are required for this step,

especially to hold the Upright Tubes (C, D)

so they do not fall and cause injury.

STEP 2

After the left and right Upright Tubes

are tightened, insert the left and right

Handrails (H, I) into the computer frame.

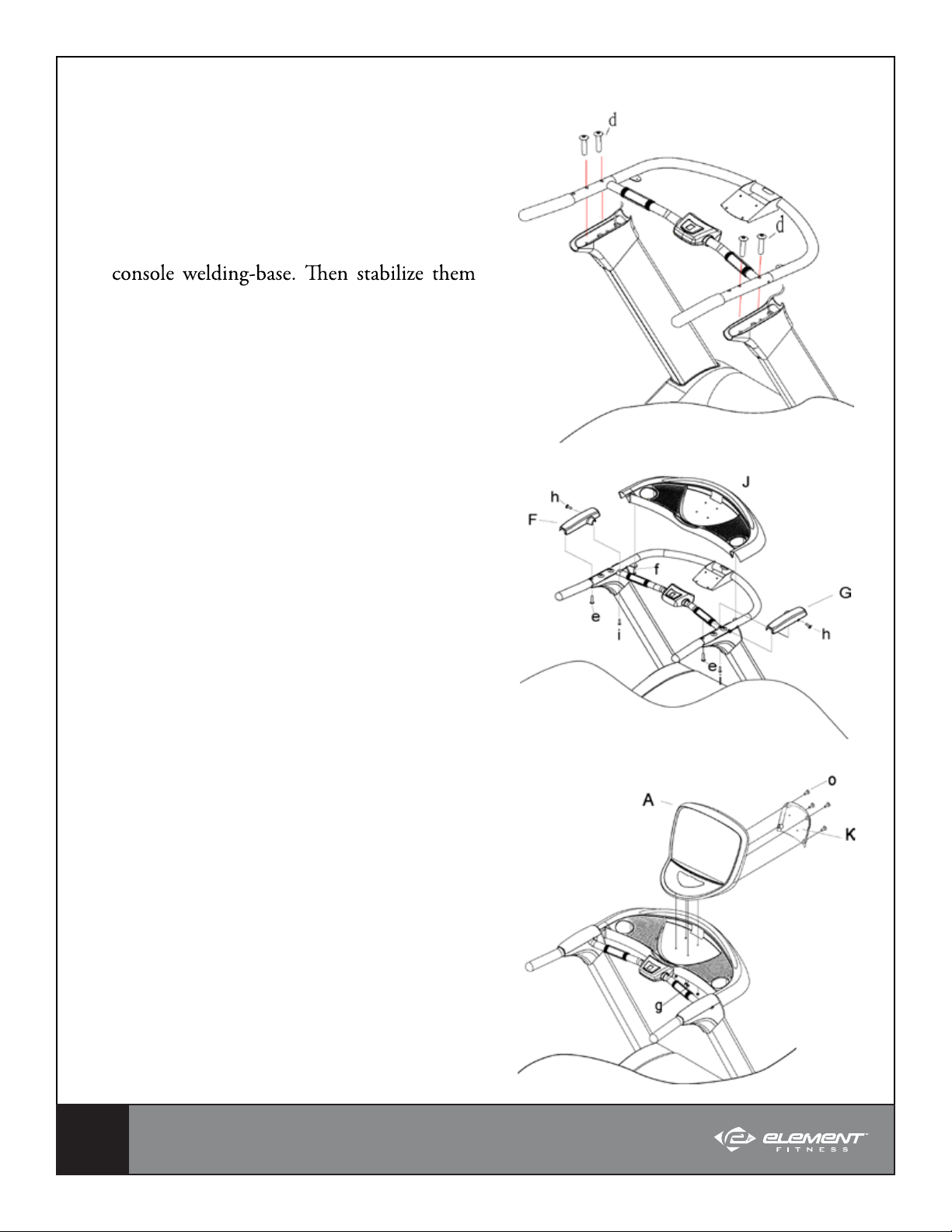

STEP 3

Place the completed console on the upright

tubes, align the holes of the handrails to

the holes of the upright tubes. Connect the

main wire through the console welding-base

and pull the wire from the upper holes of

with Socket Screws (d).

Note: Do not to damage the wires while

tightening the screws. Two people are

required for this step.

STEP 4

Place the Water Bottle Holder (J) on the

console base, and tighten with screw (f).

Assemble the right and left handrails covers

(F, G) with Screw (e, h, i).

Note: Do not to damage the wires while

tightening the screws.

STEP 5

Place the Console (A) on the console base

and connect all wires. Hide all wires inside

the tube and tighten the Nut (g). Finally,

place the back cover (K) onto the back of

the console and screw it on using 4 Bolts

(o).

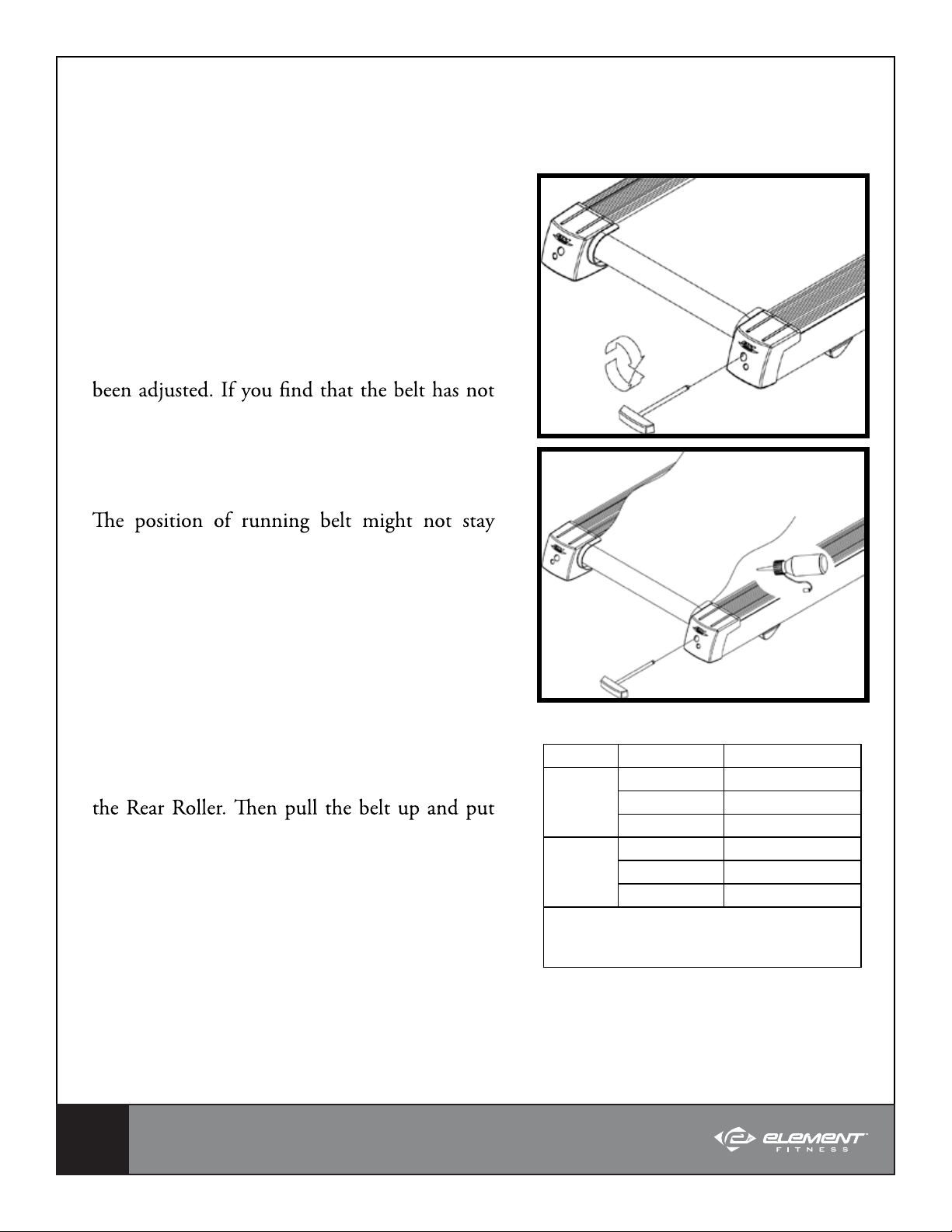

To adjust the running belt, stop the treadmill,

then use the Hex Wrench and adjust the Hex

Screw located in the Rear End Cap. If the running

belt is moving towards the left side, tighten the

left Hex Screw about 1/4 turn (clockwise); if the

running belt is moving towards the right side,

tighten the right Hex Screw about 1/4 turn

(clockwise); Turn the treadmill on after it has

moved to the proper position, please repeat the

steps above. Don’t use the treadmill until the

running belt returns to the center position.

precisely in the center, it can and will shift

slightly towards the left and right sides, however,

you do not need to adjust the belt if it is not

rubbing against the side rails.

Depending on the usage of the product, please

apply silicon according to the chart to the right.

Use the Hex Wrench to unscrew the bolt inside

some silicon to the center of the board. After

that, adjust the belt to the center of the deck,

followed by tightening the screw to the original

set.

When the belt is sliding, please follow the above

method to lubricate the running board.

KGS/LBS Speed Interval

KGS

6KM/hr Below 1 year

6~12KM/hr 6 months

12KM/hr Above 3 months

LBS

4mile/hr Below 1 year

4~8mile/hr 6 months

8mile/hr Above 3 months

Note: This maintenance is intended for household

use. If used for business, it is suggested to

examine the product every other month.

Silicon Chart

BELT ADJUSTMENTS

EXPLODED VIEW DRAWING

PARTS LIST

To order replacement parts: provide your customer service representative with the product model

number and the part number located on the Parts List below, along with the quanity you require.

No. Description Qty. No. Description Qty.

1 Computer 1 53 Hexagon screw m8xp1.25X115 (thread length 25mm) 8

1-1 Plastic waterbottle holder 1 54 8

1-2 Waterbottle holder assembly 1 55 Aluminum pedal 2

2 Safety key 1 56 Rear roller 1

3 Truss hex screw k-299 4 57 Washer ø 10xø20x2.0T 2

4 Lower control wire 1 57A Washer ø 8xø20x2.0T 8

5 Upper handrail cover L 1 57B Washer ø 10xø20x1.0T 1

6 Upper handrail cover R 1 58A CKS hex screw m10xp1.5X80 2

10 Lower handrail cover L 1 59 Rear end cap (left) 1

11 Lower handrail cover R 1 60 Rear end cap (right) 1

12 Self-tapping screw ø4x16 7 61 Round head cross screw m5xp0.8X15 2

13 Truss cross self-tapping screw ø5x25 2 62 Rubber foot pad 2

14 Upright tube L 1 63 Truss cross screw m6xp1.0X10 4

15 Upright tube R 1 63A Truss cross screw m6xp1.0X15 2

16 Hand grip tube 2 64 Incline base 1

18 Arc end cap ø1-1/2”x1.5T 2 66 2

19 PVC foam grip 2 69 Plastic sleeve cover 2

20 Upper motor cover 1 70 Wheel ø10xø60x30t 2

21 Screw plastic cover 6 71 CKS hex screw m10xp1.5X80m10xp1.5X60 (thread length 30mm) 2

22 Motor 1 72 Incline base extending iron plate pin 2

23 CKS hex screw m10xp1.5X25 4 73 R pin ø10xø2.0 2

24 Spring washer m10 4 74 CKS hex screw m10xp1.5X100(full thread) 1

25 Washer ø10xø20x3.0T 4 75 Extension wire (white) 14awgx90x2t 1

26 Incline motor 1 76 Extension wire (black) 14awgx90x2t 2

27 CKS hex screw m10xp1.5X40 1 77 Extension wire (white) 14awgx700x2t 1

28 Nylon nut m10xp1.5 3 78 Extension wire (black) 14awgx680x2t 1

28A Nylon nut m10xp1.5X8t 1 79 Extension wire (kelly) 14awgx130x1t1r 1

29 Drive belt 1 81 Hex wrench 1

30 Controller 1 85 1

31 Truss cross screw (cut end) m5xp0.8X12 7 86 Truss cross screw m4xp0.7X8 4

33 Hex screw nut m10xp1.5 1 88B Round head cross screw m5xp0.8X10 2

34 Truss hex screw m8xp1.25X40 2 90C Foam sticker 2

35 Truss cross screw (cut end) m5xp0.8X15 4 91 T shaped wrench 8mmx200mm 1

36 Power wire 1 93 Rubber pad 3

37 Power wire socket 1 94 Washer ø6xø16x1.0T 5

38 Power switch 1 95 Foot pad 2

39 Circuit breaker 1 97 1

40 Sensor 1 99 Spring washer 8 12

41B Truss cross screwm4xp0.7X10 2 100 CKS hex screw m8xp1.25X25 4

42 1 101 Nylon nut m8xp1.25 8

43 2 103 Truss hex screw k-298a 4

44 CKS hex screw m8xp1.25X75 1 109 Waterbottle 1

45 Hex screw nut m8xp1.25 1 120 Bushing wrench & cross screwdriver 1

46 Frame 1 129 Computer decorative cover 1

47 6 131 Nylon nut m6xp1.0 4

48 Front roller 1 132 Foam sticker 2

49 Running board B frame 1 138 Truss cross screw ø4x12 2

50 Counter sink hex screw m8xp1.25X40 2 139 Truss cross screw ø4x16 2

51 Running belt 1 144 Rubber pad 2

52 Counter sink hex screw m8xp1.25X35 6 ø = diameter

Care has been taken to assure that your equipment has been properly adjusted and

lubricated at the factory. It is not recommended that the user attempt service on the internal

components. Instead, seek service from an authorized service center. However, you may

clean the outer surface. Use a soft cloth, dampened with warm water. Do not use aerosol

of harsh chemicals will destroy the protective coating and cause a static build-up that may

damage the some of the components.

MAINTENANCE AND CLEANING

SCAN THE QR CODE TO LEARN MORE ABOUT

THE ELEMENT FITNESS PROGRAMS
