Electrolux WAL6E200 Manuel utilisateur

WAL4E200

WAL6E200

WAL7E200

................................................ .............................................

EN WASHING MACHINE USER MANUAL 2

DE WASCHMASCHINE BENUTZERINFORMATION 25

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2

Safety instructions 3

Technical information 4

Product description 5

Control panel 6

Programmes 9

Consumption values 11

Before first use 11

Using the appliance 12

Hints and tips 14

Care and cleaning 15

Troubleshooting 18

Installation 20

Environment concerns 24

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

if an incorrect installation and use causes injuries and dam-

ages. Always keep the instructions with the appliance for fu-

ture reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the haz-

ards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when

it is open.

• If the appliance has a child safety device, we recommend

you activate it.

• Cleaning and user maintenance shall not be made by chil-

dren without supervision.

2 electrolux

GENERAL SAFETY

• Before maintenance, deactivate the appliance and discon-

nect the mains plug from the mains socket.

• Do not change the specification of this appliance.

• Obey the maximum load volume of 7 kg (refer to the “Pro-

gramme chart” chapter).

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons

in order to avoid a hazard.

• The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)

• The ventilation openings in the base (if applicable) must not

be obstructed by a carpet.

• The appliance is to be connected to the water mains using

the new supplied hose-sets. Old hose sets must not be

reused.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging and the transit

bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Do not install or use a damaged appli-

ance.

•Donotinstalloruse the appliance where

the temperature is less than 0 °C or

where it is exposed to the weather.

• Obey the installation instruction supplied

with the appliance.

• Make sure that the floor where you install

the appliance is flat, stable, heat resistant

and clean.

• Do not install the appliance where the ap-

pliance door can not be fully opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure that there is air circulation be-

tween the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

Electrical connection

Warning! Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the power

supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the appliance power supply cable

need to be replaced, this must be carried

out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

electrolux 3

•Do not pull the mains cable to disconnect

the appliance. Always pull the mains

plug.

•Do not touch the mains cable or the

mains plug with wet hands.

•This appliance complies with the E.E.C.

Directives.

Water connection

•Make sure not to cause damage to the

water hoses.

•The appliance is to be connected to the

water mains using the new supplied

hose-sets. Old hose sets must not be

reused.

•Before you connect the appliance to new

pipes or pipes not used for a long time,

let the water flow until it is clean.

•The first time you use the appliance,

make sure that there is no leakage.

USE

Warning! Risk of injury, electrical

shock, fire, burns or damage to the

appliance.

•Use this appliance in a household envi-

ronment.

•Do not change the specification of this

appliance.

•Obeythe safety instructions on the deter-

gent packaging.

•Do not put flammable products or items

that are wet with flammable products in,

near or on the appliance.

•Do not touch the glass of the door while

a programme operates. The glass can be

hot.

•Make sure that you remove all metal ob-

jects from the laundry.

•Do not put a container to collect possible

water leakage under the appliance. Con-

tact the Service to ensure which acces-

sories can be used.

CARE AND CLEANING

Warning! Risk of injury or damage to

the appliance.

•Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

•Do not use water spray and steam to

clean the appliance.

•Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal objects.

DISPOSAL

Warning! Risk of injury or suffocation.

•Disconnect the appliance from the mains

supply.

•Cut off the mains cable and discard it.

•Remove the door catch to prevent chil-

dren and pets to get closed in the appli-

ance.

TECHNICAL INFORMATION

DimensionsWidth / Height / Depth 600 / 850 / 605 mm

Total depth 640 mm

Electrical connection: Voltage

Overall power

Fuse

Frequency

230 V

2200 W

10 A

50 Hz

Level of protection against ingress of solid particles and moisture

ensured by the protective cover, except where the low voltage

equipment has no protection against moisture

IPX4

Water supply pressure Minimum 0,5 bar (0,05 MPa)

Maximum 8 bar (0,8 MPa)

Water supply 1) Cold water

Maximum load Cotton 7 kg

4 electrolux

Spin speed Maximum 1200 rpm (WAL4E200)

1400 rpm (WAL6E200)

1600 rpm (WAL7E200)

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

PRODUCT DESCRIPTION

1 2 3 8 9

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump

7Feet for the appliance level

8Water drain hose

9Water inlet valve

10 Mains cable

11 Transit bolts

12 Feet for the appliance level

ACCESSORIES

1 2

1Spanner

To remove the transit bolts.

2Plastic caps

To close the holes on the rear side of

the cabinet after the removal of the

transit bolts.

3Anti-flood inlet hose

To prevent possible leakage

4Plastic hose guide

To connect the drain hose on the edge

of a sink.

CHILD SAFETY DEVICE

• When you activate this device, you can-

not close the door. This prevents children

electrolux 5

or pets to be closed in the drum. To acti-

vate the device, turn it clockwise, until the

groove is horizontal. To deactivate the

device, turn it counterclockwise, until the

groove is vertical.

CONTROL PANEL

Baumwolle Eco

Coton Eco

1 2 3

45678910

1On/Off button (Ein/Aus — Marche/

Arrêt)

2Programme knob

3Display

4Start Pause button (Start/Pause —

Départ/Pause)

5Delay start button (Zeitvorwahl — Dé-

part Différé)

6Time saving button (Zeit Sparen —

Gain de Temps)

7Extra rinse button (Extra Spülen —

Rinçage+)

8Stain button (Flecken — Taches)

9Spin reduction button (U./Min. — T/

min.)

10 Temperature button (Temp.)

ON OFF BUTTON 1

Press this button to activate or deactivate

the appliance. A tune sounds when the ap-

pliance is activated.

The AUTO Stand-by function automatically

deactivates the appliance to decrease the

energy consumption when:

• You do not use the appliance for 5 mi-

nutes before you press button

– All settings are cancelled.

–Press button

to activate the appli-

ance again.

– Set again the washing programme and

all possible options.

• After 5 minutes from the end of the

washing programme. Refer to 'At the end

of programme'.

PROGRAMME KNOB 2

Turn this knob to set a programme. The re-

lated programme indicator comes on.

6 electrolux

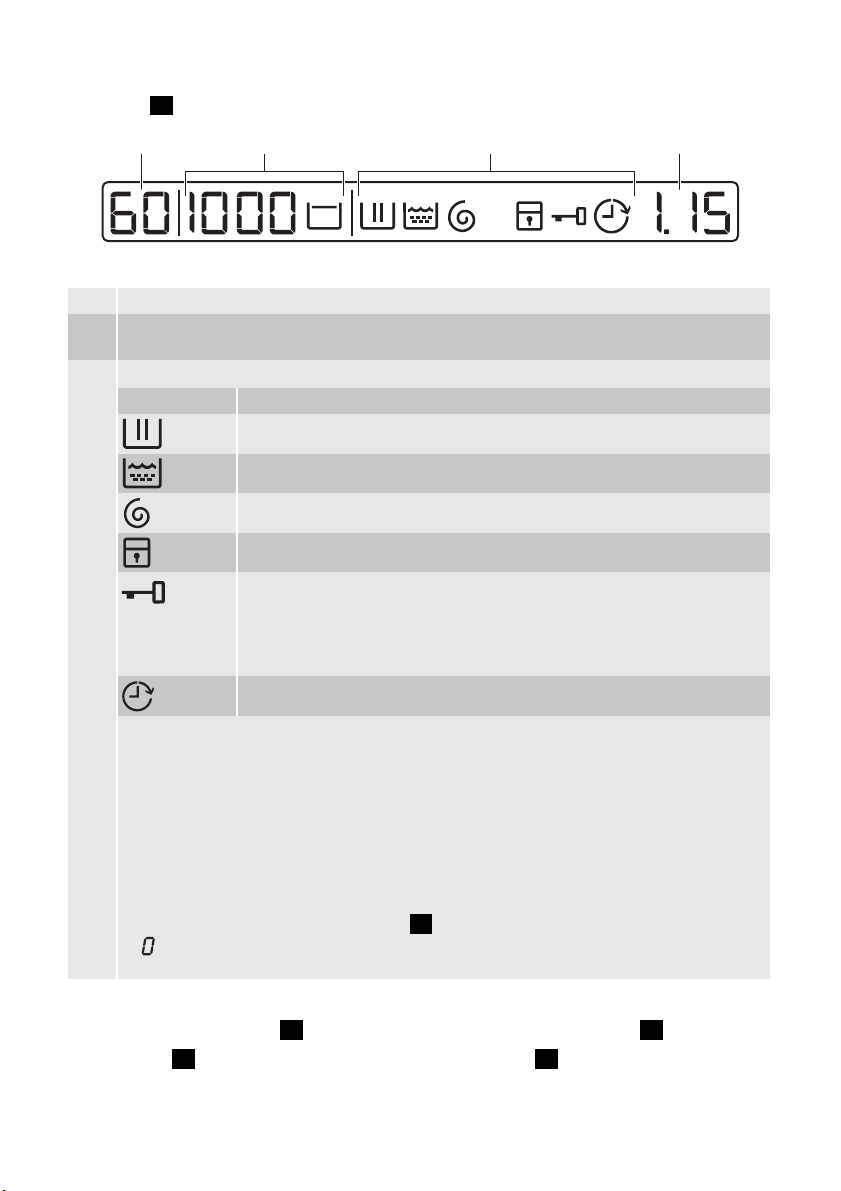

DISPLAY 3

A B C D

The display shows:

A• The maximum temperature of the programme.

B• The default spin speed of the programme.

•'No Spin'

and 'Rinse Hold' symbols.

C•The display symbols.

Symbols Description

Washing phase

Rinse phases

Spin phase

Child lock

You cannot open the appliance door when the symbol is on.

You can open the door only when the symbol goes off.

If the programme is completed but the symbol stays on:

• There is water in the drum.

• The 'Rinse Hold' function is on.

Delay start

D• The programme time

When the programme starts, the time decreases with steps of 1 minute.

•Thedelaystart

When you press the delay start button, the display shows the delay start time.

•Alarmcodes

If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshoot-

ing' chapter.

•Err

The display shows this message for some seconds if:

– You set a function that is not applicable for the programme.

– You change the programme while it operates.

The indicator of the Start/Pause button

flashes.

•

When the programme is completed.

1) Only available for Spin/Drain programme.

2) The symbols appear on the display when the related phase or function is set.

START/PAUSE BUTTON 4

Press button

to start or interrupt a pro-

gramme.

DELAY START BUTTON 5

Press button

to delay the start of a pro-

gramme from 30 minutes to 20 hours.

electrolux 7

TIME SAVE BUTTON 6

Press the button

to decrease the pro-

gramme duration.

• Press one time to set 'Shortened dura-

tion' for items with daily soil.

• Press two times to set 'Extra Quick' for

items with almost no soil.

Some programmes accept only one of

the two functions.

EXTRA RINSE BUTTON 7

Press button

to add rinsing phases to a

programme.

Use this function for persons allergic to de-

tergents and in areas where the water is

soft.

STAIN BUTTON 8

Press button

to add the stain phase to a

programme.

Use this function for laundry with hard

stains to remove.

When you set this function, put the stain re-

mover into compartment .

This function increases the programme

duration.

This function is not available with a

temperature lower than 40° C.

SPIN BUTTON 9

Press this button to:

• Decrease the maximum speed of the

spin phase when you set a programme.

The display shows only the spin

speeds available with the set pro-

gramme.

• Deactivate the spin phase.

• Activate the 'Rinse Hold' function. Set

this function to prevent fabric creases.

The appliance does not drain the water

when the programme is completed.

Spin phase is off.

'Rinse Hold' function is on.

TEMPERATURE BUTTON 10

Press button

to change the default tem-

perature.

- - = cold water

ACOUSTIC SIGNALS FUNCTION

You can hear the acoustic signals when:

• You activate the appliance.

• You deactivate the appliance.

• You press the buttons.

• The programme is completed.

• The appliance has a malfunction.

To deactivate/activate the acoustic sig-

nals, press button

and button

at the

same time for 6 seconds.

If you deactivate the acoustic signals,

they continue operate only when you

press the buttons and when a malfunc-

tion occurs.

CHILD LOCK FUNCTION

This function prevents children to play with

the control panel.

•To activate the function, press button

and button

at the same time until the

display shows the symbol .

• To deactivate the function, press button

and button

at the same time until

the symbol goes off.

You can activate the function:

• Before you press the Start/Pause button

: the appliance cannot start.

• After you press the Start/Pause button

, all the buttons and the programme

knob are deactivated.

PERMANENT EXTRA RINSE FUNCTION

With this function you can keep the extra

rinse function permanently on when you set

a new programme.

•To activate the function press button

and button

at the same time until the

indicator of button

is on.

• To deactivate the function press button

and button

at the same time until

the indicator of button

is off.

8 electrolux

PROGRAMMES

Programme

Temperature Type of load

max. weight of load Cycle

description Functions

Koch/Bunt

Blanc/Couleurs

Cottons

95° - Cold

White and coloured cot-

ton with normal soil.

max. 7 kg

Wash

Rinses

Long spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

Koch/Bunt + Voor-

wäsche

Coton + Prélavage

Cottons + Prewash

95° - Cold

White and coloured cot-

ton with heavy soil.

max. 7 kg

Prewash

Wash

Rinses

Long spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

Extra Leise

Extra Silence

Extra Silent

95° - Cold

White and coloured cot-

ton with normal soil.

max. 7 kg

Stop with water in the

drum

Rinses

Long spin

STAIN

EXTRA RINSE

TIME SAVING

Pflegeleicht

Synthétiques

Synthetics

60° - Cold

Synthetic or mixed fabric

items with normal level of

soil.

max. 3.5 kg

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

Pflegeleicht +

Voorwäsche

Synthetiques +

Prélavage

Synthetics + Pre-

wash

60° - Cold

Synthetic or mixed fabric

items with heavy soil.

max. 3.5 kg

Prewash

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

Leichtbügeln

Repassage Fac-

ile

Easy Iron

60° - Cold

Synthetic fabric items

with normal soil.

max. 3.5 kg

Wash

Rinses

Short spin

RINSE HOLD

EXTRA RINSE

TIME SAVING

Feinwäsche

Délicats

Delicates

40° - Cold

Delicate fabrics as acryl-

ics, viscose, polyester

items with normal soil.

max. 3 kg

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

Wolle/Seide

Laine/Soie

Wool/Silk

40° - Cold

Machine washable wool.

Hand washable wool and

delicate fabrics with

«hand washing» care

symbol.

max. 2 kg

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

Schleudern/

Pumpen

Essorage/Vi-

dange

Spin/Drain

All fabrics

The maximum load of the

laundry is related to the

type of laundry.

Drainage of the water

Spin phase at the

maximum speed.

SPIN REDUCTION

NO SPIN

electrolux 9

Programme

Temperature Type of load

max. weight of load Cycle

description Functions

Spülen

Rinçage

Rinse

Hand washed items. One rinse with additive

Long spin SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

Gardinen

Rideaux

Curtains

40° - Cold

Set this programme to

wash curtains. It adds

automatically the pre-

wash phase to clean the

dust from the curtains.

Do not put the detergent

into the prewash com-

partment.

max. 2 kg

Prewash

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

Jeans

60° - Cold All items in jeans. Jersey

made items with hi-tech

materials.

max. 7 kg

Wash

Rinses

Short spin

SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

TIME SAVING

Schnell Intensiv

Intensif

Quick intensive

60°-40°

Quick washing pro-

gramme, to be used for

lightly soiled white/fast

coloured cottons and

mixed fabrics.

max. 5 kg

Wash

Rinses

Long spin

SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

20 Min. - 3 kg

40°-30° Cotton and synthetic

items with light soil or

worn only one time.

max. 3 kg

Wash

Rinses

Short spin

SPIN REDUCTION

Super Eco

Cold

Mixed fabrics (cotton and

synthetic items).

max. 3 kg

Wash

Rinses

Long spin

SPIN REDUCTION

RINSE HOLD

EXTRA RINSE

Baumwolle Eco

Coton Eco

Cottons Eco

60° - 40°

White and fast coloured

cotton with normal soil.

max. 7 kg

Wash

Rinses

Long spin

SPIN REDUCTION

RINSE HOLD

STAIN

EXTRA RINSE

TIME SAVING

1) The Stain function is not available with a temperature lower than 40°C

2) if you set the Extra Quick function we recommend to decrease the quantity of the load. It is possible to keep the

full load but the washing results are not good.

3) The wash and spin phase is soft to prevent the creases of the laundry. The appliance adds some rinses.

4) The default phase of the spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with

the laundry. To select the DRAIN programme only, set the function NO SPIN.

5) Press EXTRA RINSE button to add rinses. With a low spin speed the appliance performs delicate rinses and a

short spin

6) Set this programme to decrease the time and the consumption of energy and water.

7) STANDARD PROGRAMMES for the Energy Label consumption values. According to regulation 1061/2010,

these programmes are respectively the «standard 60° C cotton programme» and the «standard 40° C cotton

programme». They are the most efficient programmes in terms of combined energy and water consumption for

washing normally soiled cotton laundry.

Set this programme to have a good washing results and decrease the energy consumption. The time of the

washing programme is extended.

The water temperature of the washing phase may differ from the temperature declared for the selected pro-

gramme.

10 electrolux

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Electrolux Rondelle

Electrolux

Electrolux EW6F4248K6 Manuel utilisateur

Electrolux

Electrolux LAVAMAT 76659 Manuel utilisateur

Electrolux

Electrolux WAL4E200 Manuel utilisateur

Electrolux

Electrolux EWF 1045 Manuel utilisateur

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer Manuel d'utilisation

Electrolux

Electrolux ESF4510LOX Manuel utilisateur

Electrolux

Electrolux UFW 47 K 9161 Manuel utilisateur

Electrolux

Electrolux washing machine Manuel utilisateur

Electrolux

Electrolux EW8T6337E6 Manuel utilisateur

Electrolux

Electrolux AWF6020W Manuel utilisateur

Electrolux

Electrolux EWT 106511 W Manuel utilisateur

Electrolux

Electrolux EWN 13570 W Manuel utilisateur

Electrolux

Electrolux EWT 1300 Manuel utilisateur

Electrolux

Electrolux EXWADRGTT1517 Manuel utilisateur

Electrolux

Electrolux 427 series Manuel utilisateur

Electrolux

Electrolux EWF 1406RC Manuel utilisateur

Electrolux

Electrolux Swissline GL EWF 1387 Manuel d'utilisation

Electrolux

Electrolux EW6T5226C5 Manuel utilisateur

Electrolux

Electrolux Wascator W100 Manuel utilisateur

Electrolux

Electrolux EWF 1045 Manuel utilisateur

Electrolux

Electrolux EWS 125210 A Manuel utilisateur

Electrolux

Electrolux WAL 6 E 201 Manuel utilisateur

Electrolux

Electrolux EWT 1010 Manuel utilisateur

Electrolux

Electrolux EWT 1362 EDW Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
