Electrolux EWM1000 Guide de configuration

1TSE-N / A.S. February 2002

EWM 1000

DIAGNOSTICS

FAULTFINDING

2TSE-N / A.S. February 2002

Diagnostic mode

Access

To enter the diagnostic mode, press START/

PAUSE and one option button simultaneously,

and turn programme selector to the first

position clockwise, until LEDs start flashing

(position of pushbuttons is configurable, and

may vary).

3TSE-N / A.S. February 2002

Diagnostic mode

Access (vertical configuration)

To enter the diagnostic mode, press the upper

two pushbuttons on the left-hand side simul-

taneously (irrespective of their function), and

turn programme selector to the first position

clockwise, until LEDs start flashing.

4TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 1

Checked functions:

•User interface functionality

Actuated components:

•all LEDs light in sequence

•if a pushbutton is depressed, the

corresponding LED lights, and buzzer

sounds if applicable

Conditions:

•none

5TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 2

Checked functions:

•Water fill main wash compartment

Actuated components:

•Door lock

•Main wash solenoid valve

Conditions:

•door closed

•water level below safety (overflow) level

•time-out 5 min

6TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 3

Checked functions:

•Water fill prewash compartment

Actuated components:

•Door lock

•Prewash solenoid valve

Conditions:

•door closed

•water level below safety (overflow) level

•time-out 5 min

7TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 4

Checked functions:

•Water fill fabric conditioner compartmt

Actuated components:

•Door lock

•Main wash and prewash solenoid

valves (simultaneously)

Conditions:

•door closed

•water level below safety (overflow) level

•time-out 5 min

8TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 5

Not applicable to EWM1000 machines

(checks 3rd solenoid valve)

9TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 6

Checked functions:

•Heating

Actuated components:

•Door lock

•Main wash solenoid valve if level

below first level

•Heating element

Conditions:

•door closed

•water level above first level

•water temperature below 80°C

•time-out 10 min, or 90°C

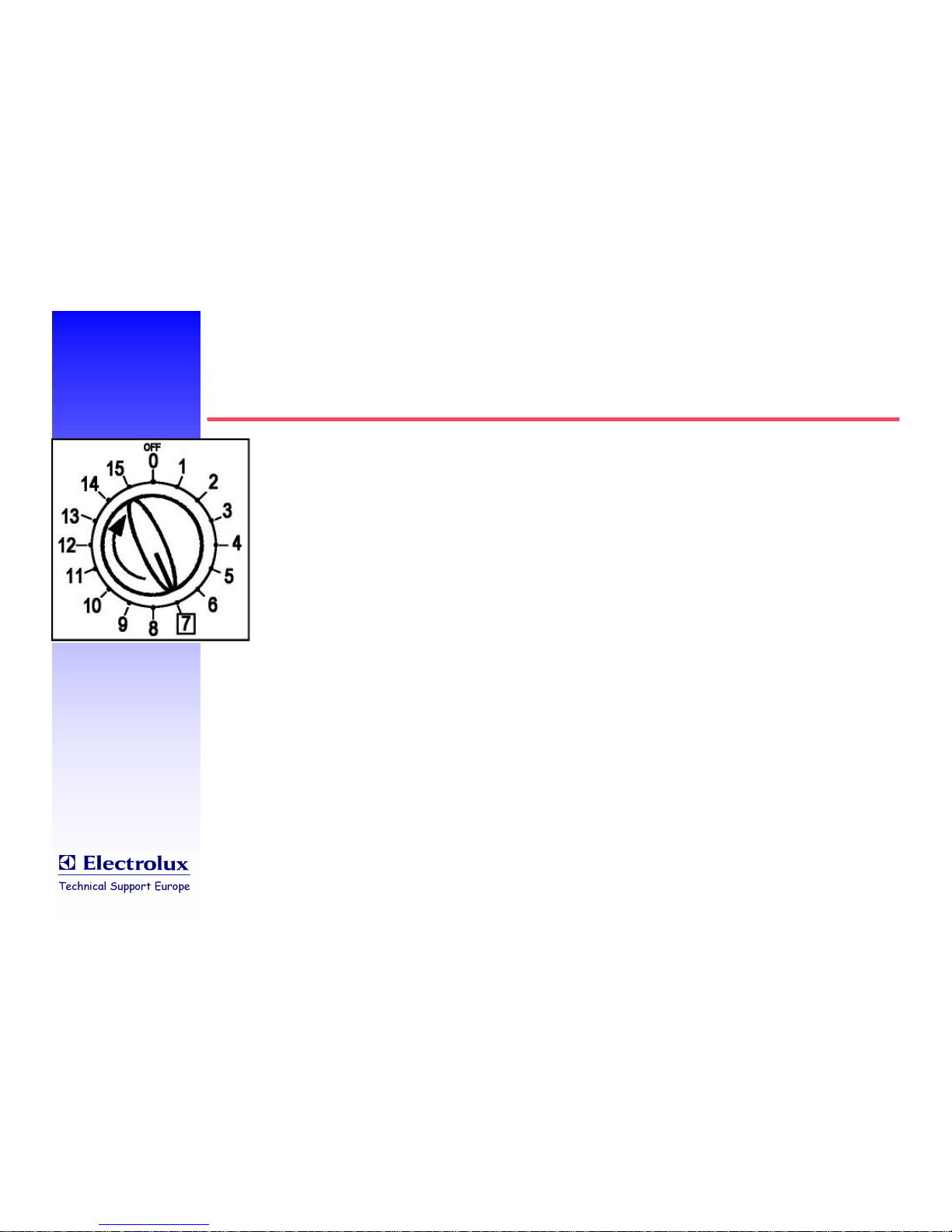

10TSE-N / A.S. February 2002

Diagnostic mode

Component actuation 7

Checked functions:

•Tub leakage test

Actuated components:

•Door lock

•Main wash solenoid valve if level

below first level

•Motor (55 rpm CW, 55 rpm CCW, 250

rpm impulse with water in tub)

Conditions:

•door closed

•water level above first level
