Electrolux EWF8025EQWA Manuel utilisateur

EWF8025EQWA

USER MANUAL

PANDUAN BAGI PENGGUNA

WASHING MACHINE

MESIN CUCI

Nomor MKG: I.14.EI11.02910.0418

2 www.electrolux.com

CONTENTS

1.1 Conditions Of Use

1.2 Child Safety

1.3 General Safety

1.4 Installation

1.5 Use

1. SAFETY INFORMATION

........................................................................................................ 4

.................................................................................................................. 4

............................................................................................................. 5

.................................................................................................................... 6

.............................................................................................................................. 6

2.1 Parts

2.2 Accessories

PRODUCT DESCRIPTION

............................................................................................................................ 7

.................................................................................................................. 7

3.1 Control Panel Description

3.2 Program Description

3.3 Maximum Load

3.4 Program Options Compatibility

3.5 Options

3.6 Settings

3.7 Start/Pause ( ) and Add Clothes ( ) Touchpad

CONTROL PANEL

........................................................................................... 8

.................................................................................................... 9

............................................................................................................ 9

..................................................................................... 10

........................................................................................................................ 10

........................................................................................................................ 13

................................................... 14

BEFORE FIRST USE

....................................................................................................... 14

Visit our website to:

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

WE’RE THINKING OF YOU

CUSTOMER CARE AND SERVICE

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time. Welcome to Electrolux.

We recommend the use of original spare parts.When contacting Service, ensure that

you have the following data available. The information can be found on the rating plate.

Model, PNC, Serial Number.

Get usage advice, brochures, trouble shooter, service information, buy accessories

& spare parts, online product registration : www.electrolux.com

ENGLISH 3

CONTENTS

5.1 Loading The Laundry

5.2 Using Detergent And Additives

5.3 Options Setting

5.4 Starting A Cycle ( )

5.5 Interruption Of A Program

5.6 Changing A Program

5.7 Changing The Options

5.8 Opening The Door

5.9 At The End Of The Program

5.10 When The Washing Program Is Completed, But There Is Water In The Drum

5.11 AUTO Standby Mode

DAILY USE

.................................................................................................... 15

.................................................................................... 15

............................................................................................................ 16

.................................................................................................. 17

............................................................................................ 17

................................................................................................... 17

................................................................................................ 17

........................................................................................................ 17

........................................................................................ 17

......... 18

................................................................................................. 18

6.1 Sorting The Laundry

6.2 Temperatures

6.3 Before Loading The Laundry

6.4 Maximum Loads

6.5 Removing Stains

6.6 Detergents Type And Quantity Of Detergent

WASHING HINTS

.................................................................................................... 19

............................................................................................................... 19

........................................................................................ 19

........................................................................................................... 19

.......................................................................................................... 19

................................................................ 20

8.1 External Cleaning

8.2 Descaling

8.3 After Each Wash

8.4 Maintenance Wash

8.5 Cleaning The Dispenser Drawer

8.6 Cleaning The Drawer Recess

8.7 Cleaning The Drawer Bottom

8.8 Cleaning The Water Inlet Filter

8.9 Frost Precautions

CARE AND CLEANING

........................................................................................................ 21

..................................................................................................................... 21

.......................................................................................................... 21

...................................................................................................... 22

.................................................................................. 22

...................................................................................... 22

....................................................................................... 23

.................................................................................... 24

......................................................................................................... 24

9.1 Possible Failures

9.2 Emergency Door Opening

TROUBLESHOOTING

........................................................................................................ 25

........................................................................................... 27

INTERNATIONAL WASH CODE SYMBOLS

................................................................ 21

10.

TECHNICAL DATA

.......................................................................................................... 28

11.1 Unpacking

11.2 Positioning

11.3 Water Inlet

11.4 Water Drainage

11.5 Electrical Connection

................................................................................................................ 29

................................................................................................................ 30

................................................................................................................. 31

......................................................................................................... 31

................................................................................................. 32

11.

INSTALLATION

12.1 Packaging Materials

12.2 Old Machine

12.3 Ecological Hints

.................................................................................................. 33

............................................................................................................... 33

......................................................................................................... 33

12.

ENVIRONMENT CONCERNS

4 www.electrolux.com

SAFETY INFORMATION

In the interest of your safety and to ensure the correct

use, before installing and first using the appliance, read

this user manual carefully, including its hints and

warnings.

This appliance is intended to be used in household and

similar applications such as:

farm houses;

by clients in hotels, motels, and other residential type

environments;

1.1 Conditions Of Use

To avoid unnecessary mistakes and accidents, it is

important to ensure that all people using the appliance

are thoroughly familiar with its operation and safety

features.

Save these instructions and make sure that they remain

with the appliance if it is moved or sold, so that everyone

using it through its life will be properly informed on

appliance use and safety.

●

bed and breakfast type environtments;

●

areas for communal use in blocks of flats or in

launderettes.

●

staff kitchen areas in shops, offices and other working

environtment;

●

●This washing machine is not intended for use by

young children or infirm persons without supervision.

1.2 Child Safety

WARNING! The appliance must not be supplied

through an external switching device, such as timer,

or connected to a circuit that is regularly switched on

and off by utility.

ENGLISH 5

●

Young children should be supervised to ensure that

they do not play with the appliance.

The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger of

suffocation! Keep them out of children’s reach.

Make sure that children or pets do not climb into the

drum.

Keep all detergents in a safe place out of children’s

reach.

●

This machine is provided with child safety lock option

( ) to prevent children playing with the control panel.

(see page 13)

●

1.3 General Safety

It is dangerous to alter the specifica-

tions or attempt to modify this product

in any way.

During high temperature wash

program the door glass may get hot.

Do not touch it!

Make sure that small pets do not

climb into the drum. To avoid this,

please check inside the drum before

using the appliance.

Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

Only use manufacturer’s

recommended quantities of fabric

softener and detergent. Damage to

the fabric or appliance can occur if

you exceed the recommended

amount.

Wash small items such as socks,

laces, washable belts etc in a

washing bag or pillow case as it is

possible for such items to slip down

between the tub and the inner drum.

Do not use your washing machine to

wash articles with whalebones,

material without hems or torn

material.

●

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been

given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

Always unplug the appliance and turn

off the water supply after use, clean

and maintenance.

●

6 www.electrolux.com

Never use the washing machine if

the power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the washing machine is acces-

sible.

This appliance is heavy. Care should

be taken when moving it.

When unpacking the appliance, check

that it is not damaged. If in doubt, do

not use it and contact the Service

Centre.

All packing and transit bolts must be

removed before use. Serious damage

can occur to the product and to

property if this is not adhered to. See

relevant section in the user manual.

1.4 Installation

After having installed the appliance,

check that it is not standing on the

inlet and drain hose and the worktop

is not pressing the electrical supply

cable.

If the appliance is installed on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely.

Always be sure, that there is no water

leakage from hoses and their

connections after the installation.

Any plumbing work required to install

this appliance should be carried out

by a qualified plumber.

Any electrical work required to install

this appliance should be carried out

by a qualified electrician.

This appliance is designed for

domestic use. It must not be used for

purposes other than those for which

it was designed.

Only wash fabrics which are

designed to be machine washed.

Follow the instructions on each

garment label.

Do not overload the appliance. See

the relevant section in the user

manual.

Before washing, ensure that all

pockets are empty and buttons and

zips are fastened. Avoid washing

frayed or torn articles and treat stains

such as paint, ink, rust, and grass

before washing.

Garments which have been in

contact with volatile petroleum

products should not be machine

washed. If volatile cleaning fluids are

used, care should be taken to ensure

that the fluid is removed from the

garment before placing in the

machine.

Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

1.5 Use

●

May cause electric shock! if the

machine is not connected to an

earthed/ground system. DO NOT

touch the wet clothes and metal

parts.

ENGLISH 7

PRODUCT DESCRIPTION2.

2.1 Parts

2.2 Accessories

To connect the drain hose on the edge

of a sink.

To close the holes on the rear side of

the cabinet after the removal of the

transit bolts.

Detergent/Softener Dispenser

Worktop

Control Panel

Door

Emergency

Door Opening

Front Feet

(Level Adjustment)

Water Drain Hose

Water Inlet Hose

Rear Feet (Fixed)

Mains Cable

Plastic Caps

Plastic Hose Guide

Transit Bolts

Transit Bolts, Hose Support

All transit bolts (3 pcs) must

be removed before using the

appliance.

CAUTION !

On/Oﬀ

Cottons

Mixed

Quick 15

Daily 60

Delicates

Wool

Bedding

Energy Saver

Extra Rinse

Lock

Start/Pause

Pause to add clothes

30º

90º

60º

40º

Cold

1200

1000

800

No Spin

Rinse

& Hold

Vapour

Soak

Rinse & Spin

Drain & Spin

Quick

Delay End

Program Temp Spin Option

8 www.electrolux.com

CONTROL PANEL3.

On/Off Button

3.1 Control Panel Description

Program Touchpad

*** Maximum spin speed depended on model.

Temp Touchpad

Delay End Touchpad

LED Digital Number, will tell you:

LED Icon

Pause to add clothes status icon

Door Lock status icon

Extra Rinse status icon

Delay End status icon

Child Lock Option

Spin Touchpad

Extra Rinse Option

Option Touchpad

Start/Pause Touchpad

-Washing Cycle Time, Delay End Time

The alarm codes. Refer to the chapter “Troubleshooting” for their description.

2 3 4 65 7 8 9

Woolmark Apparel Care

The wool wash cycle of this machine has been approved by The Woolmark

Company for the washing of machine washable wool products provided that

the products are washed according to the instructions on the garment label

and those issued by the manufacturer of this washing machine.

M1757.

The Woolmark symbol is a Certification mark in many countries.

ENGLISH 9

3.2 Program Description

Program

Temperature

can be

selected

Cold, 30, 40, 60 ,90°C

White and coloured cotton.

To reset program/switching off the machine.

Type of load and soil level

Synthetic or mixed fabric items.

30°C Synthetic and mixed fabric items. Light soil and

items to freshen up.

Coloured cotton e.g. shirts, blouses, towels and

undergarments with normal level of soil.

Cold, 30, 40, 60°C

Cold, 30, 40°C

40°C, 60°C

30, 40, 60°C

Specially tested program for woollen garments

bearing the “Pure new woollen, non-shrink,

machine washable” label.

Bedding Special program for one synthetic blanket,

duvet, bedspread and so on.

Energy Saver

White and colourfast, cotton with normal soil. Set

this program to have a good washing results and

decrease the energy consumption. The time of

the washing program is extended.

Delicate fabrics such as acrylics, viscose,

polyester items.

Cottons

On/Off ( )

Mixed

Delicates

Quick 15

Wool

Daily 60

1) Energy Saver program with 60 °C option selected is recommended for a full load of

normally soiled cottons, and is the Energy rating label program.

3.3 Maximum Load

Program

8.0 kg

4.0 kg

1.5 kg

4.0 kg

1.5 kg

3.0 kg

8.0 kg

Maximum Load (kg)

Bedding

Energy Saver

Cottons

Mixed

Delicates

Quick 15

Wool

Daily 60

10 www.electrolux.com

1) Vapour option can be combined with temperature 40°C to 90°C only.

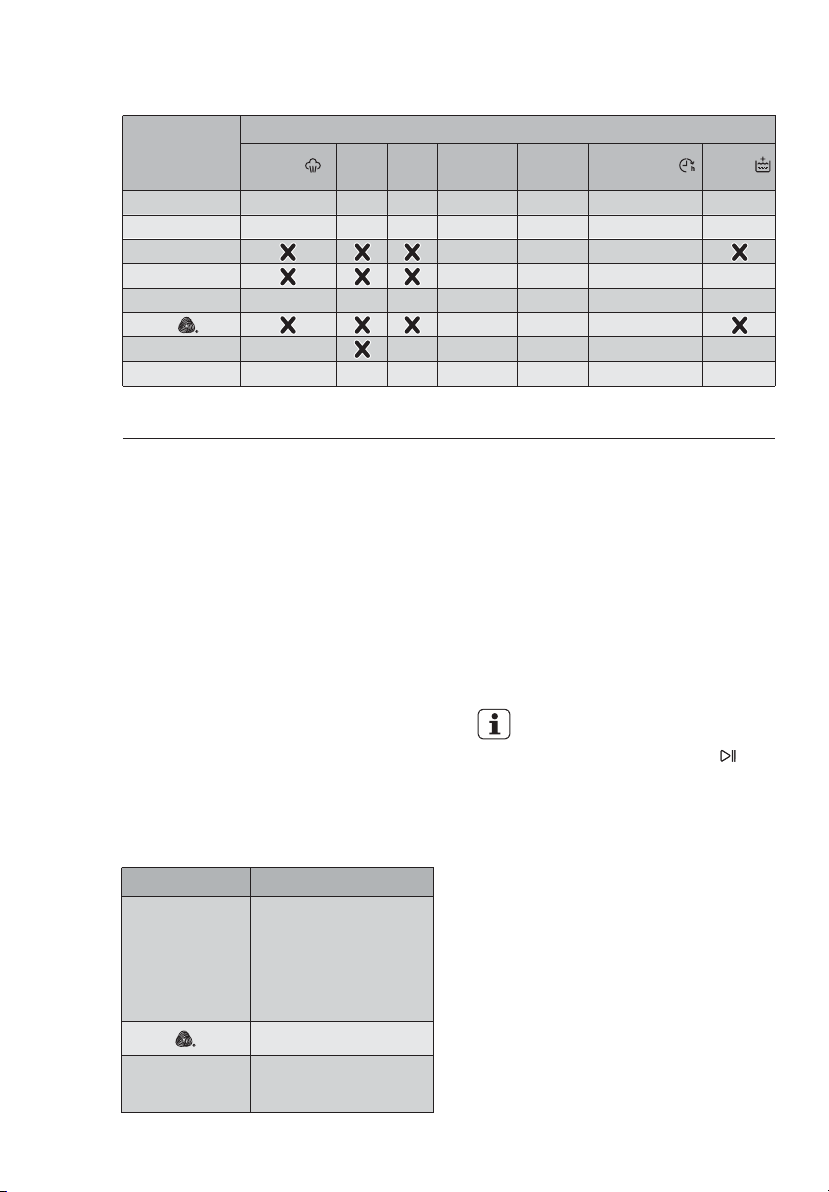

3.4 Program Options Compatibility

Program Option

Vapour Quick Soak Rinse &

Spin

Drain &

Spin Delay End Extra

Rinse

Cottons

Mixed

Quick 15

Daily 60

Delicates

Wool

Bedding

Energy Saver

     

  

    

  

    

     



The door stays locked with the

water in the drum. To continue

the cycle, you must press

(Start/Pause).

Temperature Touchpad

Press this touchpad repeatedly to

increase or decrease the wash tempera-

ture if you want your laundry to be

washed at a temperature different from

the one proposed by the washing

machine.

Spin Selection Touchpad

Press this touchpad repeatedly to

increase or decrease the spin speed or

select Rinse Hold, if you want your

laundry to be spun at a speed different

from the one proposed by the washing

machine.

Maximum speeds are:

No spin option eliminates all the spin

phases and increase the number of

rinses.

No Spin

By selecting this option, the water of

the last rinse is not emptied out and

the drum turns regularly to prevent the

laundry creases.

The door is still locked to indicate that

the water must be emptied out.

Rinse & Hold

3.5 Options

1000 rpm

1200 rpm

Energy Saver

Cottons

Program Spin Speed

Mixed

Delicates

Daily 60

Wool

800 rpm

Bedding

Quick 15

Table des matières

Langues :

Autres manuels Electrolux Rondelle

Electrolux

Electrolux EWF 127410 W Manuel utilisateur

Electrolux

Electrolux EW 1235 F Guide rapide

Electrolux

Electrolux EWT 105410 W Manuel utilisateur

Electrolux

Electrolux WA GLE S7000 Manuel utilisateur

Electrolux

Electrolux EWF 1486 GDW Manuel utilisateur

Electrolux

Electrolux W5180S Manuel utilisateur

Electrolux

Electrolux WWF7524N3WA Manuel utilisateur

Electrolux

Electrolux EW8TN3362C Manuel utilisateur

Electrolux

Electrolux EWF 1487 HDW2 Manuel utilisateur

Electrolux

Electrolux EWS 126410 W Manuel utilisateur

Electrolux

Electrolux EWF 888 Manuel utilisateur

Electrolux

Electrolux EWF12853S Manuel utilisateur

Electrolux

Electrolux EWT 1011 Manuel utilisateur

Electrolux

Electrolux EWS 1477 FDW Manuel utilisateur

Electrolux

Electrolux EW7F248S Manuel utilisateur

Electrolux

Electrolux LAVALOGIC EWM 3000 Manuel utilisateur

Electrolux

Electrolux EW 1100 F Guide rapide

Electrolux

Electrolux EWF9025BQWA Manuel utilisateur

Electrolux

Electrolux EWT 805 Manuel utilisateur

Electrolux

Electrolux EW7F3846HB Manuel utilisateur

Electrolux

Electrolux EWFH 12280 W Manuel utilisateur

Electrolux

Electrolux WH6-8CV Manuel utilisateur

Electrolux

Electrolux EWF 890 Manuel utilisateur

Electrolux

Electrolux EWF 1249 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
