SAFETY INFORMATION

In the interest of your safety and to ensure the correct

use, before installing and first using the appliance, read

this user manual carefully, including its hints and

warnings.

This appliance is intended to be used in household and

similar applications such as:

farm houses;

by clients in hotels, motels, and other residential type

environments;

1.1 Conditions Of Use

To avoid unnecessary mistakes and accidents, it is

important to ensure that all people using the appliance

are thoroughly familiar with its operation and safety

features.

Save these instructions and make sure that they remain

with the appliance if it is moved or sold, so that everyone

using it through its life will be properly informed on

appliance use and safety.

●

bed and breakfast type environtments;

●

areas for communal use in blocks of flats or in

launderettes.

●

staff kitchen areas in shops, offices and other working

environtment;

●

●This washing machine is not intended for use by

young children or infirm persons without supervision.

1.2 Child Safety

WARNING! The appliance must not be supplied

through an external switching device, such as timer,

or connected to a circuit that is regularly switched on

and off by utility.

ENGLISH 5

●

Young children should be supervised to ensure that

they do not play with the appliance.

The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger of

suffocation! Keep them out of children’s reach.

Make sure that children or pets do not climb into the

drum.

Keep all detergents in a safe place out of children’s

reach.

●

This machine is provided with child safety lock option

( ) to prevent children playing with the control panel.

(see page 13)

●

1.3 General Safety

It is dangerous to alter the specifica-

tions or attempt to modify this product

in any way.

Make sure that small pets do not

climb into the drum. To avoid this,

please check inside the drum before

using the appliance.

Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

Only use manufacturer’s

recommended quantities of fabric

softener and detergent. Damage to

the fabric or appliance can occur if

you exceed the recommended

amount.

Wash small items such as socks,

laces, washable belts etc in a

washing bag or pillow case as it is

possible for such items to slip down

between the tub and the inner drum.

Do not use your washing machine to

wash articles with whalebones,

material without hems or torn

material.

●

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been

given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

Always unplug the appliance and turn

off the water supply after use, clean

and maintenance.

●

6 www.electrolux.com

Never use the washing machine if

the power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the washing machine is accessi-

ble.

This appliance is heavy. Care should

be taken when moving it.

When unpacking the appliance, check

that it is not damaged. If in doubt, do

not use it and contact the Service

Centre.

All packing and transit bolts must be

removed before use. Serious damage

can occur to the product and to

property if this is not adhered to. See

relevant section in the user manual.

1.4 Installation

After having installed the appliance,

check that it is not standing on the

inlet and drain hose and the worktop

is not pressing the electrical supply

cable.

If the appliance is installed on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely.

Always be sure, that there is no water

leakage from hoses and their

connections after the installation.

Any plumbing work required to install

this appliance should be carried out

by a qualified plumber.

Any electrical work required to install

this appliance should be carried out

by a qualified electrician.

This appliance is designed for

domestic use. It must not be used for

purposes other than those for which

it was designed.

Only wash fabrics which are

designed to be machine washed.

Follow the instructions on each

garment label.

Do not overload the appliance. See

the relevant section in the user

manual.

Before washing, ensure that all

pockets are empty and buttons and

zips are fastened. Avoid washing

frayed or torn articles and treat stains

such as paint, ink, rust, and grass

before washing.

Garments which have been in

contact with volatile petroleum

products should not be machine

washed. If volatile cleaning fluids are

used, care should be taken to ensure

that the fluid is removed from the

garment before placing in the

machine.

Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

1.5 Use

●

May cause electric shock! if the

machine is not connected to an

earthed/ground system. DO NOT

touch the wet clothes and metal

parts.

For safety reasons do not use

double adaptors, extension

cords and multi-plug adapters.

ENGLISH 7

PRODUCT DESCRIPTION2.

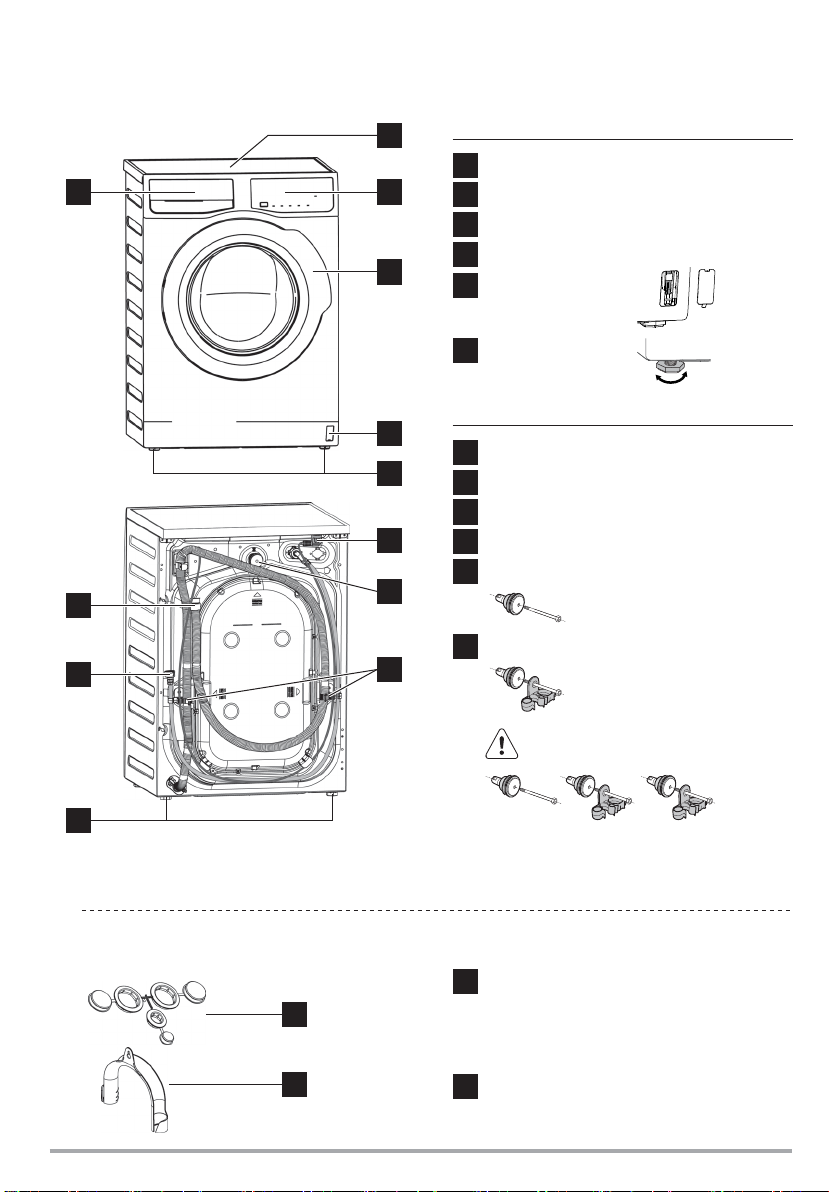

2.1 Parts

2.2 Accessories

To connect the drain hose on the edge

of a sink.

To close the holes on the rear side of

the cabinet after the removal of the

transit bolts.

Detergent/Softener Dispenser

Worktop

Control Panel

Door

Emergency

Door Opening

Front Feet

(Level Adjustment)

Water Drain Hose

Water Inlet Hose

Rear Feet (Fixed)

Mains Cable

Plastic Caps

Plastic Hose Guide

Transit Bolts

Transit Bolts, Hose Support

All transit bolts (3 pcs) must

be removed before using the

appliance.

CAUTION !

8 www.electrolux.com

CONTROL PANEL3.

On/Off Button

3.1 Control Panel Description

Program Touchpad

Wash Touchpad

Delay End Touchpad

LED Digital Digital Number, will tell you:

LED Icon

Pause to add clothes status icon

Door Lock status icon

Delay End status icon

Child Lock Option

Spin Touchpad

Save Favourite Option

Option Touchpad

Start/Pause Touchpad

-Washing Cycle Time, Delay End Time

The alarm codes. Refer to the chapter “Troubleshooting” for their description.

2 3 4 65 7 8 9

1200

1000

800

ENGLISH 9

3.2 Program Description

Program

White and coloured cotton.

To reset program/switching off the machine.

Type of load and soil level

Synthetic or mixed fabric items.

Synthetic and mixed fabric items. Light soil and items to freshen up.

Program for woolen garments bearing the “Pure new wool,

non-shrink, machine washable” label, and handwashing fabrics.

Bedding Special program for one synthetic blanket, duvet,

bedspread and so on.

Favourite Recall you favourite program.

Cottons

For Hijab fabric items.

Hijab

For Batik fabric items.

Batik

Off ( )

Mixed

Quick 20

Wool/Handwash

3.3 Maximum Load

Program

9.0 kg

4.0 kg

1.5 kg

3.0 kg

- kg

Maximum Load (kg)

Bedding

Cottons

3.0 kg

Hijab

3.0 kg

Batik

Mixed

Quick 20

Wool/Handwash

Favourite

3.4 Program Options Compatibility

Program

Option

Quick

Colour

Soak

Rinse & Spin

Drain & Spin

Delay End

Cottons

Mixed

Quick 20

Wool/Handwash

Bedding

Hijab

Batik

Soak & Rinse+Soak & Rinse+

Rinse+Rinse+

Soil LevelSoil Level

10 www.electrolux.com

The door stays locked with the

water in the drum. To continue

the cycle, you must press

(Start/Pause).

Spin Selection TouchpadWash Touchpad

Press this touchpad repeatedly to

increase or decrease the spin speed or

select Rinse Hold, if you want your

laundry to be spun at a speed different

from the one proposed by the washing

machine.

Maximum spin speeds are:

Program:

Batik, Cottons,

Mixed,

Hijab, Wool/Handwash,

1200 rpm

1000 rpm

800 rpm

Spin Speed:

Quick 20, Bedding

No spin option eliminates all the spin

phases and increase the number of

rinses.

No Spin

By selecting this option, the water of

the last rinse is not emptied out and

the drum turns regularly to prevent the

laundry creases.

The door is still locked to indicate that

the water must be emptied out.

Rinse & Hold

3.5 Options

High; for heavily soiled clothes eg.

very dirty work clothes and overalls.

Regular; for everyday soiled

items eg. family clothes, sheets etc.

Press this touchpad repeatedly to select

“Soil Level” or “Quick” or “Colour” wash

program to be used for your clothes.

Soil Level: There are 3 soil levels to

choose from,

Light; for lightly soiled clothes,

just to freshen them up.

For the same wash program, High ( )

will have a longer wash time than

“Regular”, and Regular ( ) a longer

wash time than “Light ( )”.

The “Soil Level” chosen will have an

influence on the wash time of the

selected wash program.

Quick: with this program you can

decrease the program duration. Use

this program for items with light soil or

items to refresh.

Colour: this option only available for

“Hijab” and “Batik” washing program,

the washing machine will gently wash

and spin to preserve your color fabric

always fresh.

Table des matières

Langues :

Autres manuels Electrolux Rondelle

Electrolux

Electrolux EW F147410 A Manuel utilisateur

Electrolux

Electrolux EW 1255 F Manuel utilisateur

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Electrolux

Electrolux EWT531 Manuel utilisateur

Electrolux

Electrolux EWF 1230 Manuel utilisateur

Electrolux

Electrolux EW 1062 S Guide rapide

Electrolux

Electrolux EW6F5822BB Manuel utilisateur

Electrolux

Electrolux EW 815 F Manuel utilisateur

Electrolux

Electrolux MWX445RB Manuel utilisateur

Electrolux

Electrolux WASL 3 T Manuel utilisateur

Electrolux

Electrolux WH 1100 Manuel utilisateur

Electrolux

Electrolux Swissline L EWF 1090 Manuel d'utilisation

Electrolux

Electrolux EWN 14991 S Manuel utilisateur

Electrolux

Electrolux EWF8025EGWA Manuel utilisateur

Electrolux

Electrolux EW7F447WIN Manuel utilisateur

Electrolux

Electrolux EW 1078 F Manuel utilisateur

Electrolux

Electrolux W485S Manuel utilisateur

Electrolux

Electrolux Inspiration EWX11831 TC4 Manuel utilisateur

Electrolux

Electrolux EWF 147440 W Manuel utilisateur

Electrolux

Electrolux EWM3500 Manuel utilisateur

Electrolux

Electrolux EWF8042R7WB Manuel utilisateur

Electrolux

Electrolux EW2F4822AF Manuel utilisateur

Electrolux

Electrolux Swissline L EWF 1090 Manuel utilisateur

Electrolux

Electrolux EW 1418 1 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
