Electrolux Icon E36WC45FSS Manuel utilisateur

Use _ Care Guide

Installation Instructions

Vent Hood

Fin iinformation

PLEASEREADANDSAVETHISGUIDE

•••••••••••••••••••••

Thank you for choosing Electrolux, the new premium brand in home appliances.

This Use & Care Guide is part of our commitment to customer satisfaction and

product quality throughout the service life of your new hood.

We view your purchase as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record key product information.

_iii_i!_!_i_i!_!_@_i!i_i_i_i_i_i!_!_i_i_!_!ii_ii_i!i_ii!i_!i!_!_!_!_!_i_ii_ii!i_i!!_i_i_i_i!i!_!_i!_i_i!ii_i_i_!ii!_!_i!_!_i_ii;ii_i_i!!i_!_!!i_i_i_ii!i!ii_i_ii!i!i!i_!i!i_!i!_!;!_ii!i!_!_i!_i_i!_i_i_!!_!_ii_i_!_!!_i!!!!iii_ii!i!i_i!i_i_ii!_i_ii_!_!iiii_i_!_i_i_ii!_!;!_!i!i_!_i_i!!!!i_i!!_i_!_i_i!_i!i_i_i_iii_i_!ii_i_ii!i_!i_3_!_i_i_!_iii!i!!_i_i_!ii;i_i!_i_i!iii_i!iii_i!iii_i!!i!!_!_i!;_!_!_!_i_i!_i_i!_ii!_i_i_i_!ii_ii_i_i_i_i_!iii_ii_i!_!;iii_!i!_!!!_!i_i_!i_i!i!i_!i_i_!i_!;i_!_;i_!!_i_!_i_i_i;_i_i_i_!!ii_i_i;i_!_!_ii!ii!_ii!_!_iiiii!iiiii!iiiii!iiiiiii_i!ii!ii!i!_i!_!_iii!_!i_i_!_i!_i_i!_!_!_!_!_ii!i_ii_ii_i_!i_i_i:i_i_!_;_!_i!_ii_i;i_iii_iii_i_ii_i!ii_ii_ii!_!i_ii_i_!_!i_!_!_!!_i_;_i_!!i_i_;_i_!!!!i_!_!_;_

ii iiiii! ii iii!ili!ii!!iii!iiiiii

Once you have your unit installed, we suggest you keep this manual in a

safe place for future reference. Should any problems occur, refer to the

Troubleshooting section of this manual. This information will help you quickly

identify a problem and get it remedied. In the event you require assistance, please

contact the dealer where you purchased your unit.

MAKE A RECORD FOR QUICK REFERENCE

•••••••••••••••••••••

Whenever you call to request information or service, you will need to know your

model number and serial number. You can find this information on the serial plate

located on the inside wall of your unit and on the product registration card.

@2006 Electrolux Home Products, Inc.

Post Office Box 212378, Augusta, Georgia 30917, USA

ing Information

PRODUCT REGISTRATIONINFORMATION

• • • • • • • • • • • • • • • • • • • • • •

The package containing this manual also includes your product registration

information. Warranty coverage begins at the time your Electrolux vent hood was

purchased.

If you received a damaged product, immediately contact your dealer or builder. Do

not install or use a damaged appliance.

Please record the purchase date of your Electrotux unit and your dealer's name,

address and telephone number.

Purchase Date

Electrolux Model Number

Electrolux Serial Number

Dealer Name

Dealer Address

Dealer Telephone

Keep this manual and the sales receipt together in a safe place for further

reference.

• • • • • • • • • • • • • • • • • • • • • •

For toll-free telephone support in the U.S. and Canada:

1-877- 4ELECTROLUX (1-877-435-3287)

For online support and Internet product information:

www.electroluxusa.com

Fin i Information

TABLEOFCONTENTS

••••••••••••••••••••••

Finding Information..............................................2

PleaseReadAndSaveThisGuide...................2

MakeA RecordForQuickReference................2

Questions...........................................................3

TableOfContents..............................................4

Safety.....................................................................5

ImportantSafetyInstructions.............................5

GeneralPrecautions..........................................6

GettingStarted......................................................!)

OperatingYourHood.........................................9

CareandCleaning...............................................1!

CleaningYourHood..........................................11

installation...........................................................12

CheckingContents..........................................12

InstallingtheDuctwork.....................................13

InstallingtheElectrical.....................................13

InstallingtheMountingBracket........................14

InstallingtheFlueMountingBracket................15

PreparingtheHood..........................................16

InstallingtheHood...........................................18

InstallingtheFilters..........................................20

Troubleshooting................................................21

IfServiceisRequired.......................................21

TroubleshootingGuide.....................................22

EnergySavingTips..........................................23

Warrantyinformation.........................................24

Safety

IMPORTANTSAFETYINSTRUCTIONS

• • • • • • • • • • • • • • • • • • • • • •

Safety Precautions

Do not attempt to install or operate your unit until you have read the safety

precautions in this manual. Safety items throughout this manual are labeled with a

Warning or Caution based on the risk type.

Definitions

_<_:>,This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

Safety

General Precautions

Safety

Gettin Started

OPERATINGYOURHOOD

• • • • • • • • • • • • • • • • • • • • • •

Controls

The hood is operated using the (5) push-buttons located at eye-level, on the front

edge of the hood.

The light switch turns the halogen lights on and off. Push the light switch once to

turn the lights ON - push a second time to turn the lights ON to a brighter level

- push a third time to turn the lights OFF.

The blower on-off /speed 1 switch turns the blower on to its

lowest running speed. To turn OFF the blower, push in and

hold this blower switch for approximately 2 seconds.

The blower speed 2 switch turns the blower on to medium-low

running speed. Pressing this switch a second time sets a timer

which keeps the blower operating at this speed for 10 minutes.

The LED wilt blink during this time and the blower will shut off

automatically.

The blower speed 3 and blower speed 4 switches operate the

same as blower speed 2 switch except:

Blower speed 3 is medium-high and blower speed 4 is high.

After every 30 hours of operation, the LED above the "blower

speed 1 switch" will be illuminated (RED) and blink for 30

seconds after turning off the blower. This is a reminder to

clean the grease filters. Once the grease filters are cleaned

Light ] [[B'Io,-"vet S[he e_is]1,2,3,4 j [

IRI E_ctrolux I

Light t-

(OFF)

Fan Speed --

o o

OOQ

a 3 4

(Timer 10 Mhd

and installed, press in and hold the "light switch" button for approximately 2

seconds during the blink of the LED.

LED

Figure 1

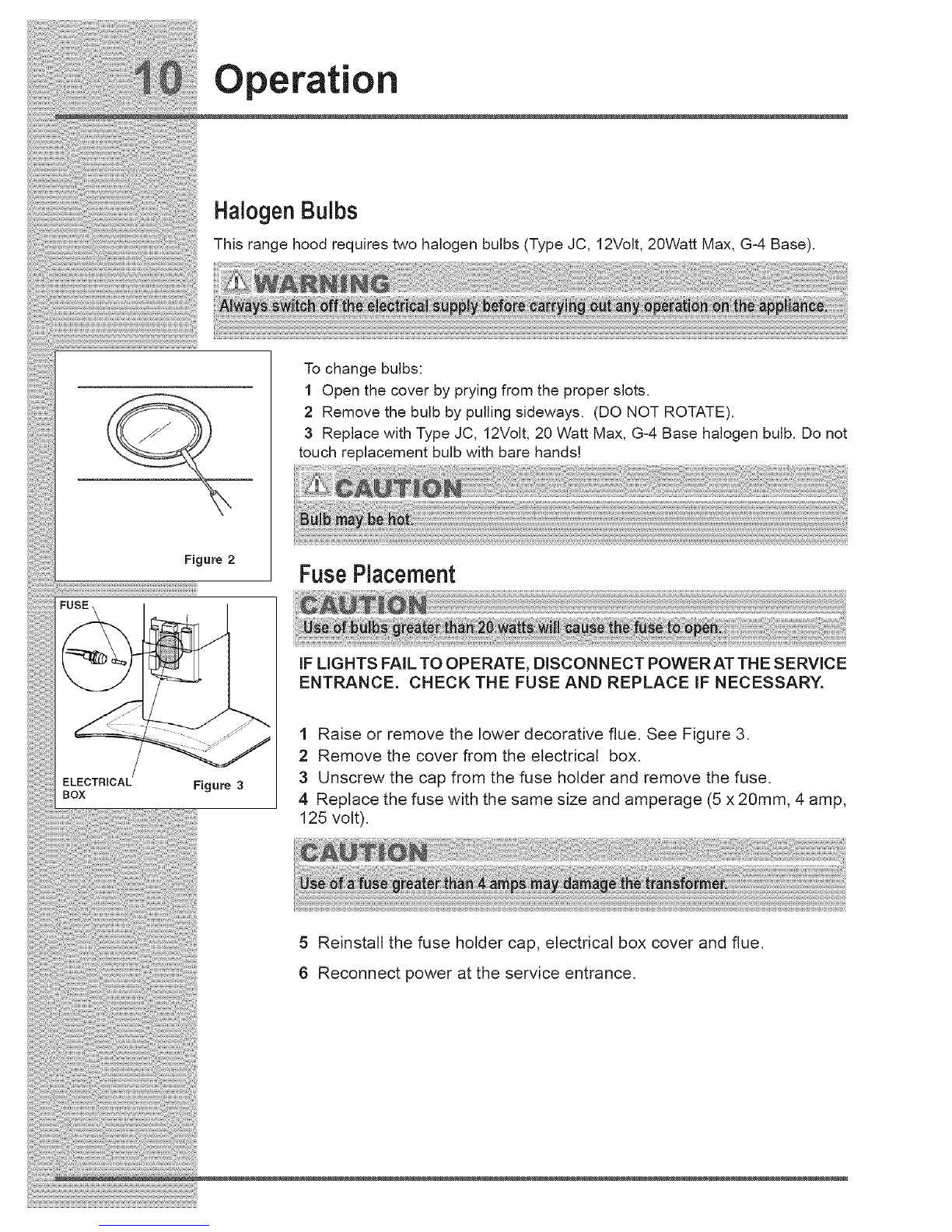

Operation

HalogenBulbs

This range hood requires two halogen bulbs (Type JC, 12Volt, 20Watt Max, G-4 Base).

Figure 2

To change bulbs:

1 Open the cover by prying from the proper slots.

2 Remove the bulb by pulling sideways. (DO NOT ROTATE).

3 Replace with Type JC, 12Volt, 20 Watt Max, G-4 Base halogen bulb. Do not

touch replacement bulb with bare hands!

Fuse Placement

ELECTRICAL

BOX Figure 3

IF LIGHTS FAIL TO OPERATE, DISCONNECT POWERAT THE SERVICE

ENTRANCE. CHECK THE FUSE AND REPLACE IF NECESSARY.

1 Raise or remove the lower decorative flue. See Figure 3.

2 Remove the cover from the electrical box.

3 Unscrew the cap from the fuse holder and remove the fuse.

4 Replace the fuse with the same size and amperage (5 x 20mm, 4 amp,

125 volt).

5Reinstall the fuse holder cap, electrical box cover and flue.

6 Reconnect power at the service entrance.
