Electrolux EFC 9541 Manuel utilisateur

EFC 9541

Instructions Manual

Bedienungsanleitung

EN 2

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................4

CHARACTERISTICS..............................................................................................................................................................5

INSTALLATION......................................................................................................................................................................7

USE.......................................................................................................................................................................................10

MAINTENANCE ...................................................................................................................................................................11

DE 3

Bedienungsanleitung

INHALTSVERZEICHNIS

EMPFEHLUNGEN UND HINWEISE....................................................................................................................................13

CHARAKTERISTIKEN.........................................................................................................................................................14

MONTAGE............................................................................................................................................................................16

BEDIENUNG........................................................................................................................................................................19

WARTUNG...........................................................................................................................................................................20

EN 4

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installa-

tion.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the

hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of

the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces,

etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a

sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of ex-

haust gas. The kitchen must have an opening communicating directly with the open air in order to

guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not en-

gulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

EN 5

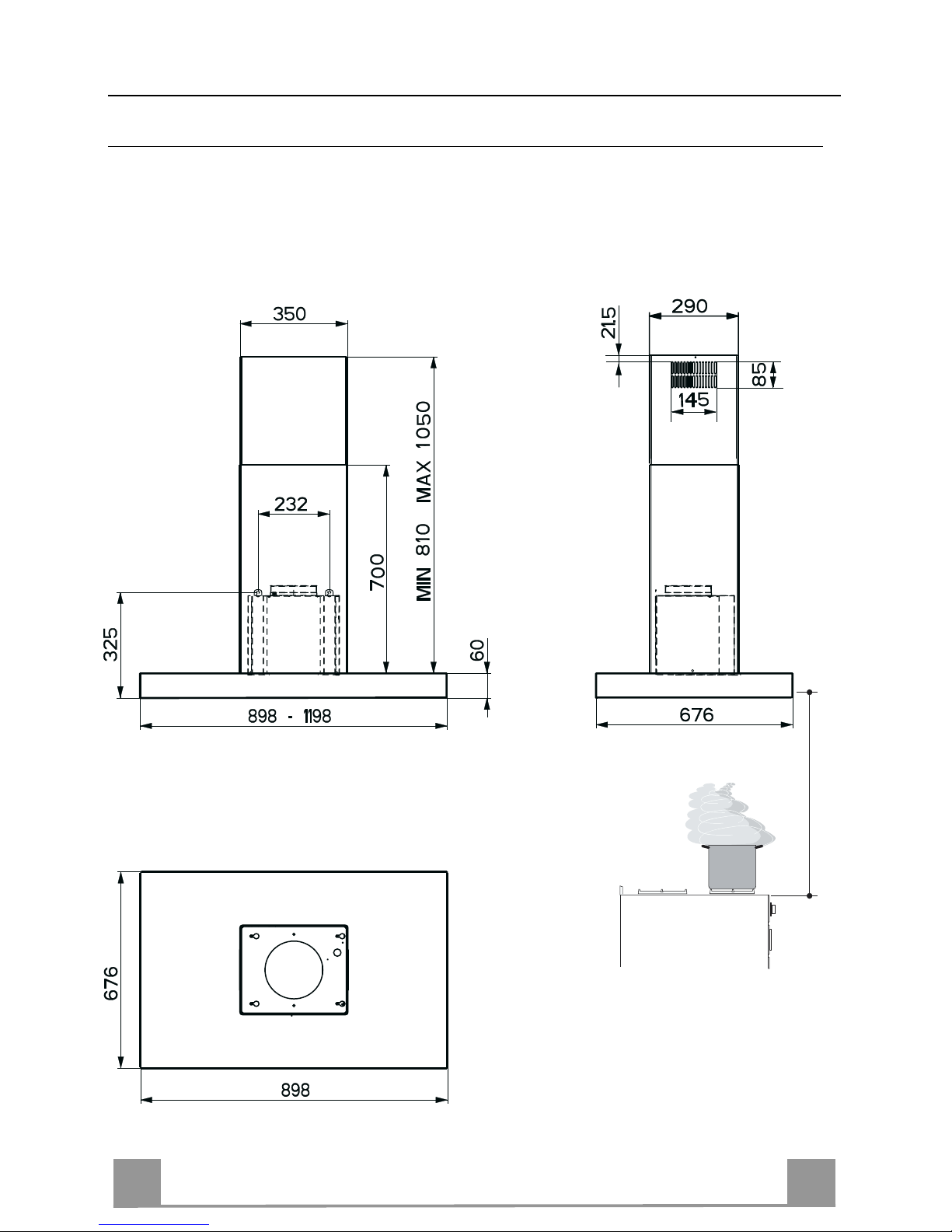

CHARACTERISTICS

Dimensions

650 min.

EN 6

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

91 Reducer Flange ø150-120 mm

10 1Flange ø 150

15 1 Air Outlet Connection

24 1 Junctionbox

25 2 Pipe clamps

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 6 Screws 2,9 x 6,5

12e 2 Screws 2,9 x 9,5

12f 4 ScrewsM6 x10

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

21 1 Drilling template

22 4 6.4 mm int. dia washers

23 4 M6 nuts

Q.ty Documentation

1 Instruction Manual

12c

7.1a

7.1

12h

7.1b

2.1

2.2

12c

12g

12f

12e

12c

EN 7

INSTALLATION

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the

template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert

the Dowels 11 supplied).

• For wooden beam ceilings, drill according to the wood screws used.

• For wooden shelf, drill ø 7 mm.

• For the power supply cable feed, drill ø 10 mm.

• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-

haust duct connection.

• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,

supplied.

• For wooden beam ceilings, use 4 wood screws (not provided).

• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN 8

FIXING THE frame

• Loosen the two screws fastening the lower chimney and re-

move this from the lower frame.

• Loosen the two screws fastening the upper chimney and re-

move this from the upper frame.

If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the eight metric screws joining the two columns, lo-

cated at the sides of the frame.

• Adjust the frame to the height required, then replace all the

screws removed as above.

• Insert the upper chimney stack from above, and leave it run-

ning free on the frame.

• Lift up the frame, fit the frame slots onto the screws up to the

slot end positions.

• Tighten the two screws and fasten the other two screws pro-

vided with the hood.

Before tightening the screws completely it is possible to adjust

the frame by turning it. Make sure that the screws do not come

out of their seats in the slotted holes.

• The frame mountings must be secure to withstand the weight

of the hood and any stresses caused by the occasional side

thrust applied to the device.

On completion, check that the base is stable, even if the frame

is subjected to bending.

• In all cases where the ceiling is not strong enough at the sus-

pension point, the installer must provide strengthening using

suitable plates and backing pieces anchored to the structurally

sound parts.

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe using the pipe clamps 25 provided.

• Remove any activated charcoal filters.

ø 150 ø 120

EN 9

Recirculation version air outlet

• Fix the connection 15 to the frame using the 4 screws pro-

vided.

• Fix the flange 10 to the lower opening of the connection 15.

• Connect the hood air outlet to the flange in the lower part of

the junction using a rigid or flexible ø 150 tube (by installer’s

choice).

Flue assembly - Mounting the hood body

• Position the upper chimney section and fix the upper part to the

frame using the 2 screws 12c (2,9 x 6,5) provided.

• Similarly, position the lower chimney section and fix the

lower part to the frame using the 2 screws 12c (2,9 x 6,5) pro-

vided.

Before fixing the hood body to the frame:

• Remove the grease filters from the hood body.

• Remove any activated charcoal filters.

• From below, use the 4 screws 12f (M6 x 10)provided to fix the

hood body to the frame.

12f

12c

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

• Connect the control connector Cmd.

• Connect the lights connector Lux.

• Place the connectors in the junction box 24 and close it using

the 2 screws 12e (2,9 x 9,5) provided.

• Fix the junction box to the hood body using the 2 screws 12c

(2,9 x 6,5) provided.

• For the recirculation version, fit the activated carbon odour fil-

ter.

• Replace the grease filters.

12e

Cmd

12c

Lux

EN 1

USE

T1 T2 T3 T4

Control Panel

The hood can be switched on pushing directly onto the requested speed without firstly having

to select 0/1 button.

KEY LED FUNCTIONS

L 0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed.

When pressed for about 1 seconds the motor is switched off.

T2 Speed on Second speed.

T3 Speed on Third speed.

T4 Speed Fixed Max. speed

Flashing Intensive speed.

Suitable for the strongest cooking vapours and odours.

The function becomes active when the button is pushed

for about 2 seconds. After 10 minutes of functioning it

turns off automatically. This function can be interrupted

by means of pressing any of the buttons.

S1 Led Fixed Indicates that the Metal grease filters saturation alarm has

been triggered, and the filters need to be washed. The

alarm is triggered after 100 working hours. (Reset; check

the Maintenance-paragraph)

Flashing indicates that the activated charcoal odour filter satura-

tion alarm has been triggered, and the filter has to be re-

placed; the metal grease filters must also be washed. The

activated charcoal odour filter is triggered after 200

working hours. (Activation and Reset; check the Mainte-

nance-paragraph))
