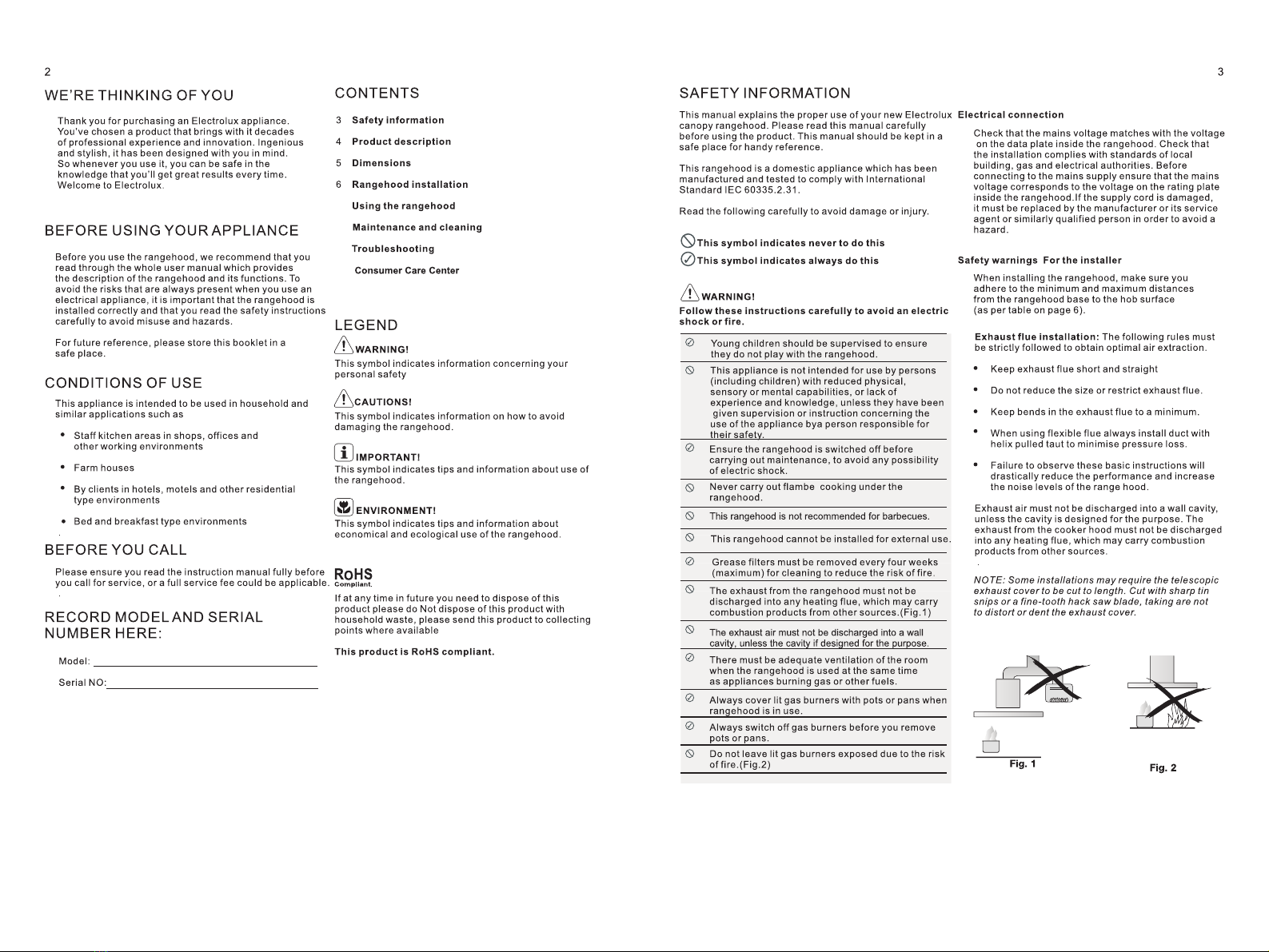

Electrolux ECS9691G Manuel utilisateur

ECS9691G

ECS6691G

Fig.4

600/900

420

480350

278

276

ECS9691G

ECS6691G

ECS9691G

ECS6691G

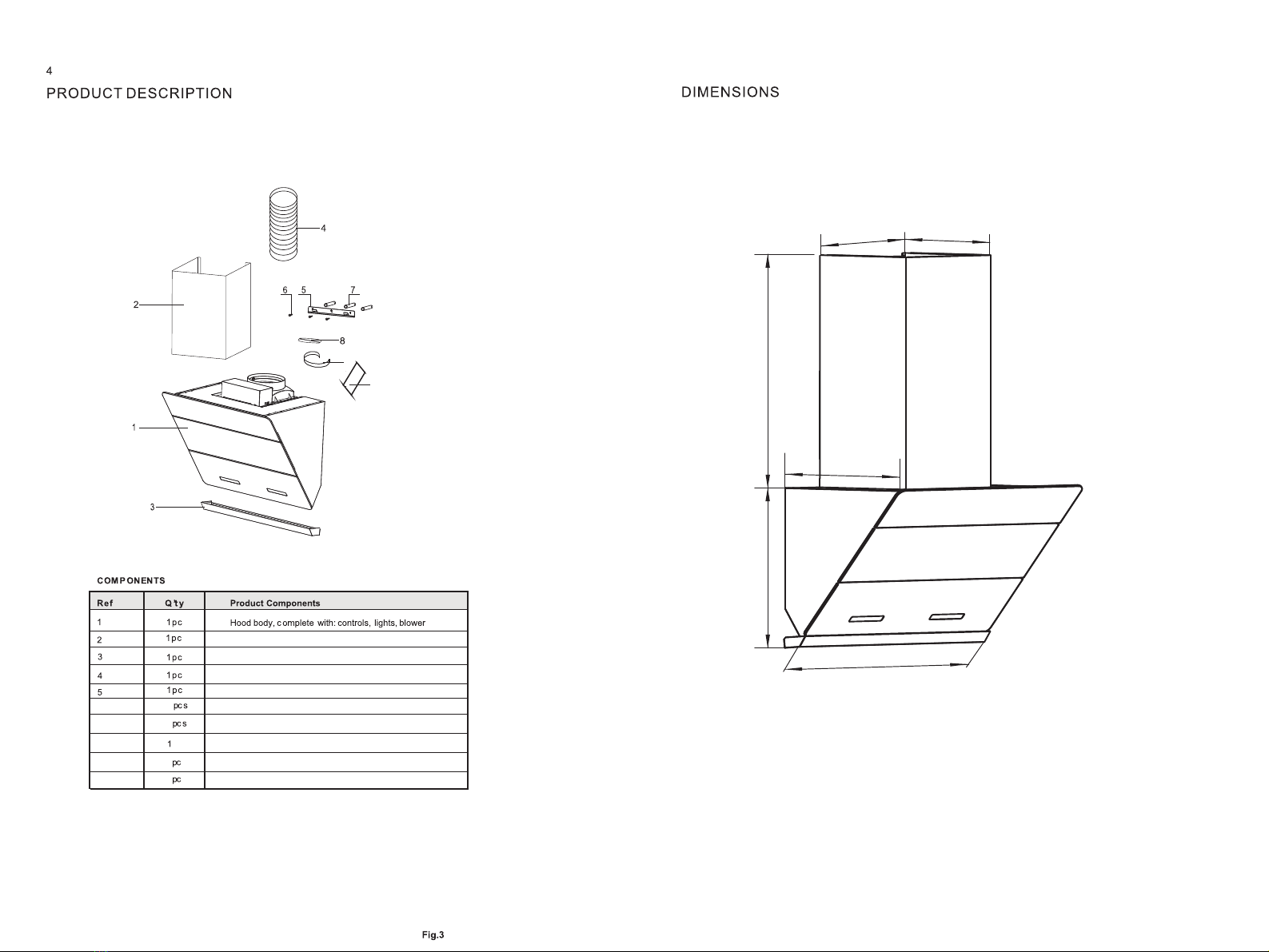

Chimney

Oil cup

Aluminum pipe

Hood mounting bracket

5Mounting screws(ST 5X 50MM)

5Drywall Anchors

DamperDamper

set

1Duct fixing tape

1User manual

Fig.3

700

460mm

Min.830

Range hood

mounting points

Fig.5

(Fig.5)

Install the wall bracket with screws to the wall as

marked(Fig.6) .

Hang the hood on the wall bracket(Fig.7).

Fig.6

Fig.7

Fig.8

(Fig.8)

tapes

Self-clean

Self-clean instruction

This product is equipped with self-clean technology.

The self-clean icon will start glowing after the motor

works for 15hours. User can tap the self-clean button to

active the self-clean function.

The red indicator will start glowing during the cleaning

process.

The time period for Self-clean is 10 to 15 minutes. The

product can be used during self-clean.

Assemble the flue cover onto the hood body make sure

it on the correct position.

Fig.9

(Fig.9)

Glass

●Glass should be cleaned every week in order to

keep the shiny

Grease filter

The grease filter should be cleaned frequently (

every two months of operation, or more frequently

for heavy use). Use a warm detergent solution.

Grease filter is washable

Remove the grease filter by unscrewing the screw

on the rotation support and releasing the glass

panel from two hinges . Tilt the filter downward and

remove(Fig.10)

Wash the filter , taking care not to bend them.

Allow them to be dried before refitting.

To install the grease filter , push filter into position

and release . Fix the glass panel to the two hinges

and refix one screw .

Note: To replace the filter, please let the hood on

suction mode beforecutting off the electrical

supplier and don't open the glass panel by hand.

●

Replacing the lamp

Dismantle the lower glass by removing the two rubber

columns and unscrewing the two screws on glass(Fig.11).

Replace the damaged LED, only use LED DC 12V,2W Max

Note:

1.To replace the LED, please let the hood on suction mode

before cutting off the electrical supplier and don't open the

glass panel by hand.

WARNING: .

1. Always switch off the electrical supply before carrying

out any operation on the appliance.

2. Only a qualified and trained service technician can

undertake the work of bulbs replacement and servicing.

2.We recommend only using lamps of the same

specification as the ones being replaced.

Fig.10

Fig.11

Changing the lamp

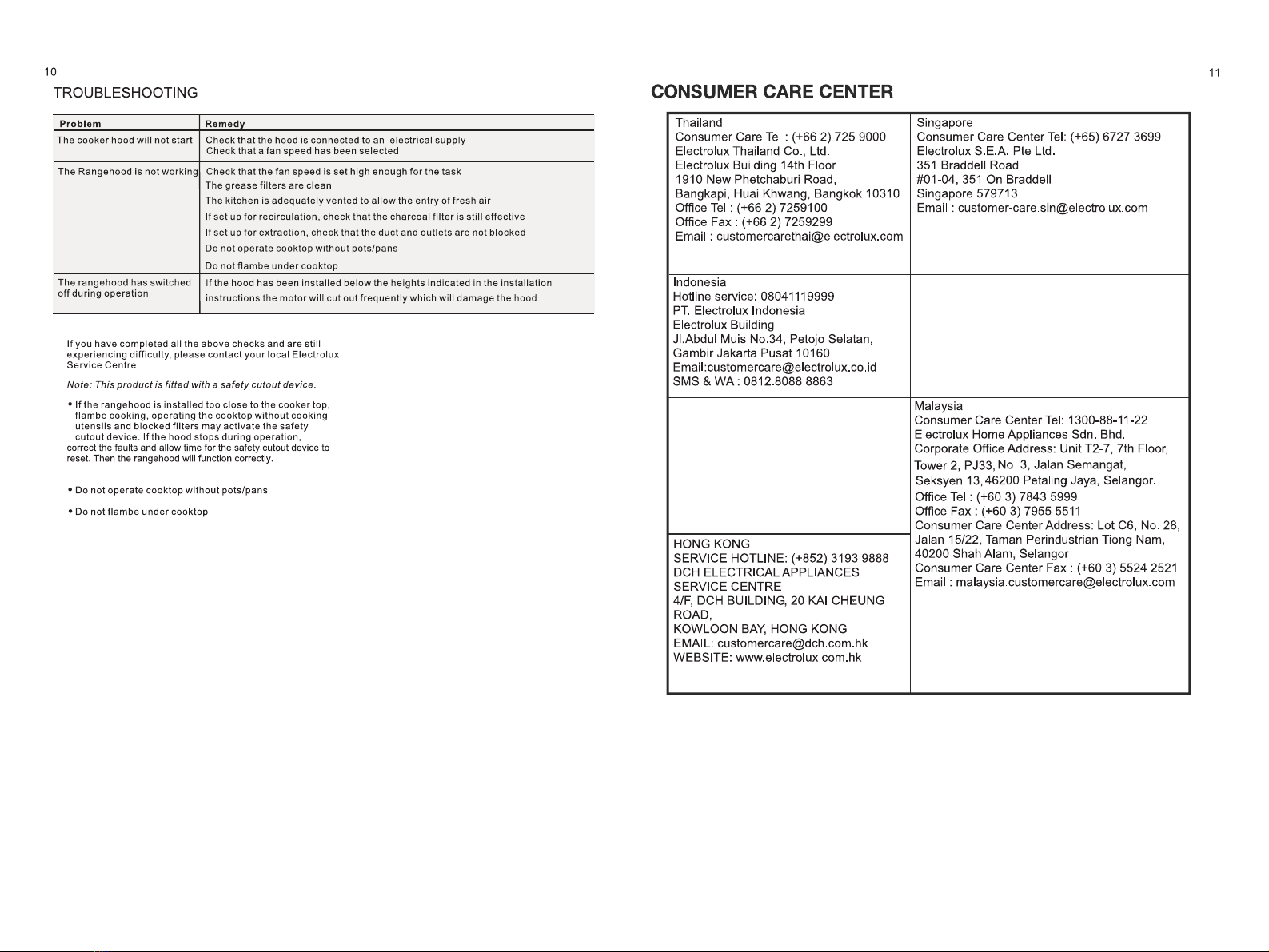

Philippines

Consumer Care Center Toll Free:

1-800-10-845-CARE(2273)

Consumer Care Hotline:(+63 2)845-CARE(2273)

Electrolux Philippines,lnc.

Unit B 12F Cyber Sigma Bldg, Lawton Avenue,

McKinley West,Taguig, Philippines 1634

Trunkline:+63 2 737-4757

Website:www.electrolux.com.ph

Email:wecare@electrolux.com

Vietnam

Consumer Care Center Toll Free

1800-58-88-99

Tel: (+84 28) 39105465

Electrolux Vietnam Ltd.

Unit 1&2, 10F Sofic Tower, #10 Mai Chi Tho

Street,

Thu Thiem Ward, Thu Duc City, Ho Chi

Minh City, Vietnam
