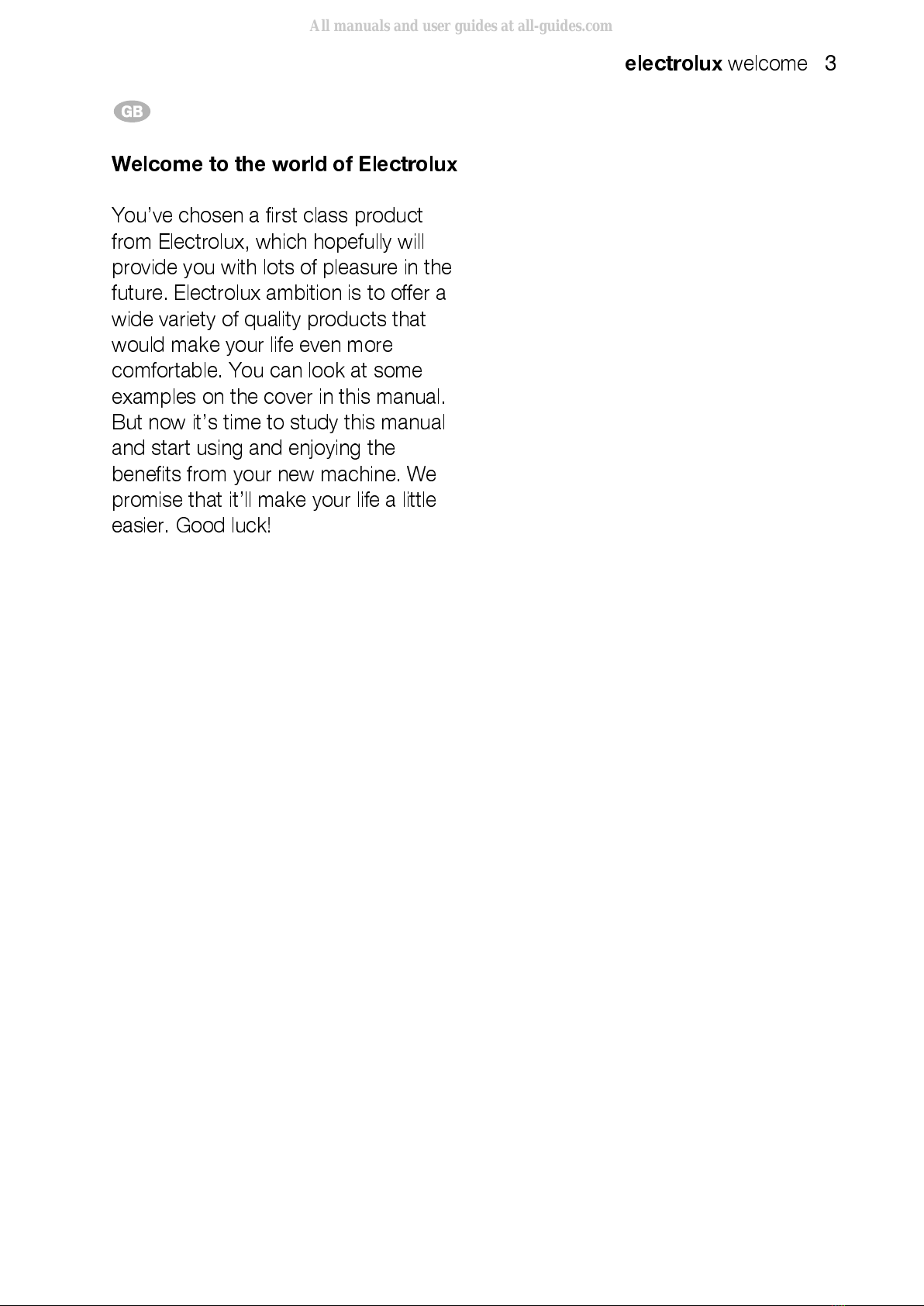

welcome

Welcome to the world of Electrolux

You’ve chosen a first class product

from Electrolux, which hopefully will

provide you with lots of pleasure in the

future. Electrolux ambition is to offer a

wide variety of quality products that

would make your life even more

comfortable. You can look at some

examples on the cover in this manual.

But now it’s time to study this manual

and start using and enjoying the

benefits from your new machine. We

promise that it’ll make your life a little

easier. Good luck!

All manuals and user guides at all-guides.com

electrolux

contents

Contents

Safety information 5

Product description 7

Before using the appliance 8

Operation 10

Programme charts 17

Hints and tips 21

Troubleshooting 24

Care and cleaning 26

Technical data 31

Installation instructions 32

Connecting to the electricity supply 33

Environment 34

Guarantee conditions 36

European guarantee 37

The following symbols are used in

this user manual:

Important information concerning

your personal safety and

information on how to avoid

damaging the appliance.

General information and tips

Environmental information

All manuals and user guides at all-guides.com

electrolux

safety information

Important safety information

These warnings are provided in the

interests of your safety. Ensure that

you understand them all before

installing or using the appliance.

Your safety is of paramount

importance. If you are unsure about

any of the meanings of these warnings

please contact customer care.

Installation

The appliance

must

be installed

according to the instructions supplied.

The installation work must be

undertaken by a qualified electrician or

competent person.

The appliance should be serviced by

an authorised service engineer and

only genuine approved spare parts

should be used.

The appliance

must

be installed in

an adequately ventilated room.

If the appliance is to be placed on a

base, measures must be taken to

prevent the appliance from slipping.

This appliance is heavy and care

must

be taken when moving it.

Do not

attempt to lift or move this

appliance by the handles.

All packaging, both inside and

outside the appliance

must

removed before the appliance is used.

It is dangerous to alter the

specifications or modify the appliance

in any way.

Child safety

Do not

allow children to play with any

part of the packaging.

Do not

allow children to sit or climb

on the drop down doors.

This appliance is not intended for use

by children and other persons whose

physical, sensory or mental capabilities

or lack of experience and knowledge

prevents them from using the

appliance safely without supervision or

instruction by a responsible person to

ensure that they can use the appliance

safely.

Children should be supervised to

ensure that they do not play with the

appliance.

Accessible parts may be hot when

the grill is in use. Young children

should be kept away.

During use

This appliance is not intended to be

operated by means of an external timer

or separate remote control system.

This appliance has been designed for

domestic use to cook edible foodstuffs

only and

must not

be used for any

other purposes.

Take great care when heating fats

and oils, as they will ignite if they

become too

hot

All manuals and user guides at all-guides.com

electrolux

safety information

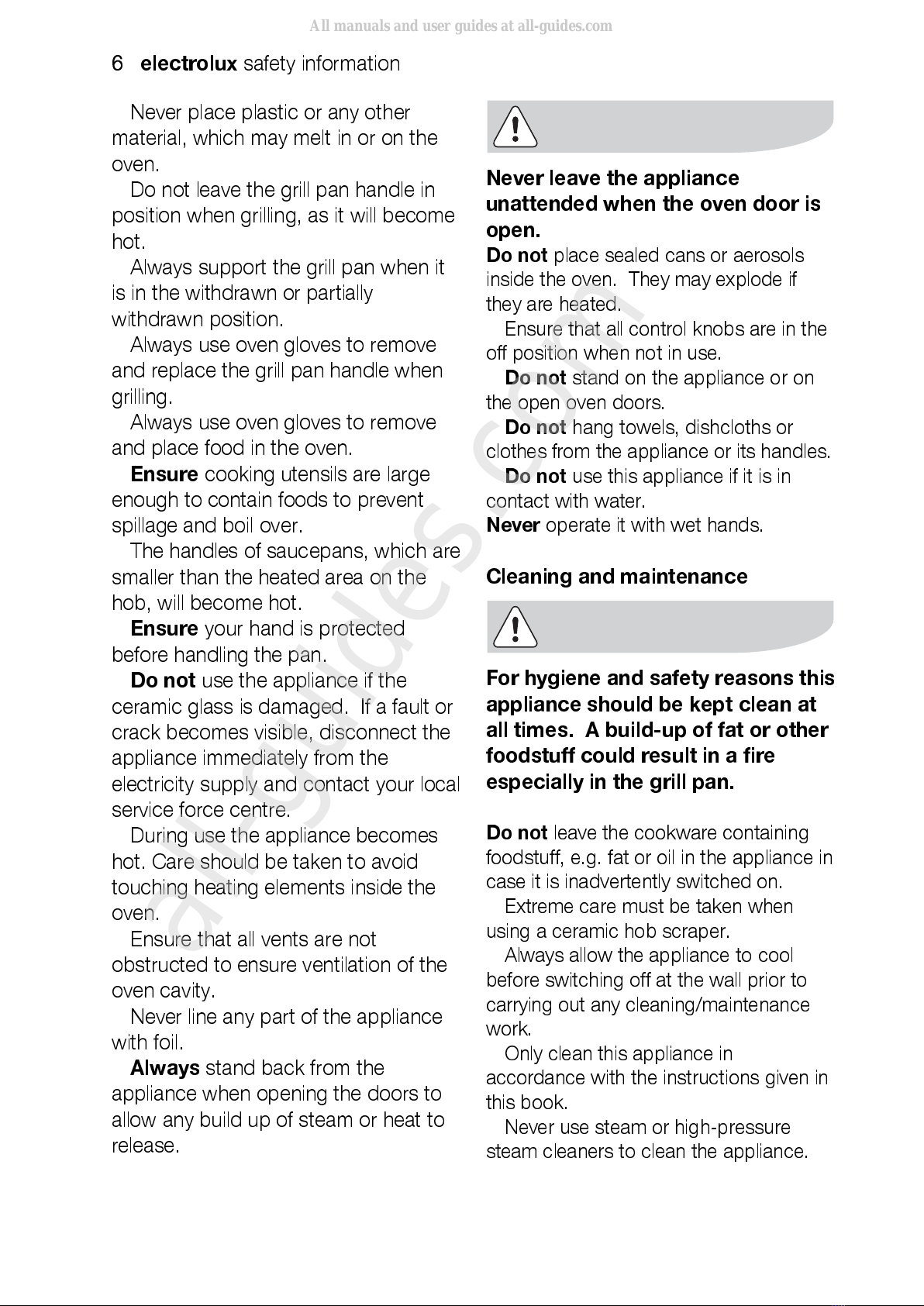

Never place plastic or any other

material, which may melt in or on the

oven.

Do not leave the grill pan handle in

position when grilling, as it will become

hot.

Always support the grill pan when it

is in the withdrawn or partially

withdrawn position.

Always use oven gloves to remove

and replace the grill pan handle when

grilling.

Always use oven gloves to remove

and place food in the oven.

Ensure

cooking utensils are large

enough to contain foods to prevent

spillage and boil over.

The handles of saucepans, which are

smaller than the heated area on the

hob, will become hot.

Ensure

your hand is protected

before handling the pan.

Do not

use the appliance if the

ceramic glass is damaged. If a fault or

crack becomes visible, disconnect the

appliance immediately from the

electricity supply and contact your local

service force centre.

During use the appliance becomes

hot. Care should be taken to avoid

touching heating elements inside the

oven.

Ensure that all vents are not

obstructed to ensure ventilation of the

oven cavity.

Never line any part of the appliance

with foil.

Always

stand back from the

appliance when opening the doors to

allow any build up of steam or heat to

release.

Never leave the appliance

unattended when the oven door is

open.

Do not

place sealed cans or aerosols

inside the oven. They may explode if

they are heated.

Ensure that all control knobs are in the

off position when not in use.

Do not

stand on the appliance or on

the open oven doors.

Do not

hang towels, dishcloths or

clothes from the appliance or its handles.

Do not

use this appliance if it is in

contact with water.

Never

operate it with wet hands.

Cleaning and maintenance

For hygiene and safety reasons this

appliance should be kept clean at

all times. A build-up of fat or other

foodstuff could result in a fire

especially in the grill pan.

Do not

leave the cookware containing

foodstuff, e.g. fat or oil in the appliance in

case it is inadvertently switched on.

Extreme care must be taken when

using a ceramic hob scraper.

Always allow the appliance to cool

before switching off at the wall prior to

carrying out any cleaning/maintenance

work.

Only clean this appliance in

accordance with the instructions given in

this book.

Never use steam or high-pressure

steam cleaners to clean the appliance.

All manuals and user guides at all-guides.com

all-guides.com

electrolux

product description

Product description

Control Panel

Top Oven/Grill

Main Oven

Electronic Timer

Main Oven Temperature Control

Top Oven/Grill Function Selector Control

Hob Control

Main Oven Indicator Neon

Top Oven/ Grill Indicator Neon

All manuals and user guides at all-guides.com

electrolux

before using the appliance

Before using the appliance

Rating plate

This is situated on the lower front frame

of the appliance and can be seen upon

opening the door. Alternatively the

rating plate may also be found on the

back or top of some models (where

applicable).

The appliance must be protected by

a suitably rated fuse or circuit breaker.

The rating of the appliance is given

on the rating plate.

Do not remove the rating plate

from the appliance as this may

invalidate the guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with

a soft cloth using hot soapy water.

Wash the furniture before use.

We suggest that you run the oven(s)

and grill for 10 – 15 minutes at

maximum temperature, to burn off any

residue from their surfaces. Accessible

parts may become hotter than in

normal use. Children should be kept

away. During this period an odour may

be emitted, it is therefore advisable to

open a window for ventilation.

The cooling fan for the controls

The cooling fan comes on immediately

when the grill/top oven is switched on

and after a short time when the main

oven is in use. It may run on after the

controls are switched off until the

appliance has cooled.

During the initial period the cooling

fan may turn on and off, this is quite

normal.

Always allow the cooling fan to

cool the appliance down before

switching off at the wall prior to

carrying out any cleaning or

maintenance work.

Control panel indicator neon(s)

The indicator neon will operate when

the grill (where applicable) or oven(s) is

switched on. The indicator neon will

glow. It may turn on and off during use

to show that the setting is being

maintained. If the neon does not

operate as the instructions indicate the

controls have been incorrectly set.

Return all controls to zero and reset

following the instructions for the

required setting.

Condensation and steam

When food is heated it produces steam

similar to a boiling kettle. The vents

allow some of this steam to escape.

However, always stand back from the

appliance when opening the door(s) to

allow any build up of steam or heat to

release.

If the steam comes into contact with

a cool surface on the outside of the

appliance, e.g. a trim, it will condense

and produce water droplets. This is

quite normal and is not caused by a

fault on the appliance.

To prevent discolouration, regularly

wipe away condensation and foodstuff

from surfaces.

All manuals and user guides at all-guides.com

electrolux

before using the appliance

For your safety wall coverings at the

rear of the appliance should be

securely fixed to the wall.

Cookware

Baking trays, dishes etc., should not be

placed directly against the grid

covering the fan at the back of the

oven.

Do not

use baking trays larger than

30cm x 35cm (12” x 14”) as they will

restrict the circulation of heat and may

affect performance.

Grill and oven furniture

The following items of grill and oven

furniture have been supplied with the

appliance. If you require replacements

of any of the items listed below please

contact your local service force centre,

quoting the relevant part number.

1 grill pan

1 grill pan handle

1 grill pan grid

1 straight shelf

(For grilling and top oven cooking)

2 straight shelves

(For main oven cooking)

All manuals and user guides at all-guides.com

electrolux

operation

The timer

02:35

Key

1. Cook time indicator neon

2. End time indicator neon

3. Countdown indicator neon

4. Time indicator neon

5. Decrease control

6. Selector control

7. Increase control

The time of day must be set before

the main oven will operate

manually.

To set the time of day

The oven has a 24 hour clock.

When the electricity supply is first

switched on, the display will show

12:00

and the 'Time' indicator neon will

flash.

To set the correct time press the

increase control button and if

necessary, the decrease control button

until the correct time on the 24 hour

clock is reached. The 'Time' indicator

neon will flash for 5 seconds and

then go out.

The increase and decrease control

buttons operate slowly at first, and

then more rapidly. They should be

pressed separately.

To set the countdown

The 'Countdown' gives an audible

reminder at the end of any period of

cooking.

This cooking period may be up to 2

hrs 30 mins. It is not part of the

automatic control.

To set, press the Selector Control

button until the 'Countdown'

indicator neon is illuminated and

the display reads

0:00.

To set the required time duration,

press the increase control until the

display indicates the interval to be

timed. If necessary press the decrease

control to achieve the correct time

interval.

This must be completed within 5

seconds of first pressing the

Selector Control button.

During the operation of the

'Countdown', the remaining time

period will be shown in the display.

The 'Countdown' will sound

intermittently for up to 2 minutes at the

end of the timed period. The sound

can be stopped by pressing any button.

All manuals and user guides at all-guides.com

Autres manuels pour EKC5044

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Gamme

Electrolux

Electrolux EI30GF35JSA Manuel utilisateur

Electrolux

Electrolux Frigidaire CGIF3036TFB Manuel du propriétaire

Electrolux

Electrolux LKR620002W Manuel utilisateur

Electrolux

Electrolux EW30EF65G S Manuel utilisateur

Electrolux

Electrolux EW30ES65GWG Manuel utilisateur

Electrolux

Electrolux Frigidaire CGEF3037TFB Manuel du propriétaire

Electrolux

Electrolux 316454915 Manuel utilisateur

Electrolux

Electrolux EI30GF55G - 30" Gas Range Manuel utilisateur

Electrolux

Electrolux ICON Professional E36DF76GPS Feuille d'instructions

Electrolux

Electrolux EI30ES55JSC Manuel utilisateur

Electrolux

Electrolux EW3LDF65GS Manuel utilisateur

Electrolux

Electrolux EW30ES65GS - 30" Slide-In Electric Range Guide de démarrage rapide

Electrolux

Electrolux Perfect Set Gas Range Manuel utilisateur

Electrolux

Electrolux EI30EF55GS - 30 Electric Range Manuel utilisateur

Electrolux

Electrolux EI30DS55JS1 Manuel utilisateur

Electrolux

Electrolux 30" FREE-STANDING GAS WAVE-TOUCHTM RANGE... Manuel utilisateur

Electrolux

Electrolux E30DF74GPS - 30" Pro-Style Dual-Fuel Range Manuel utilisateur

Electrolux

Electrolux CEI30EF5GS Guide de l'utilisateur

Electrolux

Electrolux EW30IS65JSA Manuel utilisateur

Electrolux

Electrolux ICON E30DF74EPS Manuel utilisateur

Electrolux

Electrolux MBJHGBK8AO Manuel utilisateur

Electrolux

Electrolux EW30IS65JS Feuille d'instructions

Electrolux

Electrolux EW30ES6CGS8 Manuel utilisateur

Electrolux

Electrolux EW30IS8CRS Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Whirlpool

Whirlpool 8575985-W Manuel de la liste des pièces

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Whirlpool

Whirlpool Roper FGP305KW3 Manuel utilisateur

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur
