Electrolux E48DF76E Manuel utilisateur

E48DF76EPS.eps CE48DF76EPS.eps VE48DF76EPS.eps BE48DF76EPS.eps

ME48DF76EPS.eps DE48DF76EPS.eps 5995449500.tif 316255210s.eps

Product No. E48DF76EPS

Series 48" dual fuel

Color stainless

Market North America

Wiring Diagram 5995449500

Owner's Guide 5995447074

Installation Instructions 5995447082

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995467015

06/05/26

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

E48DF76E

Publication No: 5995467015 E48DF76EPS

05/06 2

BACKGUARD

E48DF76EPS Publication No: 5995467015

# Functional Parts 3 05/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

2 5304453227 Support, spill tray, front

4 5304446031 Bezel, burner knob

11 5304452790 Screw, pan, 6/32 x 1/2

16 5304453228 Panel, mounting

19 5304453229 Panel, backguard

24 # 5304452794 Switch, rocker

26 # 5304452799 Board, indicator light, (2), LED

27 5304452786 Reatiner, lens

28 5304452796 Tubing, indicator light

29 5304452793 Spacer, light board

34 5304452454 Screw, #8 x .375"

36 5304452800 Knob, top burner

37 5304452801 Knob, oven selector

38 5304452802 Knob, oven temp.

40 5304453230 Panel, control, stainless

44 5304446271 Screw, phil pan hd, #8 x 1/4, (8)

46 5304452795 Lens, indicator light, blue

46A 5304452805 Lens, indicator light, red

54 # 5304452797 Control, oven selector

54A# 5304452798 Control, oven temp.

69 5304452792 Screw, mounting

77 5304452791 Support, control board

97 # 5304453231 Board, control, large oven

97 # 5304453232 Board, control, small oven

* # 5304452804 Harness, wiring, oven controls

* # 5304452803 Harness, wiring, indicator light

Publication No: 5995467015 E48DF76EPS

05/06 4

BURNER

E48DF76EPS Publication No: 5995467015

# Functional Parts 5 05/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 5304453233 Tubing Assembly, burner, left front

2 # 5304453234 Tubing Assembly, burner, left rear

3 # 5304453235 Tubing Assembly, burner, right front

4 # 5304453236 Tubing Assembly, burner, right rear

5 # 5304453237 Valve Assembly, w/switch, right rear

6 # 5304453238 Valve Assembly, w/switch, (2)

7 # 5304453239 Valve Assembly, w/switch, left front

8 5304446028 Nut, burner head, brass

9 5304452881 Rings, burner, set of 6

10 # 5304446014 Switch, ignitor

11 # 5304452824 Ignitor, burner, (6)

11* 5304446002 Jacket, ignitor wire

12 # 5304453240 Regulator, pressure

13 5304446001 Base, burner, (6)

14 # 5304453241 Manifold Assembly, w/valves

15 5304452825 Burner Head Assy, "B", 8500 BTU, w/ignitor

16 5304452826 Burner Head Assy, "D", 14000 BTU, w/ignitor

17 5304446023 Screw, ignitor switch

19 # 5304452821 Module, ignitor wire

20 # 5304453242 Harness, wiring, cooktop

21 # 5304453243 Harness, wiring, ignitors

24 5304446015 Nut, hex keps, #8-32

26 5304452823 Washer, 1/2"

28 # 5304453244 Tubing Assembly, burner, center rear

29 # 5304453245 Tubing Assembly, burner, center front

31 5304452822 Screw, slot hex hd, #10 x 3/8"

69 5304452792 Screw, mounting

Publication No: 5995467015 E48DF76EPS

05/06 6

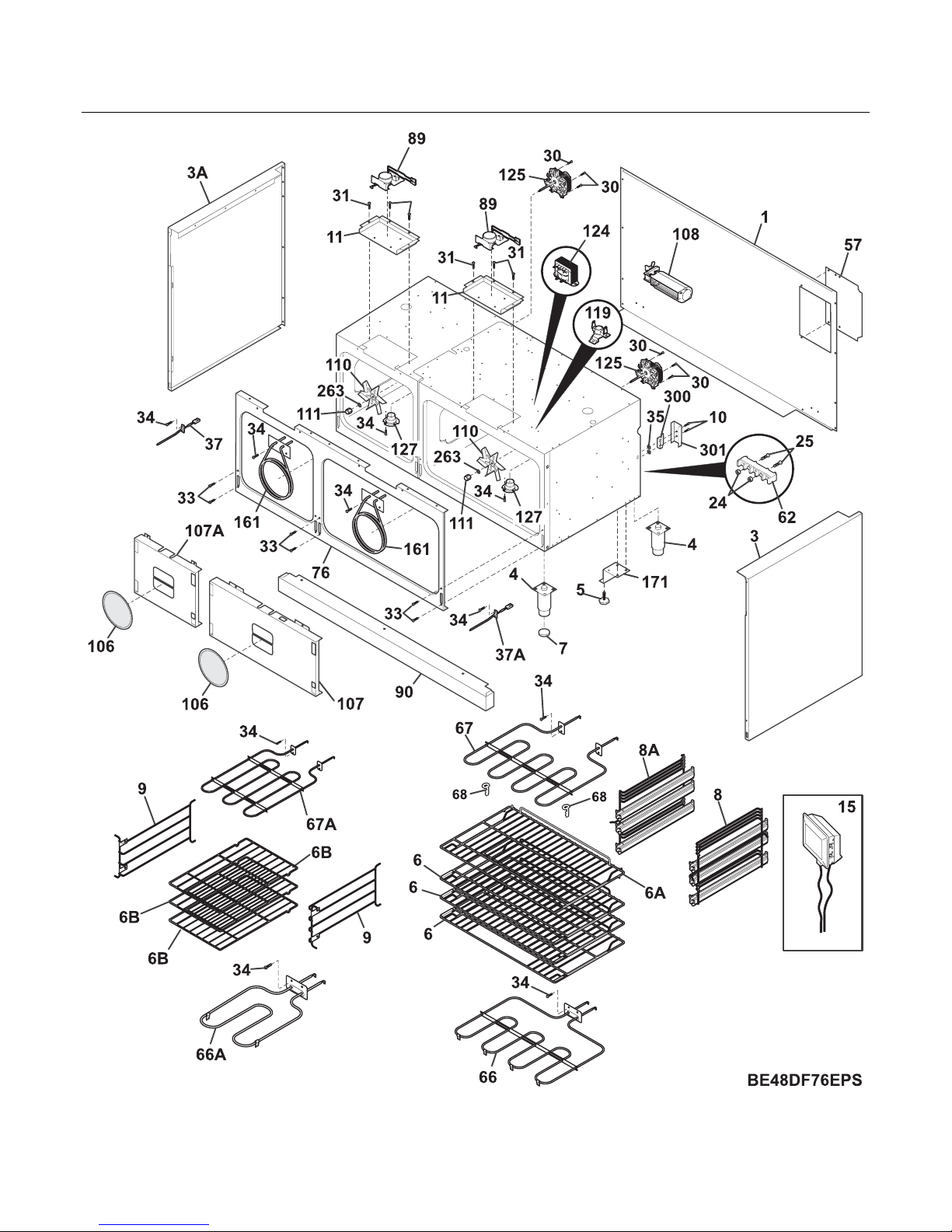

BODY

E48DF76EPS Publication No: 5995467015

# Functional Parts 7 05/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 5304453246 Panel, main back

3 5304453247 Panel, body side, RH

3A 5304453248 Panel, body side, LH

4 5304452840 Leg, adjustable, (4)

5 5304452863 Leveler, adjustable, (2)

6 5304452713 Rack, extendable, (3)

6A 5304452712 Rack, fixed

6B 5304453250 Rack, small oven, (3)

7 5304452848 Cap, leg, (4)

8 5304452867 Support, rack, RH

8A 5304452868 Support, rack, LH

9 5304453252 Support, rack, small oven, (2)

10 5304452830 Screw, #6 - 32 x 1", w/washer

11 5304452834 Plate, latch, (2)

15 # 5304452872 Light Assembly, halogen, (3)

15*# 5304452831 BULB, halogen, 20w

15*# 5304452873 Harness, wiring, lg oven light

15*# 5304453253 Harness, wiring, sm oven light

24 5304446015 Nut, hex keps, #8-32

25 5304446287 Screw, phil pan hd, #8-32 x 3/4, (2)

30 5304452862 Screw, slot hex hd, #8 x .370"

31 5304452822 Screw, slot hex hd, #10 x 3/8"

33 5304452865 Screw, btn hd, #10 - 32 x 1/2", (8)

34 5304452454 Screw, #8 x .375"

35 5304452866 Washer, fiber, (2)

37 # 5304452846 Probe, temperature, small oven

37A# 5304453254 Probe, temperature, large oven

57 5304452837 Panel, service, regulator

62 # 5304453255 Harness, wiring, main, w/term. block

66 # 5304452870 Element, bake, large oven

66A# 5304453256 Element, bake, small oven

67 # 5304452869 Element, broil, large oven

67A# 5304453257 Element, broil, small oven

68 5304403015 Support, hanger, (2), broil element

76 5304453258 Frame, oven front

89 # 5304452859 Latch, door

90 5304453259 Panel, bottom trim

106 5304452860 Filter, convection

107 5304452839 Cover, convection fan, large oven

107A 5304453260 Cover, convection fan, small oven

108# 5304453261 Blower, fan

110 5304452843 Blade, convection fan

111 5304452844 Nut, convection fan

119# 5304452861 Thermostat, temp. cutout

124# 5304452847 Transformer

125# 5304452842 Motor, convection fan

127 5304452858 Eliminator, smoke

161# 5304452857 Element, convection

171 5304452835 Bracket, anti-tip, range, (2)

263 5304452845 Washer, convection fan

300# 5304452871 Switch, interlock, racks

301 5304452832 Cover, intrlck switch

* 5304452792 Screw, mounting

Publication No: 5995467015 E48DF76EPS

05/06 8

TOP/DRAWER

E48DF76EPS Publication No: 5995467015

# Functional Parts 9 05/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

6 5304452874 Support, maintop, side

7 5304453262 Angle, maintop support

8 5304453227 Support, spill tray, front

10 5304452880 Caps, burner, set of 6

16 5304453263 Maintop, spill tray

20A 5304452878 Grate, burner, 14"

Publication No: 5995467015 E48DF76EPS

05/06 10

DOOR
