Electrolux EHS 36020 U Manuel utilisateur

user manual

Ceramic glass hob

EHS 36020 U

We were thinking of you

when we made this product

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class

product from Electrolux, which hopefully

will provide you with lots of pleasure in

the future. The Electrolux ambition is to

offer a wide variety of quality products

that make your life more comfortable.

You will find some examples on the cov-

er in this manual. Please take a few min-

utes to study this manual so that you

can take advantage of the benefits of

your new machine. We promise that it

will provide a superior User Experience

delivering Ease-of-Mind. Good luck!

4electrolux contents

Contents

Operating Instructions 5

Safety instructions 5

Description of the Appliance 7

Operating the appliance 10

Tips on Cooking and Frying 18

Cleaning and Care 21

What to do if … 23

Disposal 24

Installation Instructions 25

Assembly 26

Installing more than one

Frontline hob 30

Service 35

Guarantee/Customer Service 36

he following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

operating instructions electrolux 5

Operating Instructions

Safety instructions

Please comply with these instruc-

tions. If you do not, any damage re-

sulting is not covered by the

warranty.

This appliance conforms with the

following EU Directives:

–73/23/EEC dated 19.02.1973 Low

Voltage Directive

–89/336/EEC dated 03.05.1989 EMC

Directive inclusive of Amending Di-

rective 92/31/EEC

–93/68/EEC dated 22.07.1993 CE

Marking Directive

Correct use

•This appliance should be used only

for normal domestic cooking and fry-

ing of food.

•The appliance must not be used as a

work surface or as a storage surface.

•Additions or modifications to the ap-

pliance are not permitted.

•Do not place or store flammable liq-

uids, highly inflammable materials or

fusible objects (e.g. plastic film, plas-

tic, aluminium) on or near the appli-

ance.

Children’s safety

•Small children must be kept away

from the appliance.

•Only let bigger children work on the

appliance under supervision.

•To avoid small children and pets un-

intentionally switching the appliance

on, we recommend activation of the

child safety device.

General safety

•The appliance may only be installed

and connected by trained, registered

service engineers.

•Built-in appliances may only be used

after they have built in to suitable

built-in units and work surfaces that

meet standards.

•In the event of faults with the appli-

ance or damage to the glass ceramic

(cracks, scratches or splits), the ap-

pliance must be switched off and

disconnected from the electrical

supply, to prevent the possibility of

an electric shock.

•Repairs to the appliance must only

be carried out by trained registered

service engineers.

Safety during use

•Overheated fats and oils can ignite

very quickly. When cooking with fat

or oil (e.g. chips) do not leave the ap-

pliance unattended.

•There is the risk of burns from the

appliance if used carelessly.

•Remove stickers and film from the

glass ceramic.

•Cables from electrical appliances

must not touch the hot surface of the

appliance or hot cookware.

•Switch the cooking zones off after

each use.

6electrolux safety instructions

Safety when cleaning

•For cleaning, the appliance must be

switched off and cooled down.

•For safety reasons, the cleaning of

the appliance with steam jet or high-

pressure cleaning equipment is not

permitted.

How to avoid damage to the appli-

ance

•The glass ceramic can be damaged

by objects falling onto it.

•The edge of the glass ceramic can

be damaged by being knocked by

the cookware.

•Cookware made of cast iron, cast

aluminium or with damaged bottoms

can scratch the glass ceramic if

pushed across the surface.

•Objects that melt and things that boil

over can burn onto the glass ceramic

and should be removed straighta-

way.

•To avoid damaging cookware and

glass ceramics, do not allow sauce-

pans or frying pans to boil dry.

•Do not use the cooking zones with

empty cookware or without cook-

ware.

description of the appliance electrolux 7

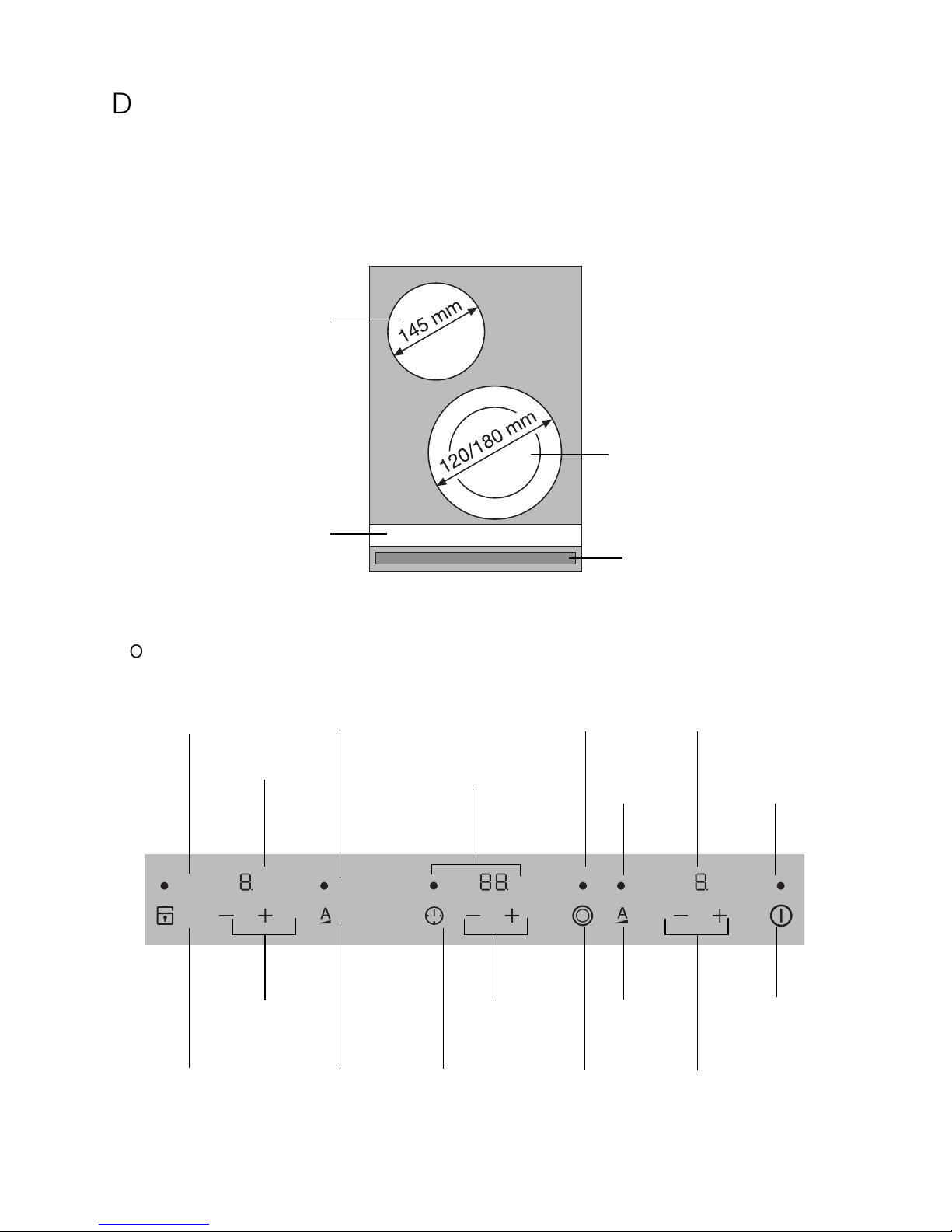

Description of the Appliance

Cooking surface layout

Control panel layout

Single cooking zone

1200W

Double ring cooking

zone

700/1700W

Frontline strip

Control panel

Child lock pilot

light

Heat setting

indicator

Warm up pilot

light

Warm up pilot

light

Heat setting

indicator

Child lock

Heat setting selec-

tion

On/Off pilot

light

Double ring pilot

light

Timer indicator

Timer selection Automatic

warm-up

Automatic warm-

up function

Timer Outside ring

On/Off

Heat setting selection

On/Off

8electrolux description of the appliance

Touch Control sensor fields

The appliance is operated using Touch

Control sensor fields. Functions are

controlled by touching sensor fields and

confirmed by displays and acoustic sig-

nals.

Touch the sensor fields from above,

without covering other sensor fields.

Displays

Sensor field Function

On / Off To switch the appliance on and off

Increase settings To increase heat settings

Reduce settings To reduce heat settings

Automatic warm-up function To switch automatic warm-up function

on/off

Double ring switch Switches outside ring

on and off

Timer Timer selection

Increase settings To increase Timer time

Reduce settings To reduce Timer time

Child lock Locking control panel for children

Display Description

¾Cooking zone is switched off

uKeep warm setting Keep warm setting is set

¿- ÇHeat settings Heat setting is set

eFault Malfunction has occurred

hResidual heat Cooking zone is still hot

lChild safety device Child safety device is engaged

_Safety cut-out Safety cut-out has been activated

description of the appliance electrolux 9

Residual heat indicator

Warning! Risk of burns from residu-

al heat. After being switched off, the

cooking zones need some time to

cool down. Look at the residual heat

indicator h.

Residual heat can be used for melt-

ing and keeping food warm.

10 electrolux operating the appliance

Operating the appliance

Switching the appliance on and off

After switching on, within approx.

10 seconds a heat setting or a func-

tion must be set, otherwise the ap-

pliance automatically switches

itself off.

Switching off also works by touch-

ing and at the same time. This

applies for all individual functions,

for example, ”Switching off the Tim-

er”.

Setting the heat setting

To switch the outside ring on and off

By switching the outside ring on or off,

the effective heating surface can be

matched to the size of the cookware.

Before the outside ring can be

switched on, the inside ring must be

switched on.

Control panel Display Pilot light

Switch on Touch for 2 seconds ¾/ hlights up

Switch off Touch for 1 second h/ none goes out

Control panel Indicator

To increase Touch uto Ç

To decrease Touch Çto ¾

To switch off Touch and at the same time ¾

Double ring cooking

zone

Sensor field Pilot light

To switch on outside ring Touch for 1-2 seconds is lit

To switch off outside ring Touch for 1-2 seconds goes out
