Electrolux 98001 KF SN Manuel utilisateur

98001 KFSN

User manual Ceramic hob

Dear Customer

Thank you for choosing one of our highquality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per

formance and control  indeed we are setting the highest standards of excel

lence.

In addition to this you find environmental and energy saving aspects as an inte

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user information:

1Warning! This must be read! Important advice for the safety of persons and

information on avoiding damage to the appliance

3General information and advice

2Information on environmental protection

zDangerous voltage

3Contents

Contents

Operating Instructions 4

Safety instructions 4

Description of the Appliance 6

Cooking surface layout 6

Control panel layout 7

Touch Control sensor fields 7

Displays 8

Residual heat indicator 8

Operating the appliance 9

Switching the appliance on and off 9

Selecting the heat setting 9

Switching the STOP+GO function on and off 9

Using the automatic warmup function 10

Locking/unlocking the control panel 11

Using the child safety device 12

Switching the power function on and off 13

Using the timer 14

Automatic switch off 17

Tips on cooking and frying 18

Cookware for induction cooking zones 18

Tips on energy saving 18

Examples of cooking applications 19

Cleaning and care 20

What to do if … 21

Disposal 23

Installation Instructions 24

Safety instructions 24

Assembly 26

Rating Plate 31

Guarantee/Customer Service 32

Service and Spare Parts 35

Operating Instructions4

Operating Instructions

1Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not

covered by the warranty.

Correct use

•This appliance is not intended for use by children or other persons whose

physical, sensory or mental capabilities or lack of experience and knowledge

prevents them from using the appliance safely without supervision or instruc

tion by a responsible person to ensure that they can use the appliance safely.

•Do not leave the appliance unattended during operation.

•This appliance should be used only for normal domestic cooking and frying of

food.

•The appliance must not be used as a work surface or as a storage surface.

•Additions or modifications to the appliance are not permitted.

•Do not place or store flammable liquids, highly inflammable materials or fusi

ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Child safety

•Small children must be kept away from the appliance.

•Only let bigger children work on the appliance under supervision.

•To avoid small children and pets unintentionally switching the appliance on,

we recommend activation of the child safety device.

General safety

•The appliance may only be installed and connected by trained, registered serv

ice engineers, or competent persons.

•Builtin appliances may only be used after they have been built in to suitable

builtin units and work surfaces that meet standards.

•In the event of faults with the appliance or damage to the glass ceramic

(cracks, scratches or splits), the appliance must be switched off and discon

nected from the electrical supply to prevent the possibility of an electric

shock.

•Repairs to the appliance must only be carried out by trained registered service

engineers.

5Safety instructions

Safety during use

•Remove stickers and film from the glass ceramic.

•There is the risk of burns from the appliance if used carelessly.

•Cables from electrical appliances must not touch the hot surface of the appli

ance or hot cookware.

•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

•Switch the cooking zones off after each use.

•Users with implanted pacemakers should keep their upper body at least 30 cm

from induction cooking zones that are switched on.

•Risk of burns! Do not place objects made of metal, such as knives, forks,

spoons and saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

•For cleaning, the appliance must be switched off and cooled down.

•For safety reasons, the cleaning of the appliance with steam jet or highpres

sure cleaning equipment is not permitted.

How to avoid damage to the appliance

•The ceramic glass can be damaged by objects falling onto it.

•The edge of the ceramic glass can be damaged by being knocked by the cook

ware.

•Cookware made of cast iron, cast aluminium or with damaged bottoms can

scratch the ceramic glass if pushed across the surface.

•Objects that melt and things that boil over can burn onto the ceramic glass

and should be removed straightaway.

•Do not use the cooking zones with empty cookware or without cookware.

•To avoid damaging cookware and glass ceramics, do not allow saucepans or

frying pans to boil dry.

•The ventilation gap of 5mm between the worktop and front of the unit un

derneath it must not be covered.

Description of the Appliance6

Description of the Appliance

Cooking surface layout

Induction cooking zone 2300W

with power function 3200W

Induction cooking zone 2300W

with power function 3200W

Control panel

Induction cooking zone 2300W

with power function 3200W

7Description of the Appliance

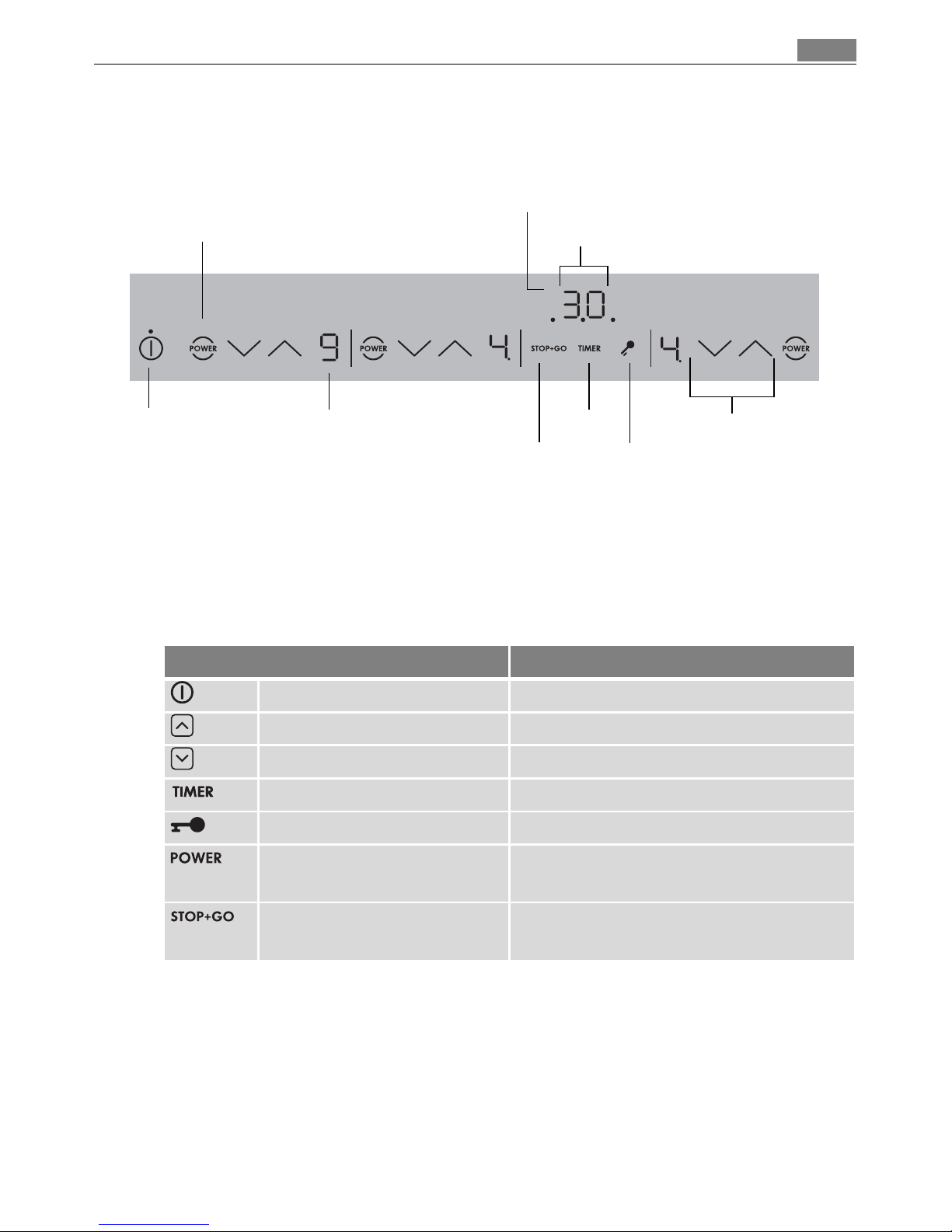

Control panel layout

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are con

trolled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

3Cooking utensils must not be pulled across or placed on the control panel.

1Warning! Risk of burns from heat emitted. Lengthy cooking on higher settings

with larger cookware on the front cooking zones can heat the sensor fields. Take

care when touching sensor fields.

Sensor field Function

On / Off Switches appliance on and off

Increase settings Increasing heat setting/time

Decrease settings Decreasing heat setting/time

Timer Timer selection

Lock Locking/unlocking the control panel

Power Switching the power function on and

off

Stop+Go To switch the Keep Warm setting on/

off

STOP+GO

Cooking zone indicators

Timer function

On/Off

with power indicator

Heat setting selection

Lock

Power function

TimerDisplay

Timer display

Description of the Appliance8

Displays

Residual heat indicator

1Warning! Risk of burns from residual heat. After being switched off, the cook

ing zones need some time to cool down. Look at the residual heat indicator h.

3Residual heat can be used for melting and keeping food warm.

The induction cooking zones create the heat required for cooking directly in

the base of the cookware. The glass ceramic is merely heated by the residual

heat of the cookware.

The cooling fan switches itself on and off depending upon the temperature of

the electronics.

Display Description

¾Cooking zone is switched off

uKeep warm setting Keep warm setting/STOP+GO function

is set

¿ ÇHeat settings Heat setting is set

2 6Heating setting plus

decimal point

Intermediate heat setting is set

aAutomatic warm up func

tion

Automatic warmup function is acti

vated

eFault Malfunction has occurred

fPan detection Cookware is unsuitable or too small or

no cookware has been placed on the

cooking zone

hResidual heat Cooking zone is still hot

lChild safety device Lock/child safety device is set.

pPower Power function is switched on

_Automatic switch off Switch off is active.

9Operating the appliance

Operating the appliance

3Use the induction cooking zones with suitable cookware.

Switching the appliance on and off

3After switching on, within approx. 10 seconds a heat setting or a function must

be set, otherwise the appliance automatically switches itself off.

Selecting the heat setting

3The keep warm setting ulies between ¾and ¿. It is used to keep food warm.

Switching the STOP+GO function on and off

The STOP+GO function simultaneously switches all cooking zones that are

switched on to the keep warm setting and then back to the heat setting that

was previously set.

3Timer functions are not stopped by .

3locks the whole control panel except the sensor field .

Control panel Display Pilot light

Switch on Touch for 2 seconds ¾/ hlights up

Switch off Touch for 1 second h/ none goes out

Control panel Display

Increase Touch uto Ç/ p

Decrease Touch Çto ¾

Switch off Touch and at the same time ¾

Control panel Display

To switch on Touch u

To switch off Touch heat setting that was previously

set (not automatic warm up func

tion)

Operating the appliance10

Using the automatic warmup function

All cooking zones are equipped with an automatic warmup function. The auto

matic warmup function sets the cooking zone to the highest setting for a cer

tain period of time and then automatically switches back to the cooking setting

that was originally set.

3If during the automatic warm up aa higher heat setting is selected, e.g. from

Áto Ã, the automatic warm up is adjusted.

The length of time that the automatic warm up function operates depends on

the heat setting selected.

Step Control panel Display

1. Setting the maximum setting Ç/ p

2. Place to one side for a moment Ç/ p

3. touch a

4. touch in order to set the desired

cooking setting

Æuntil ¿/ u

after 3 seconds a

Heat

setting

Length of the

automatic warm up

[min:sec]

Intermedi

ate

heat

setting

Length of the

automatic warm up

[min:sec]

v0:10

10:10

20:10 2. 1:20

33:10 3. 4:20

45:50 4. 8:10

510:10 5. 10:30

62:00 6. 2:00

72:30

82:50

9

Table des matières

Autres manuels Electrolux Plaque

Electrolux

Electrolux KGG9538K Manuel utilisateur

Electrolux

Electrolux EGG 789 Manuel utilisateur

Electrolux

Electrolux HOI630NF Manuel utilisateur

Electrolux

Electrolux EHG 65 Manuel utilisateur

Electrolux

Electrolux EIP8546 Manuel utilisateur

Electrolux

Electrolux LIV63334 Manuel utilisateur

Electrolux

Electrolux EHD6671P Manuel utilisateur

Electrolux

Electrolux EGT6343 Manuel utilisateur

Electrolux

Electrolux EHG 9320 Manuel utilisateur

Electrolux

Electrolux EHF9557XOK Manuel utilisateur

Electrolux

Electrolux HOC620X Manuel utilisateur

Electrolux

Electrolux EHC60020X Manuel utilisateur

Electrolux

Electrolux EHD 6676 P Manuel utilisateur

Electrolux

Electrolux EGG9364NOX Manuel utilisateur

Electrolux

Electrolux EHG 680 Manuel utilisateur

Electrolux

Electrolux KGG6436K Manuel utilisateur

Electrolux

Electrolux EGT6242NVK Manuel utilisateur

Electrolux

Electrolux EGG7253 Manuel utilisateur

Electrolux

Electrolux CC 3080 Guide produit

Electrolux

Electrolux EHT7830 Manuel utilisateur

Electrolux

Electrolux EHD6671P Manuel utilisateur

Electrolux

Electrolux EQTP4520IK Manuel utilisateur

Electrolux

Electrolux EHH3920BOK Manuel utilisateur

Electrolux

Electrolux EGC3320NOK Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
