Electrolux EI32AF65JS0 Manuel utilisateur

Use Et Care Guide

Guia de Uso yCuidado

Congelador

Guide d'utilisation et d'entretien

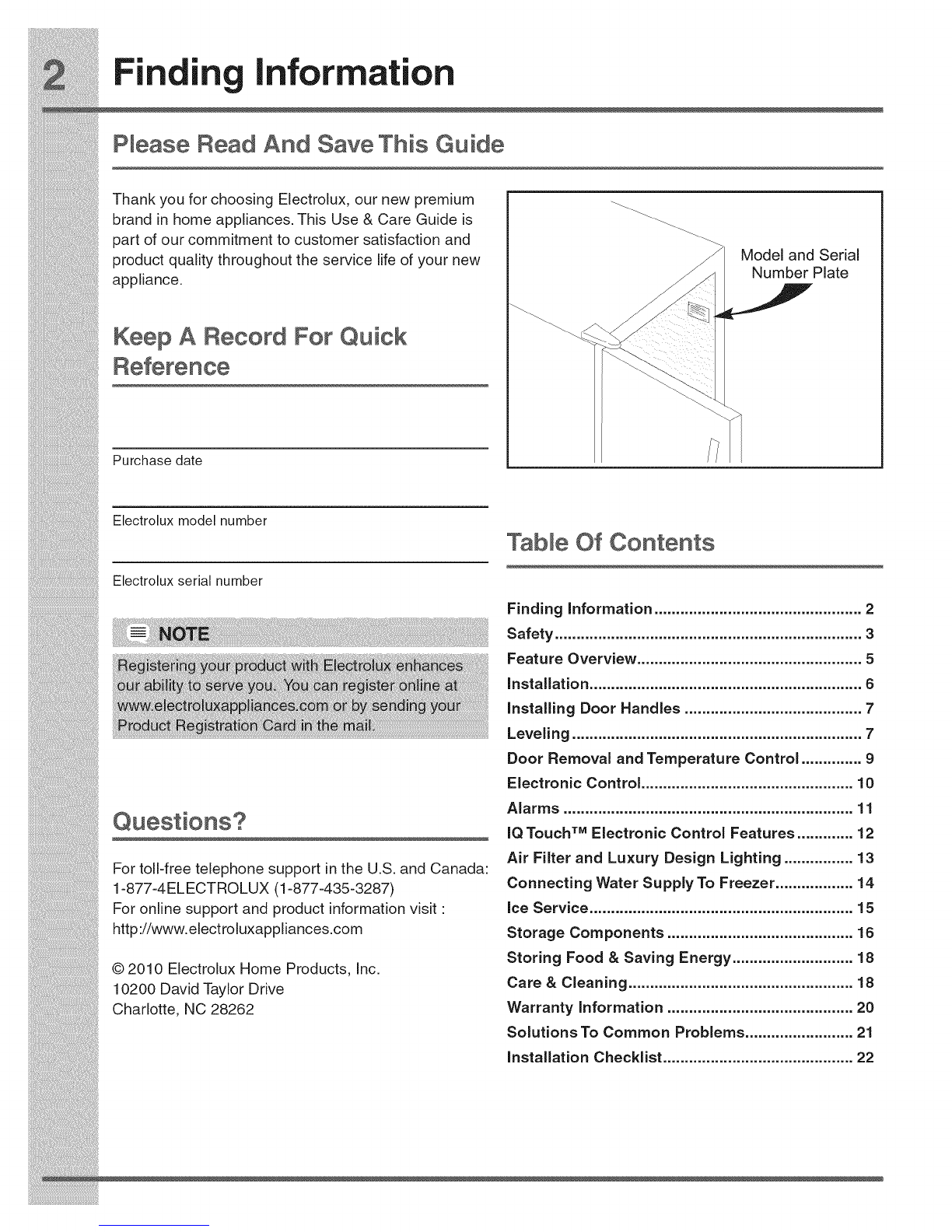

Finding information

Please Read And Save This Guide

Thank you for choosing Electrolux, our new premium

brand in home appliances. This Use & Care Guide is

part of our commitment to customer satisfaction and

product quality throughout the service life of your new

appliance.

Keep A Record For Quick

Purchase date

Model and Serial

Number Plate

i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_ii_i

Electrolux model number

Electrolux serial number

Table Of Contents

Finding Information ................................................ 2

i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_ii_i

precautionslistedbelow. i_i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_iii_

Safety

Electrical Information

The freezer must be plugged into its own

dedicated 115 Volt, 60 Hz, AC-only non-GFCI

electric outlet. The power cord of the appliance

is equipped with a three-prong grounding plug for

your protection against electrical shock hazards. It

must be plugged directly into a properly grounded

three-prong receptacle. The receptacle must

be installed in accordance with local codes and

ordinances. Consult a qualified electrician. Do

not use an extension cord or adapter plug.

If the power cord is damaged, it should be

replaced by the manufacturer, service technician,

or a qualified person.

G[ounding type

wall receptacle

Do not, under -'_

any circumstances,

cut, remove,

or bypass the

grounding prong.

Power cord with

3-prong grounded plug

Never unplug the freezer by pulling on the power

................................................cord. Always grip the plug firmly and pull straight

outfromthereceptacletopreventdamagingthe

powercord.

• Toavoidelectricalshock, unplugthefreezer

beforecleaningandbefore replacingalightbulb

• orLEUlight.

Performancemaybeaffectedifthevoltagevaries

o" "

by 10 Yoor more. Operating the freezer with

insufficientpowercandamagethecompressor.

Suchdamage isnotcovered underyourwarranty.

• Donotplugtheunitintoanoutletcontrolledbya

wallswitchorpullcordtopreventthefreezerfrom

beingturnedoffaccidentally.

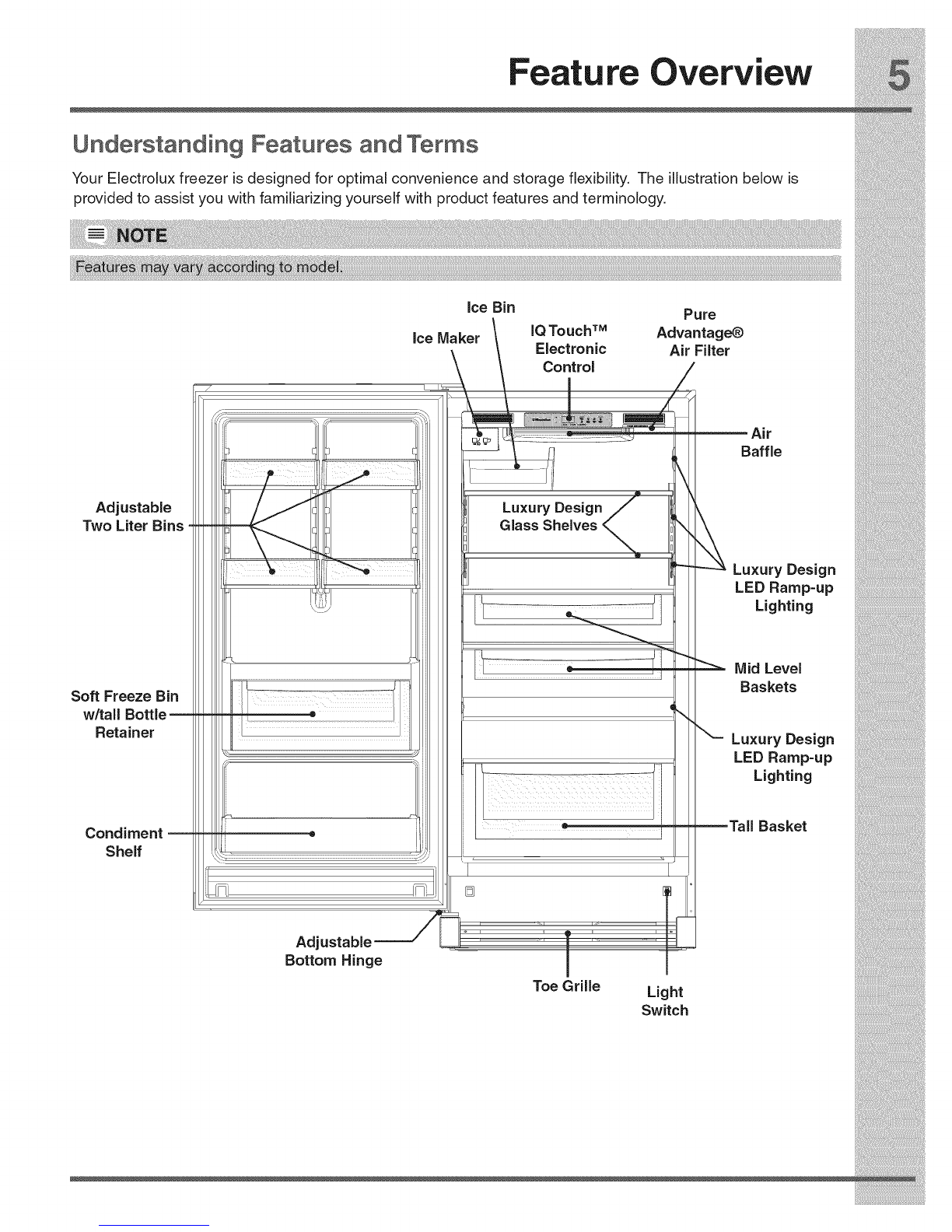

Feature Overview

Understanding Features and Terms

Your Electrolux freezer is designed for optimal convenience and storage flexibility. The illustration below is

provided to assist you with familiarizing yourself with product features and terminology.

Adjustable

Two Liter Bins

ice Bin Pure

ice Maker IQTouchTM Advantage_)

Electronic Air Filter

Control

Luxury Design

Glass Shelves

Air

Baffle

Luxury Design

LED Ramp-up

Lighting

e Mid Level

...................................................................................._ Baskets

Soft FreezeBin

w/taHBott_e-- I

Reta|ner _ LuxuryDesign

__ LED Ramp-up

Lighting

Condiment-- il _ TaB Basket

She.

Adiustab_e_ _--

Bottom._nge •oe_.,,eL_ght

Switch

Jiiii!i!!il;:_@!_!_!;!_!ili_!:iiii:@ii!!i!iiiiii@iii_!ii!i!_ii

Installation

Required Tools

Youwillneedthefollowingtools:

Heod Wrench Set

Ths Use & Care Gude provdes genera nsta aton In t [[ ti n

S a a o

and operating instructions foryour model. We

recommend using a service or kitchen contracting = Allow the following c!ea[ances for ease of .

installation, proper a=rctrculatlon, and plumbing

professionaltoinstallyourfreezer. Usethefreezer . .

and electrical connechons

onlyas instructedinthis Use&Careeuide. Before

startingthefreezer, followthese important first Sdes 3/8 nob (95 mm)

steps. •Back&Top 1 inch(25.4mm)

o .o Allowfortrim kit if itto be installed withthe unit.

:::; LOOa_EOn

Chooseaplacethatisnearagrounded, non-

..........................................................GFC_±electrical outlet. Do Not use an extension

cord or an adapter plug.

i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i@ii_i

Toe Grille Removam

To remove the toe grille, use a Phillips head

screwdriver and remove the two screws holding the

toe grille to the cabinet. Then pull the toe grille away

from the unit.

The freezer must have all bottom corners resting

firmly on a solid floor.

The floor must be strong enough to support a fully

loaded freezer.

It is VERY IMPORTANT for your freezer to be

level in order to function properly. If the freezer

is not leveled during installation, the door may be

misaligned and not close or seal properly, causing

cooling, frost or moisture problems.

Leveling instructions continued on next page.

Matching Refrigerator and Freezer Door Handle

installation

Toe Grill

i_i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_iii_

Levelin

To Level The Freezer:

While unit is lying on its back for wood skid removal,

note the location of the four (4) leg levelers installed at

each corner. These leg levelers will be used to level

the freezer and to adjust the height. Use a carpenter's

level to level the freezer from front to back and side to

side.

Plastic

Leveling Feet

Crating \ \

Screw

Slide second unit into place leaving a minimum

gap of 3/16" between units for door swing

clearance.

This last step may require at least one extraction

of the second unit to properly align units in a

"built-in" application.

Leveling Door with Adjustable Hinge

Use the lower hinge adjustment to fine tune the door

height and for final cabinet spacing. Use a 7/16 inch

socket or wrench to adjust the screw at the bottom of

the lower hinge.

Adjusting Doors For Matching Tall

Refrigerator/Tall Freezer Pair

The doors may also be adjusted side to side with the

slotted hinge for aligning the doors parallel to each

other. Loosen the two bolts with a 3/8" wrench and

one screw with a Phillips screwdriver. Shift the doors

until parallel, then retighten the screws securely. (See

illustration below.)

Lower Hinge Adjustment For Leveling The

Doors Of The Matching Tall Refrigerator /

i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_ii_i

Door Removal and Temperature Control

Door Remova_

if door must be removed:

Unplug the unit or switch the breaker that supplies

power to the unit to the off position.

Remove the plastic top hinge cover.

Hold the door in place while removing the top

hinge from the cabinet.

Remove the two 3/8" hex head bolts from the top

hinge with a 3/8" wrench or socket.

Lift the door upwards and pull up and away from

the cabinet until free of the bottom hinge pin

mounted on the front of the cabinet.

To replace the door, reverse the above procedures

and securely tighten all screws to prevent hinge

slippage.

Hinge

_====_

Hinge Bolts (2

Hinge Plate i

Setting The _QTouch T_ Emeotronic Contro_

COOLDOWNPER_OD

Forsafefoodstorage,a,owfour(4)hoursforfreezertocootdowncomp_ete_y.Thefreezerw,_runcont_nuous_y

forthe first several hours.

_oTOUCH'MELECT.ON_CCONTROL

The IQTouch TME,ectronicContro, islocated insidethefreezer. Temperature isfactorypresettoprovide

satisfactoryfood storagetemperatures. However, thetemperaturecontrol isadjustabletoprovidea rangeof

temperaturesforyourpersonalsatisfaction.

J P "g,p ( ) Y P (-) Y

temperatureonthecontrolpanel. AIIowseveralhoursforthetemperaturetostabilizebetweenadjustments.

Thefreezercan beadjusted between -17 F(-23 C) and 10 F(-12 C). BypressingtheTEMP MODE key, the

temperaturedisplaywilltogglebetween Fto C.

ToturnthefreezerOFF, presstheUP(+) keyuntilthewarmesttemperaturesettingof10F°(-12C°)showsinthe

display. Thenpress,!he UP (+) keythree (3) timeswithinthree (3) secondstoturnthefreezerOFR Thedisplay

willthenscroll"OFF acrossthedisplay. ToturntheunitbackON, pressthe DOWN keythree (3) timeswithin

three (3) seconds. Thecontrolwillthendisplay"10F°(-12C°)"and maybeadjustedtothedesiredtemperature.

LEDwillbeilluminatedgreenforthree(3)seconds, Resetting Air Filter Alarm

i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_i!i_ii_!i!_!_ii_i
