Electrolux HD-Line

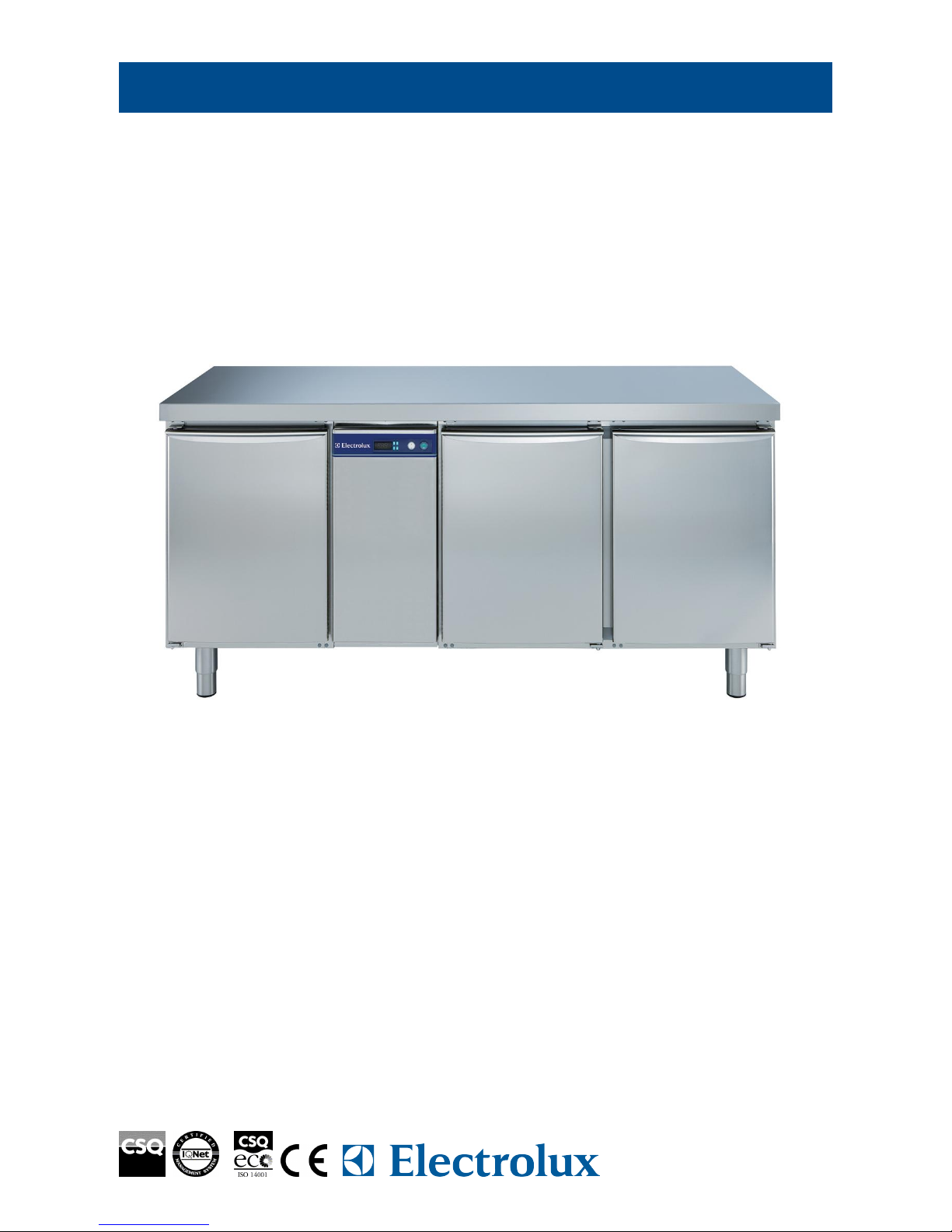

Freezer counters 440 lt

The Electrolux range of freezer counters combines the convenience of worktop space with frozen storage

located below. This range of counters is manufactured throughout in AISI 304 stainless steel to meet the

highest hygiene standards.The range comprises three sizes of cabinet, with built-in or remote compressor

units, in various door or drawer configurations and in refrigerator or freezer versions. The models detailed on

this sheet have 3 full doors and operate over the temperature range of -18°C to -24°C.

726580

EASY TO INSTALL

• Mounted on legs with height

adjustment.

• Built-in or remote compressor to

suit operating conditions.

• Suitable for use in ambient

temperatures of up to 43°C.

EASY TO CLEAN

• Constructed from AISI 304

stainless steel throughout to meet

the highest hygiene standards.

• Rounded internal corners for

ease of cleaning.

• Mounted on stainless steel legs

to give 150 mm clearance for ease

of cleaning the floor.

EASY TO USE

• Adjustable temperature range

from –18°C to -24°C to suit meat,

fish and dairy storage

requirements.

• Anti-tilt runners accept GN1/1

containers.

• Electronic microprocessor

control with external digital

temperature display.

• Forced air circulation for rapid

cooling and an even temperature

distribution.

• Worktop in AISI 304 stainless

steel with a 50 mm thickness.

• Available version with integrated

rear upstand.

EASY TO MAINTAIN

• Access to all components from

the front.

• In compliance with H

requirements.

EASY ON THE ENVIRONMENT

• CFC and HCFC free (ecological

refrigerant type: R404a, - gas in

foam: cyclopenthane).

• 60 mm insulation thickness for

energy saving.

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

Electrolux HD-LineFreezer counters 440 lt

Internet: http://www.electrolux.com/foodservice

HBBB0202010-05-28Subject to change without notice

REMOTE UNIT -24-15°C FOR 550/650 LT 881465

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457

PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451

LOCK FOR REFRIGERATED COUNTERS 881499 881499 881499

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166

KIT 1 DOOR FOR REFRIGER.COUNTER 881517 881517 881517

2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539 880539 880539

1/1 GN GREY "RILSAN" GRID 881435 881435 881435

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 3 3 3

INCLUDED ACCESSORIES

Net weight - kg. 152 153 155

installed-electric 0.8 0.8 0.1

Power - kW

at evaporation temperature - °C -31 -31 -23.3

Refrigerant power

Refrigeration power - W 925 925 1050

Refrigerant quantity - g. 280 280

Refrigerant type R404a R404a R404a

N° defrost in 24 hrs. 4/16' 4/16' 4/16'

Compressor power - HP 3/4 3/4

N° and type of grids (included) 3, GN 1/1 3, GN 1/1 3, GN 1/1

Door hinges 1 Left+2 Right 1 Left+2 Right 1 Left+2 Right

N° and type of door 3 3 3

Worktop type Stainless Steel Stainless Steel with

Splashback

Stainless Steel

height 850 950 850

depth/with open doors 700, 1110 700, 1110 700, 1110

width 1759 1759 1759

External dimensions - mm

Cooling unit Built-In Built-In Remote

Gross capacity (D.I.N. 8952) - l. 440 440 440

Operating mode Ventilated Ventilated Ventilated

Operating temperature - min/max °C -22/-15 -22/-15 -22/-15

TECHNICAL DATA

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

ED - Remote electrical connection ●

D - Water drain 16mm 16mm 16mm

LEGEND

RCDF3M30

726580

RCDF3M30U

726581

RCDF3M30R

726582

726580, 726582 726581
