Installation and Operating Manual

Model:-

TS-5121

Orig. 10/13

CONTENTS

 ABOUT THE OPERATING MANUAL Page 2

 IMPORTANT SAFETY INSTRUCTIONS Page 3

 INSTALLATION INSTRUCTIONS Page 4

 OPERATING INSTRUCTIONS Page 8

 MAINTENANCE INSTRUCTION Page 9

 TECHNICAL DATA Page 9

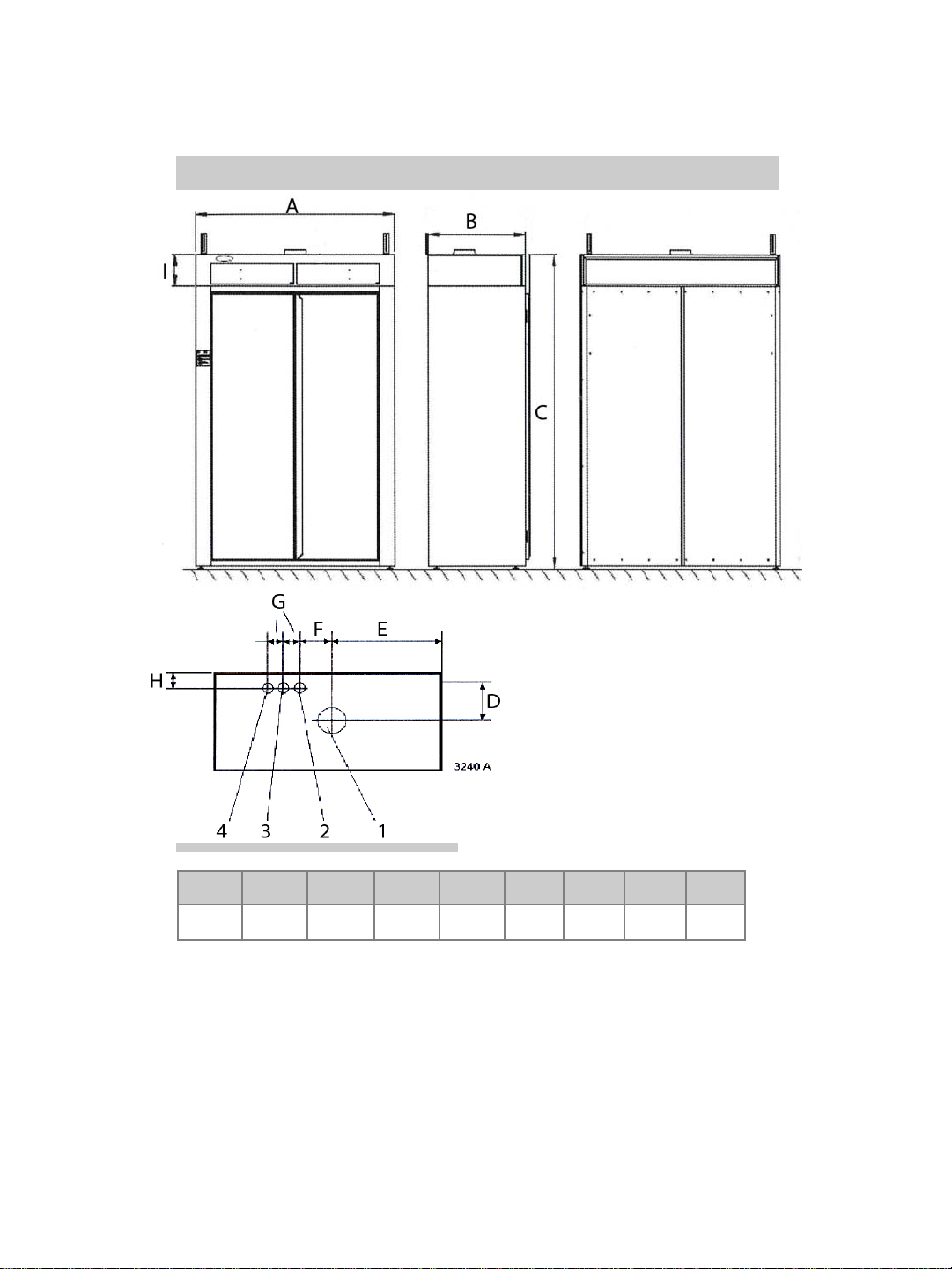

 DIMENSIONS Page 10

ABOUT THE OPERATING MANUAL

DATA PLATE DETAILS

This manual describes the cabinets functions

and operation and includes instructions for

installation and maintenance.

In addition to this Operating Manual there is a

Service Manual and Spare Parts List. The

Service Manual is intended for use by

personnel trained to service this product.

Orig. 03/13

V2 10/13 Dimensions

Page 2 Installation and Operating Manual

Date of purchase:

_______________

Serial number:

_______________

Located inside the cabinet

on the left hand side panel

Your Reference

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

To reduce the risk of fire, electric shock, or

injury to the person when using the appliance,

follow basic precautions including the following:

 Read all the instructions before using the

appliance.

 Do not dry articles that have been

previously cleaned in, washed, soaked or

splashed with petrol or other flammable or

explosive substances as they give off

vapours that could ignite or explode.

 Do not allow children to play on or in the

appliance. Close supervision of children is

required whilst the cabinet is in operation.

 Do not install or store this appliance where

it will be exposed to the weather.

 Do not tamper with the controls.

 Do not repair or replace any part of the

cabinet or attempt any servicing unless

specifically referred to in this manual.

 Do not use fabric softeners or products

designed to eliminate static unless

recommended by the manufacturer.

 Do not use heat to dry articles containing

foam rubber or similar textured rubberised

materials.

 Keep area around the exhaust opening

and adjacent areas free from the

accumulation of dust, lint and fluff.

 Check the exhaust ducting terminal grille

for any blockages or build-up of lint, and

clean regularly.

 The interior of the appliance and the

exhaust duct should be cleaned

periodically by a competent person.

 The manufacturer accepts no liability for

repairs carried out:-

a) by unauthorised personnel.

b) use of non-standard parts.

Installation and Operating Manual Page 3

These instructions and warnings have been provided to help avoid misuse and unnecessary

risks and should be read before the cabinet is installed and used.

NOTE: Keep this manual in a safe place so that it is always available for future use.

WARNING

WARNING LABELS

Affixed to rear inside panel

Underside of heater cartridge

INSTALLATION INSTRUCTIONS

Page 4 Installation and Operating Manual

UNPACKING

Remove all packaging material. Do not use

sharp implements which could damage the

cabinet.

After unpacking, check that the cabinet is in

good condition. Any damage or shortages

should be immediately reported to the supplier

Check for external signs of damage to the

packaging. This may indicate that the con-

signment has suffered damage in transit. Any

damage should be immediately recorded on

the delivery note and reported to your dealer

within 3 days.

Check that all restraining tape and protective

polystyrene buffers are removed from inside

the cabinet.

Checklist of items supplied with the cabinet

 2 x Coach screws, washers and wall

plugs.

 4 x plastic caps to cover access holes in

base of unit..

 Levelling toolbar.

 Operating manual.

INSTALLATION

The dryer is only designed for operation

indoors in a dry environment at a temperature

above freezing point.

NOTE: The appliance should not be located

in a position such that any doorways or safety

exits are impeded with the cabinet door open

and the hanging rails extended.

WARNING

The cabinet should not be used without being

fixed to the wall.

The lifting straps positioned around the

adjustable feet can be used to assist with

lifting the cabinet into place. To avoid

damaging the feet, do not drag the cabinet

across the floor.

The cabinet should stand level on a flat

surface. Adjust using the toolbar through the

access holes in the base panel of the unit if

space around the cabinet is restricted. Ensure

that the top edges of the doors are level.

The cabinet must be fixed to the wall to

prevent it tipping forward when the doors are

opened. Two adjustable brackets are supplied

and these are bolted to the top panel. They

allow for off-setting the cabinet to avoid

obstructions behind e.g. skirting boards,

service pipes, trunking and cables.

The upper section of the cabinet can be removed to reduce the overall

height by 207mm.

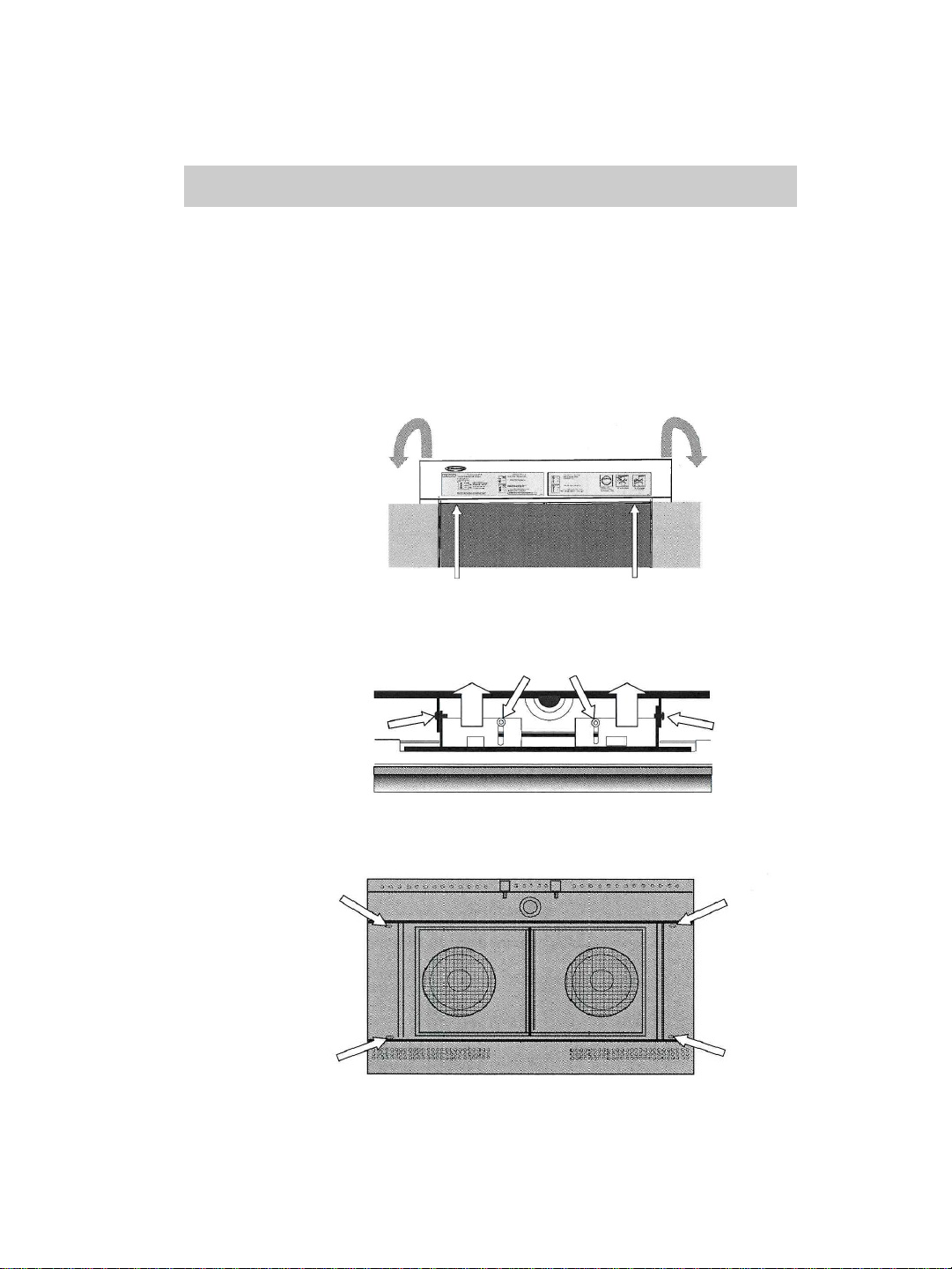

INSTALLATION WHERE ACCESS SPACE IS LIMITED

Installation and Operating Manual Page 5

1. Remove two T20 screws from the under edge of the fascia panel

located through the square holes, then slide the panel upwards.

2. Loosen the four T20 screws securing the door switch bracket and

slide it backwards. Tighten one of the screws to secure in this

position .

3. Remove the four T30 screws from the underside of the control

module. With assistance, lift the cartridge clear from the cabinet.

INSTALLATION INSTRUCTIONS (cont.)

Installation and Operating Manual

Page 6

INSTALLATION INSTRUCTIONS (cont.)

To optimise the efficiency of the cabinet the

damper situated on top of the unit should be

adjusted to a setting that corresponds with

the pressure drop in the ducting. The

maximum permissible pressure drop is 70pa.

If the pressure drop is greater than this, an

external fan must be installed. The dryer

has electrical terminals inside the control

console suitable for connecting an external

fan. The fan would then operate only when

the cabinet is in use.

If several cabinets are installed adjacent to

each other it is advisable to fit a separate

ducting system to each unit. If a single

ducting pipe is to be considered for a multi

unit installation, it would be advisable to seek

professional advise from a specialist heating

and ventilation engineer.

EXHAUST CONNECTION

The exhaust ducting should not be connected

into an existing chimney, boiler flue or tumble

dryer system.

The dryer must be connected directly to an

exhaust ducting system that terminates on the

outside of the building. This could be through

the roof or on an external wall. The outlet

spigot on top of the cabinet is 125mm

diameter. The effective length of the ducting

‘A’ is 23m of straight pipe. If the diameter of

the pipework is increased to 160mm, the

effective length is 70m. The effective length of

the system will vary depending on the type of

ducting material and the number of bends

used. The cabinet operates more efficiently

with the minimum length of ducting and the

unit should be positioned on an external wall if

possible.

Notes:

 Rigid metal or plastic pipe is preferred

although flexible ducting can be used for

some installations within close proximity to

an outside wall.

 Wall vented systems, including fixed

window pane applications, should

terminate with an open louvre grille.

 Roof vented systems should be fitted with

a weather cowl or a downward facing

bend.

 Standard tumble dryer back draught

shutters should not be used.

 Ensure that the ducting and terminal

fittings are cleaned on an annual basis.

ROOM VENTILATION

The cabinet has an exhaust airflow of up to

250 cubic metres per hour. This air has to be

sourced initially from within the room where the

dryer is installed. It is important to ensure that

there is a continuous supply of fresh air into

the room. The air intake into the cabinet is via

the door surrounds - sealing gaskets are not

fitted for this reason. The recommended free

area of the air intake into the room must not be

less than 142cm2. The resistance caused by

grilles or shutters must not exceed:

10 Pa (0.1 mbar).

Commissioning the ducting system

ELECTRICAL CONNECTIONS U.K.

Ensure that power is not connected to the

appliance while installation work is being

carried out.

The cabinet is supplied as standard in two

versions suitable for connection to:-

 230 volt single phase:

fuse rating 32 amp.

 400 volt three phase and neutral:

fuse rating 3 x 10 amp.

NOTE:

The voltage, total load and fuse rating details

can be found on the data plate

on the inside of the cabinet.

The cabinet is not supplied with a mains cable.

The size and type of cable should be

determined by a qualified electrician to suit the

power supply and the location of the

installation.

Connection should be made via a suitable

isolator which complies with national and local

safety regulations, and the on/off switch should

be easily accessible for any servicing work.

When switched off there must be an all-pole

contact gap of 3mm in the isolation switch

(including switch, fuses and relays according to

VDE 0660). For additional safety it is advisable

to include a residual current devise (RCD)

within the installation.

All electrical work should be carried out only by

a suitably qualified and competent person, in

strict accordance with national and local safety

regulations.

WARNING: This appliance must be

earthed. If in any doubt consult a

competent person.

All supply cables into the cabinet should be

clamped using the glands fitted to the top

panel. The top fascia panel should be re-

moved to access the terminal connecting

block. Remove The fascia panel can now

be removed. Ensure that all panels are

refitted before the machine is operated.

NOTE:

Connecting external devices.

A terminal block inside the control console is

wired and labelled to accept an external duct-

ing fan and coin/token operated mechanism if

required.

Page 7

Installation and Operating Manual

INSTALLATION INSTRUCTIONS (cont.)

Model TS-5121

The cabinet is fitted with a stainless steel

hanging rail mounted on a spindle. The

assembly can be moved outwards to assist

the loading process. The assembly is

comprised of either four or five horizontal

rails at alternate levels as shown below

Option

The cabinet can be fitted with a single

stainless steel hanging rail (not shown)

instead of the standard assembly. This

arrangement may suit longer garments.

Loading the cabinet

It is recommended that longer items of

laundry are located to the top section of

rails with shorter items towards the lower

set of rails. Shoes, trainers and other

items can be placed in the base of the unit.

Laundry items should be spread evenly

over the rails to ensure consistent drying.

This method of loading will assist the

drying process by allowing the efficient

flow of warm air through the cabinet. Do

not block the warm air ducts on the inside

panels.

Page 8 Installation and Operating Manual

OPERATING INSTRUCTIONS

USER GUIDE

WARNING

To reduce the risk of fire, electric shock, or

injury to the person, read the IMPORTANT

SAFETY INSTRUCTIONS before operating

this appliance.

CONTROLS

TROUBLESHOOTING

The cabinet is supplied with a simple to

use touch pad with two heat settings for

ease of use, Whites/colours and

Synthetics. Both options are controlled by

moisture sensors and will automatically

switch the power off when then the laundry

has reached the correct level of dryness.

An automatic cool down period of

approximately 8 minutes is built into each

cycle.

To operate the drying cabinet sort the

laundry in cottons or synthetic loads, select

the appropriate setting, then press start.

The buttons are also written in Braille to

assist those with poor sight.

The control panel also has two warning

lamps to alert users that the lint filter

requires cleaning requires cleaning. The

right hand lamp will indicate that a

problem exists with heating when

illuminated.

In case of overheating the drying process will

stop and three lamps on the control panel will

flash. Check and clean the filter located

inside the top panel of the cabinet if

necessary. When the temperature has

cooled down to its operating level, only the

overheat warning lamp will flash. It is now

possible to re-set by pushing and holding the

Stop button for 10 seconds.

The cabinet will stop automatically if the filter

is blocked and the Clean Filter warning

symbol will flash. To remedy, clean the filter

and re-set by pressing and holding the stop

button as above

WARNING:

Do not place laundry or any other items on top

of the cabinet.

Installation and Operating Manual Page 9

MAINTENANCE INSTRUCTIONS

TECHNICAL DATA

Capacity: 8kg (approx. weight)

general laundry textiles.

Evaporation rate: 81 g/min.

Electrical supply: 230v, 50Hz, a.c.

400v , 50Hz, a.c.

Motor: 2 x 85 W.

Heating element: 6kW

Overheat cut-out: Yes.

Timer: Automatic sensor

Dimensions: Height. 1845mm.

(Overall) Depth. 610mm.

Width. 1195mm.

Net Weight: 134kg.

Colour: White/Grey.

MANUFACTURING

APPROVALS

Protection class IP X4

PERFORMANCE SPECIFICATION

SETTING TEMPERATURE

WHITES / COLOURS 70 - 80 deg. C

SYNTHETICS 60 - 70 deg. C

*Values quoted above are approximations and will vary with type of load and ambient conditions

High pressure water jet cleaning should not used on this cabinet.

The use of bleach, caustic solutions and abrasive materials is not recommended.

The cabinet should be cleaned (inside and out) with a damp cloth using a mild detergent

solution.

Dust will collect on top of the cabinet therefore it should be cleaned at least once a year or

more frequently depending on the location of the unit and it’s application.

A lint filter, situated inside the cabinet and above the hanging rail assembly, should be

periodically removed and cleaned with a soft brush.

CLEANING

DIMENSIONS

A B C D E F G H I

1195 580 1815 215 595 165 50 60 185

Key to dimensions

1. Exhaust Duct Spigot : 125mm diameter

2. Mains Cable Entry

3. Cable Entry for External Fan (if required)

4. Cable Entry for External payment system (if required)

Page 10 Installation and Operating Manual

Notes:

Minimum clearance required for access with

the cabinet removed from pallet:

Width: 610mm Height: 1850mm

Maximum levelling adjustment: Plus 25mm

Minimum clearance required in front of the

cabinet with the hanging rail fully extended:

820mm

Doors open to 180 degees and extend 430mm

from the end panels.

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux EDR 2000 Manuel utilisateur

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuel utilisateur

Electrolux

Electrolux EDC 3150 Manuel utilisateur

Electrolux

Electrolux T4130 Manuel utilisateur

Electrolux

Electrolux Electric Dryer Manuel utilisateur

Electrolux

Electrolux EDP2074PDW Manuel utilisateur

Electrolux

Electrolux EW8H2966IR Manuel utilisateur

Electrolux

Electrolux EDE1070PDW Manuel utilisateur

Electrolux

Electrolux EIMED60J RR Manuel utilisateur

Electrolux

Electrolux EWGD65H Manuel utilisateur

Electrolux

Electrolux TWSL4E301 Manuel utilisateur

Electrolux

Electrolux EDC804Q5WB Manuel utilisateur

Electrolux

Electrolux TWGL5E400 Manuel utilisateur

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuel utilisateur

Electrolux

Electrolux EDE56150W Manuel d'exploitation et d'entretien

Electrolux

Electrolux EIMED6CJSS Manuel utilisateur

Electrolux

Electrolux TAL1E100 Manuel utilisateur

Electrolux

Electrolux TW SL5 E Manuel utilisateur

Electrolux

Electrolux EDE 56160W Manuel utilisateur

Electrolux

Electrolux T5550 Manuel utilisateur

Electrolux

Electrolux EDH903R9WB Manuel utilisateur

Electrolux

Electrolux EDV5051 Manuel utilisateur

Electrolux

Electrolux EDC78550W Manuel utilisateur

Electrolux

Electrolux EW8H258SP Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
