Electrolux T4190 Manuel utilisateur
Installation manual
T4190
Compass Control 487 05 42 61.00
EN
3
*Applies only to floor mops containing polypropylene.
Safety instructions
Safety instructions
This machine is only intended for drying water-washed
garments.
Clothes that have been cleaned with chemicals/inflammable
liquids, must NOT be dried in the machine.
Remove clothes from the tumble dryer as soon as they are dry.
This prevents them from becoming creased, and reduces the
risk of spontaneous ignition.
The machine must not be used for drying foam rubber or foam-
like materials.
The machine must not be used for drying floor mops*.
The machine must not be used by minors.
The machine must not be hosed down with water.
Mechanical, electrical and gas installations must only be carried
out by authorised personnel.
If the machine has a fault, this must be reported as soon as
possible to the person in charge. This is important for your own
safety and for the safety of others.
Gas dryers only:
The machine is not to be installed in rooms containing cleaning
machines with perchloroethylene, TRICHLOROETHYLENE or
CHLOROFLUOROCONTAINING HYDROCARBONS as cleaning
agents.
What to do if you smell gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in
your building.
Evacuate the room, building or area.
Contact the laundry manager.
The dryer must not be installed behind a lockable door or sliding
door. In the room where the dryer is to be installed the door hinges
must be on the outer side.
44
5
Contents
Contents
Safety instructions........................................................................................ 3
Technical data.............................................................................................. 6
Unpackning.................................................................................................. 8
Ship installation............................................................................................ 9
Door reversal.............................................................................................. 10
Installation...................................................................................................11
Function check........................................................................................... 21
The manufacturer reserves the right to modify design and material
specifications without notice.
66
Technical data
Heating Electric Gas
Drum volume: 190 litres 190 litres
Weight: Net 103 kg 103 kg
Drum: Diameter 680 mm 680 mm
Depth 555 mm 555 mm
RPM 50 rpm 50 rpm
G-factor 0.8 0.8
Capacity: Factor 1:25 7.5 kg 7.5 kg
Factor 1:33 5.8 kg 5.8 kg
Heat effect: Electric 6.0 kW 6.0 kW
8.0 kW 8.0 kW
Air consumption: Heat effect 6.0 kW 270 m3/h 270 m3/h
8.0 kW 290 m3/h 290 m3/h
Piping: Evacuation Ø 125 Ø 125
Gas piping ISO 7/1 - R1/2
Pressure drop: Evacuation 6.0 kW 380 Pa 380 Pa
8.0 kW 350 Pa 350 Pa
Sound power level: LW < 68 dB (A) < 68 dB (A)
Technical data
7
ABCDEFGHI K
mm 720 745 1130 420 110 120 960 45 55 1445
B
D
F
H
A
C
E
G
I
K
1
2
3
4
LM
mm 575 80
M
L
5
Dimension sketch
1 Door opening 5Gas connection
2 El. connection
3 Pipe connection, evacuation
4 Connection for external control
Technical data
88
2
1
Unpacking
Unpacking
Unpack the dryer from the packaging.
Loosen the dryer from the pallet by cutting the
plastic ribbons.

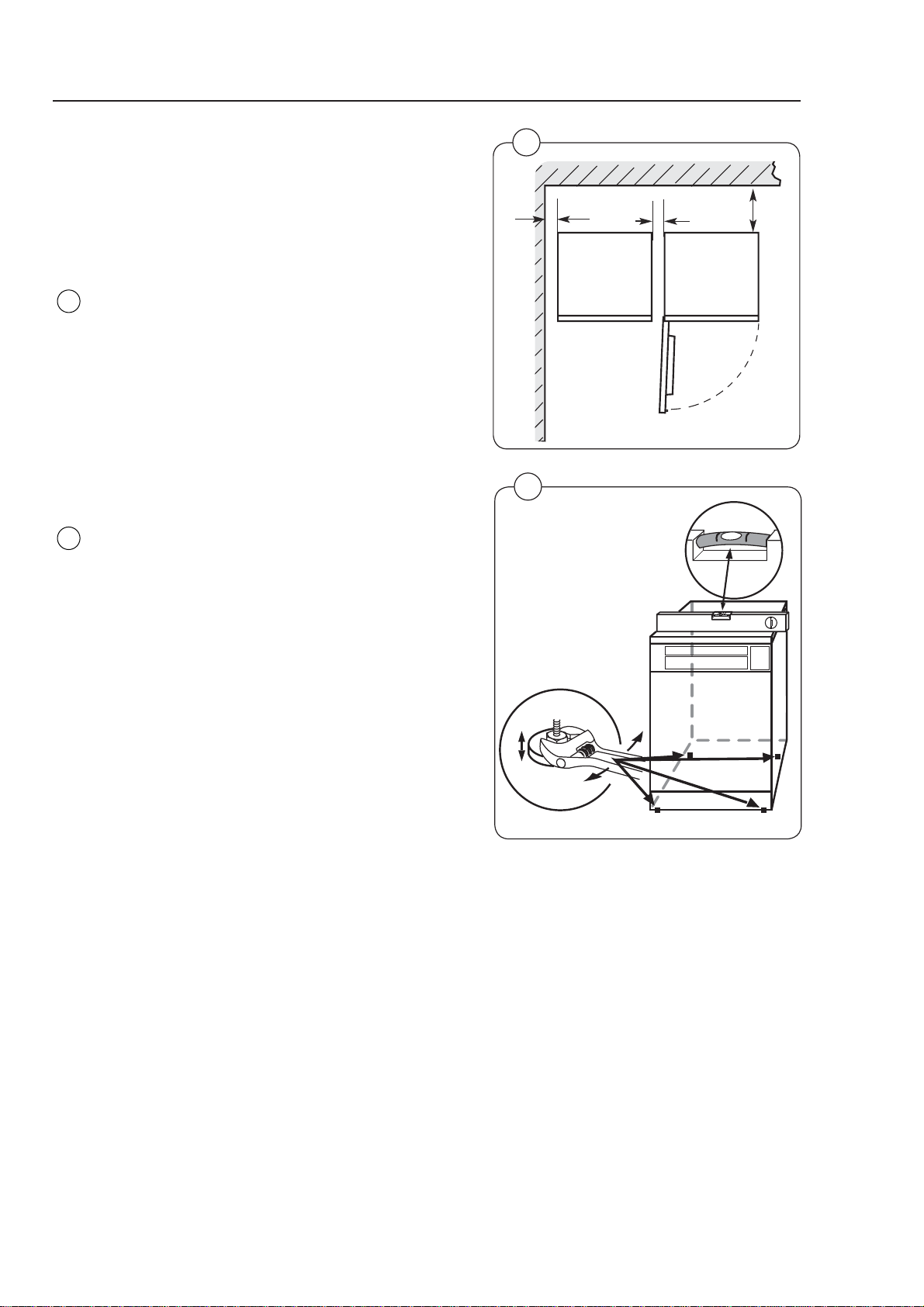

Positioning
Place the tumble dryer to ensure that work can be
done as easily as possible by the user and the
service technician alike. The door hanging can be
changed.
The distance to the wall or other equipment
behind the dryer should be min. 300 mm and the
distance to the sides min. 10 mm. However, there
should be free access to the back of the dryer for
the purpose of servicing it.
Mechanical installation
Adjust the dryer to ensure that it is horizontal and
stands firmly on all four feet.
The maximum height adjustment of the feet is 50
mm.
When the adjustment has been made, lock the
feet by means of the lock-nuts.
Normally, the dryer requires no bolting to the floor
or foundation.
However, tumblers on a base do require
anchoring.
The fittings are fastened to the foundation using
M10 expansion bolts or other devices of the same
dimension. Special fittings are available from the
supplier for this purpose.
Fig
2
Fig
1
9
1
20 Nm
M10
Min 400
675
M10
M10
M10
M10
600
Ship installation
Ship installation
To ensure the steadiness of the dryer it is important to fasten it to the
delivered base.
Fasten the 4 fittings (supplied with the dryer) to the foundation using 4 x
M10 set screws or other devices of the same dimension (not supplied).
The 4 feet from the dryer are mounted on the base and the feet are
fastened to the fittings.
The dryer is fastened to the base using 4 x M10 bolts (supplied with the
base) and is tightened with 20 Nm.
Fig
1
Dryer
Front
Drilling template
1010
3
1
4
2
B
B
A
Door reversal
The door reversal illustrated below is on a
lefthinged door.
Reversing the door
• Disconnect the power to the dryer.
On the dryer
• Demount T-fitting A and screw the screws
back into the same holes (in order to secure
the plate on the back).
• Disengage the door by carefully lifting it away
from the front. (Make sure to get a good grip
on the door - it is heavy).
• Demount the front panel.
• Demount T-fitting A and B and mount on the
opposite side.
• Loosen cable hanger with cable and mount on
the opposite side. Strap the cable.
• Move door switch to the opposite side.
• Mount T-fitting A at the bottom of the right
side.
On the door
• Move door handle to the opposite side, screw
screws into holes.
• Mount T-fitting B at the top of the right side.
• Move ball lock in the door to the opposite side
without turning the lock, move cover plate.
On the dryer
• Adjust the ball lock if required. Adjust the
door height using the T-pieces.
Start the dryer
• Reconnect the power to the dryer.
• Check that the door switch is working:
The drum must stop when the door is opened.
Door
Fig
2
Fig
1
Fig
4
Fig
3
Fig
1
