electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from

Electrolux, which hopefully will provide you with lots of

pleasure in the future. The Electrolux ambition is to

offer a wide variety of quality products that make your

life more comfortable. You find some examples on

the cover in this manual. Please take a few minutes

to study this manual so that you can take advantage

of the benefits of your new machine. We promise that

it will provide a superior User Experience delivering

Ease-of-Mind. Good luck!

125983630 gb.qxp 2006-10-02 12:38 Page 3

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel.....................................7

Use....................................................8

Drying hints .....................................12

Drying programme .....................14-15

Programme information...................16

Care and cleaning ...........................17

Something not working....................18

Technical data .................................23

Consumption values........................24

Installation .......................................25

Environment concerns.....................27

Guarantee conditions ......................28

Customer service centres................29

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

125983630 gb.qxp 2006-10-02 12:38 Page 4

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain

with the appliance if it is moved or

sold, so that everyone using it

through its life will be properly

informed on appliance use and safety.

General safety

●It is dangerous to alter the

specifications or attempt to modify

this product in any way.

●This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

●Make sure that small pets do not climb

into the drum. To avoid this, please

check into the drum before using.

●Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

●In order to avoid danger of fires

caused by excessive drying, do not

use appliance to dry the following

items: Cushions, quilts and the like

(these items accumulate heat).

●Items such as foam rubber (latex foam),

shower caps, waterproof textiles, rubber

backed articles and clothes or pillows

fitted with foam rubber pads should

not be dried in the tumble dryer.

●Always unplug the appliance after

use, clean and maintenance.

●Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

●Items that have been soiled with sub-

stances such as cooking oil acetone,

petrol, kerosene, spot removers, tur-

pentine, waxes and wax removers

should be washed in hot water with

an extra amount of detergent before

being dried in the tumble dryer.

●DDaannggeerrooffeexxpplloossiioonn::Never tumble dry

items that have been in contact with

inflammable solvents (petrol, methylated

spirits, dry cleaning fluid and the

like). As these substance are volatile,

they could cause an explosion. Only

tumble dry items washed with water.

●RRiisskkooffffiirree: items that have been

spotted or soaked with vegetable or

cooking oil constitute a fire hazard

and should not be placed in the

tumble dryer.

●If you have washed your laundry

with stain remover you must

execute an extra rinse cycle before

loading your tumble dryer.

●Please make sure that no gas lighters

or matches have accidentally been left

in pockets ofgarments to be loaded

into appliance

Installation

●This appliance is heavy. Care should

be taken when moving it.

●When unpacking the appliance, check

125983630 gb.qxp 2006-10-02 12:38 Page 5

6electrolux safety information

that it is not damaged. If in doubt, do not

use it and contact the Service Centre.

●All packing and transit bolts must be

removed before use. Serious damage

can occur to the product and to

property if this is not adhered to. See

relevant section in the user manual.

●The final part of a tumble dryer cycle

occurs without heat ( cool down

cycle ) to ensure that the items are

left at a temperature that ensures

that items will not be damaged.

●Any electrical work required to

install this appliance should be

carried out by a qualified electrician

or competent person.

●Care must be taken to ensure that

the appliance does not stand on the

electrical supply cable.

●If the machine is situated on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely

●After having installed the appliance,

check that it is not pressing or

standing on its electrical supply

cable, inlet hose and drain hose.

●If the tumble dryer is placed on top of a

washing machine, it is compulsory to

use the stacking kit (optional accessory).

Use

●This appliance is designed for domestic

use. It must not be used for purposes

other than those for which it was

designed.

●Only wash fabrics which are designed

to be machine dried. Follow the

instructions on each garment label.

●Do not dry unwashed items in the

tumble dryer.

●Fabric softeners, or similar products,

should be used as specified by the

fabric softener instructions.

●Do not overload the appliance. See

the relevant section in the user

manual.

●Clothes which are dripping wet

should not be placed in the dryer.

●Garments which have been in

contact with volatile petroleum

products should not be machine

dried. If volatile cleaning fluids are

used, care should be taken to

ensure that the fluid is removed from

the garment before placing in the

machine.

●Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

●Never use the tumble dryer if the

power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the tumble dryer is accessible.

WWAARRNNIINNGG::

Never stop a tumble dry before the

end of the drying cycle.

Child safety

●This machine is not intended for use

by young children or infirm persons

without supervision.

●Children should be supervised to ensure

that they do not play with the appliance.

●The packaging components (e.g.

plastic film, polystyrene) can be

dangerous to children - danger of

suffocation! Keep them out of

children’s reach

●Keep all detergents in a safe place

out of children’s reach.

●Make sure that children or pets do

not climb into the drum.

125983630 gb.qxp 2006-10-02 12:38 Page 6

product description/control panel electrolux 7

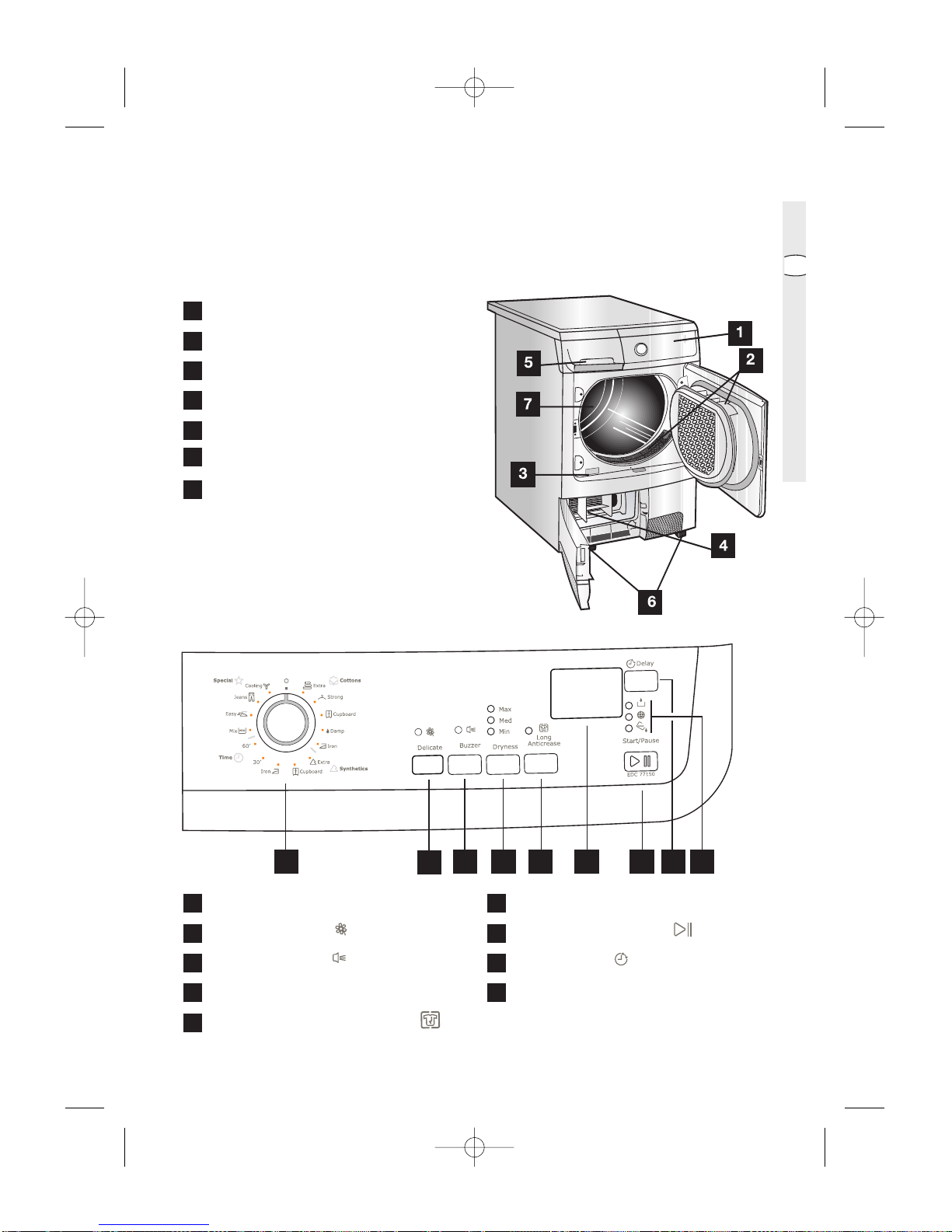

Product description

Control panel

Fluff filters

Rating Plate

Condenser unit

Water reservoir

Adjustable feet

Drum Light

Control panel

Programme selector dial

Delicate button

Buzzer button

Dryness button

Long -Anti Crease button

1 3 4 5 7 8 96

Display

Start/Pause button

Delay button

Indicator lights

125983630 gb.qxp 2006-10-02 12:38 Page 7

8electrolux use

Use

First Use

●

Ensure that the electrical connections

comply with the installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Before using your tumble dryer for

the first time, werecommend that you

to place a few damp clothsinside the

appliance and dry for 30 minutes.

There may be dust inside a brand

new tumble dryer.

Daily Use

Load the laundry

Connect the appliance.

Open the door (see picture).

Place the laundry in the drum, one item at a

time, shaking them out as much as possible.

Select the required programme

Turn the programme selector dial to the

required programme.

The light Start/Pause starts to flash.

The selector dial is divided into following

sections:

Cottons

Synthetics

Time

Special

Allows you to select electronically

controlled or time controlled drying. Turn

the dial to the required programme or time.

EElleeccttrroonniiccaallllyyccoonnttrroolllleeddddrryyiinngg((aauuttoommaattiicc))

The appliance runs these programmes with

the help of probes which detect the degree

of dampness of the laundry. Simply select

the programme according to the type of

laundry and degree of drying required. The

selector dial can be turned either clockwise

or anticlockwise.

At the end of the programme the

selector dial must be turned to

position O, to switch the machine off.

Attention!

If you turn the programme selector dial

to another programme when the machine is

working, the lights of the programme progress

display start to flash. The machine will

not perform the new selected programme.

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start/Pause button. When these buttons

are pressed, the corresponding pilot lights

125983630 gb.qxp 2006-10-02 12:39 Page 8

use electrolux 9

come on. When they are pressed again, the

pilot lights go out.

Select Delicate

Pressing this button allows drying to be

performed at a lower temperature, for

delicate items.

The corresponding pilot light comes on. This

option can also be used for time controlled

drying. DELICATE is only suitable for use

with loads of up to 3kg!

Select the Buzzer

When the drying cycle has finished, an

intermittent audible signal will sound.

By depressing button the acoustic

signal is switched off in the following cases:

• when selecting the programme

• when depressing the buttons

• when the programme selector dial is

turned to another position during the

programme or when you depress an

option button during the cycle

• at the end of the programme.

The corresponding light comes on

Select the Dryness

Press the Dryness button repeatedly, to

select the desired option. The relevant

light will light up. Laundry becomes

dryer from MIN to MAX.

When the programme has finished the

pilot lights End is on.

Select the Long-Anticrease button

The drying cycle is automatically followed by

a anti-crease phase which lasts around

30 minutes.

Select the Start/Pause

Press this button to start the dryer after

having selected the programme and

the options. The relevant light will stop

flashing. If the programme selector dial

is turned to another position, when the

machine is running, the buzzer will

sound and the programme phase indicator

lights will flash. The drum turns alternately

in both directions during drying.

All drying programmes end with a 10 minute

cooling phase (light Cooling is on). You may

remove the laundry after this phase.

The display will show the symbol Long

Anticrease, and lights and illumi-

nate and the buzzer sounds

IIfftthheeddoooorroofftthheeaapppplliiaanncceeoorrtthheessmmaallll

ddoooorraatttthheebboottttoommiissooppeenneeddwwhhiilleetthhee

pprrooggrraammmmeeiissrruunnnniinngg,,tthhiissbbuuttttoonnmmuusstt

bbeepprreesssseeddaaggaaiinnaafftteerrcclloossiinnggtthheeddoooorr

iinnoorrddeerrttoorreessttaarrtttthheepprrooggrraammmmeeffrroomm

tthheeppooiinnttaattwwhhiicchhiittwwaassiinntteerrrruupptteedd..

TThhiissbbuuttttoonnmmuussttbbeeddeepprreesssseeddaallssooaafftteerr

aappoowweerrffaaiilluurreeaannddaafftteerrhhaavviinnggrreeiinnsseerrtteedd

tthheewwaatteerrrreesseerrvvooiirr,,iiffiitthhaassbbeeeenneemmpp--

ttiieeddiinntthheemmiiddddlleeooffaapprrooggrraammmmeeaafftteerr

lliigghhttiinngguuppoofflliigghhtt..

In both cases the light of the Start/Pause

button flashes to remind you that the

start button needs to be pressed again.

125983630 gb.qxp 2006-10-02 12:39 Page 9

10 electrolux use

Select the Delay Start

With the DELAY button, you can delay the start of

a programme by between 30 minutes (30' and a

maximum of 20 hours (20H).

1.Select the programme

2.Press the DELAY button as many times

as necessary until the required start delay appears

on the multi display, e.g. 12H if the programme is

to be started in 12 hours.

If 20H is displayed and you press the button again,

the time delay will be cancelled. The display will show

0' and then the duration of the selected pro-

gramme.

3.Toactivatethedelaytimer,presstheSTART/PAUSE

button. The amount of time remaining until the

programme is set to start is continuously dis-

played (e.g. 12H, 11H, 10H, … 30' e+tc).

If you wish to add some laundry while the

machine is performing the countdown, after

having done so and having closed the door,

press START/PAUSE again, in order to allow

the machine to complete the remaining

countdown time.

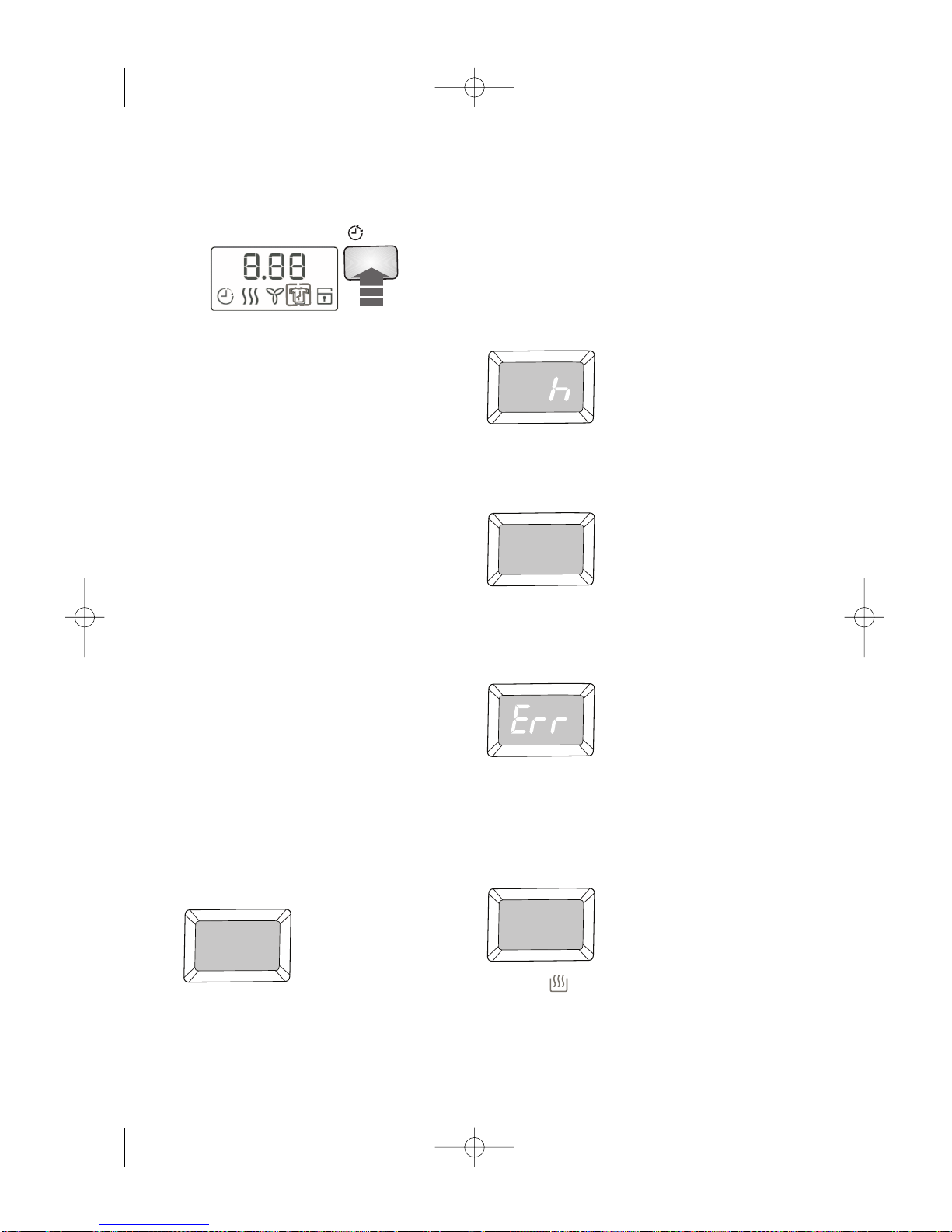

Display

The display shows the following information:

DDuurraattiioonnooffsseelleecctteeddpprrooggrraammmmee

After you have selected the programme,

its duration (in hours and minutes) appears

on the display. It is calculated automatically

on the basis of the maximum load

accepted for each type of fabric and of the

required degree of drying.

When the programme starts, the remaining

time is displayed every 5 minutes.

1.20

Delay

DDeellaayyeeddssttaarrtt

If you have selected a delay time by means of

the relevant button, the display shows it for 3

seconds; then it shows the duration of the

previously selected programme. The

countdown is displayed every 30 minutes

until it displays “90 minutes” and then hour by

hour.

EEnnddooffpprrooggrraammmmee

A flashing zero indicates the end of the

programme and it is displayed after the

“anticreasing” phase.

IInnccoorrrreeccttooppttiioonnsseelleeccttiioonn

If you select an option that is not compatible

with the programme you have selected,

the display shows Err (error).

Thiscode will reappearduring the execution of

the programme if you press one of the option

buttons or turn the programme selector.

AAllaarrmmccooddee

In case of a functional anomaly, the display

shows an alarm code (e.g. E21).

““DDrryyiinngg””

This symbol appears on the dispay that

the appliance is in the drying phase.

E.27

0.00

125983630 gb.qxp 2006-10-02 12:39 Page 10

Autres manuels pour EDC 77150W

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux Zanussi TCE 7245 Manuel utilisateur

Electrolux

Electrolux EIMGD55I Manuel utilisateur

Electrolux

Electrolux TW SL6 E Manuel utilisateur

Electrolux

Electrolux TDV 850 Manuel utilisateur

Electrolux

Electrolux EDH804H5WB Manuel utilisateur

Electrolux

Electrolux EW8H2966IR Manuel utilisateur

Electrolux

Electrolux EDE 425 M Guide rapide

Electrolux

Electrolux EW8H258SP Manuel utilisateur

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuel utilisateur

Electrolux

Electrolux EKDR14XAKW0 Manuel utilisateur

Electrolux

Electrolux EDE 77550W Manuel utilisateur

Electrolux

Electrolux EIMED60LSS Manuel utilisateur

Electrolux

Electrolux EEFDG317TIW Manuel utilisateur

Electrolux

Electrolux TWGL5E303 Manuel utilisateur

Electrolux

Electrolux EDV5051 Manuel utilisateur

Electrolux

Electrolux TE1120 Manuel utilisateur

Electrolux

Electrolux IQ-Touch EIMGD60LT Manuel du propriétaire

Electrolux

Electrolux TW SL4 E Manuel utilisateur

Electrolux

Electrolux EDP2074PDW Manuel utilisateur

Electrolux

Electrolux EDH3684PDW Manuel utilisateur

Electrolux

Electrolux FEQ332E Manuel utilisateur

Electrolux

Electrolux EDC78550W Manuel utilisateur

Electrolux

Electrolux EDP2074PEW Manuel utilisateur

Electrolux

Electrolux T4650 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
