Electrolux GA60GLICCN Manuel utilisateur
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES................................................................................................. 8
6. SETTINGS........................................................................................................10
7. OPTIONS..........................................................................................................13
8. BEFORE FIRST USE....................................................................................... 14
9. DAILY USE....................................................................................................... 15
10. HINTS AND TIPS........................................................................................... 17
11. CARE AND CLEANING..................................................................................18
12. TROUBLESHOOTING....................................................................................20
13. PRODUCT INFORMATION SHEET ..............................................................23
14. ADDITIONAL TECHNICAL INFORMATION...................................................24
15. GUARANTEE ................................................................................................ 25
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
ENGLISH 3
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
www.electrolux.com4
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS
1362) fuse.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Without electrical power, the water
protection system is not active. In this
case there is a risk of flooding.

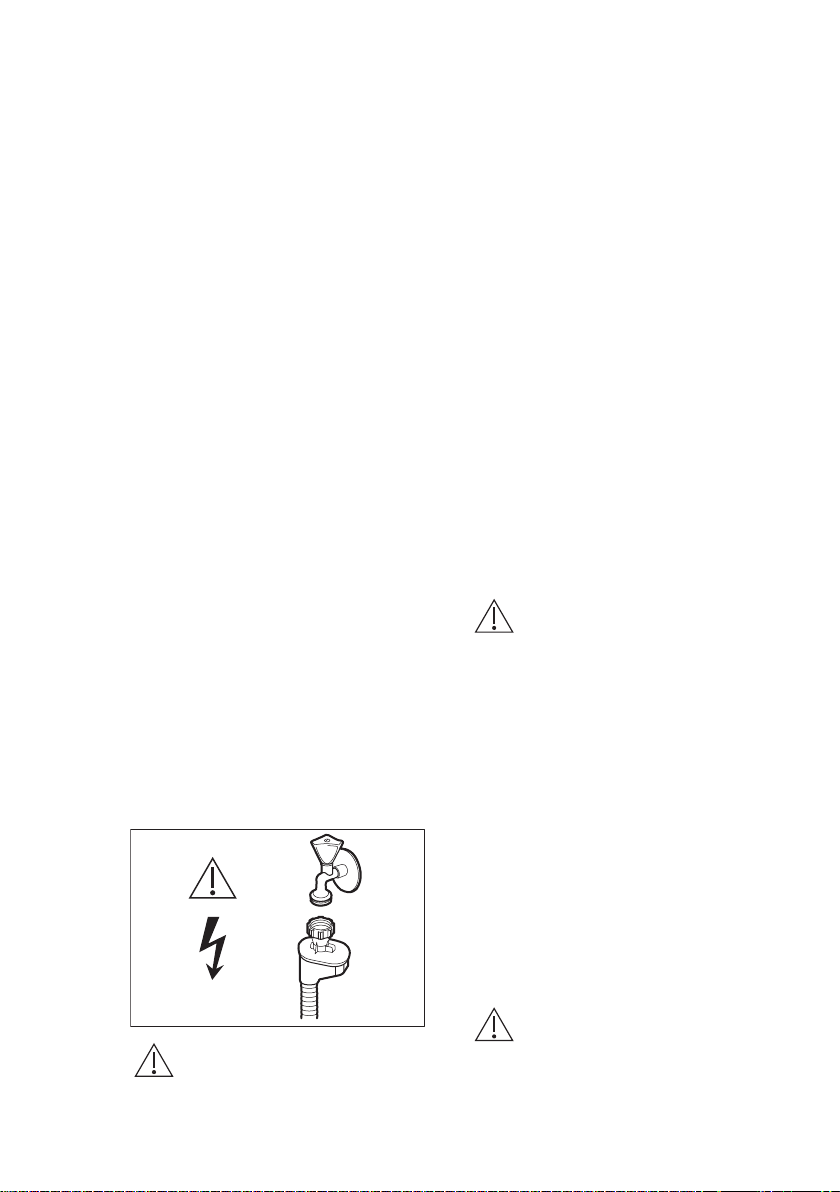

• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not sit or stand on the open door
of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
2.5 Internal lighting
WARNING!
Risk of injury.
• This appliance has an internal lamp
that comes on when you open the
door and goes off when the door is
closed.
• The type of lamp used for this
appliance is for household appliances
only. Do not use it for house lighting.
• To replace the internal lighting,
contact the Authorised Service
Centre.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
ENGLISH 5
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

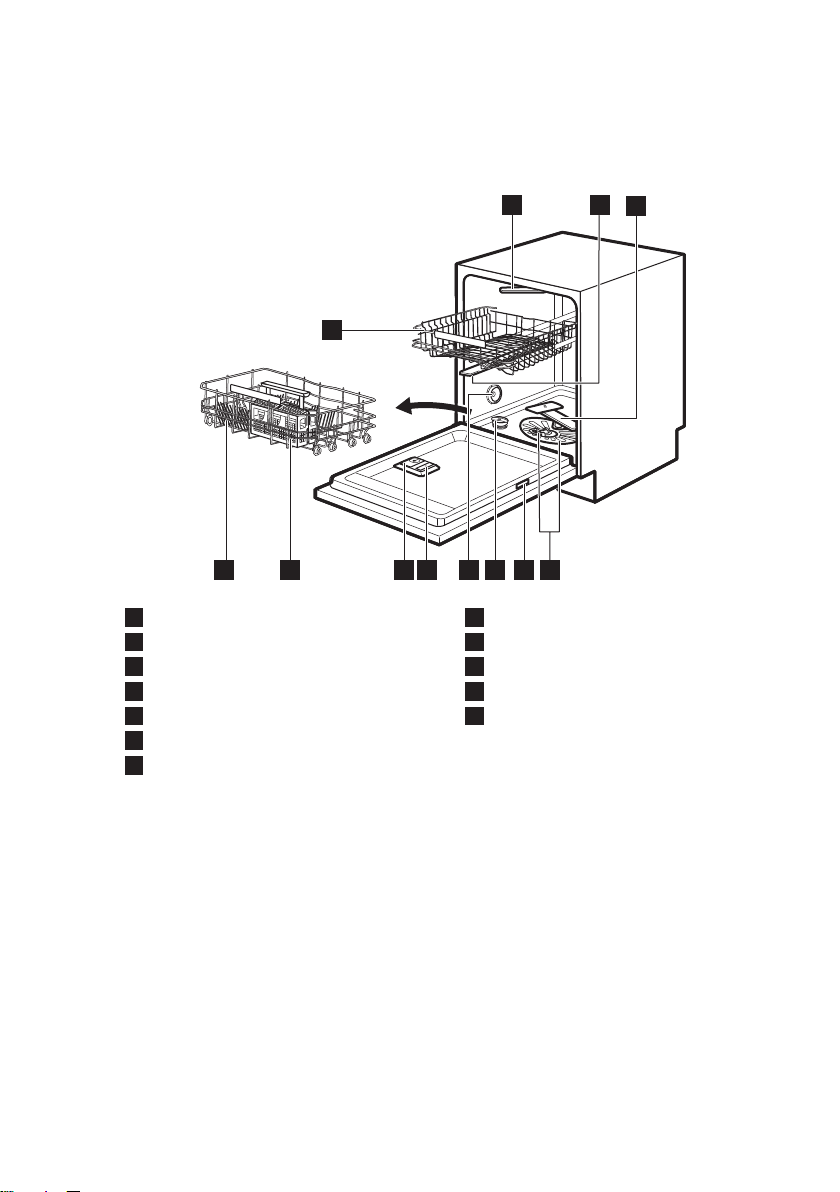

3. PRODUCT DESCRIPTION
54
67
9 8
12
23
1
11 10
1Top spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
www.electrolux.com6

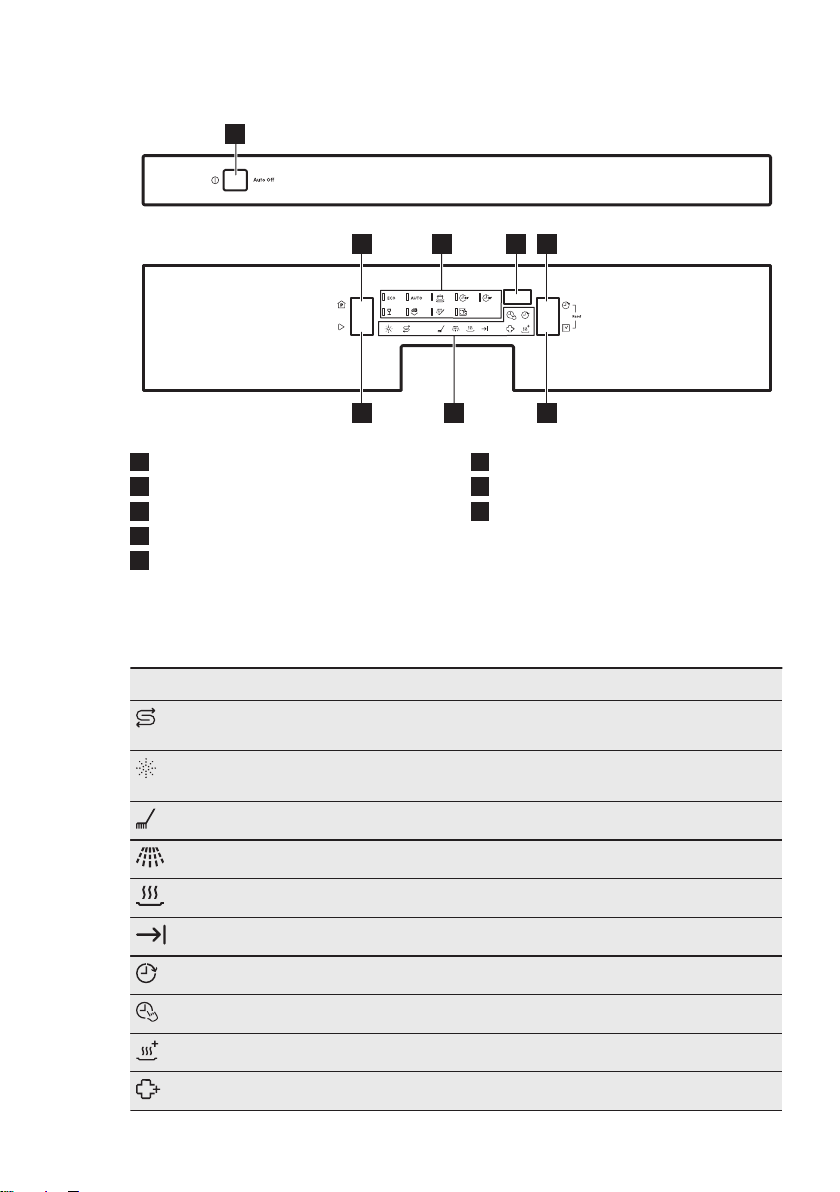

4. CONTROL PANEL
1
2 4
68
3
7
5
1On/off button
2Program button
3Programme indicators
4Display
5Zeitvorwahl / Départ Différé /
Ritardo button
6Option button
7Indicators
8Start button
4.1 Indicators
Indicator Description
Salt indicator. It is on when the salt container needs refilling. It is al‐
ways off while the programme operates.
Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐
ing. It is always off while the programme operates.
Washing phase. It is on when the washing phase operates.
Rinsing phase. It is on when the rinsing phase operates.
Drying phase. It is on when the drying phase operates.
End indicator. It is on when the programme is completed.
Zeitvorwahl / Départ Différé indicator.
TimeSaver indicator.
XtraDry indicator.
XtraHygiene indicator.
ENGLISH 7
5. PROGRAMMES
The order of the programmes in the table
may not reflect their sequence on the
control panel.
Programme Degree of soil
Type of load
Programme pha‐
ses
Options
1) • Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• XtraHygiene
• XtraDry
2) • All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C
to 70 °C
• Rinses
• Dry
• XtraHygiene
• XtraDry
3) • Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeSaver
• XtraHygiene
• XtraDry
4) • Normal soil
• Crockery and
cutlery
• Wash 60 °C
• Rinses
• Dry
• XtraHygiene
• XtraDry
5) • Light soil
• Crockery and
cutlery
• Wash 60 °C
• Rinses
• XtraHygiene
• XtraDry
6) • Normal or light
soil
• Delicate crock‐
ery and glass‐
ware
• Wash 45 °C
• Rinses
• Dry
• XtraDry
7) • Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• XtraDry
8) • All • Prewash
www.electrolux.com8
Programme Degree of soil
Type of load
Programme pha‐
ses
Options
9) • No load • Self-cleaning
1) This programme offers the most efficient use of water and energy consumption for crock‐
ery and cutlery with normal soil. This is the standard programme for test institutes.
2) The appliance senses the degree of soil and the quantity of items in the baskets. It auto‐
matically adjusts the temperature and quantity of water, energy consumption and pro‐
gramme duration.
3) This programme is designed to wash heavily soiled items with high water pressure and at
a high temperature.
4) This programme is suitable for washing a load with normal soil.
5) This programme is suitable for washing a load or a half load with fresh or light soil in a
short time.
6) This programme controls the temperature of the water to provide special care for delicate
items, glassware in particular.
7) This is the most silent programme. The pump works at a very low speed to reduce the
noise generated by the appliance. Due to the low speed, the programme duration is long.
8) With this programme, you can quickly rinse off food remains from dishes and prevent
odours forming in the appliance. Do not use detergent with this programme.
9) This programme is designed to clean the inside of the appliance effectively and efficient‐
ly. It removes limescale and grease buildup. The programme should be run at least once
every 2 months with a descaler or a cleaning product designed for dishwashers and without
any load.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
10.5 0.832 240
8 - 15 0.7 - 1.7 46 - 170
12.5 - 14.5 1.4 - 1.7 170 - 190
12.9 1.14 89
10 0.9 30
12 - 14 0.8 - 1.0 82 - 92
12 - 13 1.1 - 1.3 230 - 250
4 0.1 14
10 0.86 60 - 70
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
ENGLISH 9
5.2 Information for test
institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email
to:
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter user mode.
Settings available in the user mode:
• The level of water softener according
to the water hardness.
• Activation or deactivation of the rinse
aid empty notification.
• The level of rinse aid according to the
required dosage.
• Activation or deactivation of the
AirDry.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
is on and the display shows the
programme duration.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
Press and hold simultaneously and
until the appliance is in programme
selection mode.
How to enter user mode
Make sure the appliance is in
programme selection mode.
To enter user mode, press and hold
simultaneously and until the
indicators , , and
flash and the display is blank.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a negative effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Softening hard water
increases the consumption
of water and energy as well
as the programme duration.
The higher the level of water
softener, the higher the
consumption and the longer
the duration.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol / l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
www.electrolux.com10
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Electrolux Lave-vaisselle
Electrolux
Electrolux ESI6201LOX Manuel utilisateur
Electrolux
Electrolux 911 436 397 Manuel utilisateur
Electrolux
Electrolux GA60GLV Manuel utilisateur
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuel utilisateur
Electrolux
Electrolux GA55GLVSW Manuel utilisateur
Electrolux
Electrolux ESF66810X Manuel utilisateur
Electrolux
Electrolux EIDW6305GS - 24-in Built in Dishwasher Manuel utilisateur
Electrolux
Electrolux ESF6550 Manuel utilisateur
Electrolux
Electrolux FAVORIT 99020 I Manuel utilisateur
Electrolux
Electrolux FSE73507P Manuel utilisateur
Electrolux
Electrolux Dishwashing 505046 Manuel utilisateur
Electrolux
Electrolux ESL5206LO Manuel utilisateur
Electrolux
Electrolux ESL 67040 Manuel utilisateur
Electrolux
Electrolux ESI6515LAK Manuel utilisateur
Electrolux
Electrolux ESL 63010 Manuel utilisateur
Electrolux
Electrolux GA45GLV Manuel utilisateur
Electrolux
Electrolux ESI 63010 Manuel utilisateur
Electrolux
Electrolux ESI 9112 Manuel utilisateur
Electrolux
Electrolux ESC87311UW Manuel utilisateur
Electrolux
Electrolux EIDW1805KS Manuel utilisateur
