FAVORIT 50673

User manual Dishwasher

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 3

Safety information 3

Correct use 3

General safety 3

Child safety 3

Installation 4

Product description 4

Control panel 5

Setting mode 6

First use 6

Set the water softener 7

Setting manually 7

Setting electronically 8

Use of dishwasher salt 8

Use of rinse aid 9

Adjusting the dosage of rinse aid 10

Daily use 10

Loading cutlery and dishes 11

The lower basket 12

The cutlery basket 12

The upper basket 13

Adjusting the height of the upper basket

Use of detergent 14

Fill with detergent 15

Multi-tab function 15

Activation/deactivation of the Multi-Tab

function 16

Washing programmes 17

Select and start a washing programme 17

Unloading the dishwasher 19

Care and cleaning 19

Cleaning the filters 19

Cleaning the spray arms 20

External cleaning 20

Internal cleaning 20

Prolonged periods of non-operation 21

Frost precautions 21

Moving the machine 21

What to do if… 21

Technical data 23

Hints for test institutes 23

Installation instructions 24

Installation 24

Fitting under a counter (kitchen worktop or

sink) 25

Levelling 25

Water connection 25

Water supply connections 25

Water inlet hose with safety valve 26

Water outlet hose connection 27

Electrical connection 28

Environment concerns 28

Packaging material 28

Subject to change without notice

2Contents

Operating Instructions

Safety information

In the interest of your safety and to ensure the correct use, before installing and first using

the appliance, read this user manual carefully, including its hints and warnings. To avoid

unnecessary mistakes and accidents, it is important to ensure that all people using the

appliance are thoroughly familiar with its operation and safety features. Save these in-

structions and make sure that they remain with the appliance if it is moved or sold, so that

everyone using it through its life will be properly informed on appliance use and safety.

Correct use

• This dishwasher is only intended for washing household utensils suitable for machine

washing.

• Do not put any solvents in the dishwasher. This could cause an explosion.

• Knives and other items with sharp points must be loaded in the cutlery basket with their

points down or placed in a horizontal position in the upper basket.

• Only use products (detergent, salt and rinse aid) suitable for dishwashers.

• Avoid opening the door whilst the appliance is in operation, hot steam may escape.

• Do not take any dishes out of the dishwasher before the end of the dishwashing cycle.

• After use, isolate the appliance from the power supply and turn off the water supply.

• This product should be serviced only by an authorised service engineer, and only genuine

spare parts should be used.

• Under no circumstances should you attempt to repair the machine yourself. Repairs

carried out by inexperienced persons will cause injury or serious malfunctioning. Contact

your local Service Force Centre. Always insist on genuine spare parts.

General safety

• Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could en-

danger life! Comply with the safety instructions of the dishwasher detergent manufac-

turer.

• The water in your dishwasher is not for drinking. Detergent residues may still be present

in your machine.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or

unloaded. In this way you will avoid anybody tripping over the open door and hurting

themselves.

• Do not sit or stand on the open door.

Child safety

• This appliance is designed to be operated by adults. Don’t allow children to use the

dishwasher unsupervised.

• Keep all packaging well away from children. There is risk of suffocation.

• Keep all detergents in a safe place out of children’s reach.

• Keep children well away from the dishwasher when the door is open.

Safety information 3

Installation

• Check your dishwasher for any transport damage. Never connect a damaged machine.

If your dishwasher is damaged contact your supplier.

• All packaging must be removed before use.

• Any electrical and plumbing work required to install this appliance must be carried out

by a qualified and competent person.

• For safety reasons it is dangerous to alter the specifications or attempt to modify this

product in any way.

• Never use the dishwasher if the electrical supply cable and water hoses are damaged; or

if the control panel, work top or plinth area are damaged such that the inside of the

appliance is freely accessible. Contact your local Service Force centre, in order to avoid

hazard.

• All sides of the dishwasher must never be drilled to prevent damage to hydraulic and

electric components.

WARNING!

For electrical and water connection carefully follow the instructions given in specific para-

graphs.

Product description

4Product description

1Upper basket

2Water hardness dial

3Salt container

4Detergent dispenser

5Rinse aid dispenser

6Rating plate

7Filters

8Lower spray arm

9Upper spray arm

10 Worktop

Control panel

1On/off button

2Programme selection buttons

3Delay start button

4Indicator lights

5Digital display

6Function buttons

Control panel 5

Indicator lights

Programme in progress Illuminates when a washing programme is set

and remains illuminated for all the duration of

the washing programme.

End of programme Illuminates when a washing programme has

ended. It also has added functions of visual sig-

nalling as:

- the setting of the water softener

- activation/deactivation of the rinse aid dis-

penser

- intervention of an alarm due to the malfunc-

tion of the machine

MULTITAB Indicates the activation/deactivation of the

Multi-tab function (see Multi-tab function)

Salt Illuminates when the special salt has run out.

Rinse aid Illuminates when the rinse aid has run out.

1) The salt and rinse aid indicator lights are never illuminated while a washing programme is running even if filling

with salt and/or rinse aid is necessary.

Function buttons

In addition to the programme selection, the setting of the water softener and the activation/

deactivation of the rinse aid dispenser can also be set with the help of these buttons.

Setting mode

The appliance is in setting mode when all programme lights are illuminated and in the

display 3 horizontal lines are visible.

Always remember that when performing operations such as:

• selecting a washing programme

• setting the water softener

• activating/deactivating the rinse aid dispenser

the appliance MUST be in setting mode.

If a programme light is illuminated and in the display 1 horizontal line is visible, the last

performed programme is still set.

In this case, to return to setting mode, the programme has to be cancelled.

To cancel a set programme or a programme in progress: simultaneously press and hold

the two programme buttons positioned over the word RESET, until all the programme

button lights will illuminate. The programme has been cancelled and the machine is now

in setting mode.

First use

Before using your dishwasher for the first time:

6First use

• Ensure that the electrical and water connections comply with the installation instruc-

tions

• Remove all packaging from inside the appliance

• Set the water softener

• Pour 1 litre of water inside the salt container and then fill with dishwasher salt

• Fill the rinse aid dispenser

If you want to use combi detergent tablets such as: "3 in 1", "4 in 1", "5 in 1" etc... set the

Multi-tab function (see "Multi-tab function").

Set the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts

from the water supply, which would have a detrimental or adverse effect on the operation

of the appliance.

The higher the content of these minerals and salts, the harder your water is. Water hardness

is measured in equivalent scales, German degrees (°dH), French degrees (°TH) and mmol/l

(millimol per litre - international unit for the hardness of water).

The softener should be adjusted according to the hardness of the water in your area. Your

local Water Authority can advise you on the hardness of the water in your area.

Water hardness Adjusting the water hardness

setting

Use of salt

°dH °TH mmol/l manually electronically

51 - 70 91 - 125 9,1 - 12,5 2level 10 yes

43 - 50 76 - 90 7,6 - 8,9 2level 9 yes

37 - 42 65 - 75 6,5 - 7,5 2level 8 yes

29 - 36 51 - 64 5,1 - 6,4 2level 7 yes

23 - 28 40 - 50 4,0 - 5,0 2level 6 yes

19 - 22 33 - 39 3,3 - 3,9 2level 5 yes

15 - 18 26 - 32 2,6 - 3,2 1level 4 yes

11 - 14 19 - 25 1,9 - 2,5 1level 3 yes

4 - 10 7 - 18 0,7 - 1,8 1level 2 yes

< 4 < 7 < 0,7 1level 1 no

The water softener must be set in both ways: manually, using the water hardness dial and

electronically.

Setting manually

The dishwasher is factory set at position 2.

Set the water softener 7

1. Open the dishwasher door.

2. Remove the lower basket from the dish-

washer.

3. Turn the water hardness dial to position 1

or 2 (see table).

4. Replace the lower basket.

Setting electronically

The dishwasher is factory set at level 5.

1. Press the On/Off button. The dishwasher must be in setting mode.

2. Press simultaneously and keep pressed buttons Band C, until the lights of buttons A,

Band Cstart flashing.

3. Press button A, the lights of buttons Band Cturn off while the light of button Agoes

on flashing. At the same time the End of programme indicator light starts flashing.

The current level is indicated by the number of flashes of the End of programme

indicator light, (see chart) and a pause of few seconds.

Examples:

5 flashes, pause, 5 flashes, pause = level 5

4. To change the level, press button A. Each time the button is pressed the level changes.

(For the selection of the new level see the chart).

Examples: if the current level is 5, by pressing button Aonce, level 6 is selected. if the

current level is 10, by pressing button Aonce, level 1 is selected.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button.

Use of dishwasher salt

WARNING!

Only use salt specifically designed for use in dishwashers. All other types of salt not spe-

cifically designed for use in a dishwasher, especially table salt, will damage the water soft-

ener. Only fill with salt just before starting one of the complete washing programmes. This

will prevent any grains of salt or salty water, which may have been spilt, remaining on the

bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. Open the door, remove the lower basket and unscrew the cap of the salt container by

turning it anticlockwise.

2. Pour 1 litre of water inside the container (this is necessary only before filling with

salt for the first time) .

8Use of dishwasher salt

3. Using the funnel provided, pour in the salt

until the container is full.

4. Replace the cap making sure that there is

no trace of salt on the screw thread or on

the gasket.

5. Replace the cap tightly turning it clock-

wise until it stops with a click.

Do not worry if water overflows from the unit

when filling with salt, this is quite normal.

The salt indicator light on the control panel can remain illuminated for 2-6 hours after the

salt has been replenished, assuming the dishwasher remains switched on. If you are using

salts that take longer to dissolve then this can take longer. The function of the machine is

not affected.

Use of rinse aid

WARNING!

Only use branded rinse aid for dishwashers.

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent,

liquid detergent). This would damage the appliance.

Rinse aid ensures thorough rinsing, and spot and streak free drying.

Rinse aid is automatically added during the last rinse.

1. Open the container by pressing the release

button (A).

Use of rinse aid 9

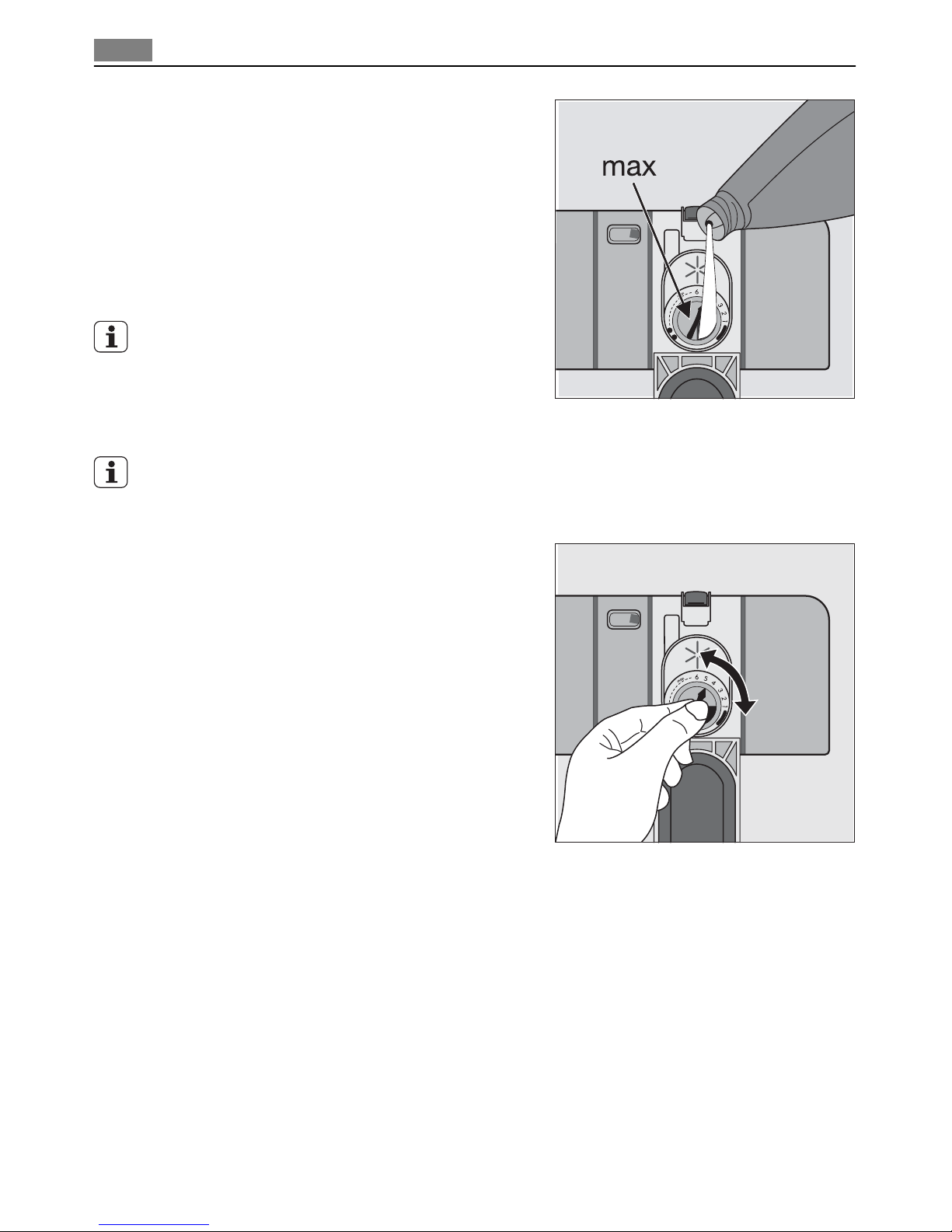

2. Add the rinse aid in the container. The

maximum level for filling is indicated by

"max".

The dispenser holds about 110 ml of rinse

aid, which is sufficient for between 16 and

40 dishwashing cycles, depending upon

the dosage setting.

3. Ensure that the lid is closed after every re-

fill.

Clean up any rinse aid spilt during filling with

an absorbent cloth to avoid excess foaming

during the next wash.

Adjusting the dosage of rinse aid

According to the finish and drying results obtained, adjust the dose of rinse aid by means

of the 6 position selector (position 1= minimum dosage, position 6= maximum dosage).

The dose is factory set in position 4.

Increase the dose if there are drops of water or lime

spots on the dishes after washing.

Reduce it if there are sticky whitish streaks on the

dishes or a bluish film on glassware or knife blades.

Daily use

• Check if it's necessary to refill with dishwasher salt or rinse aid.

• Load cutlery and dishes into the dishwasher.

• Fill with dishwasher detergent.

• Select a wash programme suitable for the cutlery and dishes.

• Start the wash programme.

10 Daily use

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESL 67010 Manuel utilisateur

Electrolux

Electrolux DIVA Manuel utilisateur

Electrolux

Electrolux ESI 669 Manuel utilisateur

Electrolux

Electrolux EWDW6505G S Mode d’emploi

Electrolux

Electrolux EIDW6105G W Manuel utilisateur

Electrolux

Electrolux ESL46510R Manuel utilisateur

Electrolux

Electrolux WTM165 Manuel utilisateur

Electrolux

Electrolux ICON EDW5500DSS0 Manuel utilisateur

Electrolux

Electrolux EW24ID70QT Manuel utilisateur

Electrolux

Electrolux ESF6768KXA Manuel utilisateur

Electrolux

Electrolux Green&Clean 504228 Manuel utilisateur

Electrolux

Electrolux ESI 45010 Manuel utilisateur

Electrolux

Electrolux ESF5206LOW Manuel utilisateur

Electrolux

Electrolux ESF4600ROW Manuel utilisateur

Electrolux

Electrolux GA55GLV Manuel utilisateur

Electrolux

Electrolux WT830EAG Manuel utilisateur

Electrolux

Electrolux ESF 605 Manuel utilisateur

Electrolux

Electrolux ESL 66010 Manuel utilisateur

Electrolux

Electrolux EES48401L Manuel utilisateur

Electrolux

Electrolux GA55GLVSW Manuel utilisateur

Electrolux

Electrolux ESI5201LOX Manuel utilisateur

Electrolux

Electrolux 534182 Manuel utilisateur

Electrolux

Electrolux ESI 602 Manuel utilisateur

Electrolux

Electrolux GA55GL201 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
