SERVICE MANUAL

DISHWASHERS

DISHWASHER

NEW STRUCTURE

«60 cm» SERIES

SOLARO- (MI)

ELETTRODOMESTICI S.p.A.

Corso Lino Zanussi

Publication no.

I - 33080 Porcia (ITALY) 599 33 33-70/6

Fax +39 434 394096 970902

EN/SERVICE/FL

- 2 -

INDEX

PRESENTATION Page 5 - 6

CHARACTERISTICS 7 - 10

HYDRAULIC CIRCUIT 11 - 26

HYDRAULIC CIRCUIT COMPONENTS 12

BASE 12 - 13

I W M S 14

WATER FILL 14 - 15

WATER FILL CONTROL SYSTEM 16 - 17

WATER SOFTENING SYSTEM 18 - 19

REGENERATION SYSTEM 20 - 23

WATER DRAIN CIRCUIT 24

STEAM VENTING 25

HYDRAULIC SAFETY SYSTEMS 26

FUNCTIONAL FEATURES 27 - 38

CONTROL PANEL (DW with electromechanical timer) 27

ELECTRICAL CIRCUIT DIAGRAMS 28 - 31

CONTROL PANEL (DW with electronic timer) 32 - 33

SELECTING WATER HARDNESS LEVEL 33

ELECTRICAL CIRCUIT DIAGRAMS 34 - 35

FUNCTIONAL CHARACTERISTICS OF THE CONTROLS 36 - 38

SAFETY SYSTEMS 39 - 45

ALARM SYSTEMS 40 - 44

TROUBLE-SHOOTING 45

CHECKING THE COMPONENTS 45

- 3 -

PURPOSE OF THIS SERVICE MANUAL

The purpose of this Service Manual is to provide service technicians, who are already trained in the repair of

traditional dishwashers, with general and specific technical information concerning the new range of

dishwashers known as "NEW STRUCTURE".

The structural and hydraulic characteristics, as well as the basic circuits, are common to all appliances.

More detailed information regarding specific models, such as technical characteristics, circuit diagrams,

wiring diagrams, exploded drawings and lists of components, may be found in the SERVICE NOTES issued

separately for each model.

- 4 -

PRESENTATION

NEW TECHNOLOGY:A NEW DISHWASHER DESIGNED USING THE MOST ADVANCED

COMPUTER TECHNOLOGY AND BUILT USING THE LATEST INDUSTRIAL

TECHNOLOGY.

RESULT:

The technological and production solutions used in the production of the new dishwasher, together with

concerted efforts on the part of the design team, have resulted in the creation of a truly innovative range of

appliances that will meet the demands of a market that is in continuous evolution.

MAIN CHARACTERISTICS:

STRUCTURE:

- Convertible modular design in three versions: Free-standing, Fully built-in, Partially built-in (control panel

visible).

- Monolithic load-bearing base constructed in sound-absorbing material.

- Removable lateral panels.

- Flexible styling to suit the various aesthetic requirements.

HYDRAULIC SYSTEM:

- Newly-designed integrated hydraulic circuit.

- New integrated sump (in base) allowing simultaneous or alternate washing.

- Softening of regeneration water up to 120° French - 70° German.

- Precision setting of regeneration (10 levels).

- Mechanical adjustment of regeneration level (or via software for electronic models).

- Reduction of quantity of washing water (-0.5 litres per fill) with respect to previous dishwashers.

ELECTRICAL SYSTEM:

- Integrated dual-function pump motor (washing and drain).

- Newly-designed timers / electronic circuit boards (to optimize performance and consumption).

- Vented drying system (for top-of-the-range electronic models).

SAFETY AND CONTROL CIRCUITS:

- Measurement of washing temperature using thermostats or temperature sensor (electronic models).

- Measurement of water fill level by pressure switch.

- Anti-leakage devices: Anti-overflow, Anti-flooding, Acquastop.

- Overheating protection: safety thermostat, time-out.

- Door locking system.

- Total software-controlled functional protection (electronic models only).

CONVENIENCE:

- Constructed entirely using recyclable materials.

- Exceptionally silent operation thanks to the use of new materials and new technologies.

- Ease of installation, whether free-standing or built-in.

- New frontal adjustment system for rear feet (top-of-the-range built-in models).

SERVICE:

- Ease of access to all components thanks to the removable lateral panels and to the careful positioning of

all major parts.

- 5 -

"NEW STRUCTURE 60 cm" DISHWASHERS

RANGE: TRADITIONAL VERSIONS

SERIES FEATURES

BASIC / STANDARD

Version Functions

- FREE-STANDING - CAR / TCR

- Partially built-in - Electromechanical TIMER

- Fully built-in - 1 / 2 buttons

- 4 / 6 washing programmes

- 1 / 2 washing temperatures

- Programme selector knob

- 5 regeneration levels

MEDIUM / DE LUXE

Version Functions

- FREE-STANDING - CAR / TCR

- PARTIALLY BUILT-IN - ELECTROMECHANICAL TIMER

- Fully built-in - 3 / 4 buttons

- 6 / 9 washing programmes

- 2 / 3 washing temperatures

- Programme selector knob

- 5 regeneration levels

- Impulse drying

ITRONIC "LL" - STANDARD

Version Functions

- FULLY BUILT-IN - TCR

- ELECTRONIC TIMER

- 6 BUTTONS

- 5 washing programmes

- 4 washing temperatures

- Programme selector key

- 5 regeneration levels

- Impulse drying

ITRONIC "HL" - MEDIUM / DE LUXE

Version Functions

- FULLY BUILT-IN - TCR

- ELECTRONIC TIMER

- 5 BUTTONS

- 9 WASHING PROGRAMMES

- 5 washing temperatures

- Programme selector key + display WINDOW

- 10 regeneration levels

- Impulse drying

- Delayed start

- 6 -

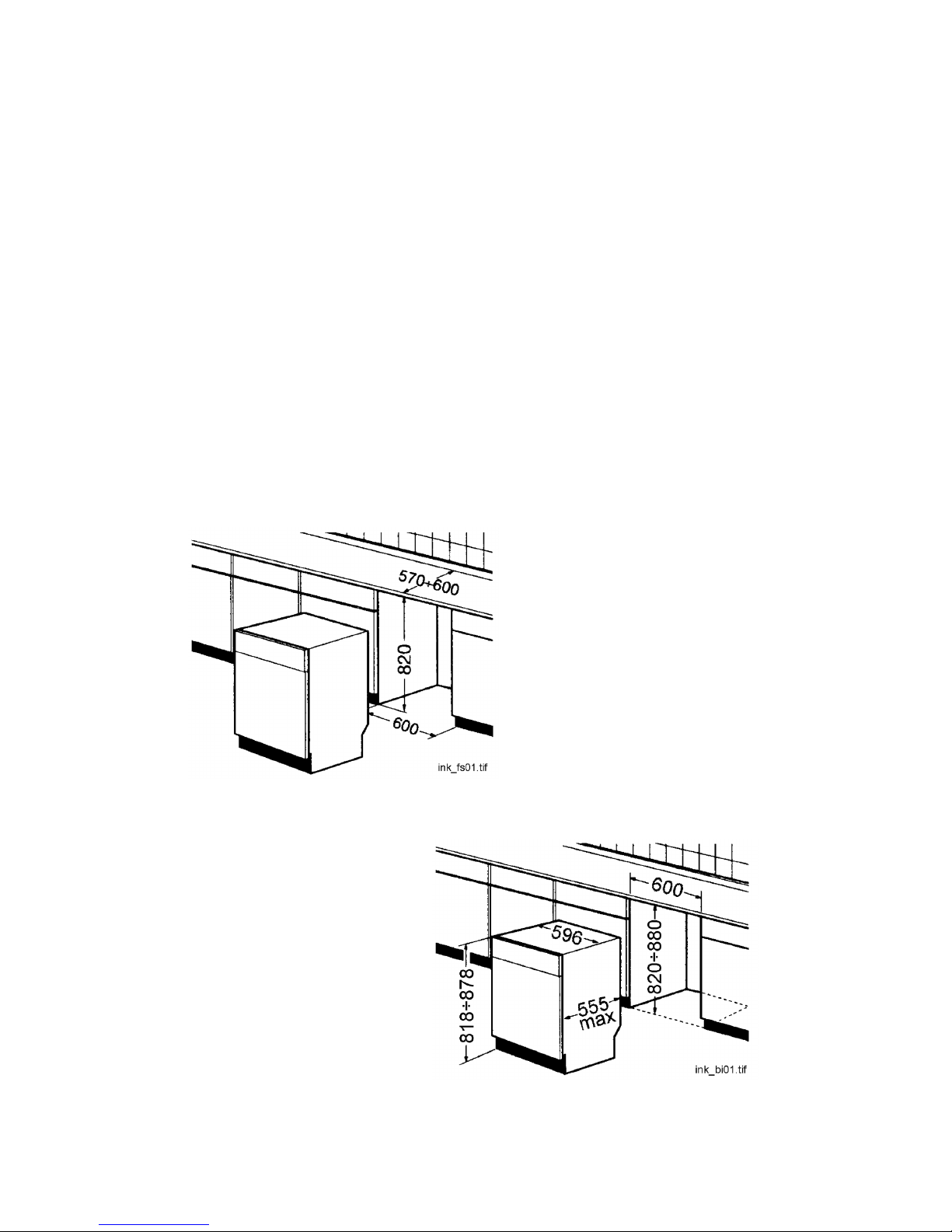

STRUCTURAL CHARACTERISTICS

STRUCTURE: 60 cm

LOAD CAPACITY: 12 PLACE-SETTINGS

VERSIONS STANDARD MEDIUM DE LUXE ITRONIC

CONSUMPTION* WATER Litres 22 20 19 19

ELECTRICITY Kwh 1.5 1.5 1.4 1.4

DETERGENT grammes 20 20 20 20

DURATION OF CYCLE Min (2,100W) 94 92 90 90

* The data shown refer to the UNIVERSAL cycle.

- 7 -

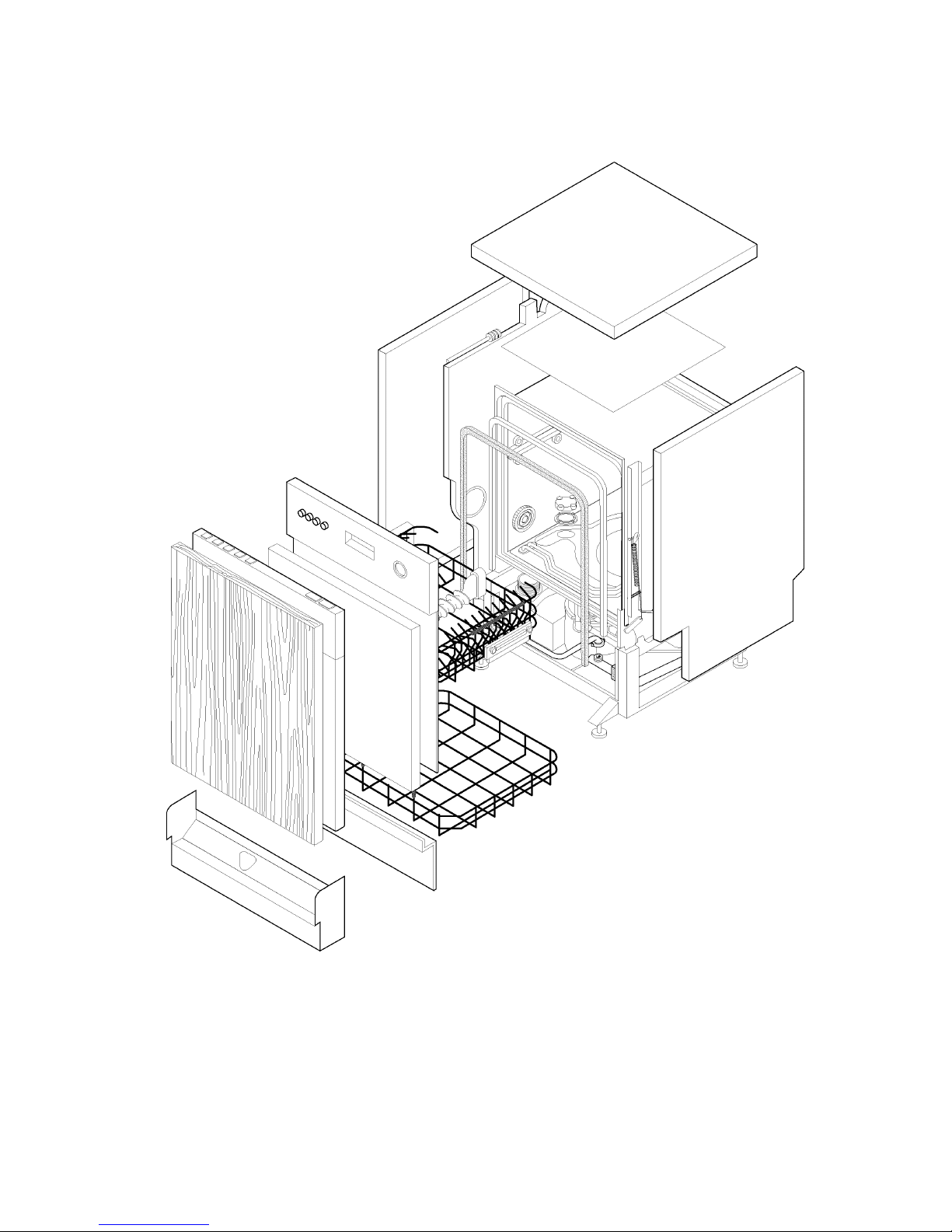

STRUCTURE

- 8 -

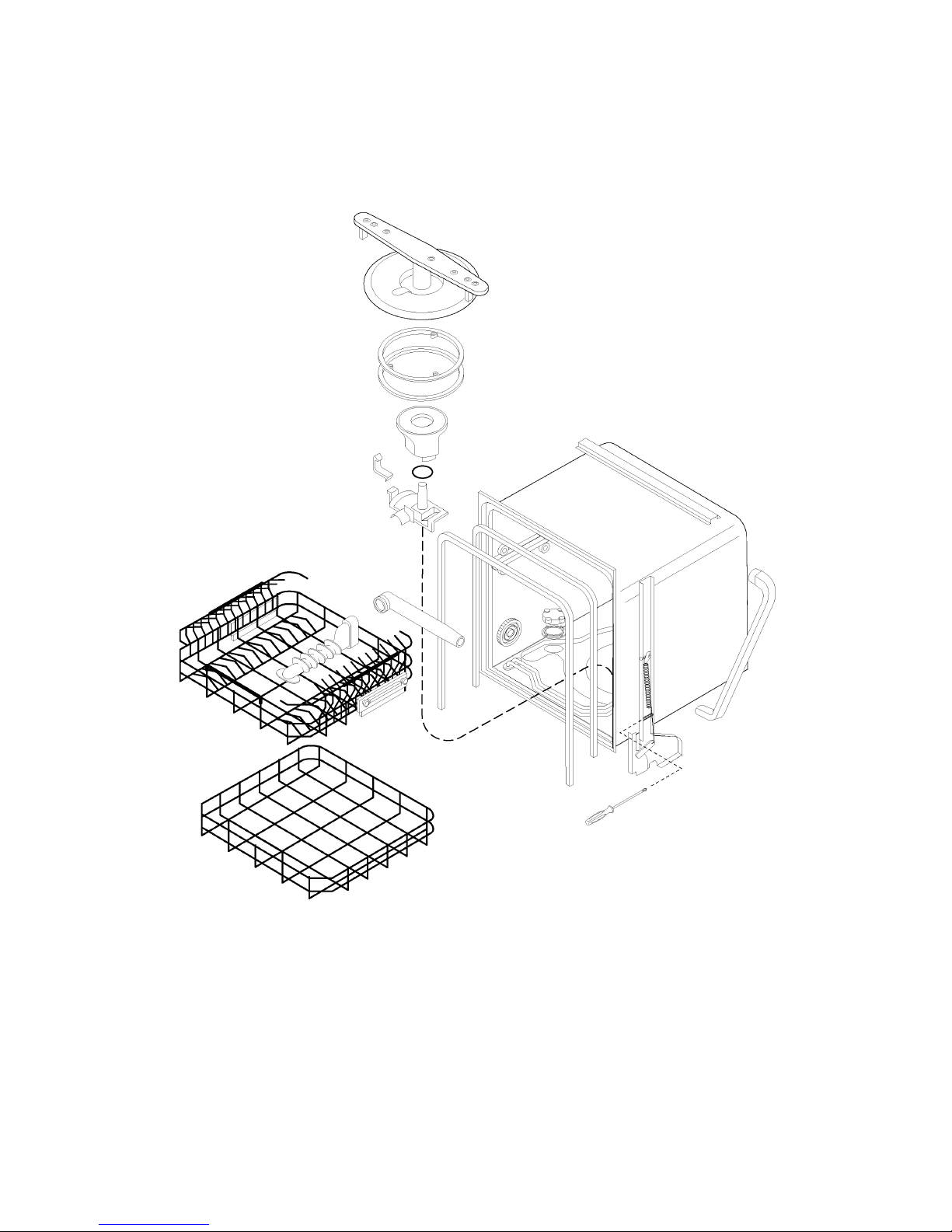

INTERIOR OF TUB / SUMP

- 9 -

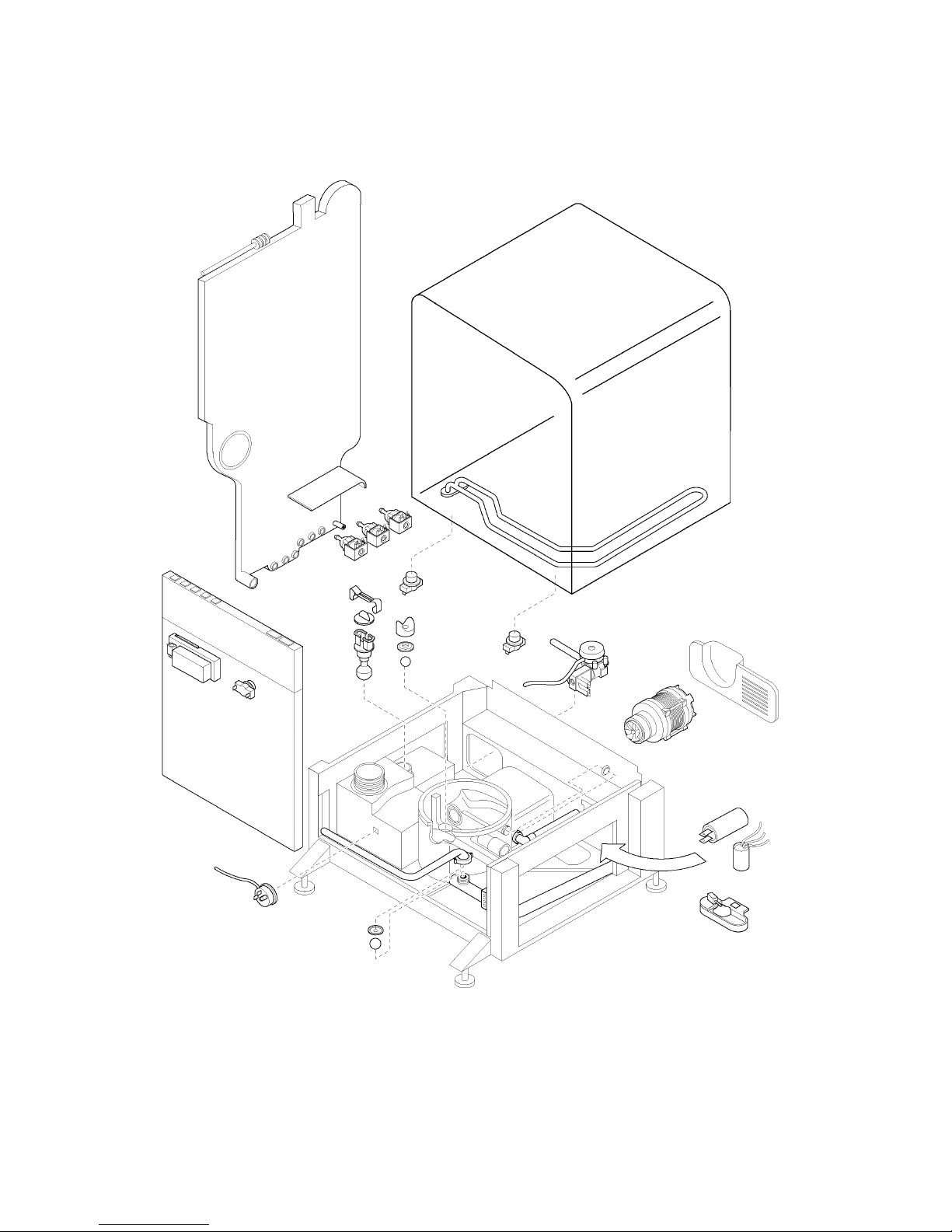

HYDRAULIC/ELECTRICAL COMPONENTS

- 10 -
