EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL ............................................................................................ 7
5. PROGRAMMES................................................................................................. 8
6. SETTINGS..........................................................................................................9
7. OPTIONS..........................................................................................................11
8. BEFORE FIRST USE....................................................................................... 12
9. DAILY USE....................................................................................................... 13
10. HINTS AND TIPS........................................................................................... 15
11. CARE AND CLEANING..................................................................................17
12. TROUBLESHOOTING....................................................................................18
13. TECHNICAL INFORMATION......................................................................... 22
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS
1362) fuse.
www.electrolux.com4
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.

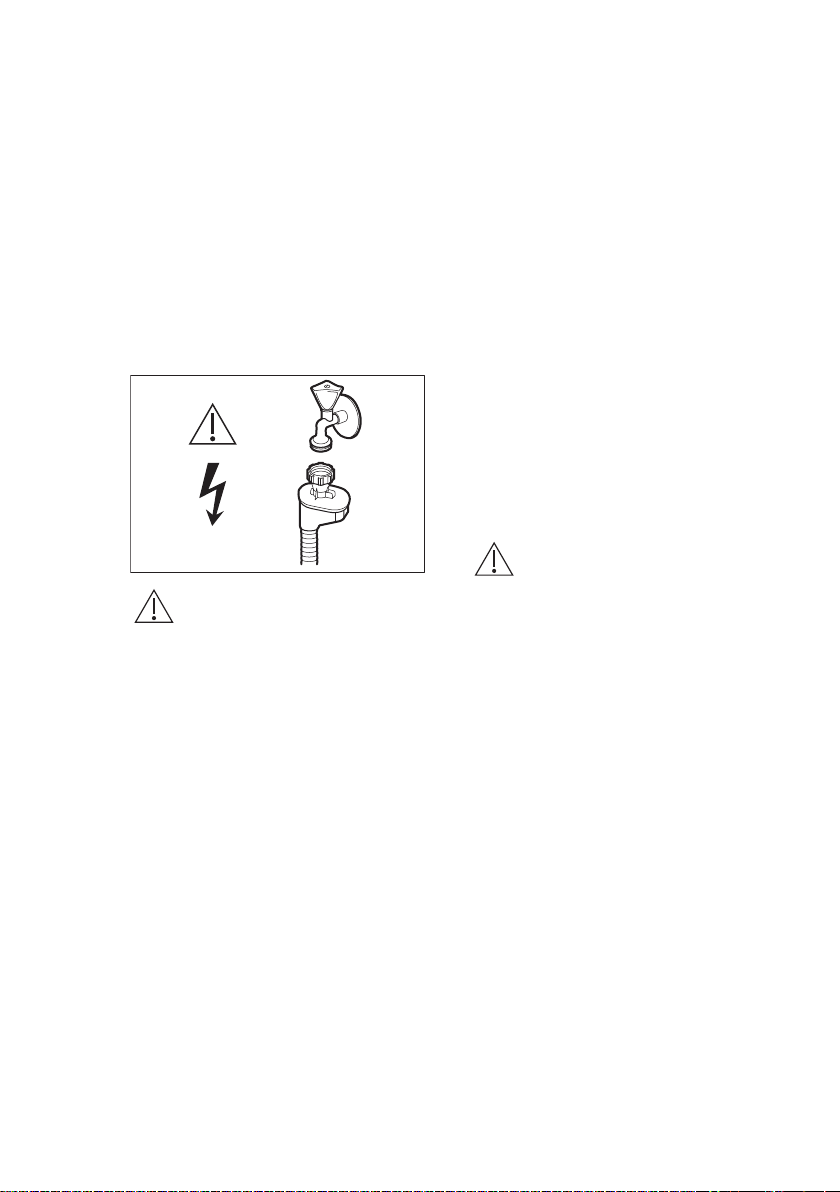

WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5

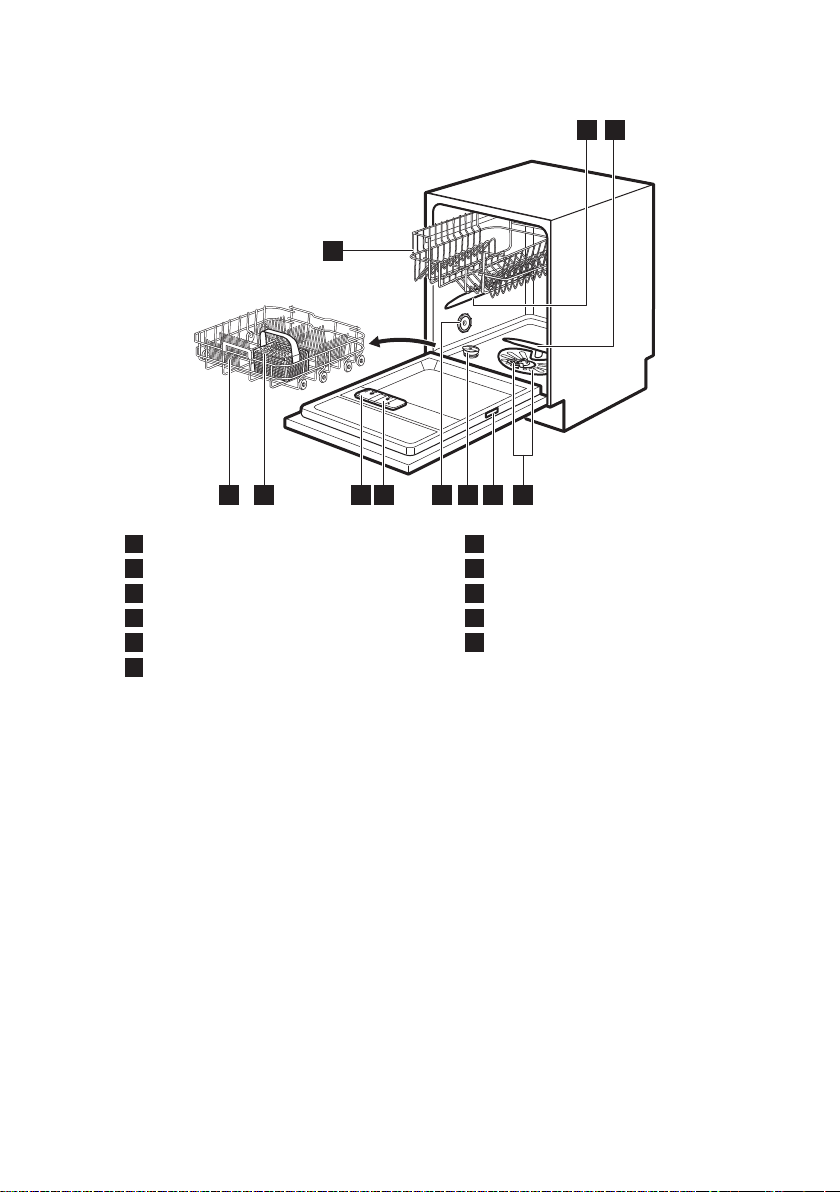

3. PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
www.electrolux.com6

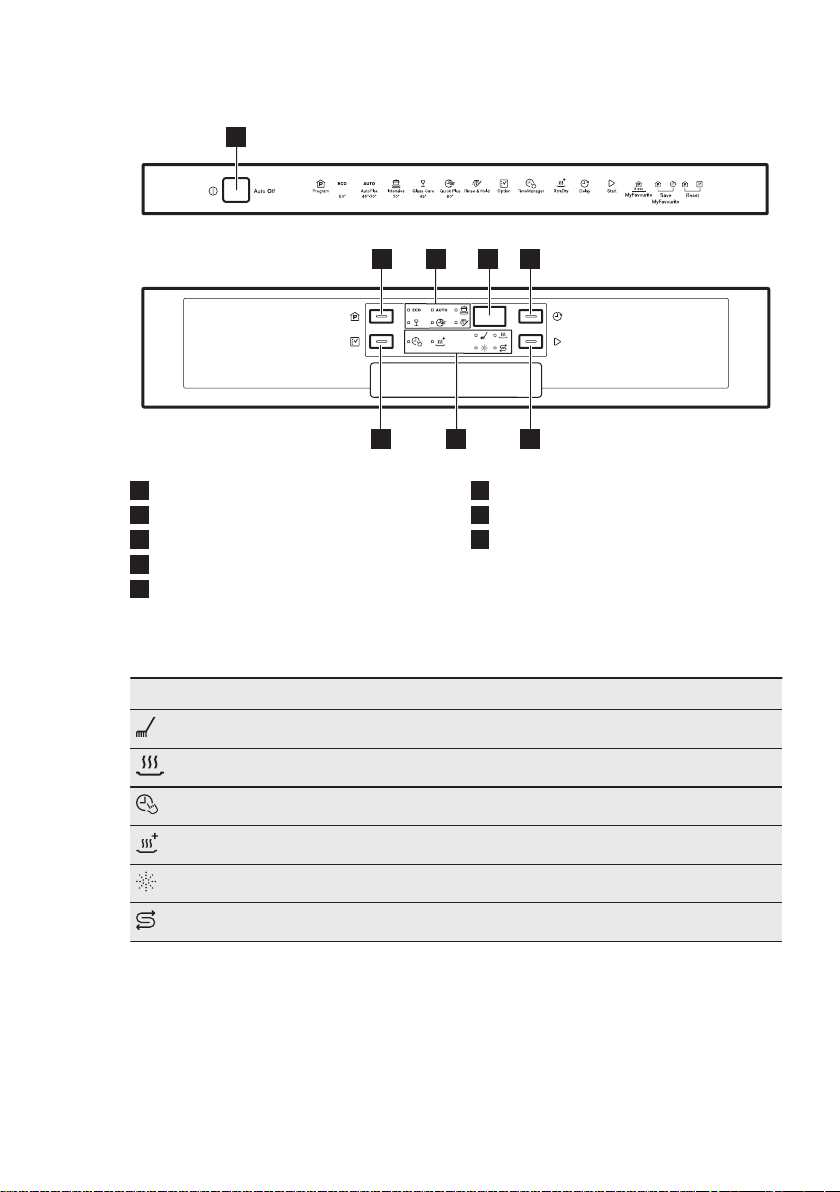

4. CONTROL PANEL
1
2 4
68
3
7
5
1On/off button
2Program button
3Programme indicators
4Display
5Delay button
6Start button
7Indicators
8Option button
4.1 Indicators
Indicator Description
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
TimeManager indicator.
XtraDry indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
ENGLISH 7
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
1) • Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• TimeManager
• XtraDry
2) • All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
• XtraDry
• Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeManager
• XtraDry
3) • Fresh soil
• Crockery and
cutlery
• Wash 60 °C or 65 °C
• Rinses
• XtraDry
• Normal or light
soil
• Delicate crock‐
ery and glass‐
ware
• Wash 45 °C
• Rinses
• Dry
• XtraDry
4) • All • Prewash
1) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
9.9 0.820 237
7 - 12 0.7 - 1.5 45 - 160
13 - 15 1.4 - 1.6 140 - 160
www.electrolux.com8
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
9 0.8 30
13 - 14 0.9 - 1.1 70 - 85
4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
5.2 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The level of water softener according
to the water hardness.
• Activation or deactivation of the rinse
aid empty notification.
• Activation or deactivation of AirDry.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
is on and the display shows the
programme duration.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
Press and hold simultaneously Program
and Option until the appliance is in
programme selection mode.
How to enter user mode
Make sure the appliance is in
programme selection mode.
To enter user mode, press and hold
simultaneously Delay and Start until the
indicators , and
flash and the display is blank.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
ENGLISH 9
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
Make sure the appliance is in user mode.
1. Press Program.
• The indicators and
and are off.
• The indicator still flashes.
• The display shows the current
setting: e.g. = level 5.
2. Press Program repeatedly to change
the setting.
3. Press the on/off button to confirm the
setting.
6.3 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If the drying results are
satisfactory while using multi-tablets only,
it is possible to deactivate the notification
for refilling rinse aid. However, for best
drying performance, always use rinse
aid.
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
empty notification
Make sure the appliance is in user mode.
1. Press Option.
• The indicators and are
off.
• The indicator still
flashes.
• The display shows the current
setting.
www.electrolux.com10
Autres manuels pour ESI5550LOX
1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Electrolux Lave-vaisselle
Electrolux
Electrolux ESF66830 Manuel utilisateur
Electrolux
Electrolux 152981 73/0 Manuel utilisateur
Electrolux
Electrolux ESF66810X Manuel utilisateur
Electrolux
Electrolux ESF5542LOW Manuel utilisateur
Electrolux
Electrolux ESI 66010 Manuel utilisateur
Electrolux
Electrolux GA60GLVS Manuel utilisateur
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuel utilisateur
Electrolux
Electrolux ESF 246 Manuel utilisateur
Electrolux
Electrolux ESF611 Guide rapide
Electrolux
Electrolux ESL 6552 Manuel utilisateur
Electrolux
Electrolux EDW 1500 - 1510 Manuel utilisateur
Electrolux
Electrolux 587.16242702 Manuel
Electrolux
Electrolux ESF 66010 Manuel utilisateur
Electrolux
Electrolux ESF8635ROW Manuel utilisateur
Electrolux
Electrolux EIDW6305GS - 24-in Built in Dishwasher Manuel utilisateur
Electrolux
Electrolux ESF6010BW Manuel utilisateur
Electrolux
Electrolux EIDW6405HT - Fully Integrated Dishwasher Manuel utilisateur
Electrolux
Electrolux EEM48300IX Manuel utilisateur
Electrolux
Electrolux ESI 602 Manuel utilisateur
Electrolux
Electrolux Green&Clean 502028 Manuel utilisateur
