EN Dishwasher User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL ............................................................................................ 7

5. PROGRAMMES................................................................................................. 8

6. SETTINGS..........................................................................................................9

7. OPTIONS..........................................................................................................12

8. BEFORE FIRST USE....................................................................................... 13

9. DAILY USE....................................................................................................... 14

10. HINTS AND TIPS........................................................................................... 16

11. CARE AND CLEANING..................................................................................17

12. TROUBLESHOOTING....................................................................................19

13. TECHNICAL INFORMATION......................................................................... 23

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Obey the maximum number of 15 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

ENGLISH 3

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instruction

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS

1362) fuse.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

www.electrolux.com4

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

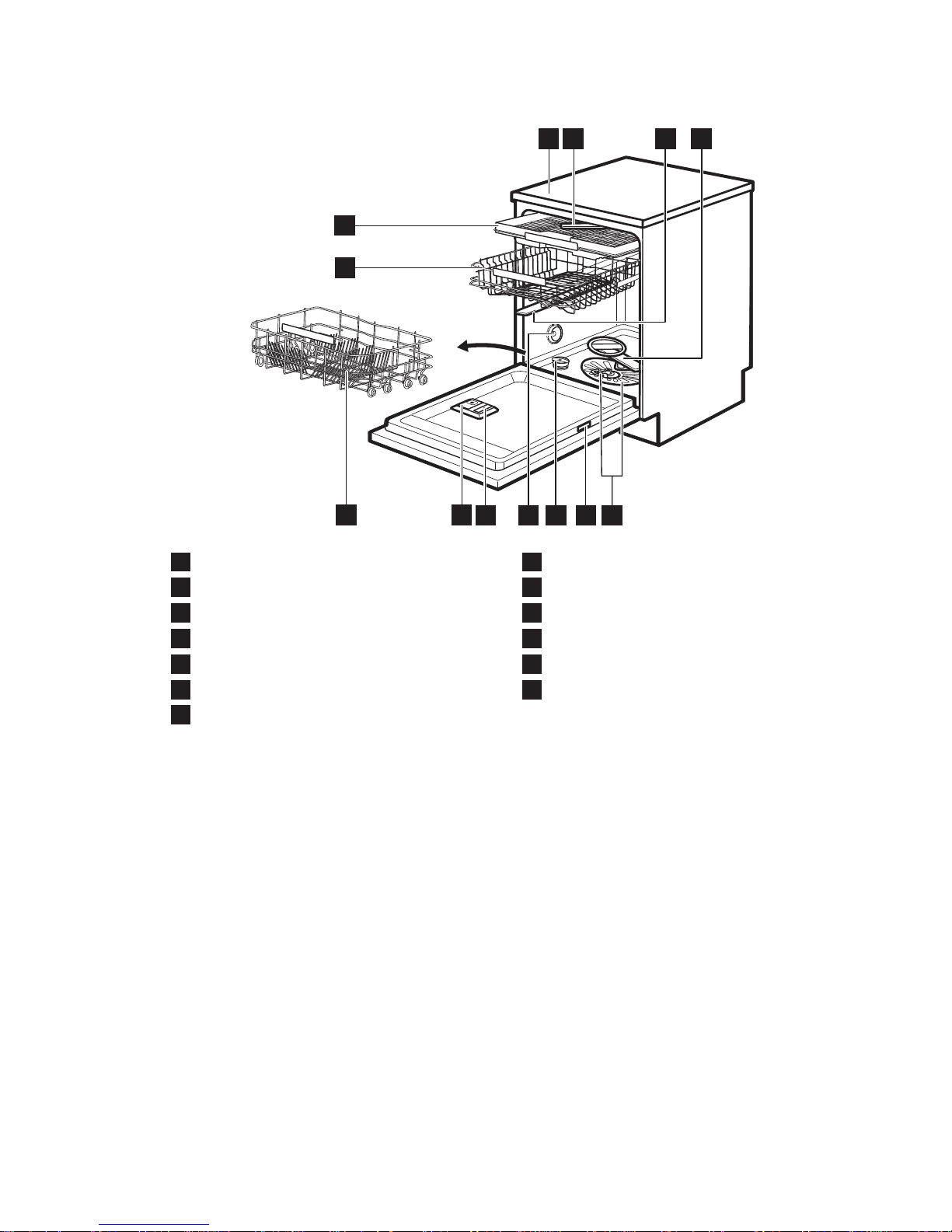

11 10 78

1Worktop

2Top spray arm

3Upper spray arm

4Lower spray arm

5Filters

6Rating plate

7Salt container

8Air vent

9Rinse aid dispenser

10 Detergent dispenser

11 Lower basket

12 Upper basket

13 Cutlery drawer

www.electrolux.com6

4. CONTROL PANEL

2 4

1On/off button

2Program button

3Programme indicators

4Display

5Delay button

6Start button

7Indicators

8Option button

4.1 Indicators

Indicator Description

Washing phase. It comes on when the washing phase operates.

Drying phase. It comes on when the drying phase operates.

TimeManager indicator.

XtraDry indicator.

Rinse aid indicator. It is always off while the programme operates.

Salt indicator. It is always off while the programme operates.

ENGLISH 7

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme pha‐

ses

Options

1) • Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• TimeManager

• XtraDry

2) • All

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash from 45 °C

to 70 °C

• Rinses

• Dry

• XtraDry

3) • Mixed soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 50 °C and

65 °C

• Rinses

• Dry

• TimeManager

• XtraDry

• Heavy soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• TimeManager

• XtraDry

• Normal or light

soil

• Delicate crock‐

ery and glass‐

ware

• Wash 45 °C

• Rinses

• Dry

• XtraDry

4) • Fresh soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

• XtraDry

1) With this programme, you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. This is the standard programme for test institutes.

2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐

matically adjusts the temperature and the quantity of water, the energy consumption and the

programme duration.

3) With this programme, you can wash a load with mixed soil. Very heavy soil in the lower

basket and normal soil in the upper basket. The pressure and the temperature of the water

in the lower basket are higher than in the upper basket.

4) With this programme, you can wash a half-load dishwasher with fresh soil. It gives good

washing results in a short time.

5.1 Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

11 0.846 232

www.electrolux.com8

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

7 - 14 0.6 - 1.6 40 - 170

14 - 16 1.2 - 1.5 160 - 180

12.5-14.5 1.4-1.7 170-190

12 - 14 0.7 - 0.9 82-92

10 0.9 30

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

5.2 Information for test

institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of the rinse

aid empty notification.

• The level of rinse aid according to the

required dosage.

• Activation or deactivation of AirDry.

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

How to set the programme

selection mode

The appliance is in programme selection

mode when the programme indicator

is on and the display shows the

programme duration.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold simultaneously Program

and Option until the appliance is in

programme selection mode.

How to enter user mode

Make sure the appliance is in

programme selection mode.

To enter user mode, press and hold

simultaneously Delay and Start until the

indicators , , and

flash and the display is blank.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

ENGLISH 9

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Water hardness

German de‐

grees (°dH)

French de‐

grees (°fH)

mmol/l Clarke de‐

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Whether you use a standard detergent

or multi-tabs (with or without salt), set

the proper water hardness level to

keep the salt refill indicator active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

How to set the water softener

level

Make sure the appliance is in user mode.

1. Press Program.

• The indicators ,

and are off.

• The indicator still flashes.

• The display shows the current

setting: e.g. = level 5.

2. Press Program repeatedly to change

the setting.

3. Press on/off to confirm the setting.

6.3 The rinse aid empty

notification

The rinse aid helps to dry the dishes

without streaks and stains.

The rinse aid is automatically released

during the hot rinse phase.

When rinse aid chamber is empty, the

rinse aid indicator is turned on notifying

to refill rinse aid. If the drying results are

satisfactory while using multi-tablets only,

it is possible to deactivate the notification

for refilling rinse aid. However, for best

drying performance, always use rinse

aid.

If standard detergent or multi-tablets

without rinse aid are used, activate the

notification to keep the rinse aid refill

indicator active.

How to deactivate the rinse aid

empty notification

Make sure the appliance is in user mode.

1. Press Option.

www.electrolux.com10

Autres manuels pour ESF8635ROW

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux GA55GLV220 Manuel utilisateur

Electrolux

Electrolux ESL7845RA Manuel utilisateur

Electrolux

Electrolux ESL 66010 Manuel utilisateur

Electrolux

Electrolux GA55GLV Manuel utilisateur

Electrolux

Electrolux 9JEDQU Manuel utilisateur

Electrolux

Electrolux EEC87315L Manuel utilisateur

Electrolux

Electrolux GA556IFWE Manuel utilisateur

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Manuel utilisateur

Electrolux

Electrolux EIDW6305GB - Semi-Integrated Dishwasher Manuel utilisateur

Electrolux

Electrolux EIDW6105GS - Fully Integrated Dishwasher Guide de l'utilisateur

Electrolux

Electrolux ESI 66010 Manuel utilisateur

Electrolux

Electrolux Zanussi DE 6854 Manuel utilisateur

Electrolux

Electrolux ESL 5201LO Manuel utilisateur

Electrolux

Electrolux ESF 6120 Manuel utilisateur

Electrolux

Electrolux ESF5202LOW Manuel utilisateur

Electrolux

Electrolux ESI 6105 Manuel utilisateur

Electrolux

Electrolux 587.15362101C Manuel

Electrolux

Electrolux 506031 Manuel utilisateur

Electrolux

Electrolux EIDW5705PB Manuel utilisateur

Electrolux

Electrolux ESL 590 Manuel utilisateur

Electrolux

Electrolux EDW 1003 Manuel utilisateur

Electrolux

Electrolux ESF 65060 Manuel utilisateur

Electrolux

Electrolux ESF5201LOW Manuel utilisateur

Electrolux

Electrolux ESL 424 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
