CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMMES................................................................................................. 7

6. SETTINGS..........................................................................................................8

7. BEFORE FIRST USE....................................................................................... 10

8. DAILY USE.......................................................................................................12

9. HINTS AND TIPS............................................................................................. 13

10. CARE AND CLEANING..................................................................................14

11. TROUBLESHOOTING....................................................................................16

12. PRODUCT INFORMATION SHEET ..............................................................19

13. ADDITIONAL TECHNICAL INFORMATION...................................................20

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Follow the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

www.electrolux.com4

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance is fitted with a 13 A

mains plug. If it is necessary to

change the mains plug fuse, use only

a 13 A ASTA (BS 1362) fuse (UK and

Ireland only).

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Dishwasher detergents are

dangerous. Follow the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• Do not sit or stand on the open door

of the appliance.

• The appliance can release hot steam

if you open the door while a

programme operates.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

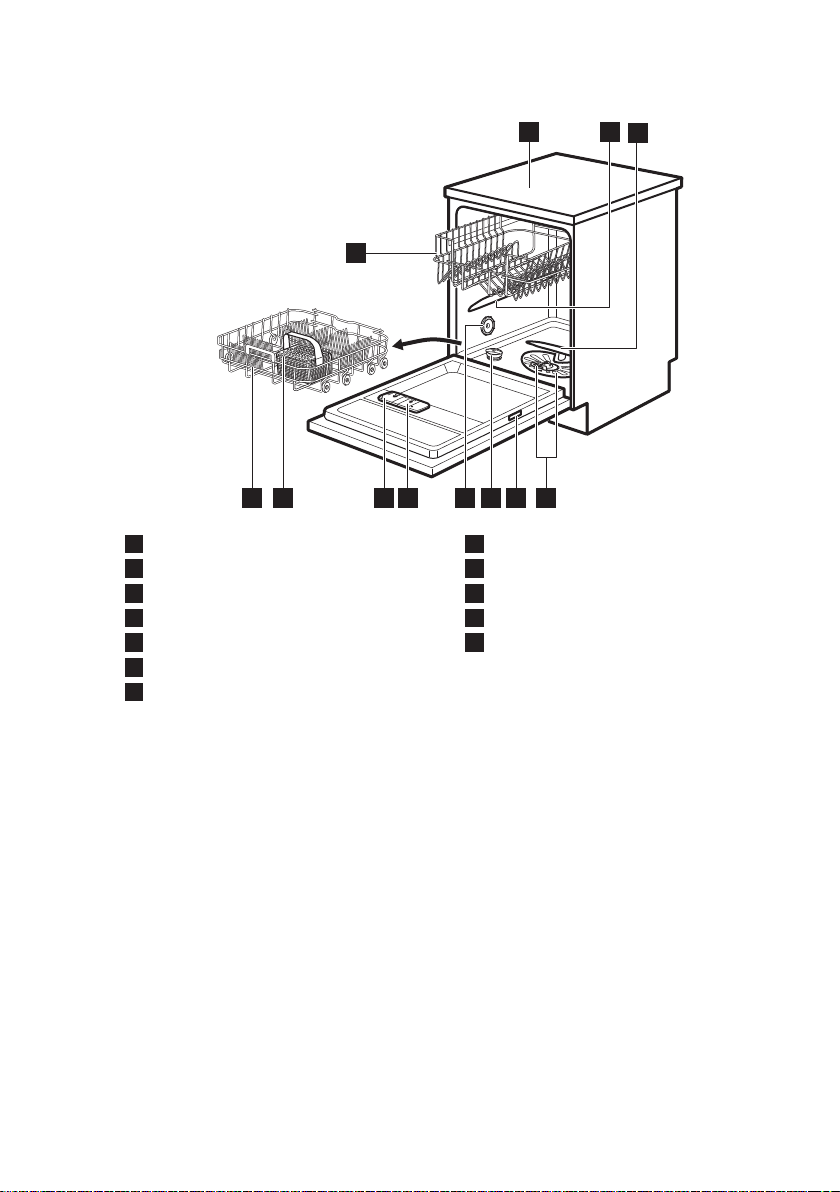

10 9

11 67

1Worktop

2Upper spray arm

3Lower spray arm

4Filters

5Rating plate

6Salt container

7Air vent

8Rinse aid dispenser

9Detergent dispenser

10 Cutlery basket

11 Lower basket

12 Upper basket

www.electrolux.com6

4. CONTROL PANEL

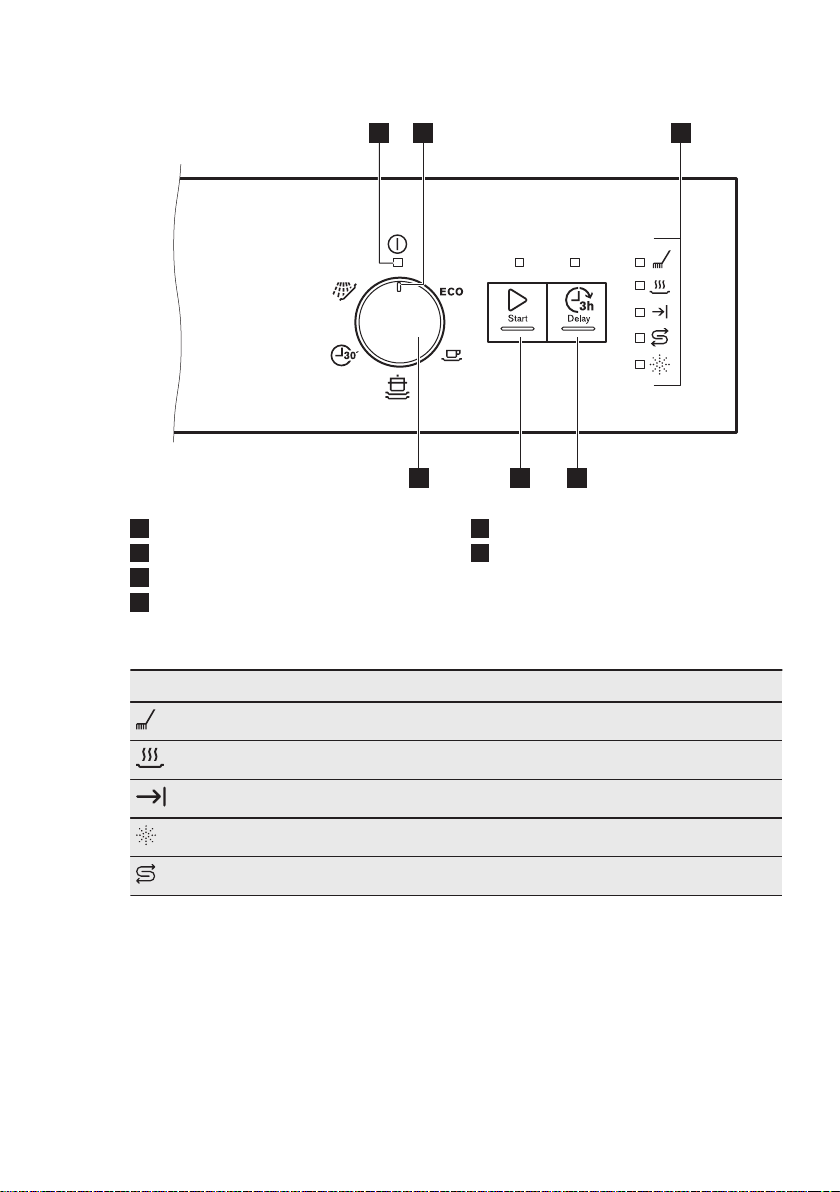

1 2 3

456

1On/off indicator

2Programme marker

3Indicators

4Delay button

5Start button

6Programme knob

4.1 Indicators

Indicator Description

Washing phase. It comes on when the washing phase operates.

Drying phase. It comes on when the drying phase operates.

End indicator.

Rinse aid indicator. It is always off while the programme operates.

Salt indicator. It is always off while the programme operates.

5. PROGRAMMES

The order of the programmes in the table

may not reflect their sequence on the

control panel.

ENGLISH 7

Programme Degree of soil

Type of load Programme

phases Consumption values

Duration

(min) Energy

(kWh) Water

(l)

2) Normal soil

Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

227 1.039 11

Heavy soil

Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

155 - 170 1.5 - 1.7 14 - 15

Normal soil

Crockery and

cutlery

• Prewash

• Wash 65 °C

• Rinses

• Dry

130 - 140 1.4 - 1.6 15 - 17

3) Fresh soil

Crockery and

cutlery

• Wash 60 °C

or 65 °C

• Rinses

30 0.8 10

4) All • Prewash 14 0.1 5

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

2) This programme offers the most efficient use of water and energy consumption for crock‐

ery and cutlery with normal soil. This is the standard programme for test institutes.

3) This programme is suitable for washing a load or a half load with fresh or light soil in a

short time.

4) With this programme, you can quickly rinse off food remains from dishes and prevent

odours forming in the appliance. Do not use detergent with this programme.

5.1 Information for test

institutes

To receive the necessary information for

conducting performance tests (e.g.

according to EN60436), send an email

to:

[email protected]

In your request please include the

product number code (PNC) found on

the rating plate.

For any other questions regarding your

dishwasher please refer to the service

book provided with your appliance.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of AirDry.

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

www.electrolux.com8

How to set the programme

selection mode

The appliance is in programme selection

mode when the on/off indicator is on and

Start indicator flashes.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold simultaneously Start and

Delay until the appliance is in

programme selection mode.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a negative effect on the washing results

and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Softening hard water

increases the consumption

of water and energy as well

as the programme duration.

The higher the level of water

softener, the higher the

consumption and the longer

the duration.

Water hardness

German de‐

grees (°dH) French de‐

grees (°fH) mmol / l Clarke de‐

grees Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Regardless of the type of detergent

used, set the proper water hardness

level to keep the salt refill indicator

active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

How to set the water softener

level

The appliance must be in programme

selection mode.

ENGLISH 9

1. Make sure that the programme

marker on the knob is in on/off

position.

2. To enter the user mode, press and

hold Delay. At the same time turn the

knob counterclockwise until the

programme marker indicates the first

programme. Release the Delay when

the indicators Start and on/off start

flashing.

• The intermittent flashing of

shows the current setting, e.g. 5

flashes + pause + 5 flashes =

level 5.

3. Press Delay repeatedly to change

the setting. Each pressing of Delay

increases the level number. After

reaching level 10, the count starts

again from level 1.

4. To confirm the setting, turn the

programme knob until the

programme marker is again in on/off

position

6.3 AirDry

AirDry improves the drying results with

less energy consumption.

During the drying phase, the

door opens automatically

and remains ajar.

CAUTION!

Do not try to close the

appliance door within 2

minutes after automatic

opening. This can cause

damage to the appliance.

AirDry is automatically activated with all

programmes excluding (if

applicable).

CAUTION!

If children have access to

the appliance, it is advised to

deactivate AirDry as opening

the door may pose a danger.

How to deactivate AirDry

The appliance must be in programme

selection mode.

Make sure that the programme marker

on the knob is set to on/off position.

1. To enter the user mode, press and

hold Delay. At the same time turn the

knob counterclockwise until the

programme marker indicates the first

programme. Release Delay when the

indicators Start and on/off start

flashing.

2. Turn the knob counterclockwise until

the programme marker indicates the

second programme.

• The indicator shows the

current setting: on = AirDry is

activated.

3. Press Delay to change the setting.

• If the indicator is off = AirDry

is deactivated.

4. To confirm the setting, keep turning

the programme knob until the

programme marker is back in the

on/off position.

7. BEFORE FIRST USE

1. Make sure that the current level of

the water softener agrees with the

hardness of the water supply. If

not, adjust the level of the water

softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be

inside the appliance. Do not use

www.electrolux.com10

Table des matières

Langues :

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESI5530LOW Manuel utilisateur

Electrolux

Electrolux FAVORIT 99020 I Manuel utilisateur

Electrolux

Electrolux ESI 65010 Manuel utilisateur

Electrolux

Electrolux ESF5521LOX Manuel utilisateur

Electrolux

Electrolux ESF2430 Manuel utilisateur

Electrolux

Electrolux ESL4111 Manuel utilisateur

Electrolux

Electrolux ESF66730 Manuel utilisateur

Electrolux

Electrolux ESF65052 Manuel utilisateur

Electrolux

Electrolux ESF 640 Mode d’emploi

Electrolux

Electrolux ESF 4131 Manuel utilisateur

Electrolux

Electrolux ESL2400RO Manuel utilisateur

Electrolux

Electrolux ESC68300SX Manuel utilisateur

Electrolux

Electrolux WTU40 Manuel utilisateur

Electrolux

Electrolux EEG67415L Manuel utilisateur

Electrolux

Electrolux ESF 66840 Manuel utilisateur

Electrolux

Electrolux BW3000 Mode d’emploi

Electrolux

Electrolux EIDW6405HT - Fully Integrated Dishwasher Manuel utilisateur

Electrolux

Electrolux ESI 67050 Manuel utilisateur

Electrolux

Electrolux ESL 8330RO Manuel utilisateur

Electrolux

Electrolux TRICITY BENDIX TDF 221 Manuel utilisateur

Electrolux

Electrolux FAVORIT 44010 VIL Manuel utilisateur

Electrolux

Electrolux GA60GLISWE Manuel utilisateur

Electrolux

Electrolux ESF 7530ROW Manuel utilisateur

Electrolux

Electrolux GA60LVCN Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
