Electrolux EIDW5905J S Manuel utilisateur
Dishwashers
EIDW5905J S, EIDW5905J W, EIDW5905J B
24" BUILT-IN DISHWASHERS
Features
Stainless Steel Interior
Signature Soft-Arc Door and Handle Design
Luxury-Hold™Door
IQ-Touch™Electronic Controls
Fully Integrated Control Panel
Tall Tub Design
SmartSoil™Sensor
Luxury-Quiet™Sound Package
Sound Level
Wash Levels
AquaLux™Wash System
Luxury-Dry™System
Adjustable Rinse Aid Dispenser with Indicator
ENERGY STAR®
Reclaimable
Cycles
Auto Wash
Heavy
Normal
Favorite
Quick
Rinse Only
Options
Hi-Temp. Wash
Air Dry
NSF®Certified Sanitize Option
Delay Start (Hours)
Rack System
Nylon Rack System
Luxury-Glide®Nylon Upper Rack –
Adjustable Height
Cup Shelf/Stemware Holder
Fold-Down Tines
Rack Handle
Luxury-Glide®Nylon Lower Rack –
Fold-Down Tines
Silverware Basket
Specifications
Color –
Stainless Steel
White
Black
Product Dimensions –
Height (Adjustable*)
Width
Depth (to Center of Arc)
(with 90° Door Open)
Power Supply Location
Water Inlet Location
Water Useage (Gallons) – Normal Cycle
Water Pressure (PSI)
Integral Air Gap on Supply
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Amps@120 Volts
Shipping Weight (Approx.)
*Height only adjustable to 34-11/16" max. when installed in 35" max. standard cabinetry cutout
to allow for 5/16" min. clearance.
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric & plumbing codes. Meets requirements of ASSE 1006.
Refer to Product Installation Guide for detailed installation instructions on the web at
www.electroluxappliances.com.
Specifications subject to change.
Eco-Friendly Stainless Steel Interior
Introducing the first 100% reclaimable stainless
steel dishwasher tub. The tub can be repurposed
when its useful life as a dishwasher is complete–
rather than sitting in a landfill.
Luxury-Quiet™Dishwasher1
So quiet you can run it whenever you want
and no one will notice.
ENERGY STAR®
ENERGY STAR®-Qualified means at least
41% less energy is used2
.
IQ-Touch™Controls
For those who like to have their options always
visible on the IQ-Touch™control panel.
electroluxappliances.com
1Based on published MSRP and specifications. Available on select models.
2Than the federal minimum standard for energy consumption.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
50dB
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2,4,6
Yes
2-Way
2/Yes
2 Rows
Yes
2 Rows
3-Piece Split
S
W
B
33-7/8" – 34-7/8"*
23-3/4"
24-5/8"
49-7/8"
Right Bottom Front
Left Bottom Front
4.9 – 8.5
15 – 120
Yes
120V/60Hz/15A
1.44
9
91 Lbs.
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers Dishwashers /
Kitchen Cleanup
Dishwashers
EIDW5905J S, EIDW5905J W, EIDW5905J B
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EIDW5905J 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Built-In Dishwasher Specifications
•
Product Weight – 75 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.44kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @120V = 9 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006.
•
Water Pressure – Hot water line to dishwasher must provide between
15 and 120 pounds per square inch (psi).
•
Make sure location has right drain, water and electrical outlets to make
connections.
•
Keep back free of drain, water & electrical supply.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Connections preferably located toward left side of dishwasher. Do not
cross drain, water or electrical lines in front of motor, blower or frame.
•
Minimum clearance of 5/16" required from unit to underside of countertop.
•
Leveling legs supplied to adjust height. (Note: Height only adjustable to
34-11/16" max. when installed in 35" max. standard cabinetry cutout to
allow for 5/16" min. clearance.)
•
When installing adjacent to wall, cabinet or other obstruction that extends
beyond front edge of unit, allow 2" minimum clearance between opened
door and obstruction.
•
When installing at end of cabinet line, sides must be fully enclosed.
•
Do not install unit under a cooktop, damage may occur.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Meets
requirements of
ASSE 1006
General Installation Guidelines
with Side-by-Side Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_SSR EL 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

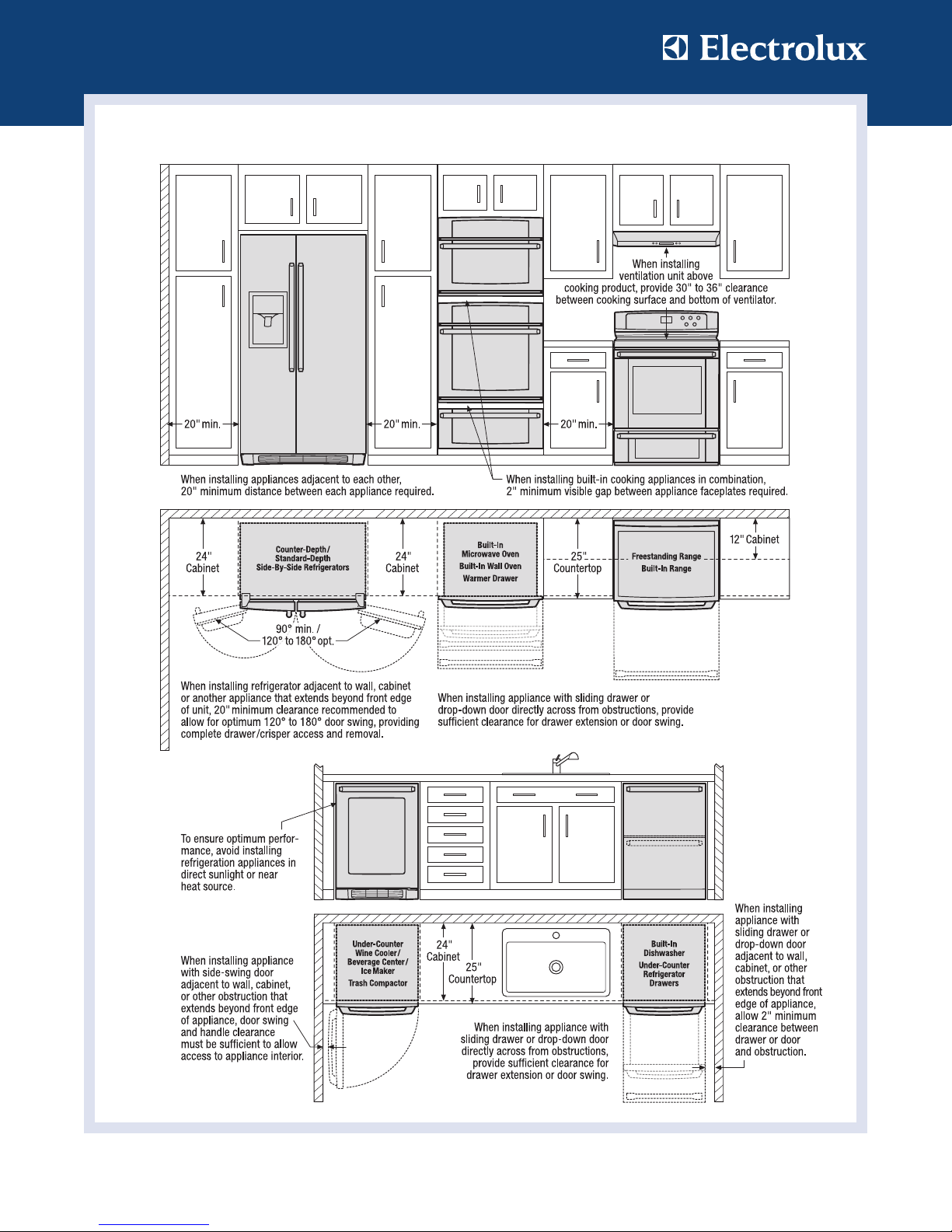

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
