1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance
and understand the potential hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
•Do not keep the appliance door open without
supervision to prevent to fall on it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
www.electrolux.com4
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Service
• Contact the Authorised Service
Centre to repair the appliance. We
recommend only the use of original
spare parts.
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5
3. PRODUCT DESCRIPTION
54
8
10 9
11 67
12
23
1
1Worktop
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
www.electrolux.com6
4. CONTROL PANEL
1 2 3
456
1On/off indicator
2Programme marker
3Indicators
4Delay button
5Start button
6Programme knob
4.1 Indicators
Indicator Description
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
ENGLISH 7
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme
phases
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.039 11
3) Heavy soil
Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
150 - 170 1.5 - 1.6 13 - 15
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
120 - 130 1.3 - 1.6 15 - 17
4) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.8 9
5) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3) This programme has a high temperature rising phase for better hygiene results. During
the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
5) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance. Do not use detergent with
this programme.
5.1 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
www.electrolux.com8
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the on/off indicator comes on
and start indicator starts to flash.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold simultaneously Start and
Delay until the appliance is in
programme selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
ENGLISH 9
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. Make sure that the programme
marker on the knob is aligned with
the indicator on/off .
2. To enter the user mode, press and
hold Delay. At the same time turn the
knob counterclockwise until the
programme marker is aligned with
the first programme. Release Delay
when the indicators Start and on/off
start to flash.
3. Press Delay.
• The indicator starts to flash.
• The indicators Start and on/off
continue to flash.
• The intermittent flashing of
refers to the current set level, e.g.
5 flashes + pause + 5 flashes =
level 5.
4. Press Delay again and again to
change the setting. Each time you
press Delay the level number
increases. After level 10 you will start
again from level 1.
5. Turn knob to on/off position to
confirm the setting.
7. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener.
It seems that the appliance is not
working. The washing phase starts only
after this procedure is completed. The
procedure will be repeated periodically.
7.1 The salt container
CAUTION!
Only use salt specifically
designed for dishwashers.
The salt is used to recharge the resin in
the water softener and to assure good
washing results in the daily use.

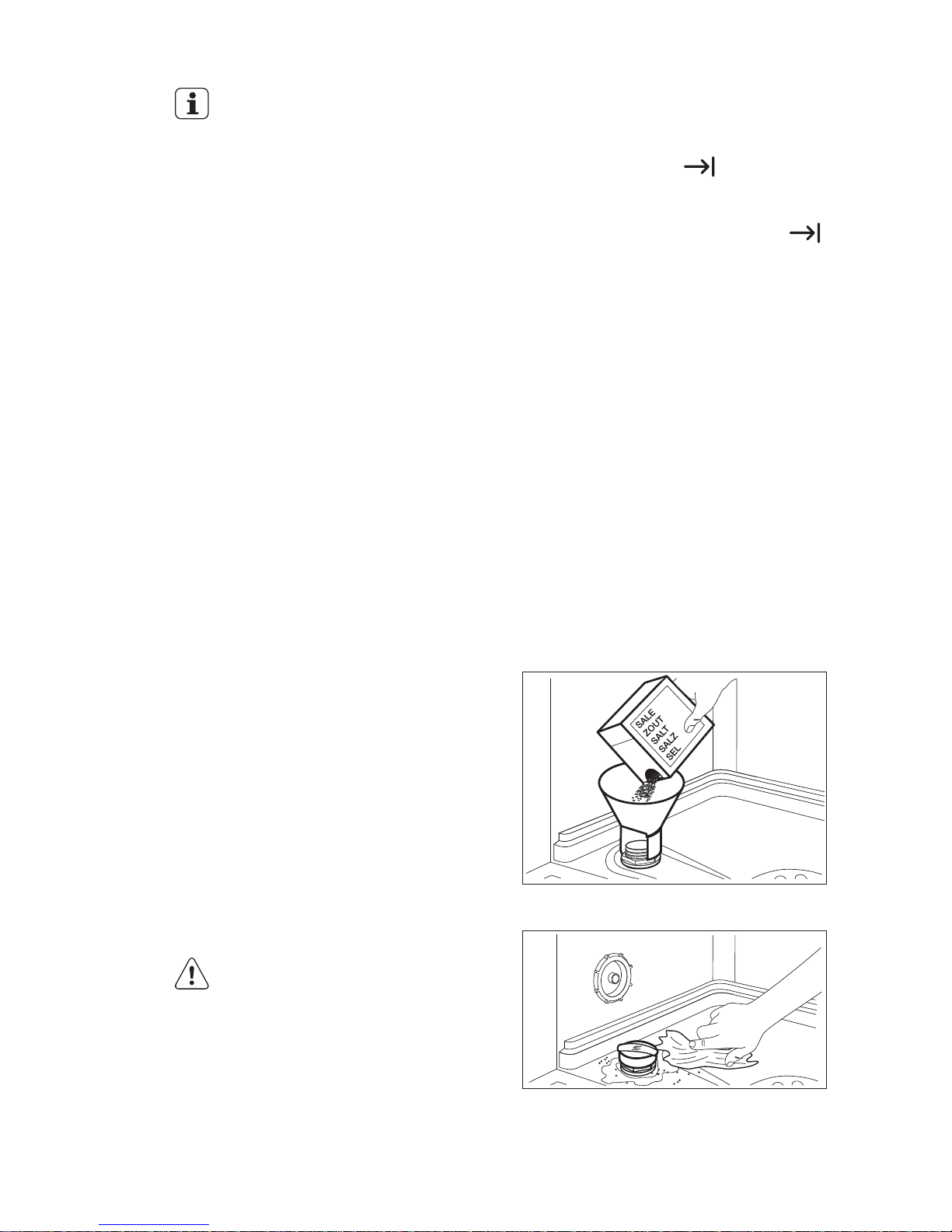

How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt
container (Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening
of the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
www.electrolux.com10
Autres manuels pour ESF5201LOW
1
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Electrolux Lave-vaisselle
Electrolux
Electrolux 534182 Manuel utilisateur
Electrolux
Electrolux ESF 63012 Manuel utilisateur
Electrolux
Electrolux EDW7505HPS0A Manuel utilisateur
Electrolux
Electrolux ESL 6100 Manuel utilisateur
Electrolux
Electrolux TRICITY BENDIX DH 102 Manuel utilisateur
Electrolux
Electrolux ESL 63010 Manuel utilisateur
Electrolux
Electrolux ESF 68040 Manuel utilisateur
Electrolux
Electrolux ESF97400ROX Manuel utilisateur
Electrolux
Electrolux ESF632 Manuel utilisateur
Electrolux
Electrolux ESL6350LO Manuel utilisateur
Electrolux
Electrolux EIDW5905J S Manuel utilisateur
Electrolux
Electrolux EL1 Series Manuel utilisateur
Electrolux
Electrolux ESF 2440 Manuel utilisateur
Electrolux
Electrolux ESF 4150 Manuel utilisateur
Electrolux
Electrolux EES48400L Manuel utilisateur
Electrolux
Electrolux ESL2500RO Manuel utilisateur
Electrolux
Electrolux Athur Martin ASI67050 Manuel utilisateur
Electrolux
Electrolux ESL 65070R Manuel utilisateur
Electrolux
Electrolux ESF6535LOX Manuel utilisateur
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuel utilisateur
