1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
ENGLISH 3
•Do not keep the appliance door open without
supervision to prevent to fall on it.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Obey the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA
(BS 1362).
2.3 Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
• The water inlet hose has a safety valve
and a sheath with an inner mains
cable.
www.electrolux.com4
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace
the water inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

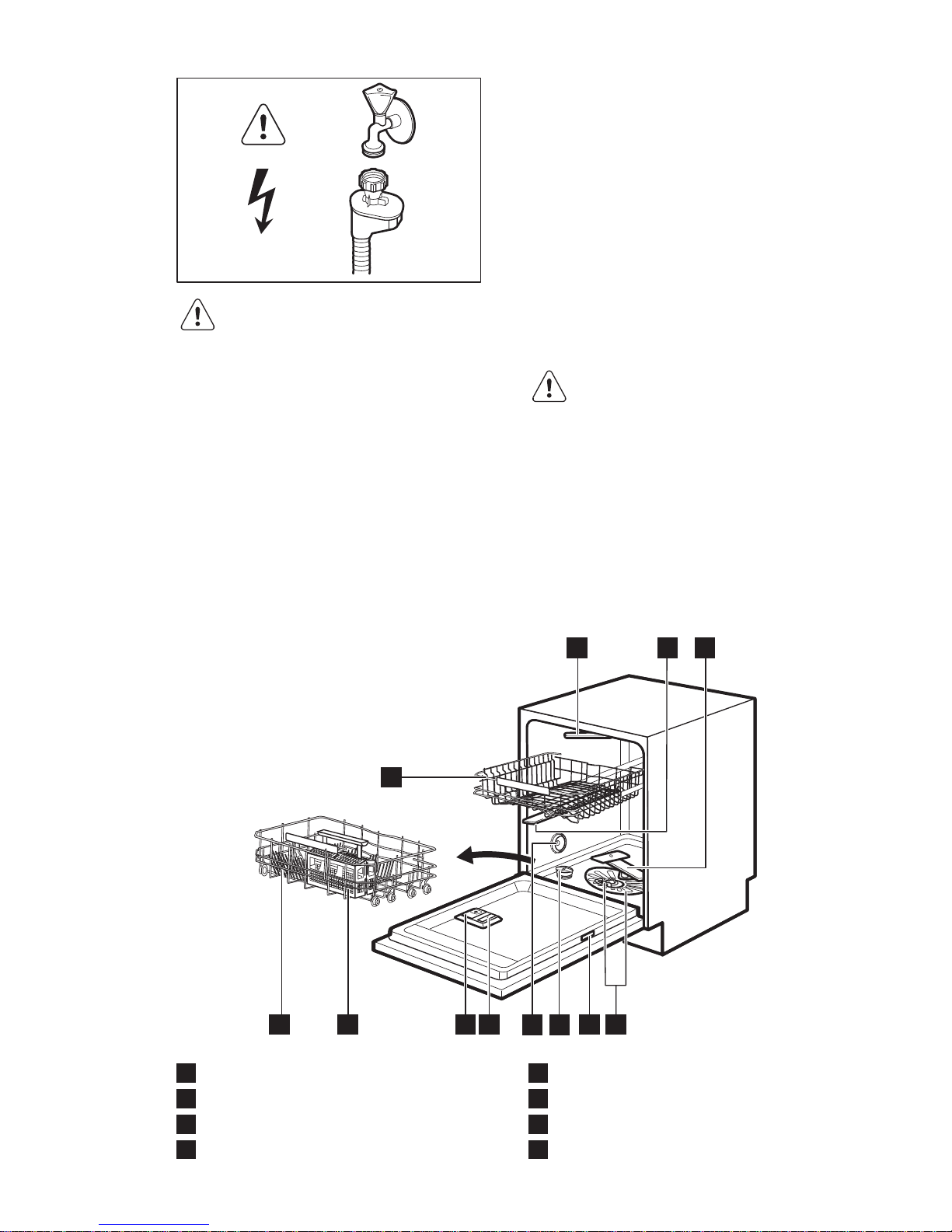

3. PRODUCT DESCRIPTION
54
67
9 8
12
23
1
11 10
1Top spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
ENGLISH 5
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
3.1 Beam-on-Floor
The Beam-on-Floor is a light that shows
on the kitchen floor below the appliance
door.
• When the programme starts, a red light
comes on and stays on for all the
duration of the programme.
• When the programme is completed, a
green light comes on.
• When the appliance has a malfunction,
the red light flashes.
The Beam-on-Floor goes off
when the appliance is
deactivated.
4. CONTROL PANEL
1 2 83 4 5 6 7 9
1On/off button
2Display
3Delay button
4Program button
5MyFavourite button
6TimeSaver button
7XtraDry button
8Reset button
9Indicators
4.1 Indicators
Indicator Description
End indicator.
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
www.electrolux.com6
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
ECO 1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• TimeSaver
P2
AUTO 2)
• All
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash from 45 °C to
70 °C
• Rinses
• Dry
P3
70° Pro 3)
• Heavy soil
• Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• TimeSaver
P4
45° Gläser
• Normal or light
soil
• Delicate crock-
ery and glass-
ware
• Wash 45 °C
• Rinses
• Dry
P5
30 Minuten 4)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinses
P6
Extra SILENT 5)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
1) With this programme you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto-
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) This programme has a high temperature rinsing phase for better hygiene results. During the
rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
5) This is the most silent programme. The pump works at a very low speed to decrease the
level of noise. Because of the low speed, the programme duration is long.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1
ECO
10.2 0.932 225
ENGLISH 7
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P2
AUTO
7 - 14 0.6 - 1.4 40 - 150
P3
70° Pro
12.5 - 14.5 1.4 - 1.6 154 - 164
P4
45° Gläser
12 - 14 0.7 - 0.9 75 - 85
P5
30 Minuten
10 0.9 30
P6
Extra SILENT
9 - 10 1.0 - 1.2 219 - 229
1) The pressure and the temperature of the water, the variations of the mains supply, the op-
tions and the quantity of dishes can change the values.
5.2 Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
• The activation or deactivation of the
rinse aid dispenser.
• The level of rinse aid according to the
required dosage.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
When you activate the appliance, usually it
is in programme selection mode.
However, if this does not happen, you can
set the programme selection mode in the
following way:
Press and hold Reset until the appliance
is in programme selection mode.
6.2 The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
www.electrolux.com8
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German de-
grees (°dH)
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
If you use multi-tablets containing salt and
the hardness of your water is lower than
21dH, you can set the lowest water
softener level. It deactivates the salt refill
indicator.
If you use standard detergent or
multi-tablets without salt, set the
proper water hardness level to keep
the salt refill indicator active.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , and
start to flash and the display is blank.
2. Press .
•The indicators , and go
off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 5.
3. Press again and again to change
the setting.
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
You can set the released quantity of rinse
aid between level 1 (minimum quantity)
and level 6 (maximum quantity). Level 0
will deactivate the rinse aid dispenser and
no rinse aid will be released.
Factory setting: level 4.
ENGLISH 9
How to set the rinse aid level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , and
start to flash and the display is blank.
2. Press .
• The indicators , and go
off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 4.
– The levels of rinse aid are from
0A to 6A.
– Level 0 = no rinse aid is
released.
3. Press again and again to change
the setting.
4. Press the on/off button to confirm the
setting.
6.4 The rinse aid empty
notification
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying to
refill rinse aid. If you are using multi-tabs
containing rinse aid and you are satisfied
with the drying result, you can deactivate
the notification for refilling rinse aid.
However, we recommend that you always
use rinse aid for best drying performance.
If you use standard detergent or multi-
tablets without rinse aid, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid
dispenser
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , and
start to flash and the display is blank.
2. Press .
• The indicators , and go
off.
• The indicator continues to
flash.
• The display shows the current
setting: = the rinse aid
dispenser is activated (factory
setting).
3. Press to change the setting.
= the rinse aid dispenser is
deactivated.
4. Press the on/off button to confirm the
setting.
6.5 MyFavourite
With this option you can set and save the
programme that you use more frequently.
You can only save 1 programme. A new
setting cancels the previous one.
How to save the MyFavourite
programme
1. Set the programme that you want to
save
You can also set applicable options
together with the programme.
2. Press and hold until the related
indicator comes on with fixed light.
How to set the MyFavourite
programme
Press .
• The indicators that are related to
the MyFavourite programme and
options come on.
• The display shows the number and
the duration of the programme.
6.6 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
www.electrolux.com10
Autres manuels pour GA60LVCN
1
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Electrolux Lave-vaisselle
Electrolux
Electrolux ESF 6162 Manuel utilisateur
Electrolux
Electrolux Athur Martin ASI67050 Manuel utilisateur
Electrolux
Electrolux ESF5511LOX Manuel utilisateur
Electrolux
Electrolux ESF 475 Guide rapide
Electrolux
Electrolux EDW 1003 Manuel utilisateur
Electrolux
Electrolux ESL 2435 Manuel utilisateur
Electrolux
Electrolux ESF 46010 Manuel utilisateur
Electrolux
Electrolux FAVORIT 60850 Vi Manuel d'utilisation
Electrolux
Electrolux ESL 4125 Manuel utilisateur
Electrolux
Electrolux FAVORIT 44410 VI Manuel utilisateur
Electrolux
Electrolux ESF6121 Manuel utilisateur
Electrolux
Electrolux ESI5211LOX Manuel utilisateur
Electrolux
Electrolux KEAF7100L Manuel utilisateur
Electrolux
Electrolux ESL4500LO Manuel utilisateur
Electrolux
Electrolux Zanussi Professional NUC1WS Manuel utilisateur
Electrolux
Electrolux EEQ47200L Manuel utilisateur
Electrolux
Electrolux ESL64010 Manuel utilisateur
Electrolux
Electrolux BW295 Mode d’emploi
Electrolux
Electrolux GA55GLVSW Manuel utilisateur
Electrolux
Electrolux ESL5310LO Manuel utilisateur
