Electrolux ESF4510LOX Manuel utilisateur
ESF4510LOX
EN Dishwasher User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 5
4. CONTROL PANEL ............................................................................................ 6
5. PROGRAMMES................................................................................................. 7
6. SETTINGS..........................................................................................................8
7. OPTIONS..........................................................................................................11
8. BEFORE FIRST USE....................................................................................... 11
9. DAILY USE....................................................................................................... 12
10. HINTS AND TIPS........................................................................................... 14
11. CARE AND CLEANING..................................................................................16
12. TROUBLESHOOTING....................................................................................17
13. TECHNICAL INFORMATION......................................................................... 21
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 9 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
ENGLISH 3
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
•Do not keep the appliance door open without
supervision to prevent to fall on it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
www.electrolux.com4
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

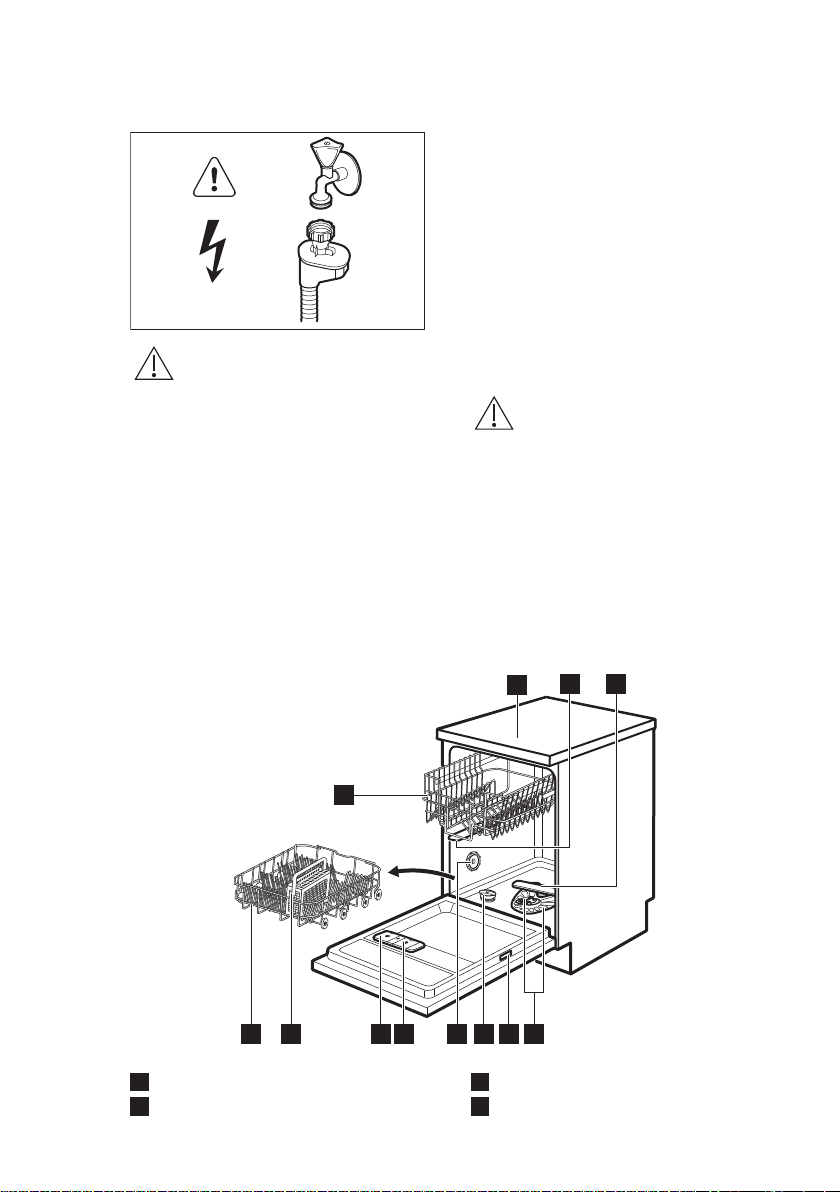

3. PRODUCT DESCRIPTION
54
8
10 9
11 67
12
23
1
1Worktop
2Upper spray arm
3Lower spray arm
4Filters
ENGLISH 5
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
4. CONTROL PANEL
Program Delay
Start
Option
Auto Off Multitab MyFavourite
3 sec
Save
MyFavourite
Reset
Rinse & Hold
AutoFlex
45º-70º 50º
1 Hour
Intensive
70º
50º
Quick Plus
60º
EnergySaver
1
23 5
78 6
4
1On/off button
2Program button
3Programme indicators
4Display
5Delay button
6Start button
7Indicators
8Option button
4.1 Indicators
Indicator Description
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
Multitab indicator.
Rinse aid indicator. It is always off while the programme operates.
www.electrolux.com6
Indicator Description
Salt indicator. It is always off while the programme operates.
EnergySaver indicator.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme pha‐
ses
Options
1) • Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• EnergySaver
• Multitab
2) • All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C
to 70 °C
• Rinses
• Dry
• EnergySaver
• Multitab
• Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• EnergySaver
• Multitab
• Light soil
• Crockery and
cutlery
• Wash 50 °C or
55 °C
• Rinses
• Multitab
3) • Fresh soil
• Crockery and
cutlery
• Wash 60 °C or
65 °C
• Rinses
• Multitab
4) • All • Prewash
1) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
ENGLISH 7
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
9.5 0.789 225
6 - 11 0.5 - 1.2 40 - 140
11 - 13 1.0 - 1.2 130 - 150
7 - 8 0.9 - 1.0 50 - 60
8 0.8 30
4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
5.2 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of
the acoustic signal for end of
programme.
• The activation or deactivation of the
rinse aid dispenser when you want to
use the Multitab option without rinse
aid.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
is on and the display shows the
programme duration.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold simultaneously Program
and Option until the appliance is in
programme selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
www.electrolux.com8
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously Delay and Start
until the indicators ,
and start to flash and
the display is blank.
2. Press Program.
• The indicators and
go off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 5.
3. Press Program again and again to
change the setting.
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
Use of rinse aid and multi-
tablets
When you activate the option Multitab,
the rinse aid dispenser continues to
release rinse aid. However you can
deactivate the rinse aid dispenser. In this
ENGLISH 9
case the drying results may not be
satisfactory.
With the rinse aid dispenser deactivated,
the rinse aid indicator is always off.
How to deactivate the rinse aid
dispenser
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously Delay and Start
until the indicators ,
and start to flash and
the display is blank.
2. Press Option.
• The indicators and go
off.
• The indicator
continues to flash.
• The display shows the current
setting.
– = rinse aid dispenser
activated.
– = rinse aid dispenser
deactivated.
3. Press Option to change the setting.
4. Press the on/off button to confirm the
setting.
6.4 Acoustic signals
Acoustic signals sound when a
malfunction of the appliance occurs. It is
not possible to deactivate these acoustic
signals.
There is also an acoustic signal that
sounds when the programme is
completed. By default this acoustic signal
is deactivated but it is possible to
activate it.
How to activate the acoustic
signal for the end of
programme
The appliance must be in programme
selection mode.
1. To enter the user mode press and
hold simultaneously Delay and Start
until the indicators ,
and start to flash and
the display is blank.
2. Press Delay
• The indicators and
go off.
• The indicator continues to
flash.
• The display shows the current
setting:
– = Acoustic signal off.
– = Acoustic signal on.
3. Press Delay to change the setting.
4. Press the on/off button to confirm the
setting.
6.5 MyFavourite
With this option you can set and save the
programme that you use more
frequently.
You can only save 1 programme. A new
setting cancels the previous one.
How to save the MyFavourite
programme
1. Set the programme that you want to
save
You can also set applicable options
together with the programme.
2. Press and hold simultaneously
Program and Delay until the
indicators of the programme and the
options flash for a few seconds.
How to set the MyFavourite
programme
Press and hold Program until the
indicators that are related to the
MyFavourite programme and options
come on.
The display shows the duration of the
programme.
www.electrolux.com10
Autres manuels pour ESF4510LOX
1
Table des matières
Autres manuels Electrolux Lave-vaisselle
Electrolux
Electrolux DIVA Manuel utilisateur
Electrolux
Electrolux ESS47300SW Manuel utilisateur
Electrolux
Electrolux ESF6210LOK Manuel utilisateur
Electrolux
Electrolux ESF7552ROW Manuel utilisateur
Electrolux
Electrolux ESL 6610RO Manuel utilisateur
Electrolux
Electrolux WT30E Manuel utilisateur
Electrolux
Electrolux ESL5310LO Manuel utilisateur
Electrolux
Electrolux BW295 Mode d’emploi
Electrolux
Electrolux Zanussi DE 6854 Manuel utilisateur
Electrolux
Electrolux ESL46510R Manuel utilisateur
Electrolux
Electrolux GA60LI220 Manuel utilisateur
Electrolux
Electrolux ESF 66840 Manuel utilisateur
Electrolux
Electrolux GA60SLI222 Manuel utilisateur
Electrolux
Electrolux EUCAIML Manuel utilisateur
Electrolux
Electrolux ESL 4115 Manuel utilisateur
Electrolux
Electrolux ESL 5201LO Manuel utilisateur
Electrolux
Electrolux ESF63030 Manuel utilisateur
Electrolux
Electrolux FAVORIT 44010 VI Manuel utilisateur
Electrolux
Electrolux E24ID74QPS0A Manuel utilisateur
Electrolux
Electrolux ASF66850 Manuel utilisateur
